  2. 401 Series Air Slide Valve (8401), 1/4" NPT, 120 VAC, Engineered Plastic, 4 Way

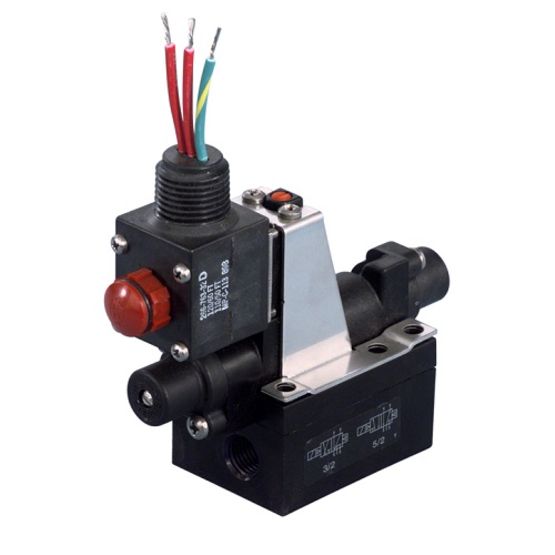

Representative photo. Please check item description for details.

401 Series Air Slide Valve (8401), 1/4" NPT, 120 VAC, Engineered Plastic, 4 Way

https://www.branom.com/web/image/product.template/272526/image_1920?unique=67be4db
(0 review)
Manufacturer Product Code
WT8401B202MAC120/60,110/50D 		Manufacturer
Asco LP
MADE TO ORDER
 Weight
1.9 lb(s)

Datasheet

Air Slide Valve, 1/4" NPT, 120 VAC, 4 Way

$ 1,096.13 1096.13 USD $ 1,159.93

$ 1,159.93

Not Available For Sale

  • Valve: Actuation
  • Valve: Type

This combination does not exist.

Contact Us

The ASCO Series 401, also known as 8401, is a line of pilot-operated air slide valves designed for air and inert gas service in heating equipment applications. The aluminum valves incorporate a unique sliding and sealing member that provides a durable and non-stick sealing method. Optional flow control regulates cylinder speed in either direction and permits adjustable Cv from 0.2 to 0.8.

Features

  • Body Material: Engineered Plastics
  • Flow (Cv) / Flow (Kv): 0.50 / 0.43
  • Function: 4 way
  • Pipe/Port Type & Size: NPT 1/4
  • Valve Actuation: Solenoid
  • Media: Air, Inert Gas
  • Min to Max Operating Pressure (Air): 20 - 150 PSI
  • Kit Number: 264013
  • Coil Class: FT
  • Coil Number: 266763-032-D
  • Orifice Size: 1/4 in
  • Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
  • Watt Rating: 6.3 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 1/4 X 1/4 4W NYLON 6.3/F AC:

Specifications

Valve: Actuation Solenoid
Valve: Type Automated
