  2. Wika A2G-10 Series 110 mm Differential Pressure Gauge
Representative photo. Please check item description for details.

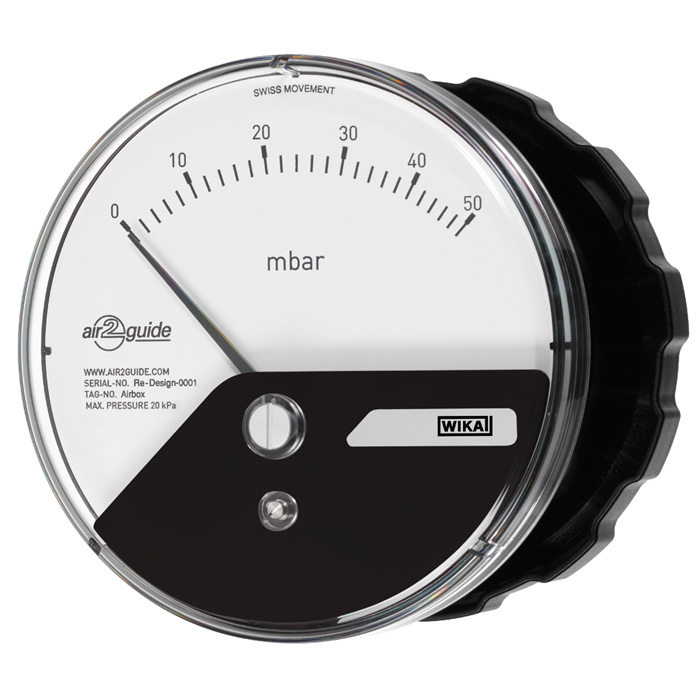

Wika A2G-10 Series 110 mm Differential Pressure Gauge

https://www.branom.com/web/image/product.template/544049/image_1920?unique=4e37151
(0 review)

Manufacturer
Wika Instrument Lp
MADE TO ORDER


Datasheet

A2G-10 Series Diff Pressure Gauge

$ 140.94 140.94 USD $ 149.14

$ 104.76

Not Available For Sale

  • Nominal Size
  • Scale Range
  • 2nd Scale
  • Case
  • Case Fixing
  • Diaphragm Material
  • Process Connection
  • Set / Drag Pointer
  • Ingress Protection
  • Dial Design
  • Segment Design
  • Serial Number on Dial
  • Certificates
  • Approvals
  • Additional Ordering Info
  • Gauge: Brand
  • Gauge: Type
  • Gauge: Model
  • Gauge: Dial Size
  • Gauge: Scale Range
  • Gauge: Pressure Type
  • Gauge: Measuring Principle
  • Gauge: Fill Type
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Size
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Process Connection Type
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Ingress Protection
  • Gauge: Ingress Protection
  • Gauge: Case Material
  • Gauge: Window

This combination does not exist.

Contact Us

The Wika AG2-10 Series Differential Pressure Gauge is an excellent solution for monitoring differential pressure across filters, ensuring precise pressure levels in ventilators, and maintaining optimal overpressure conditions in clean rooms, laboratories, and operating rooms. Its innovative design allows for quick, tool-free mounting via a threaded bezel, ensuring easy and efficient installation. The gauge features a separated construction between the measurement chamber and the display area, enhancing reliability and accuracy.


The integrated sealing element facilitates direct installation in ventilation ducts or instrument panels, making it versatile and adaptable to various setups. Available in both built-in and add-on versions, the AG2-10 series offers flexibility to meet different application needs. Additionally, the gauge allows for customization of the dial and scale, catering to specific requirements and preferences.


Branom Instrument Co. is the premier choice for acquiring the Wika AG2-10 Series Differential Pressure Gauge, offering exceptional customer service and expertise to help you find the perfect solution for your pressure monitoring needs.


Order Code Prefix: A2G-10-

Specifications

Wika A2G-10
Scale Range ￭ Pa ￭ or [DAEA] 0 Pa...100 Pa or [DADN] 0 Pa...125 Pa or [DADO] 0 Pa...150 Pa or [DADP] 0 Pa...200 Pa or [DACC] 0 Pa...250 Pa or [DADQ] 0 Pa...300 Pa or [DABD] 0 Pa...500 Pa or [DABE] 0 Pa...600 Pa or [DACD] 0 Pa...750 Pa or [DABF] 0 Pa...1000 Pa or [DACE] 0 Pa...1500 Pa or [DAEC] 0 Pa...2000 Pa or [DABH] 0 Pa...2500 Pa or [DACF] 0 Pa...3000 Pa or [DADR] 0 Pa...3730 Pa or [DACG] 0 Pa...5000 Pa or [DABJ] 0 Pa...6000 Pa or [DABN] -50 Pa...50 Pa or [DABT] or [DADF] -62 Pa...62 Pa or [DAAZ] -100 Pa...100 Pa or [DAAY] -125 Pa...125 Pa or [DADG] -150 Pa...150 Pa or [DAAT] -250 Pa...250 Pa or [DAAQ] -300 Pa...300 Pa or [DADH] -500 Pa...500 Pa or [DADI] -750 Pa...750 Pa or [DAAL] -1000 Pa...1000 Pa or [DAAJ] -1250 Pa...1250 Pa or [DADJ] -1500 Pa...1500 Pa or ￭ kPa ￭ or [LAEA] 0 kPa...0,1 kPa or [LADA] 0 kPa...0,25 kPa or [LADB] 0 kPa...0,5 kPa or [LADC] 0 kPa...0,75 kPa or [LADD] 0 kPa...1,5 kPa or [LAEK] 0 kPa...2 kPa or [LABW] 0 kPa...2,5 kPa or [LABU] 0 kPa...1 kPa or [LADE] 0 kPa...3 kPa or [LADF] 0 kPa...6 kPa or [LAB1] -0,05 kpa...0,05 kpa or [LAEL] -0,1 kPa...0,1 kPa or [LAEM] -0,125 kPa...0,125 kPa or [LAEN] -0,15 kPa...0,15 kPa or [LAEO] -0,25 kPa...0,25 kPa or [LAEP] -0,5 kPa...0,5 kPa or [LAEQ] -0,75 kPa...0,75 kPa or [LABO] -1 kPa...1 kPa or [LAB2] -1,25 kpa...1,25 kpa or [LAER] -1,5 kPa...1,5 kPa or ￭ mbar ￭ or [MAGA] 0 mbar...1,0 mbar or [MAEG] 0 mbar...2,5 mbar or [MAFE] 0 mbar...5 mbar or [MAEI] 0 mbar...6 mbar or [MAFF] 0 mbar...7,5 mbar or [MAEJ] 0 mbar...10 mbar or [MAFG] 0 mbar...15 mbar or [MAEL] 0 mbar...20 mbar or [MAEM] 0 mbar...25 mbar or [MAEN] 0 mbar...30 mbar or [MAEQ] 0 mbar...60 mbar or [MAB2] -0,5 mbar...0,5 mbar or [MAHB] -0,62 mbar...0,62 mbar or [MAHC] -1 mbar...1 mbar or [MAEE] -1,25 mbar...1,25 mbar or [MAHD] -1,5 mbar...1,5 mbar or [MAEB] -2,5 mbar...2,5 mbar or [MADS] -5 mbar...5 mbar or [MAHE] -7,5 mbar...7,5 mbar or [MADC] -10 mbar...10 mbar or [MACY] -12,5 mbar...12,5 mbar or [MAHF] -15 m bar...15 mbar or ￭ mmWC ￭ or [UCEC] 0 mmWC...10 mmWC or [UCCO] 0 mmWC...25 mmWC or [UCCP] 0 mmWC...50 mmWC or [UCEA] 0 mmWC...75 mmWC or [UCCR] 0 mmWC...100 mmWC or [UCEB] 0 mmWC...150 mmWC or [UCCT] 0 mmWC...200 mmWC or [UCCU] 0 mmWC...250 mmWC or [UCCV] 0 mmWC...300 mmWC or [UCCZ] 0 mmWC...600 mmWC or [UCDK] -5 mmWC...5 mmWC or [UCFC] -6,2 mm...6,2 mmWC or [UCFD] -10 mmWC...10 mmWC or [UCDL] -13 mmWC...13 mmWC or [UCFE] -15 mmWC...15 mmWC or [UCCF] -25 mmWC...25 mmWC or [UCBT] -50 mmWC...50 mmWC or [UCFF] -75 mmWC...75 mmWC or [UCBK] -100 mmWC...100 mmWC or [UCBH] -125 mmWC...125 mmWC or [UCBG] -150 mmWC...150 mmWC or ￭ in.WC ￭ or [7CEA] 0 in.WC...0.4 in.WC or [7CED] 0 in.WC...0.50 in.WC or [7CER] 0 in.WC...0.6 in.WC or [7CES] 0 in.WC...0.8 in.WC or [7CDA] 0 in.WC...1 in.WC or [7CET] 0 in.WC...1.2 in.WC or [7CDB] 0 in.WC...2 in.WC or [7CD1] 0 in.WC ... 2,4 in.WC or [7CDC] 0 in.WC...3 in.WC or [7CDD] 0 in.WC...4 in.WC or [7CDG] 0 in.WC...5 in.WC or [7CAQ] 0 in.WC...6 in.WC or [7CDH] 0 in.WC...8 in.WC or [7CAR] 0 in.WC...10 in.WC or [7CDE] 0 in.WC...12 in.WC or [7CAS] 0 in.WC...15 in.WC or [7CAU] 0 in.WC...20 in.WC or [7CDF] 0 in.WC...24 in.WC or [7CBR] -0,8 in.WC...0,8 in.WC or [7CBV] -0.25 in.WC...0.25 in.WC or [7CBW] -0.4 in.WC...0.4 in.WC or [7CBO] -0,5 in.WC...0,5 in.WC or [7CBX] -0.6 in.WC...0.6 in.WC or [7CDI] -1 inWC...1 inWC or [7CDK] -1.2 in.WC...1.2 in.WC or [7CAP] -2 in.WC...2 in.WC or [7CBS] -3 in.WC...3 in.WC or [7CDJ] -4 inWC...4 inWC or [7CAO] -5 in.WC...5 in.WC or [7CAN] -6 in.WC...6 in.WC
2nd Scale [ZZ] Without or [DA] Pa or [LA] kPa or [MA] mbar or [UC] mmWC or [7C] in.WC
Case [A] Black Plastic or [Z] Without
Case Fixing [E-S] Panel Mounting With 3 Mounting Screws or [A-S] Wall Mounting With 3 Mounting Screws or [Z-S] Without
Process Connection [Z] Without or [A] 2x Angled diameter 4...6 mm (1/8"...1/4") or [C] 2x Straight diameter 4...6 mm (1/8"...1/4") or [I] 2x Screw Fitting w/Connection Thread G 1/8 for Pipes 6.35 mm (1/4") or [K] 2x Combi Tube Connection w/Connection Thread G 1/8 for Inner Tube Diameter = 4...7 or [M] 2x Angular + 2x Straight, Device Side G 1/8, for Pipe Diameter 4…6 mm (1/8"...1/4")
Set / Drag Pointer [Z] Without or [R] Externally Adjustable Red Set Pointer on Window
Ingress Protection [F-S] IP 54 or [I-S] IP 65
Segment Design [S] Standard Air2Guide or [A] Made In Switzerland
Nominal Size 110 mm
Diaphragm Material [S] Standard Silicon Diaphragm
Dial Design [S] Standard Air2Guide
Serial Number on Dial [1] With Serial Number
Certificates [Z] Without
Approvals [Z] Without
Additional Ordering Info [Z2G] Without
Gauge Features
Gauge: Brand Wika
Gauge: Type Dial Indicating Gauge
Gauge: Model A2G-10
Gauge: Dial Size 4-1/2 in (110 & 115 mm)
Gauge: Scale Range < 6 In.H2O (16 mbar)
Gauge: Pressure Type Differential Pressure
Gauge: Measuring Principle Other
Gauge: Fill Type Dry
Gauge: Product Unit of Measure Pa, kPa, mbar, mmWC, in.WC
Gauge: Process Connection Size G 1/8 Female
Gauge: Process Connection Location Back Mount, Panel Mount, Wall Mount
Gauge: Process Connection Type 2-Way (2 x)
Gauge: Accuracy ±3%, ±5%, ±10%
Gauge: Ingress Protection IP 54, IP 65
Gauge: Case Material Plastic
Gauge: Window Polycarbonate
