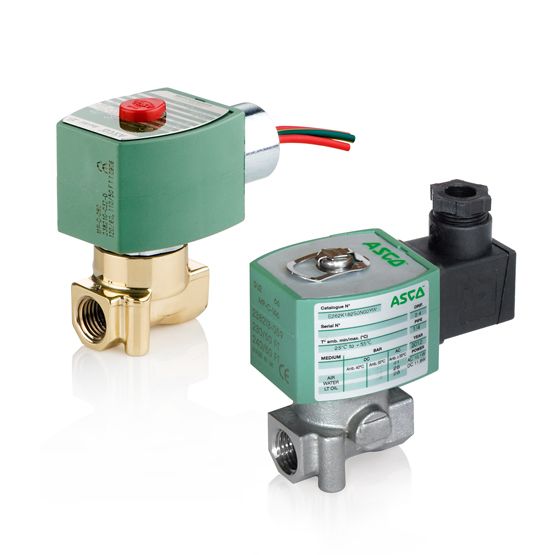

The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.
Features
- Body Material: Stainless Steel
- Flow (Cv) / Flow (Kv): 0.35 / 0.30
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Water, Light Oil
- Product Weight: 1.01 lbs
- Kit Number: 323583
- Coil Class: FT
- Coil Number: 238212-032
- Min to Max Fluid Temperature: -13 - 180 °F
- Orifice Size: 1/8 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 6.1 W
- Item Status: Active
- Carton Note: 1/4 X 1/8 2NC ST.ST. 6.1/F AC
- Seating Elastomer: NBR
- Kit Number: 323583
- Product Weight: 1.01 lb:
