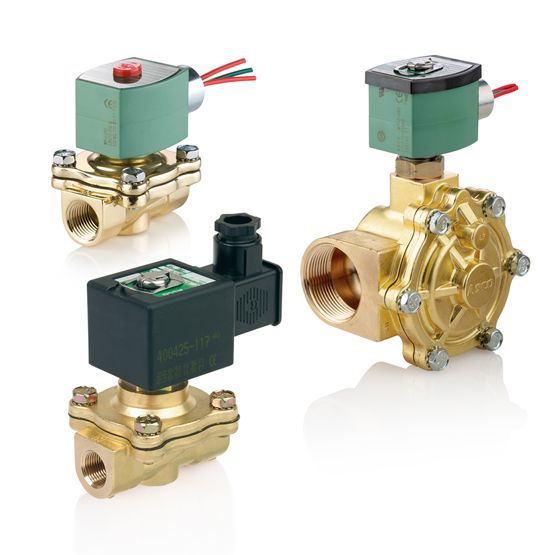

210 Series Solenoid Valve (8210), 2" NPT, 120 VAC, Brass, 2 Way-2/2 NC

https://www.branom.com/web/image/product.template/273437/image_1920?unique=0c5a98b
(0 review)
Manufacturer Product Code
SC8210G100AC120/60,110/50 		Manufacturer
Asco LP
MADE TO ORDER
 Weight
9.0 lb(s)

Datasheet Other Info

Solenoid Valve, 2" NPT, 120 VAC, Brass, 2 Way-2/2 NC

$ 1,128.64 1128.64 USD $ 1,194.33

$ 1,194.33

Not Available For Sale

  • Valve: Brand
  • Valve: Pipe Size
  • Valve: Actuation
  • Valve: Actuation
  • Valve: Body Material
  • Valve: Flow Factor (Cv)
  • Valve: Flow Factor (Cv)
  • Valve: Type
  • Valve: Pressure (psi)
  • Valve: Pressure (psi)
  • Valve: Max Temperature °F
  • Valve: Mounting Position
  • Valve: Seal Material
  • Valve: Function

This combination does not exist.

Contact Us

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

  • Body Material: Brass
  • Flow (Cv) / Flow (Kv): 43.00 / 37.19
  • Function: 2 way - 2/2 Normally Closed
  • Pipe/Port Type & Size: NPT 2
  • Valve Actuation: Solenoid
  • Media: Air, Inert Gas, Water, Light Oil
  • Min to Max Operating Pressure (Air): 5 - 150 PSI
  • Min to Max Operating Pressure (Water): 5 - 125 PSI
  • Min to Max Operating Pressure (Light Oil): 5 - 90 PSI
  • Product Weight: 9.00 lbs
  • Kit Number: 304355
  • Coil Class: FT
  • Coil Number: 238212-032
  • Min to Max Ambient Temperature: 32 - 125 °F
  • Min to Max Fluid Temperature: 32 - 180 °F
  • Orifice Size: 1-3/4 in
  • Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
  • Watt Rating: 6.1 W
  • Item Status: Active
  • Carton Note: 2 X 1-3/4 2NC BRASS 6.1/F AC
  • Seating Elastomer: NBR
  • Mounting Direction: Any:

Specifications

Valve: Brand Asco
Valve: Pipe Size 2 in
Valve: Actuation Solenoid, Solenoid
Valve: Body Material Copper Alloy
Valve: Flow Factor (Cv) 43, 43
Valve: Type Automated
Valve: Pressure (psi) > 20 to 150 psi (1.38 to 10.34 bar), > 20 to 150 psi (1.38 to 10.34 bar)
Valve: Max Temperature °F 125
Valve: Mounting Position Any
Valve: Seal Material NBR
Valve: Function 2-Way Normally Closed
