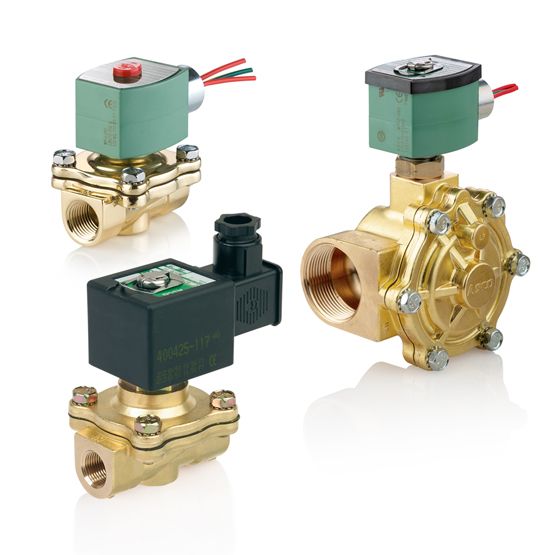

210 Series Solenoid Valve (8210), 1" NPT, 24 VDC, Brass, 2 Way-2/2 NC

The ASCO Series 210, also known as 8210, is a line of economical, high-flow general service solenoid valves for liquid, corrosive, and air/inert gas service. With a wide range of pressure ratings, sizes, and resilient materials, the ultra-reliable 2-way solenoid valves provide long service life and low internal leakage. Industrial applications include car wash equipment, air compressors, pumps, laundry equipment, and industrial water control.

Features

Body Material: Brass
Flow (Cv) / Flow (Kv): 13.00 / 11.24
Function: 2 way - 2/2 Normally Closed
Pipe/Port Type & Size: NPT 1
Valve Actuation: Solenoid
Media: Air, Inert Gas, Water, Light Oil
Min to Max Operating Pressure (Air): 5 - 125 PSI
Min to Max Operating Pressure (Water): 5 - 125 PSI
Min to Max Operating Pressure (Light Oil): 5 - 125 PSI
Product Weight: 4.50 lbs
Kit Number: 302379
Coil Class: FT
Coil Number: 238714-006-D
Min to Max Ambient Temperature: 32 - 104 °F
Min to Max Fluid Temperature: 32 - 150 °F
Orifice Size: 1 in
Voltage: 24 Volts DC
Watt Rating: 11.6 W
Item Status: Active
Lead Length: 18 inch
Carton Note: 1 X 1 2NC BRASS 11.6/F DC
Seating Elastomer: NBR
Mounting Direction: Any:

Manufacturer Product Code EF8210G004DC24/DCD	Manufacturer Asco LP
MADE TO ORDER	Weight 4.59 lb(s) Datasheet Other Info

Valve: Brand	Asco
Valve: Pipe Size	1 in
Valve: Actuation	Solenoid, Solenoid
Valve: Body Material	Copper Alloy
Valve: Flow Factor (Cv)	13.0, 13.5
Valve: Type	Automated
Valve: Pressure (psi)	> 20 to 150 psi (1.38 to 10.34 bar), > 20 to 150 psi (1.38 to 10.34 bar)
Valve: Max Temperature °F	104
Valve: Mounting Position	Any
Valve: Seal Material	NBR
Valve: Function	2-Way Normally Closed

210 Series Solenoid Valve (8210), 1" NPT, 24 VDC, Brass, 2 Way-2/2 NC

$ 451.05 451.05 USD $ 477.30

$ 477.30

Not Available For Sale
