Valve: Actuation
-
Valve: Type
This combination does not exist.

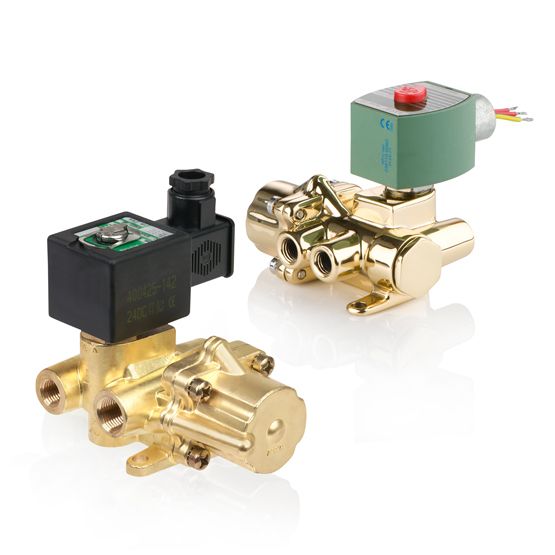

The ASCO Series 344, also known as 8344, 4-way solenoid valves incorporate a piston-operated poppet design for high flow in a variety of applications. Their sturdy, robust construction can be used with air or water media. The 344 Series is suitable for use in analytical and diagnostic instruments, biofuels, heating equipment, life science production, and refining.
Features
- Body Material: Brass
- Flow (Cv) / Flow (Kv): 0.80 / 0.69
- Function: 4 way
- Pipe/Port Type & Size: NPT 3/8
- Valve Actuation: Solenoid - Direct Acting
- Media: Air, Inert Gas, Water, Light Oil
- Min to Max Operating Pressure (Air): 10 - 250 PSI
- Min to Max Operating Pressure (Water): 10 - 250 PSI
- Product Weight: 4.63 lbs
- Order Code: 20820
- Order Code: 25 - 250 PSI
- Kit Number: 302710-MO
- Coil Class: FB
- Coil Number: 238610-132-D
- Min to Max Ambient Temperature: 32 - 125 °F
- Min to Max Fluid Temperature: 32 - 180 °F
- Orifice Size: 1/4 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 17.1 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 3/8 X 1/4 4W BRASS 17.1/F AC
- Holding Current (VA): 40
- Seating Elastomer: NBR
- Mounting Direction: Any:
