  2. 320 Series Direct-Acting General Service Solenoid Valve (8320), 1/4" NPT, 24 VAC, Brass, 3 Way-3/2 NC

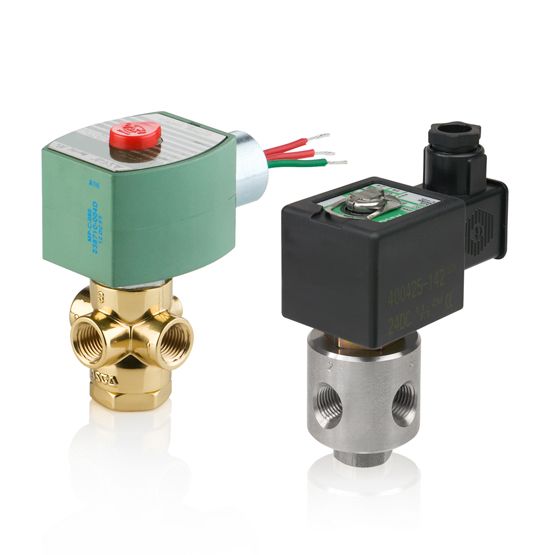

Representative photo. Please check item description for details.

320 Series Direct-Acting General Service Solenoid Valve (8320), 1/4" NPT, 24 VAC, Brass, 3 Way-3/2 NC

https://www.branom.com/web/image/product.template/470129/image_1920?unique=c163fa0
(0 review)
Manufacturer Product Code
8320G184AC24/60D 		Manufacturer
Asco LP
MADE TO ORDER
 Weight
1.5 lb(s)

Datasheet

Solenoid Valve, 1/4" NPT, 24 VAC, 3 Way-3/2 U

$ 187.11 187.11 USD $ 198.00

$ 198.00

Not Available For Sale

  • Valve: Actuation
  • Brand_Name
  • Media
  • Flow (Cv / Kv)
  • Mounting Direction
  • Mounting Direction
  • Process Connection Type
  • Flow Coefficient
  • Process Connection Size
  • Holding Current (VA)
  • Input Voltage
  • Function
  • Coil Class
  • Frequency
  • Body Material
  • Lead Length
  • Seating Elastomer
  • Seal Material

This combination does not exist.

Contact Us

The ASCO Series 320, also known as 8320, are general service solenoid valves designed for a broad range of applications. The direct-acting valves are available in voltage-ranging, harsh-environment, direct-mount, dribble-control, and long-life constructions. They are suitable for use in analytical and diagnostic equipment, dust collector systems, life sciences, and press room and metal stamping.

Features

  • Body Material: Brass
  • Flow (Cv) / Flow (Kv): 0.12 / 0.10
  • Function: 3 way - 3/2 Normally Closed
  • Pipe/Port Type & Size: NPT 1/4
  • Valve Actuation: Solenoid - Direct Acting
  • Media: Air, Inert Gas, Water, Light Oil
  • Product Weight: 1.50 lbs
  • Kit Number: 302142
  • Coil Class: FT
  • Coil Number: 238610-005-D
  • Min to Max Ambient Temperature: 32 - 125 °F
  • Min to Max Fluid Temperature: 32 - 200 °F
  • Orifice Size: 3/32 in
  • Voltage & Frequency: 24 Volts AC with 60 Hz
  • Watt Rating: 10.1 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 1/4 X 3/32 3NC BRASS 10.1/F AC
  • Holding Current (VA): 25
  • Seating Elastomer: NBR
  • Mounting Direction: Any:

Specifications

Valve Features
Valve: Actuation Solenoid - Direct Acting
Uncategorized
Brand_Name Asco
Media Air, Inert Gas, Light Oil, Water
Flow (Cv / Kv) 0.12 / 0.10
Mounting Direction Any, Any
Process Connection Type NPT
Flow Coefficient 0.12 Cv
Process Connection Size 1/4"
Holding Current (VA) 25
Input Voltage 24 VAC
Function 3 Way 3/2 Normally Closed
Coil Class FT
Frequency 60 Hz
Body Material Brass
Lead Length 18 in
Seating Elastomer NBR
Seal Material NBR
