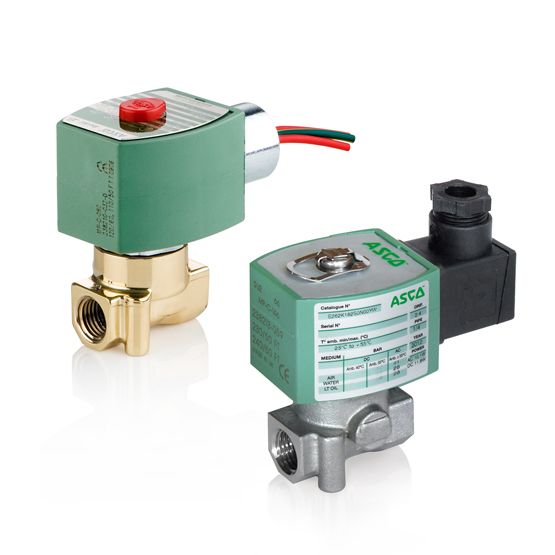

262 Series 2-Way Solenoid Valve, 1/4" NPT, 120 VAC, Stainless Steel, 2 Way-2/2 NC

The ASCO Series 262 & 263, also known as 8262 & 8263, is a line of 2-way general service and specialty service solenoid valves available in brass or stainless steel. These rugged valves handle media such as air/inert gas, water, hot water, steam, light oil, fuel gas, fuel oil, Biodiesel fuel (B20) and cryogenic fluids. The 262 & 263 Series are suitable for commercial and industrial applications such as car wash systems, dishwashing and laundry equipment, pumps, compressors, boilers, burners, food processing and many others.

Features

Body Material: Stainless Steel
Flow (Cv) / Flow (Kv): 0.21 / 0.18
Function: 2 way - 2/2 Normally Closed
Pipe/Port Type & Size: NPT 1/4
Valve Actuation: Solenoid - Direct Acting
Media: Air, Inert Gas, Water, Light Oil
Product Weight: 0.44 lbs
Order Code: 21993
Kit Number: 323583
Coil Class: FT
Coil Number: 238210-032-D
Min to Max Ambient Temperature: -13 - 131 °F
Min to Max Fluid Temperature: -13 - 180 °F
Orifice Size: 3/32 in
Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
Watt Rating: 6.1 W
Item Status: Active
Lead Length: 18 inch
Carton Note: 1/4 X 3/32 2NC S.S. 6.1/F AC
Holding Current (VA): 16
Seating Elastomer: NBR
Mounting Direction: Any:

Manufacturer Product Code 8262H086AC120/60,110/50D	Manufacturer Asco LP
MADE TO ORDER	Weight 0.44 lb(s) Datasheet

262 Series 2-Way Solenoid Valve, 1/4" NPT, 120 VAC, Stainless Steel, 2 Way-2/2 NC

$ 149.31 149.31 USD $ 158.00

$ 158.00

Not Available For Sale

Specifications

Customer Reviews

Brand_Name	Asco
Mounting Direction	Any
Process Connection Type	NPT
Flow Coefficient	0.21 Cv
Process Connection Size	1/4"
Measurement Minimum	0
Input Voltage	120 VAC
Watts	6.1
Function	2 Way 2/2 Normally Closed
Coil Class	FT
Frequency	60 Hz
Body Material	SS
Lead Length	18 in
NEMA / UL	NEMA 1/2/3/3S/4/4X
Seal Material	NBR
