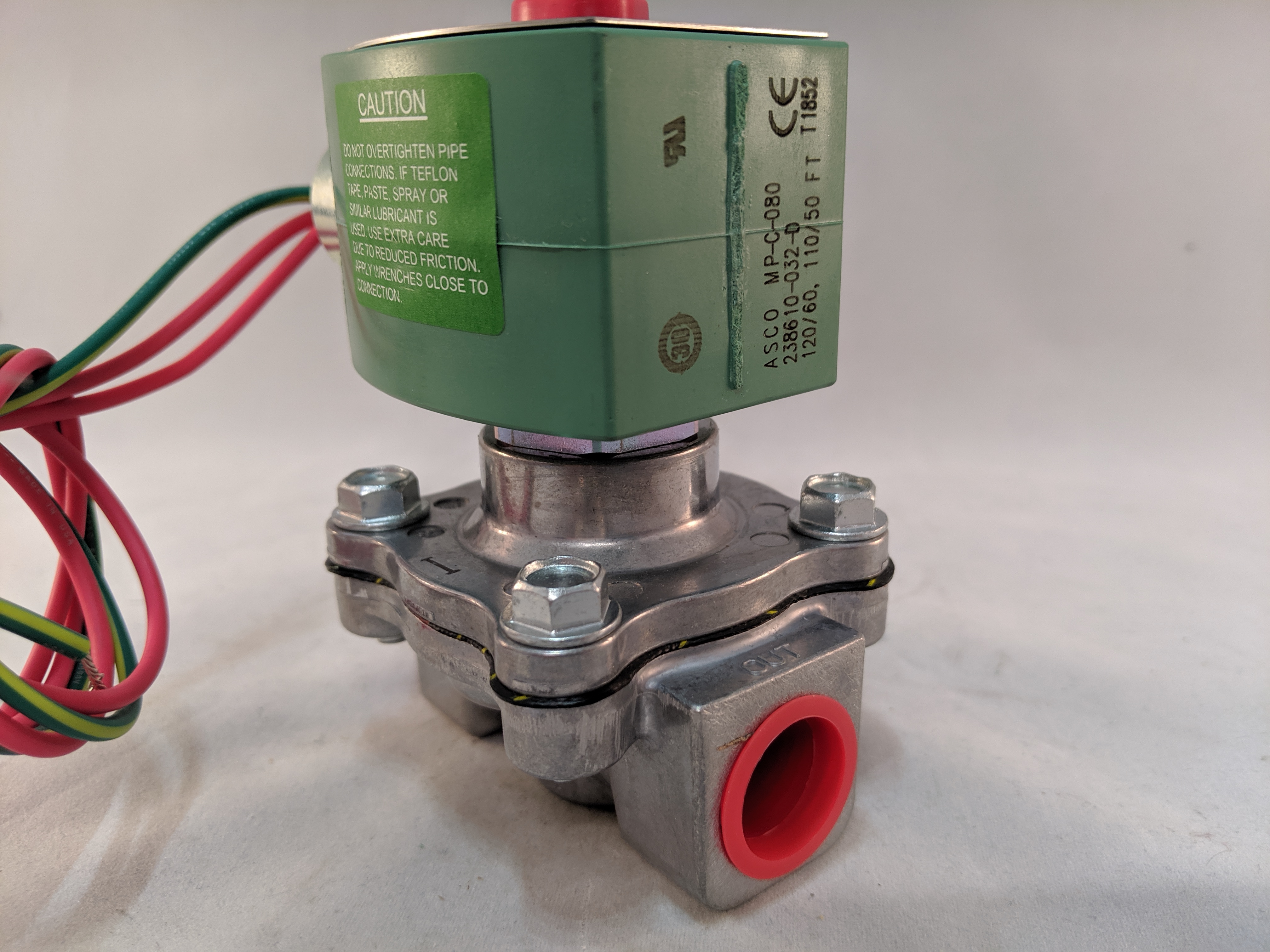

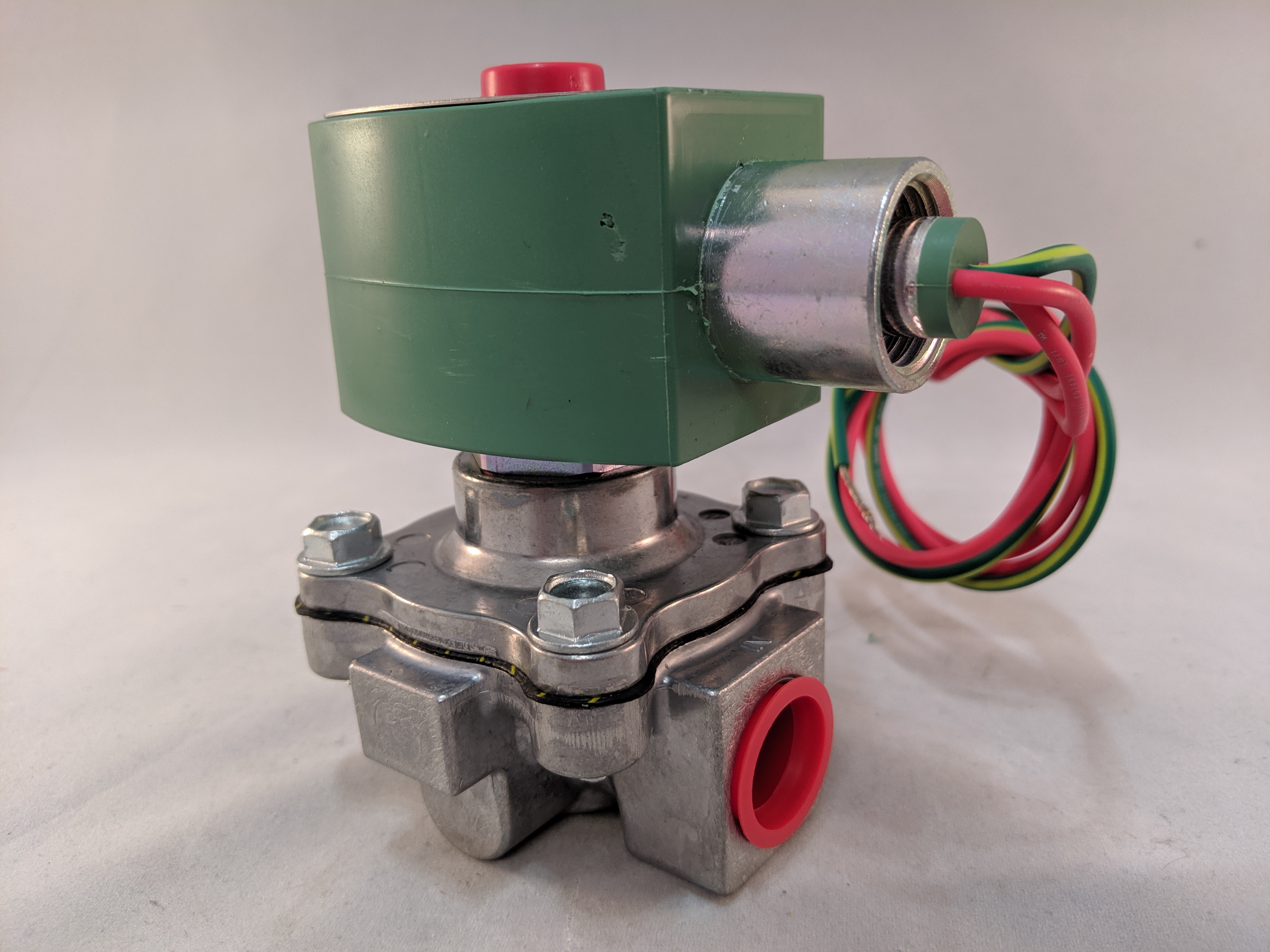

215 Series High-Flow Gas Shut-Off Solenoid Valve (8215), 1/2" NPT, 120 VAC, Aluminum, 2 Way-2/2 NC

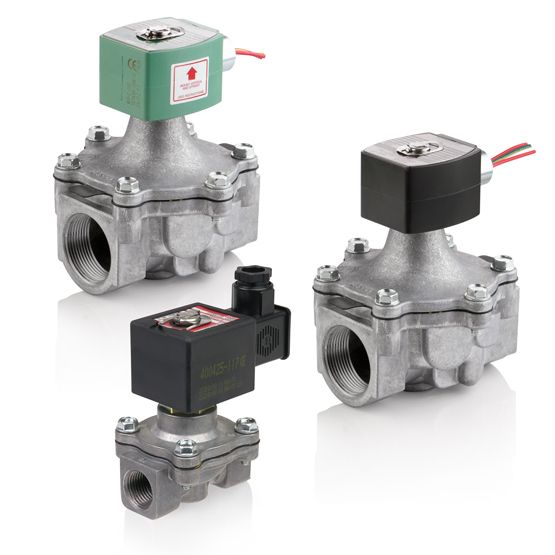

The ASCO Series 215, also known as 8215, is an aluminum body, lightweight gas safety Shut-Off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight Shut-Off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.

Features

Body Material: Aluminum
Flow (Cv) / Flow (Kv): 4.40 / 3.80
Function: 2 way - 2/2 Normally Closed
Pipe/Port Type & Size: NPT 1/2
Valve Actuation: Solenoid - Direct Acting
Media: Air, Inert Gas, Fuel Gas
Product Weight: 1.70 lbs
Order Code: 20290
Kit Number: 302350
Coil Class: FT
Coil Number: 238610-032-D
Min to Max Ambient Temperature: 32 - 125 °F
Min to Max Fluid Temperature: 32 - 125 °F
Orifice Size: 3/4 in
Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
Watt Rating: 10.1 W
Item Status: Active
Lead Length: 18 inch
Carton Note: 1/2 X 3/4 2NC AL 10.1/F AC
Holding Current (VA): 25
Seating Elastomer: NBR
Mounting Direction: Any:

Manufacturer Product Code 8215G020AC120/60,110/50D	Manufacturer Asco LP
2 in Stock	Weight 1.7 lb(s) Datasheet

215 Series High-Flow Gas Shut-Off Solenoid Valve (8215), 1/2" NPT, 120 VAC, Aluminum, 2 Way-2/2 NC

$ 239.75 239.75 USD $ 253.70

$ 253.70

Not Available For Sale

Specifications

Customer Reviews

Brand_Name	Asco
Mounting Direction	Any
Process Connection Type	NPT
Flow Coefficient	4.40 Cv
Process Connection Size	1/2"
Holding Current (VA)	25.0
Case Material	Aluminum
Measurement Minimum	0
Input Voltage	120 VAC
Watts	10.1
Function	2 Way 2/2 Normally Closed
Coil Class	FT
Frequency	60 Hz
Body Material	Aluminum
Lead Length	18 in
Seal Material	NBR
