  2. 215 Series High-Flow Gas Shut-Off Solenoid Valve (8215), 2" NPT, 110-120 VAC, Aluminum, 2 Way-2/2 NC

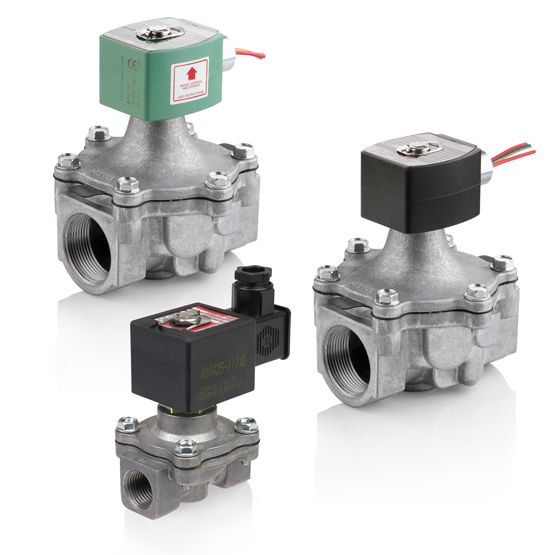

Representative photo. Please check item description for details.

215 Series High-Flow Gas Shut-Off Solenoid Valve (8215), 2" NPT, 110-120 VAC, Aluminum, 2 Way-2/2 NC

https://www.branom.com/web/image/product.template/162975/image_1920?unique=9e274ff
(0 review)
Manufacturer Product Code
8215B080CSAAC120/60,110/50D 		Manufacturer
Asco LP
1 in Stock
 Weight
11.78 lb(s)

Datasheet

Solenoid Valve, 2" NPT, 110-120 VAC, 2 Way-2/2 NC

$ 826.92 826.9200000000001 USD $ 875.05

$ 875.05

Not Available For Sale

  • Valve: Brand
  • Valve: Pipe Size
  • Valve: Actuation
  • Valve: Body Material
  • Valve: Flow Factor (Cv)
  • Valve: Type
  • Valve: Mounting Position
  • Valve: Seal Material
  • Valve: Function

This combination does not exist.

Contact Us

The ASCO Series 215, also known as 8215, is an aluminum body, lightweight gas safety Shut-Off valve for high flow, low-pressure air or gas service. The pilot operated construction works from zero pressure differential with resilient soft seating for tight Shut-Off. Optional long-life design eliminates metal-to-metal contact to extend life up to 20 million cycles. The 215 Series is ideal for vacuum service and heating equipment applications.

Features

  • Body Material: Aluminum
  • Flow (Cv) / Flow (Kv): 60.00/51.90
  • Function: 2 way - 2/2 Normally Closed
  • Pipe/Port Type & Size: NPT 2"
  • Valve Actuation: Solenoid - Direct Acting
  • Media: Air, Inert Gas|Fuel Gas
  • Order Code: 589
  • Kit Number: 302353
  • Coil Class: FT
  • Coil Number: 099257-001-D
  • Min - Max Ambient Temperature: 32.00 - 125.00 °F
  • Min - Max Fluid Temperature: 32.00 - 125.00 °F
  • Orifice Size: 2-3/32 in
  • Voltage: 110 AC|120 AC
  • Watt Rating: 15.4 W
  • Item Status: Active
  • Lead Length: 18 inch
  • Carton Note: 2 X 2-3/32 2NC ALUM 15.4/F AC
  • Holding Current (VA): 27
  • Seating Elastomer: Mounting Direction:

Specifications

Valve: Brand Asco
Valve: Pipe Size 2 in
Valve: Actuation Solenoid
Valve: Body Material Aluminum
Valve: Flow Factor (Cv) 60.0
Valve: Type Automated
Valve: Mounting Position Any
Valve: Seal Material NBR
Valve: Function 2-Way Normally Closed
