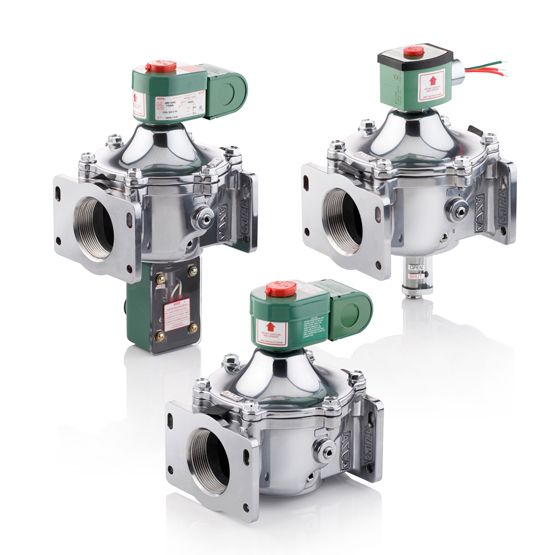

214 Series High-Flow Gas Shut-Off Solenoid Valve (8214), 1/2" NPT, 24 VDC, Aluminum, 2 Way-2/2 NC

The ASCO Series 214, also known as 8214, high-flow, low-pressure (5 psi) gas safety shutoff valves are specifically designed for on-off control of fuel gas in commercial and industrial gas burners. Their unique double-disc design with over travel provides redundant sealing for leak-tight shutoff on pilot or main gas lines. A double-solenoid gas train provides an exceptionally small footprint for space constrained applications. The valves are ideal for natural gas fired boilers, furnaces, grain dryers, kilns, gas generators and commercial kitchen/cooking equipment.

Features

Body Material: Aluminum
Flow (Cv) / Flow (Kv): 4.40 / 3.80
Function: 2 way - 2/2 Normally Closed
Pipe/Port Type & Size: NPT 1/2
Valve Actuation: Solenoid
Media: Fuel Gas
Product Weight: 1.81 lbs
Kit Number: 316790
Coil Class: F
Coil Number: 238710-106-D
Min to Max Ambient Temperature: -40 - 125 °F
Min to Max Fluid Temperature: -20 - 104 °F
Orifice Size: 3/4 in
Voltage: 24 Volts DC
Watt Rating: 22.6 W
Item Status: Active
Lead Length: 18 inch
Carton Note: 1/2 X 3/4 2NC ALUM 22.6/F DC
Seating Elastomer: NBR
Mounting Direction: Any:

Manufacturer Product Code 8214G020DC24/DCD	Manufacturer Asco LP
MADE TO ORDER	Weight 1.81 lb(s) Datasheet

Valve: Brand	Asco
Valve: Pipe Size	1/2 in
Valve: Actuation	Solenoid, Solenoid
Valve: Body Material	Aluminum
Valve: Flow Factor (Cv)	4.4, 4.4
Valve: Type	Automated
Valve: Media	Fuel Gas
Valve: Mounting Position	Any, Any
Valve: Seal Material	NBR
Valve: Function	2-Way Normally Closed

214 Series High-Flow Gas Shut-Off Solenoid Valve (8214), 1/2" NPT, 24 VDC, Aluminum, 2 Way-2/2 NC

$ 232.64 232.64000000000001 USD $ 246.18

$ 246.18

Not Available For Sale
