Valve: Brand
-
Valve: Pipe Size
-
Valve: Actuation
-
Valve: Actuation
-
Valve: Body Material
-
Valve: Flow Factor (Cv)
-
Valve: Flow Factor (Cv)
-
Valve: Type
-
Valve: Max Temperature °F
-
Valve: Orifice
-
Valve: Function
This combination does not exist.

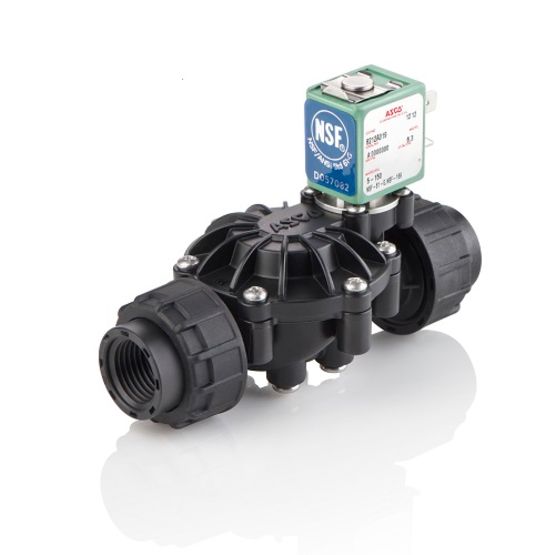

ASCO has perfected composite valve technology with the Series 212, also known as 8212, plastic solenoid valves. The robust, easy-to-install valves are designed specifically for water purification and conditioning systems in commercial and industrial applications. With the highest pressure and temperature ratings on the market -- up to 150 psi and 150°F - the 212 Series solves the breakdown and reliability problems found in other types of composite valves. Its lightweight engineered plastic body has been built and tested to achieve up to 1 million operating cycles. The 212 Series comes with ASCO's new FasN universal connection system - the world's fastest, most secure valve connection technology.
Features
- Flow (Cv) / Flow (Kv): 4.50/3.89
- Function: 2 way - 2/2 Normally Closed
- Pipe/Port Type & Size: NPT 1/2"
- Valve Actuation: Solenoid
- Coil Class: FB
- Coil Number: 400147-225-D
- Min - Max Ambient Temperature: 32.00 - 120.00 °F
- Min - Max Fluid Temperature: 32.00 - 180.00 °F
- Orifice Size: 3/4 in
- Voltage: 120 AC|110 AC
- Watt Rating: 6.3 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/2 X 3/4 2NC PLAS 6.3/F AC
- Seating Elastomer: NSF Approved Elastomers TPV:
