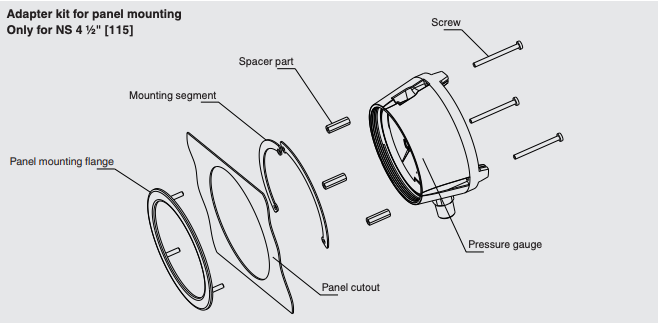

Wika 233.34 Series Stainless Steel Liquid Filled Process Gauge, 0 to 300 psi, Panel Mount

Applications

• For applications with high dynamic pressure pulsations or vibration a liquid filled case and socket restrictor are available
• Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system
• Process industry: chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction

Product Features

• Excellent load-cycle stability and shock resistance
• Solid front thermoplastic case
• Positive pressure ranges to 30,000 psi (2,000 bar)
• All lower mount connection gauges are factory prepared for case filling

Features

• Process Gauge
• Model: 233.34
• Specifications according to data sheet: APM 02.10
• Case: Black Fiberglass Reinforced Thermoplastic (Pocan B4225)
• Bezel ring: Threaded, Black Fiberglass Reinforced Thermoplastic (Pocan B4225)
• Measuring System: Stainless Steel
• Case filling: with
• Nominal size: 4.5"
• Scale range: 0/300 psi
• Process Connection: 1/2 NPT
• Connector location: lower mount
• Window: acrylic (PMMA)
• Restrictor: stainless steel, D 0.6
• Pointer: adjustable pointer
• Accuracy Class: +/- .5% (ASME B40.100 2A)
• Material pressure element: Measuring System 316L
• Case filling fluid: Glycerine
• Ingress Protection: IP 65
• Dial description:
• Pressure Gauge Standard: US-Standard
• color for 1.scale (outside): black
• dial background: White
• *WIKA®*
• serial number on dial: Serial number *...*
• stop pin on dial: at 6 o'clock
