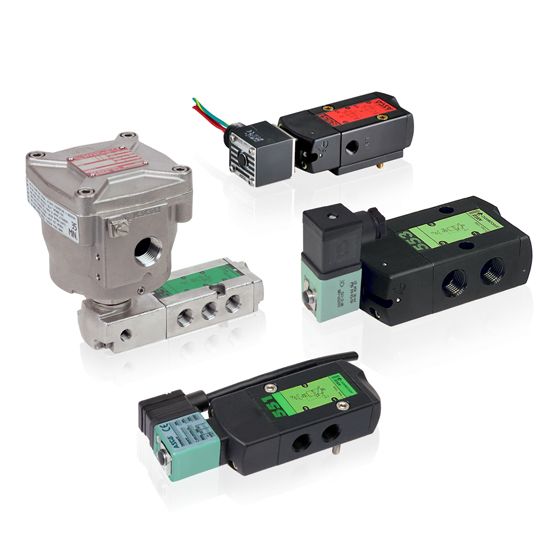

551 Series Solenoid Spool Valve, 1/4" NPT, 120 VAC, Aluminum, 4 Way
The ASCO Series 553, also known as 8553, is a line of 1/2" 3-way and 4-way compact solenoid spool valves that are ideal for controlling air or inert gas in challenging environments. The valves ’ unique design combines hard T-seals and flexible O-rings that provide bubble-tight shutoff, dirt resistance, and multi-million cycle reliability. The 551 Series comes in anodized aluminum, brass, and stainless steel bodies with ½-inch NPT and BSP connections. It is suitable for the harsh conditions found in chemicals, refining, food & beverage applications and life science processing.
Features
- Body Material: Aluminum
- Flow (Cv) / Flow (Kv): 0.86 / 0.74
- Function: 4 way
- Pipe/Port Type & Size: NPT 1/4
- Valve Actuation: Solenoid
- Media: Air, Inert Gas
- Min to Max Operating Pressure (Air): 30 - 150 PSI
- Product Weight: 1.28 lbs
- Order Code: 21811
- Coil Class: FT
- Coil Number: 266763-902-D
- Min to Max Ambient Temperature: 5 - 140 °F
- Min to Max Fluid Temperature: 5 - 140 °F
- Orifice Size: 1/4 in
- Voltage & Frequency: 110, 120 Volts AC with 50/60 Hz
- Watt Rating: 6.3 W
- Item Status: Active
- Lead Length: 18 inch
- Carton Note: 1/4 X 1/4 4W ALUM 6.3/F AC
- Mounting Direction: Any:
