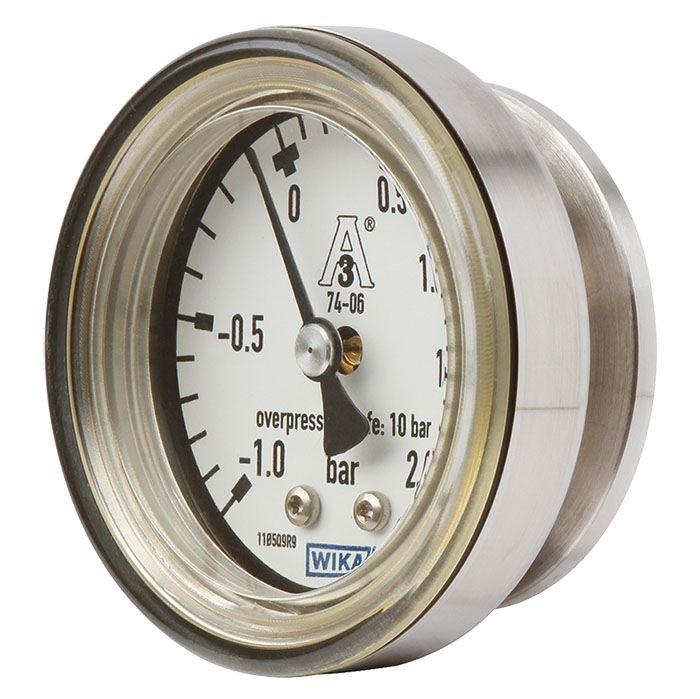

Wika PG43SA-C Series 63 mm Compact Flush Diaphragm Pressure Gauge
The Wika PG43SA-C Series 63 mm Compact Flush Diaphragm Pressure Gauge is expertly designed for sanitary applications. Its robust, compact build features a purely mechanical pressure transmission using a diaphragm-element measuring principle, ensuring precise pressure measurement and high overload safety. The innovative dry measuring cell eliminates the risk of contamination from transmission fluid, making it ideal for gaseous and liquid aggressive media, even in aggressive environments.

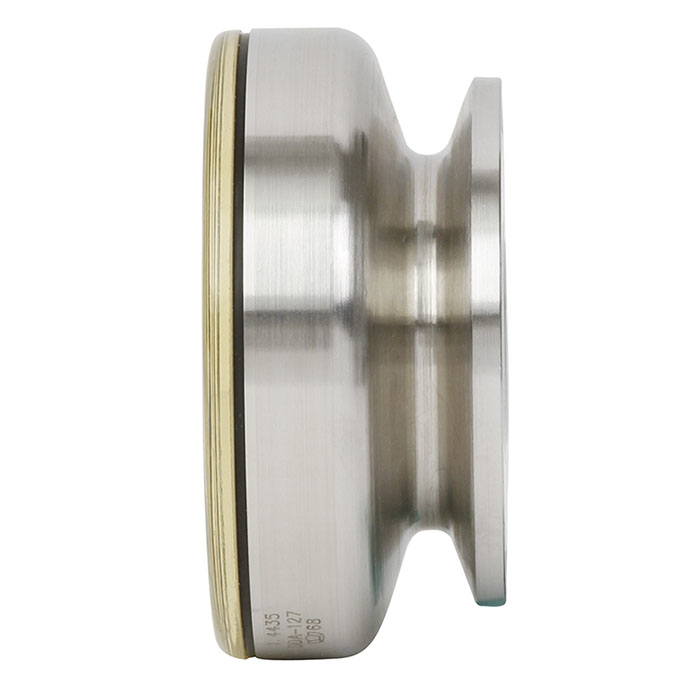

This gauge has a flush, welded diaphragm element for a dead-space-free connection through various aseptic process connections such as clamp, threaded, VARINLINE®, and BioControl®. Its compact design is perfect for vertical pipelines, small plants, and mobile containers, with a patented process connection at the back of the case for space-saving installation.
Suitable for biotechnology, pharmaceuticals, cosmetics manufacturing, and the food industry, this gauge is excellent for ultrapure steam generation systems and as an independent pressure display on portable tanks. The PG43SA-C's hygienic design supports CIP (cleaning in place) and SIP (sterilization in place) processes, ensuring efficient cleaning. It meets the 3-A Sanitary Standard and offers a variety of 3.1 and 2.2 certificates for GMP-compliant documentation.
Branom Instrument Co. is the top choice for purchasing the Wika PG43SA-C, providing unmatched expertise and service.
Order Code Prefix: PG43SA-C-
Specifications
| Wika PG43SA-C | |
|---|---|
| Scale Range | ￭ psi / -inHg ￭, [PG331] 0...45 psi, [PG348] 0...70 psi, [PG410] 0/150 psi, [PV331] -30 inHg/30 psi, [PV352] -30 inHg/60 psi, [PV410] -30 inHg...+130 psi, ￭ bar ￭, [BV330] -1/2 bar, [BV350] -1/4 bar, [BV410] -1/9 bar, [BG330] 0...3 bar, [BG350] 0...5 bar, [BG410] 0/10 bar, ￭ kPa ￭, [LG330] 0/300 kPa, [LG350] 0/500 kPa, [LG410] 0/1000 kPa, [LV330] -100/200 kPa, [LV350] -100/400 kPa, [LV410] -100/900 kPa, ￭ MPa ￭, [EG330] 0...0,3 MPa, [EG350] 0...0,5 MPa, [EG410] 0/1 MPa, [EV330] -0.1/0.2 MPa, [EV350] -0.1/0.4 MPa, [EV410] -0.1/0.9 MPa, ￭ kg/cm2 ￭, [KG398] 0/10 kg/cm2, [KV349] -1/4 kg/cm2, [KV398] -1/9 kg/cm2 |
| 2nd Scale | [Z] Without, [P] psi, [B] bar, [L] kPa, [E] MPa, [K] kg/cm2, [Y] mH2O, [8] barg, [N] psig, [3] MPag, [4] kPag, [Q] inHg, [A] kg/cm2g, [I] kgf/cm2 |
| Process Connection Type | [C] Clamp Connection, [D] Clamp Connection DIN 32676, [A] Screw Connection DIN 11851, [V] VARINLINE® |
| Pipe Standard | [CP1] Pipe Dimensions per BS 4825 Part 3 or O.D.-Tube, [DB1] Pipe Dimensions per DIN 11866 Row B or ISO 1127 Row 1, [DC1] Pipe Dimensions per DIN 11866 Row C or ASME BPE, [DA1] Pipe Dimensions per DIN 11866 Row A or DIN 11850 Row 2, [A21] Pipe Dimensions per DIN 11850 Row 2, [VAR] Without |
| Process Connection | [CP120] DN 2", [DB126] DN 26,9, PN 40, [DB133] DN 33,7, PN 40, [DB142] DN 42,4, PN 40, [DB148] DN 48,3, PN 40, [DB160] DN 60,3, PN 40, [DC115] DN 1 1/2", PN 40, [DC120] DN 2", PN40, [DA125] DN 25, PN 40, [DA132] DN 32, PN 40, [DA140] DN 40, PN 40, [DA150] DN 50, PN 40, [A2150] Grooved Union Nut DN 50, [A2126] Threaded Support DN 25, PN 40, [A2141] Threaded Support DN 40, PN 40, [VARIN] VARINLINE® Form N |
| Surface Quality Wetted Parts | [F] Ra ≤ 0.76 µm (30 µin), [G] Ra ≤ 0.38 µm (15 µin), Weld Seam Ra ≤ 0.76 µm (30 µin), [H] Ra ≤ 0.38 µm (15 µin), Weld Seam Ra ≤ 0.76 µm (30 µin), Electropolished |
| Color for Inner Scale | [ZZZZZZ22Z] Without, [AZZZZZ22Z] Black, [CZZZZZ22Z] Red, [DZZZZZ22Z] Blue Pantone 3005, [EZZZZZ22Z] Green Pantone 0355, [FZZZZZ22Z] Yellow RAL 1016, [GZZZZZ22Z] Orange RAL 2004, [HZZZZZ22Z] Grey RAL 7040, [IZZZZZ22Z] Red Pantone 186C, [KZZZZZ22Z] Cooling Scale |
| Nominal Size | [063] 63 mm |
| Autoclavable Version | [2] No |
| Ingress Protection | [K-GCZZ-Z-ZZZ] IP 66 |
| Permissible Ambient Temp | [G] -20 ... +60 °C |
| Permissible Medium Temp | [C] -20 ... +150 °C (-4 ... +302 °F) |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Additional Ordering Info | [ZZZ] Without |
| Accuracy Class | [J] ± 3/2/3% (ASME B40.100 Grade B) |
| Overpressure Safety | [G] 5 x Full Scale Value, Max. Pressure Rating Of Process Connection + Vacuum Safe |
| Case Material | [B] 316L SS |
| Window | [8Z-U] Polysulfone |
| Pressure Gauge Standard | [U] US-Standard |
| Logo Options | [ZZZZZ] Without |
| Manufacturer Logo | [2] *WIKA®* |
| Serial Number | [2] With Serial Number |
| Text for Dial | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | PG43SA-C |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm) |
| Gauge: Scale Range | ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar) |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Fill Type | Dry |
| Gauge: Product Unit of Measure | psi / inHg, bar, kPa, MPa, kg/cm2 |
| Gauge: Process Connection Size | DN 25, DN 26.9, DN 33.7, DN 50, DN 32, DN 40, DN 2 in |
| Gauge: Process Connection Type | PN 40, Grooved Union Nut, Threaded Support, VARINLINE® |
| Gauge: Accuracy | ±3% |
| Gauge: Ingress Protection | IP 66 |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Polysulfone |
| Gauge: Autoclavable | No |
