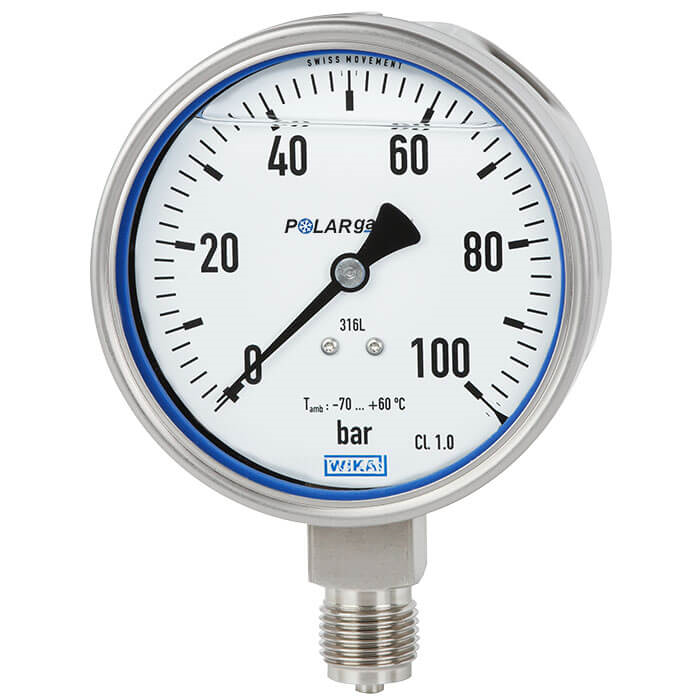

Wika PG23LT Series 63, 100 or 160 mm SS Extremely Low Temp Pressure Gauge, Liquid Filled, POLARgauge®
|
Manufacturer Wika Instrument Lp |
|
|
MADE TO ORDER
|
Datasheet |
PG23LT Extremely Low Temp Pressure Gauge
Specifications
| Wika PG23LT33 | |
|---|---|
| Nominal Size | 63 mm or 100 mm or 160 mm |
| Case Type | [58-063] Stainless Steel Case (63 mm) or [30-063] Solid Front Design EN837 "S3" (63 mm) or [58-100] Stainless Steel Case (100 mm) or [30-100] Solid Front Design EN837 "S3" (100 mm) or [58-160] Stainless Steel Case (160 mm) or [30-160] Solid Front Design EN837 "S3" (160 mm) |
| Scale Range | [PG269] 0/10 psi or ￭ psi ￭ or [PG310] 0/15 psi or [PG321] 0/30 psi or [PG341] 0/60 psi or [PG369] 0/100 psi or [PG410] 0/150 psi or [PG411] 0/160 psi or [PG414] 0/200 psi or [PG417] 0/250 psi or [PG421] 0/300 psi or [PG428] 0/400 psi or [PG434] 0/500 psi or [PG441] 0/600 psi or [PG455] 0/800 psi (63 mm) or [PG469] 0/1000 psi (63 mm) or [PG510] 0/1500 psi (63 mm) or [PG514] 0/2000 psi (63 mm) or [PG521] 0/3000 psi (63 mm) or [PG528] 0/4000 psi (63 mm) or [PG534] 0/5000 psi (63 mm) or [PG541] 0/6000 psi (63 mm) or [PG552] 0/7500 psi (63 mm) or [PG569] 0/10000 psi (63 mm) or [PG610] 0/15000 psi (63 mm) or [PG455] 0/800 psi (100 mm) or [PG469] 0/1000 psi (100 mm) or [PG510] 0/1500 psi (100 mm) or [PG514] 0/2000 psi (100 mm) or [PG521] 0/3000 psi (100 mm) or [PG528] 0/4000 psi (100 mm) or [PG534] 0/5000 psi (100 mm) or [PG541] 0/6000 psi (100 mm) or [PG552] 0/7500 psi (100 mm) or [PG569] 0/10000 psi (100 mm) or [PG610] 0/15000 psi (100 mm) or [PG455] 0/800 psi (160 mm) or [PG469] 0/1000 psi (160 mm) or [PG510] 0/1500 psi (160 mm) or [PG514] 0/2000 psi (160 mm) or [PG521] 0/3000 psi (160 mm) or [PG528] 0/4000 psi (160 mm) or [PG534] 0/5000 psi (160 mm) or [PG541] 0/6000 psi (160 mm) or [PG552] 0/7500 psi (160 mm) or [PG569] 0/10000 psi (160 mm) or [PG610] 0/15000 psi (160 mm) or ￭ psi / -inHg ￭ or [PV251] -15 inHg/0 psi or [PV310] -30 inHg/0 psi or [PV321] -30 inHg/15 psi or [PV331] -30 inHg/30 psi or [PV352] -30 inHg/60 psi or [PV379] -30 inHg/100 psi or [PV412] -30 inHg/160 psi or [PV415] -30 inHg/200 psi or [PV422] -30 inHg/300 psi or ￭ bar ￭ or [BG260] 0/0.6 bar or [BG310] 0/1 bar or [BG316] 0/1.6 bar or [BG320] 0/2 bar or [BG325] 0/2.5 bar or [BG340] 0/4 bar or [BG360] 0/6 bar or [BG370] 0/7 bar or [BG410] 0/10 bar or [BG414] 0/14 bar or [BG416] 0/16 bar or [BG420] 0/20 bar or [BG425] 0/25 bar or [BG430] 0/30 bar or [BG440] 0/40 bar or [BG460] 0/60 bar (63 mm) or [BG470] 0/70 bar (63 mm) or [BG510] 0/100 bar (63 mm) or [BG514] 0/140 bar (63 mm) or [BG516] 0/160 bar (63 mm) or [BG520] 0/200 bar (63 mm) or [BG525] 0/250 bar (63 mm) or [BG532] 0/315 bar (63 mm) or [BG540] 0/400 bar (63 mm) or [BG560] 0/600 bar (63 mm) or [BG570] 0/700 bar (63 mm) or [BG610] 0/1000 bar (63 mm) or [BG460] 0/60 bar (100 mm) or [BG470] 0/70 bar (100 mm) or [BG510] 0/100 bar (100 mm) or [BG514] 0/140 bar (100 mm) or [BG516] 0/160 bar (100 mm) or [BG520] 0/200 bar (100 mm) or [BG525] 0/250 bar (100 mm) or [BG532] 0/315 bar (100 mm) or [BG540] 0/400 bar (100 mm) or [BG560] 0/600 bar (100 mm) or [BG570] 0/700 bar (100 mm) or [BG610] 0/1000 bar (100 mm) or [BG460] 0/60 bar (160 mm) or [BG470] 0/70 bar (160 mm) or [BG510] 0/100 bar (160 mm) or [BG514] 0/140 bar (160 mm) or [BG516] 0/160 bar (160 mm) or [BG520] 0/200 bar (160 mm) or [BG525] 0/250 bar (160 mm) or [BG532] 0/315 bar (160 mm) or [BG540] 0/400 bar (160 mm) or [BG560] 0/600 bar (160 mm) or [BG570] 0/700 bar (160 mm) or [BG610] 0/1000 bar (160 mm) or ￭ bar vacuum ￭ or [BV260] -0.6/0 bar or [BV310] -1/0 bar or [BV316] -1/0.6 bar or [BV320] -1/1 bar or [BV325] -1/1.5 bar or [BV330] -1/2 bar or [BV340] -1/3 bar or [BV350] -1/4 bar or [BV360] -1/5 bar or [BV380] -1/7 bar or [BV410] -1/9 bar or [BV411] -1/10 bar or [BV416] -1/15 bar or [BV425] -1/24 bar or [BV426] -1/25 bar or [BV431] -1/30 bar or ￭ kPa ￭ or [LG260] 0/60 kPa or [LG270] 0/70 kPa or [LG310] 0/100 kPa or [LG316] 0/160 kPa or [LG320] 0/200 kPa or [LG325] 0/250 kPa or [LG330] 0/300 kPa or [LG340] 0/400 kPa or [LG360] 0/600 kPa or [LG370] 0/700 kPa or [LG380] 0/800 kPa or [LG410] 0/1000 kPa or [LG414] 0/1400 kPa or [LG416] 0/1600 kPa or [LG425] 0/2500 kPa or [LG430] 0/3000 kPa or [LG440] 0/4000 kPa or [LG460] 0/6000 kPa (63 mm) or [LG470] 0/7000 kPa (63 mm) or [LG480] 0/8000 kPa (63 mm) or [LG510] 0/10000 kPa (63 mm) or [LG514] 0/14000 kPa (63 mm) or [LG516] 0/16000 kPa (63 mm) or [LG520] 0/20000 kPa (63 mm) or [LG525] 0/25000 kPa (63 mm) or [LG532] 0/31500 kPa (63 mm) or [LG540] 0/40000 kPa (63 mm) or [LG560] 0/60000 kPa (63 mm) or [LG570] 0/70000 kPa (63 mm) or [LG580] 0/80000 kPa (63 mm) or [LG610] 0/100000 kPa (63 mm) or [LG460] 0/6000 kPa (100 mm) or [LG470] 0/7000 kPa (100 mm) or [LG480] 0/8000 kPa (100 mm) or [LG510] 0/10000 kPa (100 mm) or [LG514] 0/14000 kPa (100 mm) or [LG516] 0/16000 kPa (100 mm) or [LG520] 0/20000 kPa (100 mm) or [LG525] 0/25000 kPa (100 mm) or [LG532] 0/31500 kPa (100 mm) or [LG540] 0/40000 kPa (100 mm) or [LG560] 0/60000 kPa (100 mm) or [LG570] 0/70000 kPa (100 mm) or [LG580] 0/80000 kPa (100 mm) or [LG610] 0/100000 kPa (100 mm) or [LG460] 0/6000 kPa (160 mm) or [LG470] 0/7000 kPa (160 mm) or [LG480] 0/8000 kPa (160 mm) or [LG510] 0/10000 kPa (160 mm) or [LG514] 0/14000 kPa (160 mm) or [LG516] 0/16000 kPa (160 mm) or [LG520] 0/20000 kPa (160 mm) or [LG525] 0/25000 kPa (160 mm) or [LG532] 0/31500 kPa (160 mm) or [LG540] 0/40000 kPa (160 mm) or [LG560] 0/60000 kPa (160 mm) or [LG570] 0/70000 kPa (160 mm) or [LG580] 0/80000 kPa (160 mm) or [LG610] 0/100000 kPa (160 mm) or ￭ kPa vacuum ￭ or [LV260] -60/0 kPa or [LV310] -100/0 kPa or [LV316] -100/60 kPa or [LV320] -100/100 kPa or [LV325] -100/150 kPa or [LV330] -100/200 kPa or [LV340] -100/300 kPa or [LV350] -100/400 kPa or [LV360] -100/500 kPa or [LV380] -100/700 kPa or [LV410] -100/900 kPa or [LV411] -100/1000 kPa or [LV416] -100/1500 kPa or [LV425] -100/2400 kPa or [LV431] -100/3000 kPa or ￭ MPa ￭ or [EG260] 0/0.06 MPa or [EG310] 0/0.1 MPa or [EG316] 0/0.16 MPa or [EG320] 0/0.2 MPa or [EG325] 0/0.25 MPa or [EG340] 0/0.4 MPa or [EG360] 0/0.6 MPa or [EG370] 0/0.7 MPa or [EG410] 0/1 MPa or [EG414] 0/1.4 MPa or [EG416] 0/1.6 MPa or [EG420] 0/2 MPa or [EG425] 0/2.5 MPa or [EG430] 0/3 MPa or [EG440] 0/4 MPa or [EG460] 0/6 MPa (63 mm) or [EG470] 0/7 MPa (63 mm) or [EG510] 0/10 MPa (63 mm) or [EG514] 0/14 MPa (63 mm) or [EG516] 0/16 MPa (63 mm) or [EG520] 0/20 MPa (63 mm) or [EG525] 0/25 MPa (63 mm) or [EG532] 0/31.5 MPa (63 mm) or [EG540] 0/40 MPa (63 mm) or [EG560] 0/60 MPa (63 mm) or [EG570] 0/70 MPa (63 mm) or [EG610] 0/100 MPa (63 mm) or [EG460] 0/6 MPa (100 mm) or [EG470] 0/7 MPa (100 mm) or [EG510] 0/10 MPa (100 mm) or [EG514] 0/14 MPa (100 mm) or [EG516] 0/16 MPa (100 mm) or [EG520] 0/20 MPa (100 mm) or [EG525] 0/25 MPa (100 mm) or [EG532] 0/31.5 MPa (100 mm) or [EG540] 0/40 MPa (100 mm) or [EG560] 0/60 MPa (100 mm) or [EG570] 0/70 MPa (100 mm) or [EG610] 0/100 MPa (100 mm) or [EG460] 0/6 MPa (160 mm) or [EG470] 0/7 MPa (160 mm) or [EG510] 0/10 MPa (160 mm) or [EG514] 0/14 MPa (160 mm) or [EG516] 0/16 MPa (160 mm) or [EG520] 0/20 MPa (160 mm) or [EG525] 0/25 MPa (160 mm) or [EG532] 0/31.5 MPa (160 mm) or [EG540] 0/40 MPa (160 mm) or [EG560] 0/60 MPa (160 mm) or [EG570] 0/70 MPa (160 mm) or [EG610] 0/100 MPa (160 mm) or ￭ MPa vacuum ￭ or [EV260] -0.06/0 MPa or [EV310] -0.1/0 MPa or [EV316] -0.1/0.06 MPa or [EV320] -0.1/0.1 MPa or [EV325] -0.1/0.15 MPa or [EV330] -0.1/0.2 MPa or [EV340] -0.1/0.3 MPa or [EV350] -0.1/0.4 MPa or [EV360] -0.1/0.5 MPa or [EV380] -0.1/0.7 MPa or [EV410] -0.1/0.9 MPa or [EV411] -0.1/1 MPa or [EV416] -0.1/1.5 MPa or [EV425] -0.1/2.4 MPa or [EV431] -0.1/3 MPa or ￭ kg/cm2 ￭ or [KG259] 0/0.6 kg/cm2 or [KG298] 0/1 kg/cm2 or [KG316] 0/1.6 kg/cm2 or [KG320] 0/2 kg/cm2 or [KG325] 0/2.5 kg/cm2 or [KG339] 0/4 kg/cm2 or [KG359] 0/6 kg/cm2 or [KG369] 0/7 kg/cm2 or [KG398] 0/10 kg/cm2 or [KG414] 0/14 kg/cm2 or [KG416] 0/16 kg/cm2 or [KG420] 0/20 kg/cm2 or [KG425] 0/25 kg/cm2 or [KG429] 0/30 kg/cm2 or [KG439] 0/40 kg/cm2 or [KG459] 0/60 kg/cm2 or [KG469] 0/70 kg/cm2 (63 mm) or [KG498] 0/100 kg/cm2 (63 mm) or [KG514] 0/140 kg/cm2 (63 mm) or [KG516] 0/160 kg/cm2 (63 mm) or [KG520] 0/200 kg/cm2 (63 mm) or [KG525] 0/250 kg/cm2 (63 mm) or [KG531] 0/315 kg/cm2 (63 mm) or [KG539] 0/400 kg/cm2 (63 mm) or [KG559] 0/600 kg/cm2 (63 mm) or [KG569] 0/700 kg/cm2 (63 mm) or [KG598] 0/1000 kg/cm2 (63 mm) or [KG469] 0/70 kg/cm2 (100 mm) or [KG498] 0/100 kg/cm2 (100 mm) or [KG514] 0/140 kg/cm2 (100 mm) or [KG516] 0/160 kg/cm2 (100 mm) or [KG520] 0/200 kg/cm2 (100 mm) or [KG525] 0/250 kg/cm2 (100 mm) or [KG531] 0/315 kg/cm2 (100 mm) or [KG539] 0/400 kg/cm2 (100 mm) or [KG559] 0/600 kg/cm2 (100 mm) or [KG569] 0/700 kg/cm2 (100 mm) or [KG598] 0/1000 kg/cm2 (100 mm) or [KG469] 0/70 kg/cm2 (160 mm) or [KG498] 0/100 kg/cm2 (160 mm) or [KG514] 0/140 kg/cm2 (160 mm) or [KG516] 0/160 kg/cm2 (160 mm) or [KG520] 0/200 kg/cm2 (160 mm) or [KG525] 0/250 kg/cm2 (160 mm) or [KG531] 0/315 kg/cm2 (160 mm) or [KG539] 0/400 kg/cm2 (160 mm) or [KG559] 0/600 kg/cm2 (160 mm) or [KG569] 0/700 kg/cm2 (160 mm) or [KG598] 0/1000 kg/cm2 (160 mm) or ￭ kg/cm2 vacuum ￭ or [KV259] -0.6/0 kg/cm2 or [KV298] -1/0 kg/cm2 or [KV316] -1/0.6 kg/cm2 or [KV320] -1/1 kg/cm2 or [KV325] -1/1.5 kg/cm2 or [KV329] -1/2 kg/cm2 or [KV339] -1/3 kg/cm2 or [KV349] -1/4 kg/cm2 or [KV359] -1/5 kg/cm2 or [KV378] -1/7 kg/cm2 or [KV398] -1/9 kg/cm2 or [KV411] -1/10 kg/cm2 or [KV416] -1/15 kg/cm2 or [KV425] -1/24 kg/cm2 or [KV430] -1/30 kg/cm2 |
| 2nd Scale | [Z] Without or [B] bar or [P] psi or [L] kPa or [E] MPa or [K] kg/cm2 |
| Process Connection | [GD] G 1/2 B or [ND] 1/2 NPT or [MI] M20 x 1.5 or [GB] G 1/4 B or [NB] 1/4 NPT |
| Connector Location | [LM] Lower Mount or [LB] Lower Back Mount (100 mm) or [LB] Lower Back Mount (160 mm) or [CB] Center Back Mount |
| Mounting Flange / Bracket | [ZH] Without or [CH] SS Rear Flange (63 mm) or [CH] SS Rear Flange (100 mm) or [CH] SS Rear Flange (160 mm) or [MH] SS Front Flange (100 mm) or [MH] SS Front Flange (160 mm) or [SH] SS Surface Mounting Lugs (63 mm) or [SH] SS Surface Mounting Lugs (100 mm) or [SH] SS Surface Mounting Lugs (160 mm) |
| Pointer | [C] Standard Pointer or [A] Adjustable Pointer (63 mm) or [A] Adjustable Pointer (100 mm) or [A] Adjustable Pointer (160 mm) |
| Restrictor | [Z] Without or [Q] Stainless Steel, D 0.6 |
| Set / Drag Pointer | [Z] Without or [X] Adjustable Set Pointer on Bayonet Ring |
| Ingress Protection | [DZ-ZZZZ2] Lz2 or [IZ-ZZZZ2] IP 65 |
| Accuracy Class | [L] ± 1% (ASME B40.100 Grade 1A) or [I] ± 2/1/2% (ASME B40.100 Grade A) |
| Overpressure Safety | [1] Full Scale Value or [B] Vacuum Down to -1 bar or [5] 2 x Full Scale Value + Vacuum Down to -1 bar or [6] 3 x Full Scale Value + Vacuum Down to -1 bar |
| Case Material | [1] 304 SS or [2] 316 Ti SS (63 mm) or [2] 316 Ti SS (100 mm) or [2] 316 Ti SS (160 mm) |
| Case Surface | [D] Bare or [5] Epoxy Coated (SS Case) or [5] Epoxy Coated (Solid Front) |
| Pressure Element Material | [3] 316L or [4] 316 SS |
| Special Measuring Element | [ZY0-U] Without or [1Y0-U] Version 1 Small Volume (for Diaphragm Seals) or [2Y0-U] Version 2 Optimized (for Diaphragm Seals) or [3Y0-U] Version 3 Reduced (for Diaphragm Seals) |
| Color for Inner Scale | [ZZZZZZ] Without or [CZZZZZ] Red or [AZZZZZ] Black |
| Manufacturer Logo | [12] *WIKA* or [22] *WIKA®* or [E2] *WIKA®* w/o QR-Code or [Z2] Without |
| Stop Pin on Dial | [ZZZ] Without or [1ZZ] At Zero |
| Window | [H] Laminated Safety Glass |
| Special Design Features | [Z] Without |
| Explosion Protection | [Z] Without |
| Ignition Protection | [Z] Without |
| Zone | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Assembly Accessory | [Z] Without |
| Additional Ordering Info | [Z2] Without |
| Case Filling | [0] Silicon Oil M5 |
| Permissible Medium Temp | [Y] + 100 °C |
| Permissible Ambient Temp | [0] -70 … + 60°C |
| Pressure Gauge Standard | [U] US-Standard |
| Logo Options | [ZZZZZ] Without |
| Serial Number | [2] WIth Serial Number |
| Red Mark at | [Z] Without |
| Text for Dial | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | PG23LT |
| Gauge: Dial Size | 4 in (100 mm), 2-1/2 in (63 mm & 68 mm), 6 in (160 mm) |
| Gauge: Scale Range | ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar) |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi / inHg, bar, kPa, MPa, kg/cm2 |
| Gauge: Process Connection Size | G 1/2 B, 1/2 NPT, M20 x 1.5, G 1/4 B, 1/4 NPT |
| Gauge: Process Connection Location | Lower Mount, Lower Back Mount, Center Back Mount |
| Gauge: Accuracy | ±1%, ±2% |
| Gauge: Ingress Protection | IP 65, Lz2 |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Laminated Safety Glass |
