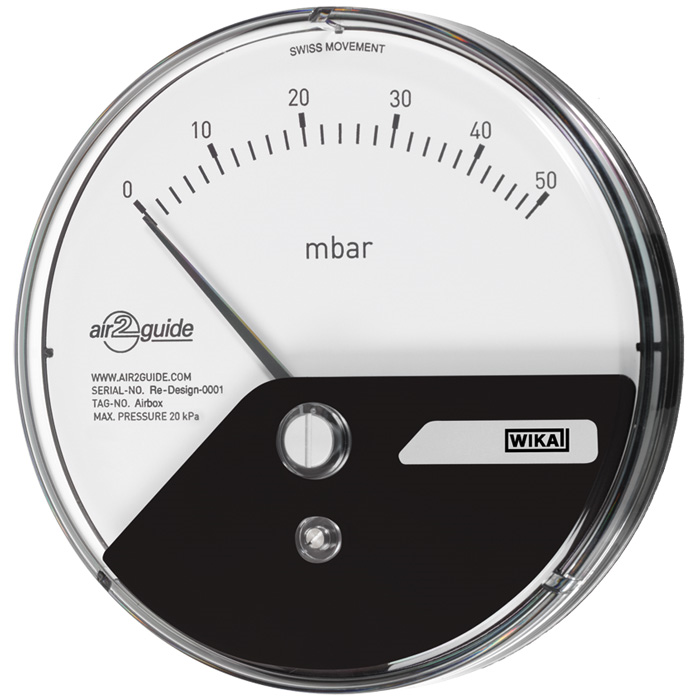

Wika A2G-5 Series 110 mm Eco Differential Pressure Gauge

https://www.pressureworx.com/web/image/product.template/544045/image_1920?unique=4443692
(0 review)

The Wika AG2-54 Series Eco Differential Pressure Gauge is an ideal solution for a variety of applications involving dry, clean, non-aggressive gases and air. It is perfect for monitoring blowers and ventilators, as well as filter monitoring via differential pressure. This gauge is also well-suited for maintaining positive overpressure in clean rooms and managing both positive and negative pressure in isolation chambers. Its compact construction with a short case depth makes it ideal for installations where space is limited.


One of the standout features of the AG2-54 Series is the zero adjustment located at the front, which ensures easy calibration. The design also facilitates simple mounting and removal, enhancing its convenience and user-friendliness. The gauge offers a wide range of scale measurements, from 0.2 InWC (50 Pa) to 50 InWC (12,500 Pa), catering to diverse measurement needs.


For those seeking reliable and precise differential pressure measurement, Branom Instrument Co. stands as the premier destination for purchasing the Wika AG2-54 Series. Branom's commitment to quality and customer satisfaction makes it the best choice for obtaining this advanced and compact pressure gauge.

Order Code Prefix: A2G-05-

224.67 224.67375 USD 237.75

237.75

Not Available For Sale

  • Nominal Size
  • Scale Range
  • 2nd Scale
  • Case Fixing
  • Diaphragm Material
  • Set / Drag Pointer
  • Ingress Protection
  • Dial Design
  • Segment Design
  • Serial Number on Dial
  • Certificates
  • Approvals
  • Additional Ordering Info
  • Gauge: Brand
  • Gauge: Type
  • Gauge: Model
  • Gauge: Dial Size
  • Gauge: Scale Range
  • Gauge: Pressure Type
  • Gauge: Measuring Principle
  • Gauge: Fill Type
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Location
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Ingress Protection
  • Gauge: Ingress Protection
  • Gauge: Window

This combination does not exist.

Specifications

Wika A2G-05
Scale Range ■ Pa ■, [DAEA] 0 Pa...100 Pa, [DADN] 0 Pa...125 Pa, [DADO] 0 Pa...150 Pa, [DADP] 0 Pa...200 Pa, [DACC] 0 Pa...250 Pa, [DADQ] 0 Pa...300 Pa, [DABD] 0 Pa...500 Pa, [DABE] 0 Pa...600 Pa, [DACD] 0 Pa...750 Pa, [DABF] 0 Pa...1000 Pa, [DACE] 0 Pa...1500 Pa, [DAEC] 0 Pa...2000 Pa, [DABH] 0 Pa...2500 Pa, [DACF] 0 Pa...3000 Pa, [DADR] 0 Pa...3730 Pa, [DACG] 0 Pa...5000 Pa, [DABJ] 0 Pa...6000 Pa, [DABN] -50 Pa...50 Pa, [DABT] , [DADF] -62 Pa...62 Pa, [DAAZ] -100 Pa...100 Pa, [DAAY] -125 Pa...125 Pa, [DADG] -150 Pa...150 Pa, [DAAT] -250 Pa...250 Pa, [DAAQ] -300 Pa...300 Pa, [DADH] -500 Pa...500 Pa, [DADI] -750 Pa...750 Pa, [DAAL] -1000 Pa...1000 Pa, [DAAJ] -1250 Pa...1250 Pa, [DADJ] -1500 Pa...1500 Pa, ■ kPa ■, [LAEA] 0 kPa...0,1 kPa, [LADA] 0 kPa...0,25 kPa, [LADB] 0 kPa...0,5 kPa, [LADC] 0 kPa...0,75 kPa, [LADD] 0 kPa...1,5 kPa, [LAEK] 0 kPa...2 kPa, [LABW] 0 kPa...2,5 kPa, [LABU] 0 kPa...1 kPa, [LADE] 0 kPa...3 kPa, [LADF] 0 kPa...6 kPa, [LAB1] -0,05 kpa...0,05 kpa, [LAEL] -0,1 kPa...0,1 kPa, [LAEM] -0,125 kPa...0,125 kPa, [LAEN] -0,15 kPa...0,15 kPa, [LAEO] -0,25 kPa...0,25 kPa, [LAEP] -0,5 kPa...0,5 kPa, [LAEQ] -0,75 kPa...0,75 kPa, [LABO] -1 kPa...1 kPa, [LAB2] -1,25 kpa...1,25 kpa, [LAER] -1,5 kPa...1,5 kPa, ■ mbar ■, [MAGA] 0 mbar...1,0 mbar, [MAEG] 0 mbar...2,5 mbar, [MAFE] 0 mbar...5 mbar, [MAEI] 0 mbar...6 mbar, [MAFF] 0 mbar...7,5 mbar, [MAEJ] 0 mbar...10 mbar, [MAFG] 0 mbar...15 mbar, [MAEL] 0 mbar...20 mbar, [MAEM] 0 mbar...25 mbar, [MAEN] 0 mbar...30 mbar, [MAEQ] 0 mbar...60 mbar, [MAB2] -0,5 mbar...0,5 mbar, [MAHB] -0,62 mbar...0,62 mbar, [MAHC] -1 mbar...1 mbar, [MAEE] -1,25 mbar...1,25 mbar, [MAHD] -1,5 mbar...1,5 mbar, [MAEB] -2,5 mbar...2,5 mbar, [MADS] -5 mbar...5 mbar, [MAHE] -7,5 mbar...7,5 mbar, [MADC] -10 mbar...10 mbar, [MACY] -12,5 mbar...12,5 mbar, [MAHF] -15 m bar...15 mbar, ■ mmWC ■, [UCEC] 0 mmWC...10 mmWC, [UCCO] 0 mmWC...25 mmWC, [UCCP] 0 mmWC...50 mmWC, [UCEA] 0 mmWC...75 mmWC, [UCCR] 0 mmWC...100 mmWC, [UCEB] 0 mmWC...150 mmWC, [UCCT] 0 mmWC...200 mmWC, [UCCU] 0 mmWC...250 mmWC, [UCCV] 0 mmWC...300 mmWC, [UCCZ] 0 mmWC...600 mmWC, [UCDK] -5 mmWC...5 mmWC, [UCFC] -6,2 mm...6,2 mmWC, [UCFD] -10 mmWC...10 mmWC, [UCDL] -13 mmWC...13 mmWC, [UCFE] -15 mmWC...15 mmWC, [UCCF] -25 mmWC...25 mmWC, [UCBT] -50 mmWC...50 mmWC, [UCFF] -75 mmWC...75 mmWC, [UCBK] -100 mmWC...100 mmWC, [UCBH] -125 mmWC...125 mmWC, [UCBG] -150 mmWC...150 mmWC, ■ in.WC ■, [7CEA] 0 in.WC...0.4 in.WC, [7CED] 0 in.WC...0.50 in.WC, [7CER] 0 in.WC...0.6 in.WC, [7CES] 0 in.WC...0.8 in.WC, [7CDA] 0 in.WC...1 in.WC, [7CET] 0 in.WC...1.2 in.WC, [7CDB] 0 in.WC...2 in.WC, [7CD1] 0 in.WC ... 2,4 in.WC, [7CDC] 0 in.WC...3 in.WC, [7CDD] 0 in.WC...4 in.WC, [7CDG] 0 in.WC...5 in.WC, [7CAQ] 0 in.WC...6 in.WC, [7CDH] 0 in.WC...8 in.WC, [7CAR] 0 in.WC...10 in.WC, [7CDE] 0 in.WC...12 in.WC, [7CAS] 0 in.WC...15 in.WC, [7CAU] 0 in.WC...20 in.WC, [7CDF] 0 in.WC...24 in.WC, [7CBV] -0.25 in.WC...0.25 in.WC, [7CBW] -0.4 in.WC...0.4 in.WC, [7CBO] -0,5 in.WC...0,5 in.WC, [7CBX] -0.6 in.WC...0.6 in.WC, [7CBR] -0,8 in.WC...0,8 in.WC, [7CDI] -1 inWC...1 inWC, [7CDK] -1.2 in.WC...1.2 in.WC, [7CAP] -2 in.WC...2 in.WC, [7CBS] -3 in.WC...3 in.WC, [7CDJ] -4 inWC...4 inWC, [7CAO] -5 in.WC...5 in.WC, [7CAN] -6 in.WC...6 in.WC
2nd Scale [ZZ] Without, [DA] Pa, [LA] kPa, [MA] mbar, [UC] mmWC, [7C] in.WC
Case Fixing [R] Mounting Ring (Standard), [T] Screw Built-In Variant, [Z] Without
Diaphragm Material [S] Standard Silicon Diaphragm, [1] Silicon Free EPDM Diaphragm
Set / Drag Pointer [Z] Without, [R] Externally Adjustable Red Set Pointer on Window
Ingress Protection [F] IP 54, [I] IP 65
Dial Design [S] Standard Air2Guide, [1] Silicon Free Material
Segment Design [S1-ZZ-Z 2Q] Standard Air2Guide, [A1-ZZ-Z 2Q] Made In Switzerland
Nominal Size 110 mm
Serial Number on Dial [1] With Serial Number
Certificates [Z] Without
Approvals [Z] Without
Additional Ordering Info [Z2Q] Without
Gauge Features
Gauge: Brand Wika
Gauge: Type Dial Indicating Gauge
Gauge: Model A2G-05
Gauge: Dial Size 4-1/2 in (110 & 115 mm)
Gauge: Scale Range < 6 In.H2O (16 mbar)
Gauge: Pressure Type Differential Pressure
Gauge: Measuring Principle Other
Gauge: Fill Type Dry
Gauge: Product Unit of Measure Pa, kPa, mbar, mmWC, in.WC
Gauge: Process Connection Location Back Mount
Gauge: Accuracy ±3%, ±5%
Gauge: Ingress Protection IP 54, IP 65
Gauge: Window Polycarbonate
