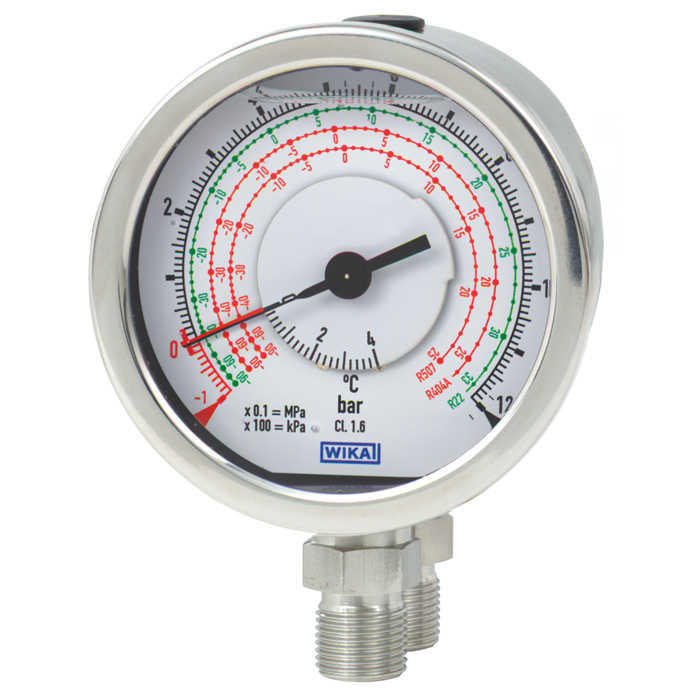

Wika 73x.18 Series 80 or 100 mm SS Differential Pressure Gauge for Refrigeration, SS Wetted Parts
The Wika 73x.18 Series SS Differential Pressure Gauge for Refrigeration is an essential tool for accurately measuring differential pressure or two distinct pressures in refrigeration systems and compressors. It allows for the simultaneous monitoring of vapor pressure and the corresponding vapor temperature, making it ideal for a variety of applications. This gauge is suited for gaseous and liquid aggressive media that are neither highly viscous nor crystallizing and can also be used in harsh environments.
One of the standout features of this gauge is its moving dial that indicates differential pressure. It is available with an optional duplex scale for versatile measurement capabilities. The 733.18 model features a liquid-filled case that dampens the effects of high dynamic pressure pulsations or vibrations and prevents condensation, ensuring reliable performance in demanding conditions. Additionally, the gauge can be equipped with combined pressure and temperature scales in duplex, triples, or quadruplex formats to accommodate all common refrigerants.
Branom Instrument Co. stands out as the best place to purchase this high-quality Wika differential pressure gauge. With its exceptional design and reliable performance, the Wika 73x.18 Series is the perfect solution for your refrigeration measurement needs.
Specifications
Wika 73x.18 | |
---|---|
Nominal Size | 80 mm, 100 mm |
Case Filling | [732.18.080] Without (80 mm), [732.18.100] Without (100 mm), [733.18.080] With (80 mm), [733.18.100] With (100 mm) |
Scale Range | ■ psi / -inHg ■, [PV412] -30 inHg/160 psi, [PV415] -30 inHg/200 psi, [PV422] -30 inHg/300 psi, [PV435] -30 inHg...+500 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, ■ bar ■, [BV413] -1...+12 bar, [BV416] -1/15 bar, [BV417] -1...+16 bar, [BV426] -1/25 bar, [BV431] -1/30 bar, [BV436] -1...+35 bar, [BV441] -1...+40 bar, [BG325] 0/2.5 bar, [BG330] 0...3 bar, [BG335] 0...3,5 bar, [BG340] 0/4 bar, [BG350] 0...5 bar, [BG360] 0/6 bar, [BG370] 0/7 bar, [BG410] 0/10 bar, [BG414] 0/14 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG430] 0/30 bar, [BG440] 0/40 bar, [BG460] 0/60 bar, ■ kPa ■, [LV413] -100...+1200 kPa, [LV416] -100/1500 kPa, [LV417] -100...+1600 kPa, [LV426] -100...+2500 kPa, [LV431] -100/3000 kPa, [LV436] -100...+3500 kPa, [LV441] -100...+4000 kPa, [LG325] 0/250 kPa, [LG330] 0/300 kPa, [LG335] 0/350 kPa, [LG340] 0/400 kPa, [LG350] 0/500 kPa, [LG360] 0/600 kPa, [LG370] 0/700 kPa, [LG410] 0/1000 kPa, [LG414] 0/1400 kPa, [LG416] 0/1600 kPa, [LG420] 0/2000 kPa, [LG425] 0/2500 kPa, [LG430] 0/3000 kPa, [LG440] 0/4000 kPa, [LG460] 0/6000 kPa, ■ MPa ■, [EV413] -0,1...+1,2 MPa, [EV416] -0.1/1.5 MPa, [EV417] -0,1...+1,6 MPa, [EV426] -0,1...+2,5 MPa, [EV431] -0.1/3 MPa, [EV436] -0,1...+3,5 MPa, [EV441] -0,1...+4 MPa, [EG325] 0/0.25 MPa, [EG330] 0...0,3 MPa, [EG335] 0...0,35 MPa, [EG340] 0/0.4 MPa, [EG350] 0...0,5 MPa, [EG360] 0/0.6 MPa, [EG370] 0/0.7 MPa, [EG410] 0/1 MPa, [EG414] 0/1.4 MPa, [EG416] 0/1.6 MPa, [EG420] 0/2 MPa, [EG425] 0/2.5 MPa, [EG430] 0/3 MPa, [EG440] 0/4 MPa, [EG460] 0/6 MPa, ■ kg/cm2 ■, [KV416] -1/15 kg/cm2, [KV430] -1/30 kg/cm2, [KG325] 0/2.5 kg/cm2, [KG339] 0/4 kg/cm2, [KG349] 0...5 kg/cm2, [KG359] 0/6 kg/cm2, [KG369] 0/7 kg/cm2, [KG398] 0/10 kg/cm2, [KG414] 0/14 kg/cm2, [KG416] 0/16 kg/cm2, [KG420] 0/20 kg/cm2, [KG425] 0/25 kg/cm2, [KG429] 0/30 kg/cm2, [KG434] 0/35 kg/cm2, [KG439] 0/40 kg/cm2, [KG459] 0/60 kg/cm2, ■ kg/cm2g ■, [AG325] 0/2.5 kg/cm2g, [AG339] 0/4 kg/cm2g, [AG349] 0/5 kg/cm2g, [AG359] 0/6 kg/cm2g, [AG369] 0/7 kg/cm2g, [AG398] 0/10 kg/cm2g, [AG414] 0/14 kg/cm2g, [AG416] 0/16 kg/cm2g, [AG420] 0/20 kg/cm2g, [AG425] 0/25 kg/cm2g, [AG429] 0/30 kg/cm2g, [AG439] 0/40 kg/cm2g, [AG459] 0/60 kg/cm2g, [AV413] -1...+12 kg/cm2g, [AV416] -1/15 kg/cm2g, [AV417] -1...+16 kg/cm2g, [AV426] -1...+25 kg/cm2g, [AV430] -1/30 kg/cm2g, [AV436] -1...+35 kg/cm2g, [AV441] -1...+40 kg/cm2g |
2nd Scale | [Z] Without, [P] psi, [B] bar, [C] R12 (temp), [6] R134a (temp), [D] R407C (temp), [9] R507 (temp), [F] R12 - R22 (temp), [G] R134a - R407C (temp), [H] R12 - R22 - R502 (temp), [R] R22 - R134a - R404A (temp), [S] R22 - R404A - R507 (temp) |
Display | [5] Differential Pressure, [4] Duplex w/Two Pointers |
Process Connection | [AL] 2 x G 1/4 B, [AP] 2 x G 3/8 B, [VA] 7/16-20 UNF SAE Flare Connection, [KA] 2 x M12x1,5 for 6mm, [L8] 2 x M10 x 0,75 |
Connector Location | [LM] Lower Mount, [LB] Lower Back Mount (80 mm), [LB] Lower Back Mount (100 mm) |
Mounting Flange / Bracket | [ZZE] Without, [RFE] Surface Mounting Flange, SS (80 mm), [RFE] Surface Mounting Flange, SS (100 mm), [MJE] Mounting Clamp for Panel Mounting (80 mm), [MJE] Mounting Clamp for Panel Mounting (100 mm), [PJE] Panel Frame 88x88 mm |
Restrictor | [ZZZZ-ZZZ2JD3R] Without, [QZZZ-ZZZ2JD3R] Stainless Steel, D 0.6 |
Overpressure Safety | [R] Max Scale Reading, Both Sides, [M] High Side Max scale Reading (fsd) |
Case Filling | [Z] Without, [A] Glycerine |
Ingress Protection | [I] IP 65, [K] IP 66 |
Color for Inner Scale | [ZZZZZZ] Without, [CZZZZZ] Red, [KZZZZZ] Cooling Scale |
Manufacturer Logo | [22Z] *Wika®*, [E2Z] *Wika®* Without QR-Code |
Window | [E] Polycarbonate |
Special Design Features | [Z] Without |
Certificates | [ZZ] Without |
Additional Ordering Info | [ZZZ2JD] Without |
Accuracy Class | [3] Class 1.6 |
Approvals | [Z] Without |
Pressure Gauge Standard | [U] US-Standard |
Logo Options | [ZZZZZ] Without |
Serial Number | [2] With Serial Number |
Text for Dial | [Z] Without |
Gauge Features | |
---|---|
Gauge: Brand | Wika |
Gauge: Type | Dial Indicating Gauge |
Gauge: Model | 732.18, 733.18 |
Gauge: Dial Size | 4 in (100 mm), 3 in (76 mm & 80 mm) |
Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
Gauge: Pressure Type | Differential Pressure |
Gauge: Measuring Principle | Bourdon Tube |
Gauge: Fill Type | Dry, Liquid Filled / Fillable |
Gauge: Product Unit of Measure | psi / inHg, bar, kPa, MPa, kg/cm2, kg/cm2g |
Gauge: Process Connection Size | G 1/4 B, G 3/8 B, 7/16 - 20 UNF, M20 x 1.5, M10 x 0.75 |
Gauge: Process Connection Location | Lower Mount, Lower Back Mount |
Gauge: Process Connection Type | 2-Way (2 x) |
Gauge: Wetted Material | Stainless Steel |
Gauge: Ingress Protection | IP 66, IP 65 |
Gauge: Case Material | Stainless Steel |
Gauge: Window | Polycarbonate |
