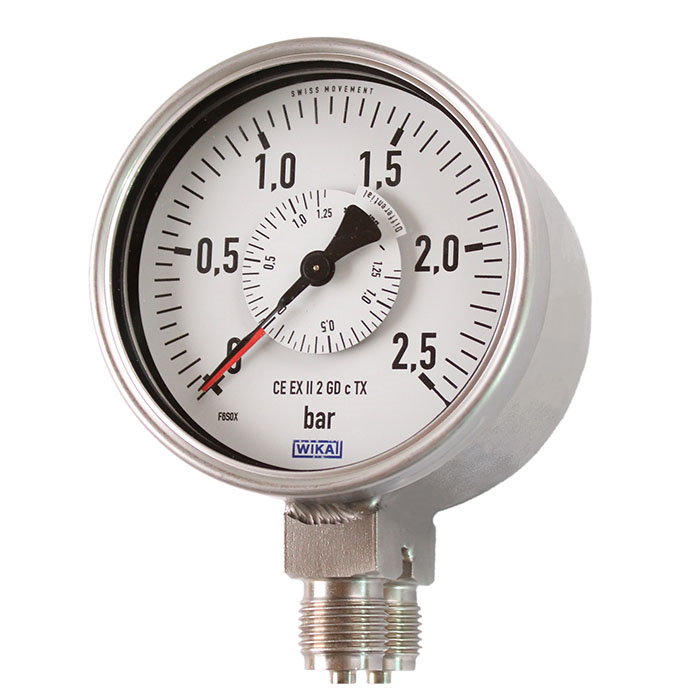

Representative photo. Please check item description for details.
Wika 733.02 Series 4" Differential Pressure Gauge, Parallel Entry, Liquid Filled
|
Manufacturer Wika Instrument Lp |
|
|
MADE TO ORDER
|
Datasheet |
733.02 Diff Press Gauge, Liquid Filled
Specifications
| Wika 733.02 | |
|---|---|
| Scale Range | [BBC] 0 bar...0.6 bar or [BBD] 0 bar...1 bar or [BBE] 0 bar...1.6 bar or [BBF] 0 bar...2.5 bar or [BBG] 0 bar...4 bar or [BBH] 0 bar...6 bar or [BBI] 0 bar...10 bar or [BBK] 0 bar...16 bar or [BBL] 0 bar...25 bar or [BBM] 0 bar...40 bar or [BBN] 0 bar...60 bar or [BBO] 0 bar...100 bar or [BBP] 0 bar...160 bar or [BBQ] 0 bar...250 bar or [BBS] 0 bar...400 bar or [BBT] 0 bar...600 bar or [BBU] 0 bar...1000 bar |
| Process Connection | [GD] G 1/2 B or [ND] 1/2 NPT or [GB] G 1/4 B or [NB] 1/4 NPT or [GC] G 3/8 B or [MI] M20 x 1.5 |
| Display | [5] Differential Pressure or [4] Duplex w/Two Pointers or [3] Subtracting |
| Movement | [A] Copper Alloy or [B] Stainless Steel |
| Mounting Flange / Bracket | [Z] Without or [C] Rear Flange, Stainless Steel or [M] Front Flange, Stainless Steel or [L] Front Flange, SS, for Alarm Contact Gauges |
| Window | [H] Laminated Safety Glass or [G] Flat Instrument Glass or [A] Acrylic (PMMA) |
| Restrictor | [ZZ-ZZZZ] Without or [RZ-ZZZZ] SS, Orifice 0.3 mm (0.012 in) or [QZ-ZZZZ] SS, D 0.6 |
| Case Type | [V3I] Without Blow-Out Disc on Top or [T3I] Blow-Out Disc Back |
| Case Filling | [J] Glycerin or [G] Glycerin-Water Mixture or [D] Silicone, 50 cSt or [V] Prepared for Filling |
| Thread Protection | [ZZ2] Without or [1Z2] With Thread Protection |
| Connector Location | [UMO] Lower Mount or [EMO] 3 O'Clock or [GMO] 9 O'Clock or [DMO] 12 O'Clock |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Electric Arm Contact | [Z] Without |
| Additional Ordering Info | [Z] Without |
| Accuracy Class | [3] Class 1.6 |
| Ingress Protection | [I] IP 65 |
| Tags & Labels | [Z] Without |
| Packing | [2] Single Packing |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 733.02 |
| Gauge: Dial Size | 4 in (100 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Differential Pressure |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | bar |
| Gauge: Process Connection Size | G 1/2 B, 1/2 NPT, G 1/4 B, 1/4 NPT, G 3/8 B, M20 x 1.5 |
| Gauge: Process Connection Location | Lower Mount, 3 o'clock, 9 o'clock, 12 o'clock |
| Gauge: Accuracy | ±2% |
| Gauge: Ingress Protection | IP 65 |
| Gauge: Window | Laminated Safety Glass, Flat Instrument Glass, Acrylic (PMMA) |
