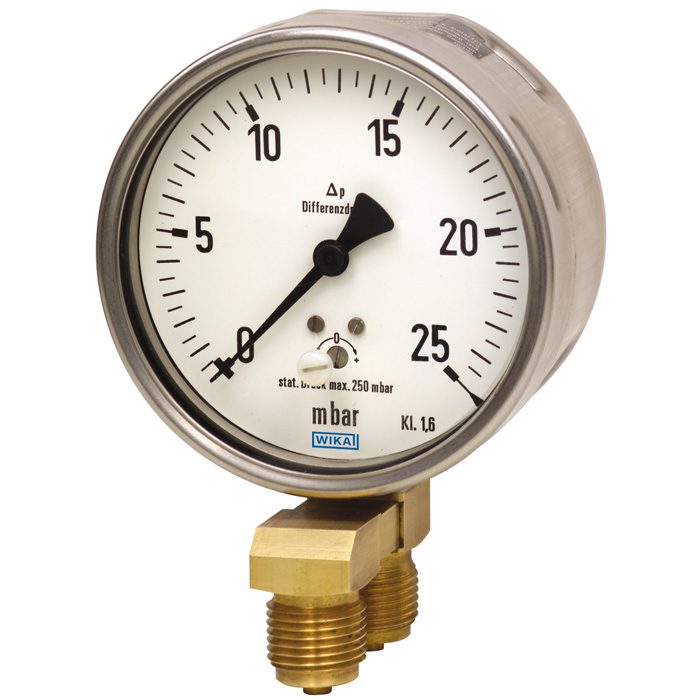

Wika 716.11 Series 4" or 6" SS Very Low Differential Pressure Gauge, Brass Wetted Parts

https://www.pressureworx.com/web/image/product.template/543995/image_1920?unique=d25f60f
(0 review)

The 716.11 Series Brass Very Low Differential Pressure Gauge, featuring a calibrated spring membrane, is an excellent choice for measuring very low differential pressures in various applications. Ideal for monitoring gaseous, dry, clean, oil, and grease-free media, this gauge is perfectly suited for filter monitoring in ventilation and heating systems, overpressure and clean rooms, and differential pressure-controlled monitoring of ventilator and blast pressures.


With differential pressure measuring ranges starting from 0 to 2.5 mbar, this gauge offers precision and reliability. The front zero adjustment feature ensures easy calibration and maintenance, while the stainless steel case provides robust protection and durability. Additionally, the gauge boasts an impressive ingress protection rating of IP66, making it suitable for challenging environments.


For those seeking accuracy and reliability in differential pressure measurement, the 716.11 Series Brass Very Low Differential Pressure Gauge stands out as the ideal choice. Branom Instrument Co. is the premier destination to purchase this high-quality gauge, offering the best selection and exceptional service to meet your specific requirements.

795.70 795.69945 USD 842.01

842.01

Not Available For Sale

  • Nominal Size
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Overpressure Safety
  • Mounting Flange / Bracket
  • Certificates
  • Approvals
  • Additional Ordering Info
  • Pressure Gauge Standard
  • Color for Inner Scale
  • Logo Options
  • Manufacturer Logo
  • Serial Number
  • Stop Pin on Dial
  • Text for Dial
  • Gauge: Brand
  • Gauge: Type
  • Gauge: Model
  • Gauge: Dial Size
  • Gauge: Dial Size
  • Gauge: Scale Range
  • Gauge: Pressure Type
  • Gauge: Measuring Principle
  • Gauge: Fill Type
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Process Connection Type
  • Gauge: Wetted Material
  • Gauge: Accuracy
  • Gauge: Ingress Protection
  • Gauge: Case Material
  • Gauge: Window
  • Gauge: Dial Material
  • Gauge: Pointer Material

This combination does not exist.

Specifications

Wika 716.11
Nominal Size [716.11-E] 4", [716.11-F] 6"
Scale Range ■ mbar ■, [MG060] 0/6 mbar, [MG110] 0/10 mbar, [MG116] 0/16 mbar, [MG125] 0/25 mbar, [MG140] 0/40 mbar, [MG160] 0/60 mbar, [MG210] 0/100 mbar, [MG216] 0/160 mbar, [MG225] 0/250 mbar
2nd Scale [Z] Without, [L] kPa, [2] mmH2O, [7] inH2O, [5] mmHg
Process Connection [AB] 2 x G 1/2 B, [AC] 2 x 1/2 NPT Male, [AF] 2 x 1/4 NPT Male, [AX] 2 x M20x1,5 Male
Connector Location [U] Lower Mount, [A] Back Mount
Overpressure Safety [M] Max Scale Reading (fsd), [O] To Max Working Pressure, [N] 3 x FSV
Mounting Flange / Bracket [Z-ZZZ2-U] Without, [C-ZZZ2-U] Rear Flange, Stainless Steel (4"), [C-ZZZ2-U] Rear Flange, Stainless Steel (6"), [M-ZZZ2-U] Front Flange, Stainless Steel (4"), [M-ZZZ2-U] Front Flange, Stainless Steel (6")
Color for Inner Scale [ZZZZZZ2] Without, [CZZZZZ2] Red, [AZZZZZ2] Black
Stop Pin on Dial [ZZ] Without, [2Z] At 6 O'Clock
Certificates [Z] Without
Approvals [Z] Without
Additional Ordering Info [Z2] Without
Pressure Gauge Standard [U] US-Standard
Logo Options [ZZZZZ] Without
Manufacturer Logo [2] *Wika®*
Serial Number [2] With Serial Number
Text for Dial [Z] Without
Gauge Features
Gauge: Brand Wika
Gauge: Type Dial Indicating Gauge
Gauge: Model 716.11
Gauge: Dial Size 4 in (100 mm), 6 in (160 mm)
Gauge: Scale Range ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar)
Gauge: Pressure Type Differential Pressure
Gauge: Measuring Principle Other
Gauge: Fill Type Dry
Gauge: Product Unit of Measure mbar, kPa, mmH2O, inH2O
Gauge: Process Connection Size 1/2 NPT, 1/4 NPT, G 1/2 B, M20 x 1.5
Gauge: Process Connection Location Lower Mount, Back Mount
Gauge: Process Connection Type 2-Way (2 x)
Gauge: Wetted Material Copper Alloy (Brass)
Gauge: Accuracy ±2%
Gauge: Ingress Protection IP 66
Gauge: Case Material Stainless Steel
Gauge: Window Plastic, Clear
Gauge: Dial Material Aluminum
Gauge: Pointer Material Aluminum
