Description

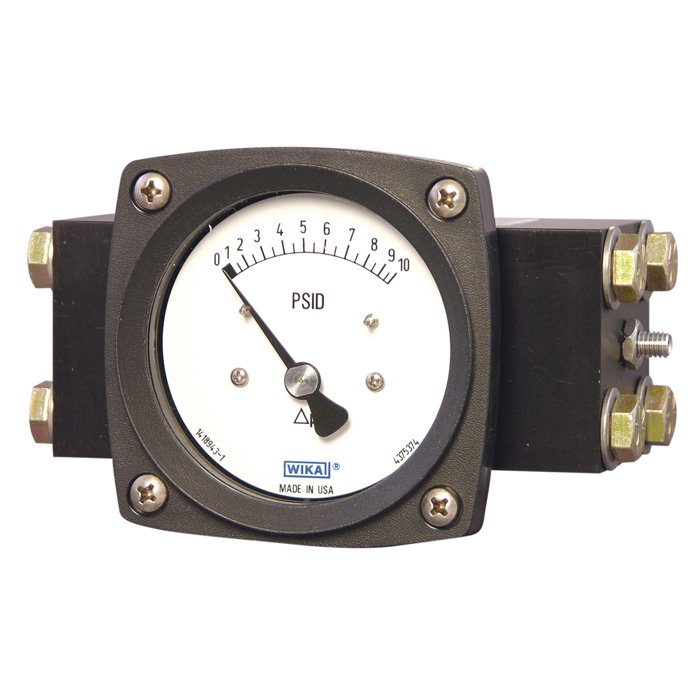

The Wika 70x.05 Series Differential Pressure Gauge tackles demanding measurement applications that involve high differential and static process pressures. This robust gauge is specifically designed to excel in environments where media separation is crucial or where liquid or gas may contain particulate matter.
The 70x.05 Series features a reliable magnetic piston sensing element, known for its smooth operation and accurate readings. Encased in a rugged thermoplastic case, this gauge is built to endure harsh industrial settings. A key feature is the integrated Buna-N separating diaphragm, which isolates the measured media from the internal components, protecting the gauge from contamination and ensuring accurate measurement even with particulates present.
While boasting a maximum working pressure of 3000 psig (200 barg), the 70x.05 Series remains versatile. It offers a wide range of differential pressure measurement capabilities, reaching up to 100 psid (7 bar). This makes it suitable for monitoring pressure drops in various equipment that handle challenging media, perfect for applications in industries like chemical processing or power generation.
For dependable differential pressure measurement with media separation in demanding environments, the Wika 70x.05 Series is the ideal choice. When you need top-of-the-line industrial gauges, look no further than Branom, your trusted supplier for reliable measurement solutions.
Specifications
| Wika 70x.05 | |
|---|---|
| Case Filling | Without, With |
| Nominal Size | 4.5", 2.5" |
| Scale Range | ￭ psi ￭, 5 psid, 10 psid, 15 psid, 20 psid, 25 psid, 30 psid, 50 psid, 60 psid, 75 psid, 100 psid, ￭ bard ￭, 1 bard, 1.4 bard, 1.7 bard, 2 bard, 3.5 bard, 4 bard, 5 bard, 7 bard, ￭ inH2Od ￭, 50 inH2Od, 75 inH2Od, 100 inH2Od, 200 inH2Od, 300 inH2Od, 400 inH2Od |
| 2nd Scale | Without, psid dual scale, bard dual scale, kpad dual scale, kg/cm2d dual scale |
| Process Connection | 2 x 1/4 NPT Female, 2 x 1/2 NPT Female |
| Connector Location | 2 x Back Entry, Top/Bottom Connections |
| Additional Mounting Device | Without, Mounting Kit For Surface Or Pipe Mounting, Stainless Steel |
| Window | Acrylic Window, Laminated Safety Glass Window (2.5"), Laminated Safety Glass Window (4.5") |
| Set / Drag Pointer | Without, Adjustable Red Maximum Drag Pointer (2.5"), Adjustable Red Maximum Drag Pointer (4.5") |
| Case Filling | Dry / Prepared For Filling, Glycerine, Silicone, 1000 cSt, Silicone Oil, 350 cSt |
| Measuring System | Anondized Aluminum Wetted Parts (4.5"), Anondized Aluminum Wetted Parts (2.5"), SS Wetted Parts (4.5"), SS Wetted Parts (2.5") |
| Separation Diaphragm / Sealing | Buna-N Diaphragm, Viton Diaphragm |
| Color for Inner Scale | Without, Black, Red |
| Mark on Dial | Δp, Without |
| Special Design Features | Without |
| Certificates | Without |
| Additional Ordering Info | Without |
| Dial | Aluminum, White, w/Stop-Pin |
| Serial Number on Dial | Without |
| Color for Outer Scale | Standard |
| Dial Background | White |
| Mark Color | Without |
| Arcs / Segments | Without |
| Text on Dial | Without |
| Logo Options | Standard |
| Manufacturer Logo | *WIKA®* |
| Stop Pin on Dial | At Zero and Full Scale |
| Additional Mark | Without |
| Norm-Mark on Dial | *Assembled in USA* |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psi, bard, inH2Od |
| Gauge: Process Connection Location | 2 x Back Entry, In-Line, End Connection |
| Gauge: Process Connection Type | 2-Way (2 x) |
| Gauge: Case Material | Thermoplastic |
| Gauge: Window | Acrylic (PMMA), Laminated Safety Glass |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Plastic |
| Gauge: Wetted Material | Aluminum, Stainless Steel |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Dial Size | 4-1/2 in (110 & 115 mm), 2-1/2 in (63 mm & 68 mm) |
| Gauge: Process Connection Size | 1/4 NPT Female, 1/2 NPT Female |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Other |
| Gauge: Pressure Type | Differential Pressure |
| Gauge: Model | 702.05, 703.05 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
