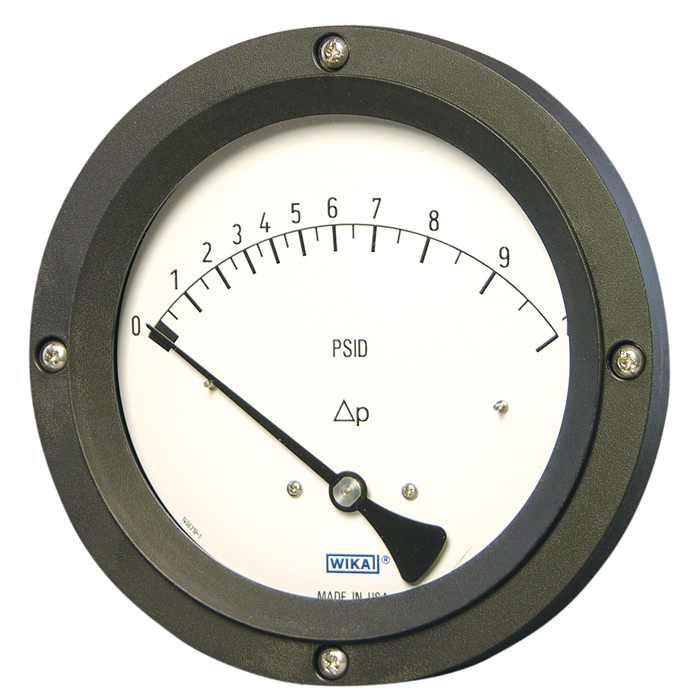

Wika 70x.04 Series 2.5" or 4" Thermoplastic Differential Pressure Gauge w/Magnetic Piston Sensing Element, Dry/Fillable, SS or Aluminum Wetted Parts
|
Manufacturer Wika Instrument Lp |
|
|
MADE TO ORDER
|
Datasheet |
70x.04 Differential Press Gauge w/Mag Piston Sensing Elem
Specifications
| Wika 70x.04 | |
|---|---|
| Case Filling | [700.04] Without or [703.04] With |
| Nominal Size | [F] 4.5" or [C] 2.5" |
| Scale Range | ￭ psi ￭ or [PG235] 5 psid or [PG269] 10 psid or [PG310] 15 psid or [PG314] 20 psid or [PG317] 25 psid or [PG321] 30 psid or [PG335] 50 psid or [PG341] 60 psid or [PG352] 75 psid or [PG369] 100 psid or ￭ bard ￭ or [BG310] 1 bard or [BG314] 1.4 bard or [BG317] 1.7 bard or [BG320] 2 bard or [BG335] 3.5 bard or [BG340] 4 bard or [BG350] 5 bard or [BG370] 7 bard |
| 2nd Scale | [Z] Without or [P] psid or [B] bard or [L] kpad |
| Process Connection | [AH] 2 x 1/4 NPT Female or [AK] 2 x 1/2 NPT Female |
| Connector Location | [7] 2 x Back Entry or [K] In-Line, End Connection |
| Additional Mounting Device | [Z] Without or [B] Mounting Kit for Surface or Pipe Mounting, Stainless Steel |
| Window | [A] Acrylic (PMMA) or [H] Laminated Safety Glass (2.5") or [H] Laminated Safety Glass (4.5") |
| Set / Drag Pointer | [Z] Without or [K] Adjustable Red Maximum Drag Pointer (2.5") or [K] Adjustable Red Maximum Drag Pointer (4.5") |
| Alarm Contacts | [Z-ZZ] Without or [6-ZZ] 2 x SPDT Reed Contact 851.3 5W |
| Case Filling | [1] Prepared For Filling or [A] Glycerine or [P] Silicone, 1000 cSt or [9] Silicone Oil, 350 cSt |
| Measuring System | [H-AB1A] Anondized Aluminum or [3-AB1A] Stainless Steel |
| Color for Inner Scale | [Z1] Without or [C1] Red or [A1] Black |
| Text / Mark on Dial | [DZZZZZZZZZA5ZW] Δp or [ZZZZZZZZZZA5ZW] Without |
| Certificates | [Z] Without |
| Additional Ordering Info | [Z] Without |
| Dial | [AB] Aluminum, White, w/Stop-Pin |
| Serial Number on Dial | [1] Serial Number *...* |
| Color for Outer Scale | [A] Black |
| Dial Background | [1] White |
| Mark Color | [Z] Without |
| Arcs / Segments | [Z] Without |
| Text / Mark on Dial | [Z] Without |
| Logo Options | [ZZZZZZZ] |
| Manufacturer Logo | [A] |
| Stop Pin on Dial | [5] At Zero and Full Scale |
| Additional Mark | [Z] Without |
| Norm-Mark on Dial | [W] *Assembled in USA* |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 700.04, 703.04, 700.04, 703.04 |
| Gauge: Dial Size | 4-1/2 in (110 & 115 mm), 2-1/2 in (63 mm & 68 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Differential Pressure |
| Gauge: Measuring Principle | Other |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi, bard |
| Gauge: Process Connection Size | 1/4 NPT Female, 1/2 NPT Female |
| Gauge: Process Connection Location | 2 x Back Entry, In-Line, End Connection |
| Gauge: Process Connection Type | 2-Way (2 x) |
| Gauge: Wetted Material | Anondized Aluminum, Stainless Steel |
| Gauge: Accuracy | ±2% |
| Gauge: Case Material | Thermoplastic, Fiberglass Reinforced |
| Gauge: Window | Acrylic (PMMA), Laminated Safety Glass |
| Gauge: Dial Material | Aluminum, White |
| Gauge: Pointer Material | Plastic, Black |
