Description

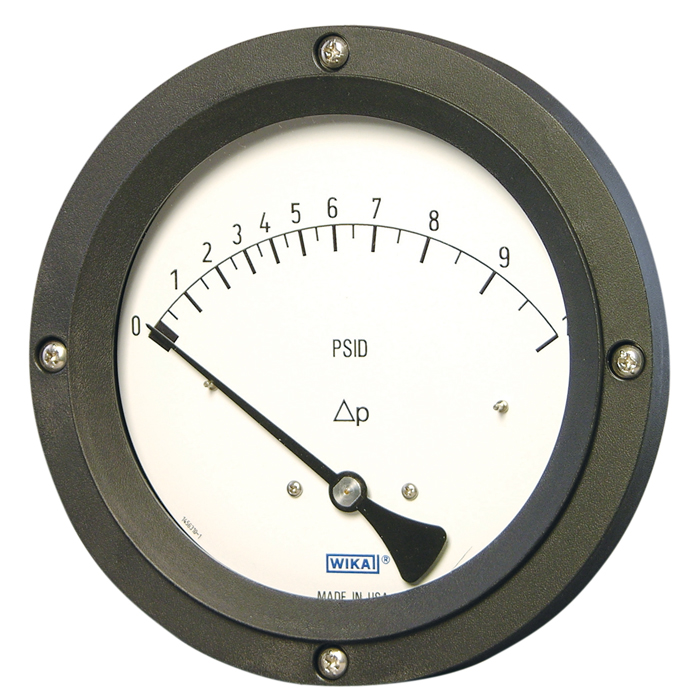

The Wika 70x.04 Series Differential Pressure Gauge offers exceptional accuracy for applications requiring the measurement of pressure differences across a system. This gauge is specifically designed to handle high static process pressures, making it ideal for industrial uses where monitoring pressure drops is critical.
The 70x.04 Series utilizes a magnetic piston sensing element, renowned for its reliability and smooth operation. Encased in a rugged thermoplastic housing, this gauge is built to withstand the rigors of demanding environments. An additional benefit is the field-fillable option, allowing for customization to match specific process requirements.
With a maximum working pressure of 6000 psig (400 barg), the 70x.04 Series tackles even the most challenging applications. The gauge boasts a wide range of differential pressure measurement capabilities, reaching up to 100 PSID (7 bar). This versatility makes it suitable for monitoring pressure drops across various equipment, such as filters, strainers, and separators.
For dependable measurement of differential pressure in high-pressure environments, the Wika 70x.04 Series is the perfect solution. When you need top-tier industrial gauges, look no further than Branom, your trusted supplier for reliable measurement tools.
Specifications
| Wika 70x.04 | |
|---|---|
| Case Filling | Without, With |
| Nominal Size | 4.5", 2.5" |
| Scale Range | ￭ psi ￭, 5 psid, 10 psid, 15 psid, 20 psid, 25 psid, 30 psid, 50 psid, 60 psid, 75 psid, 100 psid, ￭ bard ￭, 1 bard, 1.4 bard, 1.7 bard, 2 bard, 3.5 bard, 4 bard, 5 bard, 7 bard |
| 2nd Scale | Without, psid dual scale, bard dual scale, kpad dual scale |
| Process Connection | 2 x 1/4 NPT Female, 2 x 1/2 NPT Female |
| Connector Location | 2 x Back Entry, In-Line, End Connection |
| Additional Mounting Device | Without, SS Mounting Kit for Surface or Pipe Mounting |
| Window | Acrylic Window, Laminated Safety Glass Window (2.5"), Laminated Safety Glass Window (4.5") |
| Set / Drag Pointer | Without, Adjustable Red Maximum Drag Pointer (2.5"), Adjustable Red Maximum Drag Pointer (4.5") |
| Alarm Contacts | Without, 2 x SPDT Reed Contact 851.3 5W Alarm Contacts |
| Case Filling | Dry / Prepared For Filling, Glycerine, Silicone, 1000 cSt, Silicone Oil, 350 cSt |
| Measuring System | Anondized Aluminum Wetted Parts, SS Wetted Parts |
| Color for Inner Scale | Without, Red, Black |
| Mark on Dial | Δp, Without |
| Certificates | Without |
| Additional Ordering Info | Without |
| Dial | Aluminum, White, w/Stop-Pin |
| Serial Number on Dial | Serial Number *...* |
| Color for Outer Scale | Black |
| Dial Background | White |
| Mark Color | Without |
| Arcs / Segments | Without |
| Text on Dial | Without |
| Logo Options | Without |
| Manufacturer Logo | Standard |
| Stop Pin on Dial | At Zero and Full Scale |
| Additional Mark | Without |
| Norm-Mark on Dial | *Assembled in USA* |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psi, bard |
| Gauge: Process Connection Location | 2 x Back Entry, In-Line, End Connection |
| Gauge: Process Connection Type | 2-Way (2 x) |
| Gauge: Case Material | Thermoplastic |
| Gauge: Window | Acrylic (PMMA), Laminated Safety Glass |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Plastic |
| Gauge: Wetted Material | Aluminum, Stainless Steel |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Dial Size | 4-1/2 in (110 & 115 mm), 2-1/2 in (63 mm & 68 mm) |
| Gauge: Process Connection Size | 1/4 NPT Female, 1/2 NPT Female |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Other |
| Gauge: Pressure Type | Differential Pressure |
| Gauge: Model | 700.04, 703.04, 700.04, 703.04 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
