Wika 700.0x Series 3" SS Dry Differential Pressure Gauge w/Magnetic Piston, SS Wetted Parts

https://www.branom.com/web/image/product.template/543982/image_1920?unique=1adcfd8
(0 review)

Manufacturer
Wika Instrument Lp
MADE TO ORDER


Datasheet

700.0x Diff Press Gauge, Magnetic Piston

$ 404.97 404.97 USD $ 428.54

$ 428.54

Not Available For Sale

  • Separation Diaphragm
  • Nominal Size
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Overpressure Safety / Working Pressure
  • Fine Strainer
  • Mounting Device
  • Set / Drag Pointer
  • Alarm Contacts
  • Electrical Connection
  • Certificates
  • Approvals
  • Additional Ordering Info
  • Accuracy
  • Pressure Gauge Standard
  • Color for Inner Scale
  • Logo Options
  • Manufacturer Logo
  • Serial Number
  • Stop Pin on Dial
  • Text on Dial
  • Gauge: Brand
  • Gauge: Model
  • Gauge: Model
  • Gauge: Dial Size
  • Gauge: Scale Range
  • Gauge: Pressure Type
  • Gauge: Measuring Principle
  • Gauge: Fill Type
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Process Connection Type
  • Gauge: Wetted Material
  • Gauge: Ingress Protection
  • Gauge: Case Material
  • Gauge: Window
  • Gauge: Dial Material
  • Gauge: Pointer Material

This combination does not exist.

Contact Us

The Wika 700.0x Series Differential Pressure Gauge with Magnetic Piston, available at Branom Instrument Co., is designed for applications involving gaseous and liquid media that are not highly viscous or crystallizing. Ideal for filter systems, pump monitoring, cooling circuits, and pipeline systems, this gauge offers a range of features to meet diverse needs.

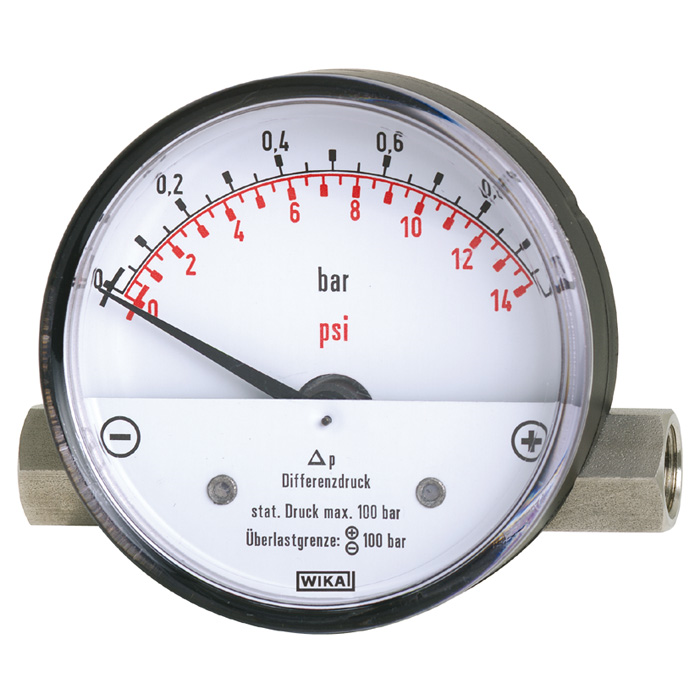

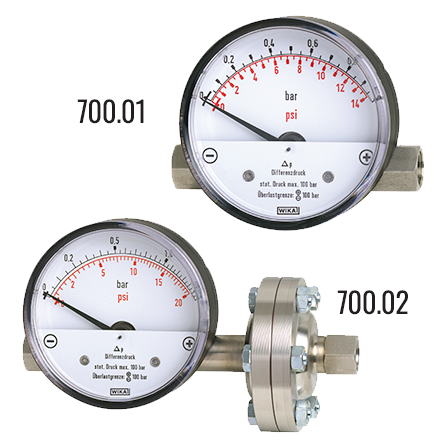

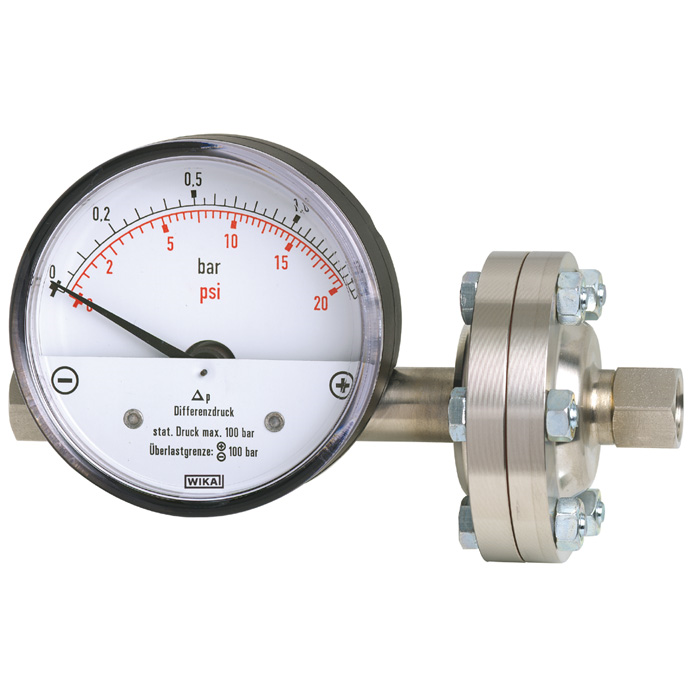

The 700.01 model is tailored for monitoring differential pressures, even under high working pressures, in the gas and air preparation and supply industry. It offers differential pressure measuring ranges from 0 to 400 mbar to 0 to 10 bar. For the water treatment and supply industries, the 700.02 version, with its separating diaphragm, measures differential pressures from 0 to 160 mbar to 0 to 2.5 bar, making it perfect for liquid media.


These gauges feature a compact stainless steel system case, capable of withstanding high working pressures up to 100, 250, or 400 bar. They provide overload safety on either side up to the maximum working pressure, ensuring durability and reliability. The modular design allows for on-site exchange of the measuring system and indicator case, as well as the retrofitting and adjustment of up to two reed contacts.


Despite their robust construction, the 700.01 model weighs approximately 220 grams, while the 700.02 model weighs about 500 grams, offering a lightweight yet economical and flexible solution. The compact design with a stainless steel measuring system ensures high performance and longevity.


For the best selection and quality in differential pressure gauges, Branom Instrument Co. is the premier choice. Trust Branom for reliable, accurate, and customizable pressure measurement solutions tailored to your specific requirements.

Specifications

Wika 700.0x
Separation Diaphragm [700.01-D] Without or [700.02-D] With
Scale Range ￭ psi ￭ or [PG241] 0...6 psi or [PG269] 0/10 psi or [PG310] 0/15 psi or [PG321] 0/30 psi or [PG341] 0/60 psi or [PG369] 0/100 psi or [PG410] 0/150 psi or ￭ mbar ￭ or [MG216] 0/160 mbar or [MG225] 0/250 mbar or [MG240] 0/400 mbar or [MG260] 0/600 mbar or [MG310] 0/1000 mbar or [MG311] 0/1100 mbar or [MG312] 0/1200 mbar or [MG316] 0/1600 mbar or [MG325] 0/2500 mbar or ￭ bar ￭ or [BG240] 0/0.4 bar or [BG260] 0/0.6 bar or [BG310] 0/1 bar or [BG316] 0/1.6 bar or [BG320] 0/2 bar or [BG325] 0/2.5 bar or [BG340] 0/4 bar or [BG360] 0/6 bar or [BG370] 0/7 bar or [BG410] 0/10 bar or ￭ kPa ￭ or [LG260] 0/60 kPa or [LG270] 0/70 kPa or [LG310] 0/100 kPa or [LG316] 0/160 kPa or [LG320] 0/200 kPa or [LG325] 0/250 kPa or [LG330] 0/300 kPa or [LG340] 0/400 kPa or [LG360] 0/600 kPa or [LG370] 0/700 kPa or [LG410] 0/1000 kPa or ￭ MPa ￭ or [EG240] 0/0.04 MPa or [EG260] 0/0.06 MPa or [EG310] 0/0.1 MPa or [EG316] 0/0.16 MPa or [EG320] 0/0.2 MPa or [EG325] 0/0.25 MPa or [EG340] 0/0.4 MPa or [EG360] 0/0.6 MPa or [EG370] 0/0.7 MPa or [EG410] 0/1 MPa or ￭ kg/cm2 ￭ or [KG259] 0/0.6 kg/cm2 or [KG298] 0/1 kg/cm2 or [KG316] 0/1.6 kg/cm2 or [KG320] 0/2 kg/cm2 or [KG325] 0/2.5 kg/cm2 or [KG339] 0/4 kg/cm2 or [KG359] 0/6 kg/cm2 or [KG369] 0/7 kg/cm2 or [KG398] 0/10 kg/cm2
2nd Scale [Z] Without or [P] psi
Process Connection [AA] 2 x G 1/4 Female or [AH] 2 x 1/4 NPT Female or [AL] 2 x G 1/4 B or [AB] 2 x G 1/2 B or [AK] 2 x 1/2 NPT Female
Connector Location [K] In-Line, End Connection or [T] + Left / - Right, Horizontal In-Line (Side By Side)
Overpressure Safety / Working Pressure [A] PN 50 or [H] PN 100 bar or [F] PN 250 bar or [V] PN 400 bar
Fine Strainer [Z] Without or [J] Integrated In + Connection, Brass Fitting
Mounting Device [Z] Without or [D] Panel Mounting Flange, Black or [W] Device for Surface Mounting
Set / Drag Pointer [Z] Without or [K] Adjustable Red Maximum Drag Pointer
Alarm Contacts [Z] Without or [1] SPDT Reed Contact 851.3 3W/VA 30V (DC/AC) / 0,25 A or [2] SPDT Reed Contact 851.3 60W/VA 250V (DC/AC) / 1 or [3] DPDT Reed Contact 851.3.3 3W/ 30V (DC/AC) / 0,2 A or [4] 2x SPDT Reed Contact 851.3.3 60W/VA 250V (DC/AC) / 1
Electrical Connection [Z-ZZZ] Without or [P-ZZZ] Terminal Box
Accuracy [2-3U] ±3% w/Increasing Differential Pressure (700.01) or [2-5U] ± 5% w/Increasing Differential Pressure (700.01) or [Z-3U] ±3% w/Increasing Differential Pressure (700.02) or [Z-5U] ± 5% w/Increasing Differential Pressure (700.02)
Color for Inner Scale [ZZZZZZ22ZZ] Without or [CZZZZZ22ZZ] Red or [AZZZZZ22ZZ] Black
Nominal Size [D] 3"
Certificates [Z] Without
Approvals [Z] Without
Additional Ordering Info [Z] Without
Pressure Gauge Standard [U] US-Standard
Logo Options [ZZZZZ] Without
Manufacturer Logo [2] *Wika®*
Serial Number [2] With Serial Number
Stop Pin on Dial [Z] Without
Text on Dial [Z] Without
Gauge Features
Gauge: Brand Wika
Gauge: Model 700.01, 700.02
Gauge: Dial Size 3 in (76 mm & 80 mm)
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type Differential Pressure
Gauge: Measuring Principle Other
Gauge: Fill Type Dry
Gauge: Product Unit of Measure psi, mbar, bar, kPa, MPa, kg/cm2
Gauge: Process Connection Size G 1/4 Female, 1/4 NPT Female, G 1/2 B, G 1/4 B, 1/2 NPT Female
Gauge: Process Connection Location In-Line, End Connection, Side-by-Side (+R/-L)
Gauge: Process Connection Type 2-Way (2 x)
Gauge: Wetted Material Stainless Steel
Gauge: Ingress Protection IP 54
Gauge: Case Material Stainless Steel
Gauge: Window Plastic, Clear
Gauge: Dial Material Aluminum, White
Gauge: Pointer Material Aluminum, Black
