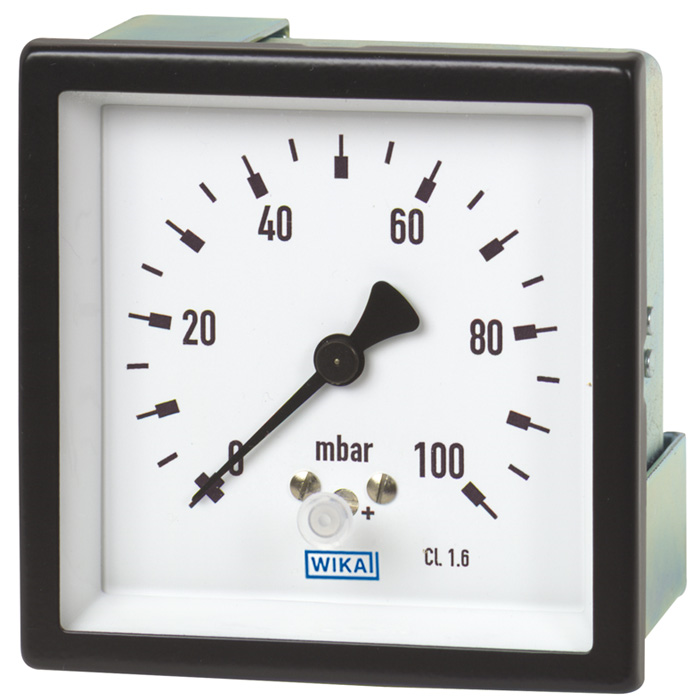

Wika 6x4.11 Series Brass or SS Capsule Pressure Gauge, Edgewise Panel, SS or Brass Wetted Parts
|
Manufacturer Wika Instrument Lp |
|
|
MADE TO ORDER
|
Datasheet |
6x4.11 Capsule Press Gauge, Edgewise/Square
Specifications
| Wika 6x4.11 | |
|---|---|
| Wetted Parts | [614.11] Copper Alloy or [634.11] Stainless Steel |
| Nominal Size | [Q] 72x72 mm or [R] 96x96 mm or [Y] 144x144 mm or [X] 144x72 mm or [1] 144 x 72 mm Vertical Mounting |
| Scale Range | ￭ mbar ￭ or [MAAC] -600 mbar...0 mbar or [MAAD] -400 mbar...0 mbar or [MAAF] -300 mbar...0 mbar or [MAAG] -300 mbar...300 mbar or [MAAH] -250 mbar...0 mbar or [MAAJ] -250 mbar...250 mbar or [MAAL] -200 mbar...0 mbar or [MAAN] -200 mbar...200 mbar or [MAAP] -160 mbar...0 mbar or [MAAS] -150 mbar...150 mbar or [MAAW] -125 mbar...125 mbar or [MAAY] -100 mbar...0 mbar or [MABB] -100 mbar...100 mbar or [MABC] -100 mbar...150 mbar or [MABD] -100 mbar...200 mbar or [MABI] -75 mbar...75 mbar or [MABJ] -60 mbar...0 mbar or [MABK] -60 mbar...40 mbar or [MABL] -60 mbar...60 mbar or [MABM] -60 mbar...100 mbar or [MABP] -50 mbar...50 mbar or [MABS] -40 mbar...0 mbar or [MABT] -40 mbar...20 mbar or [MABU] -40 mbar...40 mbar or [MABV] -40 mbar...60 mbar or [MACA] -30 mbar...30 mbar or [MACD] -25 mbar...0 mbar or [MACH] -25 mbar...25 mbar or [MACL] -20 mbar...20 mbar or [MACM] -20 mbar...40 mbar or [MACR] -16 mbar...0 mbar or [MACS] -16 mbar...16 mbar or [MACY] -12,5 mbar...12,5 mbar or [MADA] -10 mbar...0 mbar or [MADC] -10 mbar...10 mbar or [MADN] -8 mbar...8 mbar or [MADO] -6 mbar...0 mbar or [MADP] -6 mbar...4 mbar or [MADQ] -6 mbar...6 mbar or [MADS] -5 mbar...5 mbar or [MADU] -4 mbar...0 mbar or [MADY] -3 mbar...3 mbar or [MAEB] -2,5 mbar...2,5 mbar or [MAEC] -2 mbar...2 mbar or [MAEE] -1,25 mbar...1,25 mbar or [MAEG] 0 mbar...2,5 mbar or [MAEH] 0 mbar...4 mbar or [MAEI] 0 mbar...6 mbar or [MAEJ] 0 mbar...10 mbar or [MAEK] 0 mbar...16 mbar or [MAEL] 0 mbar...20 mbar or [MAEM] 0 mbar...25 mbar or [MAEN] 0 mbar...30 mbar or [MAEO] 0 mbar...40 mbar or [MAEP] 0 mbar...50 mbar or [MAEQ] 0 mbar...60 mbar or [MAER] 0 mbar...100 mbar or [MAES] 0 mbar...120 mbar or [MAET] 0 mbar...150 mbar or [MAEU] 0 mbar...160 mbar or [MAEW] 0 mbar...200 mbar or [MAEX] 0 mbar...250 mbar or [MAEY] 0 mbar...300 mbar or [MAEZ] 0 mbar...350 mbar or [MAFA] 0 mbar...400 mbar or [MAFB] 0 mbar...500 mbar or [MAFC] 0 mbar...600 mbar or ￭ kg/cm2 ￭ or [KAAA] -0,16 kg/cm2...0 kg/cm2 or [KAAB] -0,125 kg/cm2...0,125 kg/cm2 or [KAAC] -0,1 kg/cm2...0,15 kg/cm2 or [KAAD] -0,1 kg/cm2...0,2 kg/cm2 or [KAAE] -0,04 kg/cm2...0 kg/cm2 or [KAAF] -0,025 kg/cm2...0 kg/cm2 or [KAAG] -0,025 kg/cm2...0,015 kg/cm2 or [KAAH] 0 kg/cm2...0,03 kg/cm2 or [KAAI] 0 kg/cm2...0,06 kg/cm2 or [KAAJ] 0 kg/cm2...0,1 kg/cm2 or [KAAK] 0 kg/cm2...0,2 kg/cm2 or [KAAL] 0 kg/cm2...0,25 kg/cm2 or [KAAM] 0 kg/cm2...0,3 kg/cm2 or [KAAN] 0 kg/cm2...0,4 kg/cm2 or ￭ oz/in2 ￭ or [JAAA] -30 oz/in2...30 oz/in2 or [JAAB] -10 oz/in2...10 oz/in2 or [JAAC] 0 oz/in2...10 oz/in2 or [JAAD] 0 oz/in2...14 oz/in2 or [JAAE] 0 oz/in2...15 oz/in2 or [JAAF] 0 oz/in2...20 oz/in2 or [JAAG] 0 oz/in2...30 oz/in2 or [JAAH] 0 oz/in2...32 oz/in2 or [JAAI] 0 oz/in2...35 oz/in2 or [JAAJ] 0 oz/in2...60 oz/in2 or [JAAK] 0 oz/in2...100 oz/in2 or [JAAL] 0 oz/in2...160 oz/in2 or ￭ osi ￭ or [JBAA] -30 osi...30 osi or [JBAB] -10 osi...10 osi or [JBAC] 0 osi...10 osi or [JBAD] 0 osi...14 osi or [JBAE] 0 osi...15 osi or [JBAF] 0 osi...20 osi or [JBAG] 0 osi...30 osi or [JBAH] 0 osi...32 osi or [JBAI] 0 osi...35 osi or [JBAJ] 0 osi...60 osi or [JBAK] 0 osi...100 osi or [JBAL] 0 osi...160 osi |
| 2nd Scale | [ZZ] Without or [AA] in.HG or [BA] bar or [DA] Pa or [EA] MPa or [JA] oz/in2 or [LA] kPa or [MA] mbar or [PA] psi or [UA] mmH2O or [VA] cmH2O or [YA] mH2O or [7A] inH2O |
| Process Connection | [GB] G 1/4 B or [NB] 1/4 NPT or [GD] G 1/2 B or [ND] 1/2 NPT |
| Panel Mounting Frame | [E] With or [A] Wide |
| Overpressure Safety | [Z] Without or [A] Overpressure Safe (614.11) or [B] Vacuum Safe (614.11) or [C] Overpressure and Vacuum Safe (614.11) or [A] Overpressure Safe (634.11) or [B] Vacuum Safe (634.11) or [C] Overpressure and Vacuum Safe (634.11) |
| Restrictor | [ZZ-ZZZ] Without or [LZ-ZZZ] Brass, D 0.3 or [MZ-ZZZ] Brass, Orifice 0.5 mm (0.02 in) or [RZ-ZZZ] Stainless Steel, Orifice 0.3 mm (0.012 in) or [QZ-ZZZ] Stainless Steel, D 0.6 |
| Case Type | [V] Without Blow-Out Disc on Top or [T] Blow-Out Disc Back |
| Accuracy Class | [3] Class 1.6 or [A] NBR 14105-1 Class A +/- 1.6% |
| Movement | [A] Copper Alloy or [B] Stainless Steel |
| Window | [AS] Acrylic (PMMA) or [GS] Flat Instrument Glass |
| Thread Protection | [ZZ2] Without or [1Z2] With Thread Protection |
| Set / Drag Pointer | [Z] Without or [P] Red Set Pointer on Window |
| Pointer Color | [AME] Black or [BME] White (72 mm) or [BME] White (96 mm) or [BME] White (>144 mm) or [CME] Red (72 mm) or [CME] Red (96 mm) or [CME] Red (>144 mm) or [DME] Yellow (72 mm) or [DME] Yellow (96 mm) or [DME] Yellow (>144 mm) |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Additional Ordering Info | [Z] Without |
| Ingress Protection | [S] Standard |
| Tags & Labels | [Z] Without |
| Packing | [2] Single Packing |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 614.11, 634.11 |
| Gauge: Dial Size | 72 x 72 mm, 96 x 96 mm, 144 x 144 mm, 144 x 72 mm |
| Gauge: Scale Range | ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Capsule Element |
| Gauge: Product Unit of Measure | mbar, kg/cm2, oz/in2, osi |
| Gauge: Process Connection Size | G 1/4 B, 1/4 NPT, G 1/2 B, 1/2 NPT |
| Gauge: Process Connection Location | Panel Mount |
| Gauge: Wetted Material | Copper Alloy (Brass), Stainless Steel |
| Gauge: Accuracy | ±2% |
| Gauge: Window | Acrylic (PMMA), Flat Instrument Glass |
| Gauge: Dial Material | Aluminum, White |
