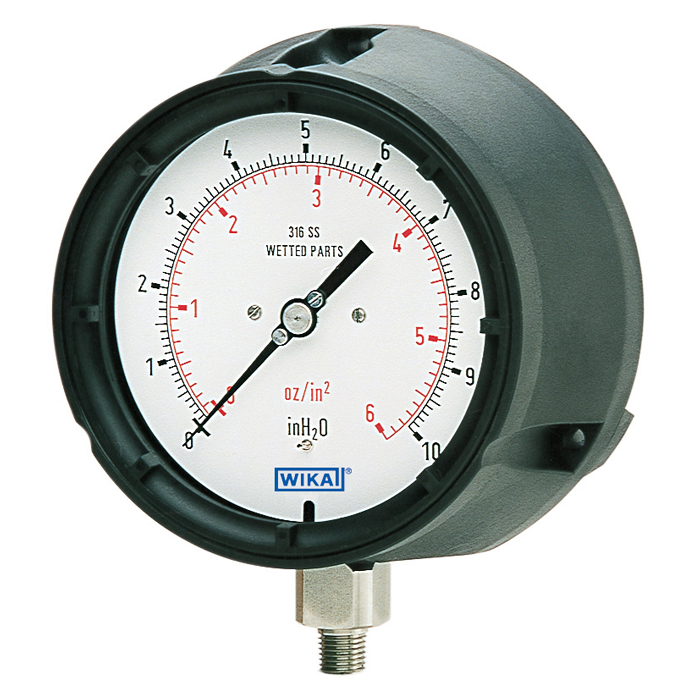

Wika 63x.34 Series 4.5" POCAN Low Pressure Capsule Gauge, Dry/Fillable, SS Wetted Parts
The Wika 63x.34 Series Low Pressure Capsule Gauge is designed for precise measurement of low pressure in a variety of industrial settings. This gauge excels in applications where accurate monitoring is crucial, especially in harsh environments with corrosive elements.
The 63x.34 Series is built to last, featuring a robust solid front thermoplastic case that protects the internal components. Combined with its stainless steel wetted parts, this gauge offers exceptional resistance to corrosion, making it ideal for the chemical, petrochemical, power, and mining industries. Furthermore, the 63x.34 Series is perfectly suited for offshore, environmental technology, and plant construction applications due to its ability to withstand demanding conditions.
With pressure ranges starting from a low 10” H2O (25 mbar), the 63x.34 Series provides accurate readings for even the most delicate processes. For dependable low pressure measurement solutions, look no further than the Wika 63x.34 Series, available at Branom, your one-stop shop for top-quality industrial gauges.
Specifications
| Wika 6xx.34 | |
|---|---|
| Case Filling | [632.34-U] Without, [633.34-U] With |
| Scale Range | ￭ psi ￭, [PAAA] -5 psi...0 psi, [PAAB] -5 psi...5 psi, [PAAC] -3 psi...3 psi, [PAAD] -2,5 psi...0 psi, [PAAE] -1,5 psi...1,5 psi, [PAAF] -1 psi...1 psi, [PAAG] -1 psi...2 psi, [PAAH] -0,5 psi...1,5 psi, [PAAI] -0,5 psi...6 psi, [PAAJ] 0 psi...0,36 psi, [PAAK] 0 psi...2 psi, [PAAL] 0 psi...3 psi, [PAAM] 0 psi...3,6 psi, [PAAN] 0 psi...4 psi, [PAAO] 0 psi...5 psi, [PAAP] 0 psi...5,8 psi, [PAAQ] 0 psi...6 psi, [PAAR] 0 psi...8 psi, [PAAS] 0 psi...10 psi, ￭ kg/cm2 ￭, [KAAA] -0,16 kg/cm2...0 kg/cm2, [KAAB] -0,125 kg/cm2...0,125 kg/cm2, [KAAC] -0,1 kg/cm2...0,15 kg/cm2, [KAAD] -0,1 kg/cm2...0,2 kg/cm2, [KAAE] -0,04 kg/cm2...0 kg/cm2, [KAAF] -0,025 kg/cm2...0 kg/cm2, [KAAG] -0,025 kg/cm2...0,015 kg/cm2, [KAAH] 0 kg/cm2...0,03 kg/cm2, [KAAI] 0 kg/cm2...0,06 kg/cm2, [KAAJ] 0 kg/cm2...0,1 kg/cm2, [KAAK] 0 kg/cm2...0,2 kg/cm2, [KAAL] 0 kg/cm2...0,25 kg/cm2, [KAAM] 0 kg/cm2...0,3 kg/cm2, [KAAN] 0 kg/cm2...0,4 kg/cm2, ￭ kPa ￭, [LAAC] -55 kPa...0 kPa, [LAAI] -20 kPa...0 kPa, [LAAN] -15 kPa...0 kPa, [LAAO] -15 kPa...30 kPa, [LAAT] -10 kPa...25 kPa, [LAAV] -8 kPa...0 kPa, [LAAY] -6 kPa...2 kPa, [LABD] -3,75 kPa...0 kPa, [LABE] -3,5 kPa...6 kPa, [LABH] -2 kPa...2 kPa, [LABI] -2 kPa...30 kPa, [LABJ] -2 kPa...40 kPa, [LABK] -1,5 kPa...2 kPa, [LABM] -1,2 kPa...1,3 kPa, [LABY] 0 kPa...5 kPa, [LACA] 0 kPa...7 kPa, [LACC] 0 kPa...15 kPa, [LACG] 0 kPa...26 kPa, [LACH] 0 kPa...27 kPa, [LACJ] 0 kPa...35 kPa, [LACL] 0 kPa...50 kPa, ￭ mbar ￭, [MAAK] -240 mbar...400 mbar, [MAAQ] -150 mbar...20 mbar, [MAAV] -130 mbar...0 mbar, [MAAX] -120 mbar...0 mbar, [MAAZ] -100 mbar...20 mbar, [MABD] -100 mbar...200 mbar, [MABE] -100 mbar...250 mbar, [MABH] -75 mbar...0 mbar, [MABI] -75 mbar...75 mbar, [MABL] -60 mbar...60 mbar, [MABN] -60 mbar...160 mbar, [MABO] -50 mbar...10 mbar, [MABU] -40 mbar...40 mbar, [MABW] -40 mbar...100 mbar, [MABY] -35 mbar...15 mbar, [MABZ] -30 mbar...5 mbar, [MACC] -30 mbar...200 mbar, [MACE] -25 mbar...10 mbar, [MACG] -25 mbar...20 mbar, [MACH] -25 mbar...25 mbar, [MACJ] -25 mbar...100 mbar, [MACL] -20 mbar...20 mbar, [MACO] -20 mbar...70 mbar, [MACS] -16 mbar...16 mbar, [MACT] -15 mbar...30 mbar, [MACU] -15 mbar...10 mbar, [MACW] -15 mbar...40 mbar, [MACY] -12,5 mbar...12,5 mbar, [MADD] -10 mbar...15 mbar, [MADE] -10 mbar...16 mbar, [MADF] -10 mbar...25 mbar, [MADH] -10 mbar...40 mbar, [MADJ] -10 mbar...60 mbar, [MADK] -10 mbar...80 mbar, [MADM] -10 mbar...100 mbar, [MADT] -5 mbar...20 mbar, [MAEN] 0 mbar...30 mbar, [MAEP] 0 mbar...50 mbar, [MAES] 0 mbar...120 mbar, [MAET] 0 mbar...150 mbar, [MAEV] 0 mbar...168,7 mbar, [MAEZ] 0 mbar...350 mbar, [MAFB] 0 mbar...500 mbar, ￭ mmH2O ￭, [UAAG] -1600 mmH2O...1000 mmH2O, [UAAJ] -1000 mmH2O...1000 mmH2O, [UAAM] -800 mmH2O...200 mmH2O, [UAAS] -400 mmH2O...1200 mmH2O, [UAAT] -375 mmH2O...375 mmH2O, [UABM] -100 mmH2O...250 mmH2O, [UABO] -100 mmH2O...400 mmH2O, [UACH] -25 mmH2O...300 mmH2O, [UACV] 0 mmH2O...300 mmH2O, [UACW] 0 mmH2O...350 mmH2O, [UACY] 0 mmH2O...500 mmH2O, [UADF] 0 mmH2O...3000 mmH2O, [UADH] 0 mmH2O...5000 mmH2O, ￭ inH2O ￭, [7AAA] -100 inH2O...0 inH2O, [7AAB] -60 inH2O...0 inH2O, [7AAC] -60 inH2O...60 inH2O, [7AAD] -50 inH2O...50 inH2O, [7AAE] -50 inH2O...150 inH2O, [7AAF] -30 inH2O...0 inH2O, [7AAG] -30 inH2O...30 inH2O, [7AAH] -30 inH2O...60 inH2O, [7AAI] -20 inH2O...20 inH2O, [7AAJ] -15 inH2O...0 inH2O, [7AAK] -15 inH2O...15 inH2O, [7AAL] -10 inH2O...0 inH2O, [7AAM] -10 inH2O...10 inH2O, [7AAN] -6 inH2O...6 inH2O, [7AAO] -5 inH2O...5 inH2O, [7AAR] 0 inH2O...10 inH2O, [7AAS] 0 inH2O...15 inH2O, [7AAT] 0 inH2O...16 inH2O, [7AAU] 0 inH2O...20 inH2O, [7AAV] 0 inH2O...25 inH2O, [7AAW] 0 inH2O...30 inH2O, [7AAX] 0 inH2O...40 inH2O, [7AAY] 0 inH2O...60 inH2O, [7AAZ] 0 inH2O...80 inH2O, [7ABB] 0 inH2O...100 inH2O, [7ABC] 0 inH2O...150 inH2O, [7ABD] 0 inH2O...160 inH2O, [7ABE] 0 inH2O...200 inH2O, ￭ oz/in2 ￭, [JAAA] -30 oz/in2...30 oz/in2, [JAAB] -10 oz/in2...10 oz/in2, [JAAC] 0 oz/in2...10 oz/in2, [JAAD] 0 oz/in2...14 oz/in2, [JAAE] 0 oz/in2...15 oz/in2, [JAAF] 0 oz/in2...20 oz/in2, [JAAG] 0 oz/in2...30 oz/in2, [JAAH] 0 oz/in2...32 oz/in2, [JAAI] 0 oz/in2...35 oz/in2, [JAAJ] 0 oz/in2...60 oz/in2, [JAAK] 0 oz/in2...100 oz/in2, [JAAL] 0 oz/in2...160 oz/in2 |
| 2nd Scale | [ZZ] Without, [AA] in.HG, [BA] bar, [DA] Pa, [EA] MPa, [JA] oz/in2, [LA] kPa, [MA] mbar, [PA] psi, [UA] mmH2O, [VA] cmH2O, [YA] mH2O, [7A] inH2O |
| Process Connection | [GB] G 1/4 B, [NB] 1/4 NPT, [GD] G 1/2 B, [ND] 1/2 NPT |
| Overpressure Safety | [Z] Without, [A] Overpressure Safe (10 inWc 3-time, From 16 inWc 10-time), [B] Vaccum Safe (10 inWc 3-time, From 16 inWc 10-time), [C] Overpressure and Vacuum Safe (10 inWc 3-time, From 16 inWc 10-time) |
| Window | [A] Acrylic (PMMA), [G] Flat Instrument Glass, [H] Laminated Safety Glass |
| Restrictor | [Z] Without, [L] Brass, D 0.3, [M] Brass, Orifice 0.5mm (0.02 in), [R] Stainless Steel, Orifice 0.3mm (0.012 in), [Q] Stainless Steel, D 0.6 |
| Set / Drag Pointer | [ZZ-ZZZ] Without, [DZ-ZZZ] Red Drag Pointer (Max Hand), Permanent-On Acrylic Window |
| Movement | [A] Copper Alloy, [B] Stainless Steel |
| Ingress Protection | [F] IP 54, [I] IP 65 |
| Case Filling | [Z] Without, [D] Silicon Oil, 50 cSt |
| Thread Protection | [ZZ2MD] Without, [1Z2MD] With Thread Protection |
| Nominal Size | 4.5" |
| Connector Location | [U] Lower Mount |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Additional Ordering Info | [Z2] Without |
| Case Type | [V] Without Blow-Out Disc on Top |
| Accuracy Class | [I] ± 2/1/2% (ASME B40.100 Grade A) |
| Tags & Labels | [Z] Without |
| Packing | [2MD] Single Packing |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 632.34, 633.34 |
| Gauge: Dial Size | 4-1/2 in (110 & 115 mm) |
| Gauge: Scale Range | ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Capsule Element |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi, mbar, mmH2O, inH2O, oz/in2 |
| Gauge: Process Connection Size | 1/2 NPT, 1/4 NPT, G 1/4 B, G 1/2 B |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Accuracy | ±2% |
| Gauge: Ingress Protection | IP 65, IP 54 |
| Gauge: Case Material | Plastic |
| Gauge: Window | Acrylic (PMMA), Laminated Safety Glass, Flat Instrument Glass |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Plastic |
