Description

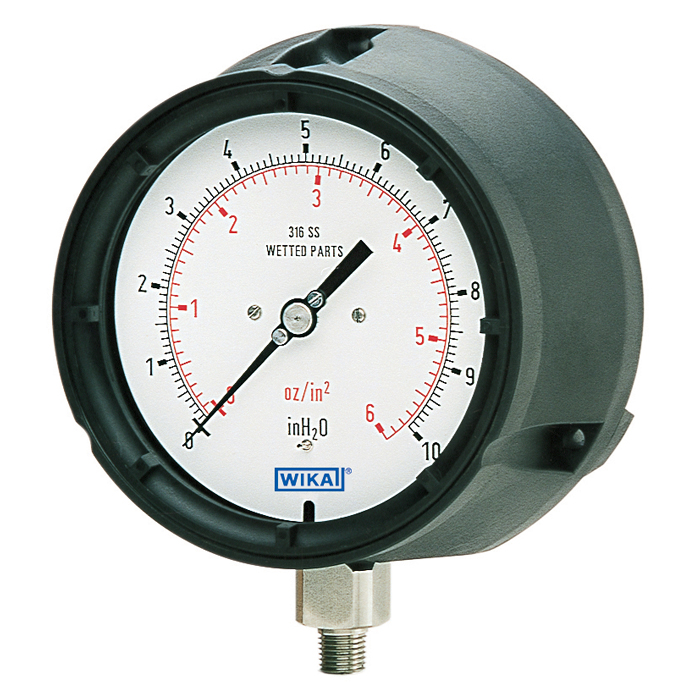

The Wika 61x.34 Series Low Pressure Capsule Gauge is designed for exceptional precision in measuring low pressure across various industries. Its robust construction makes it ideal for applications where corrosive environments and dry gaseous media are present, ensuring accurate readings without compromising performance.
The gauge features a solid front thermoplastic case that provides excellent durability and resistance to wear and tear. Brass wetted parts further enhance its resilience in demanding conditions. The Wika 61x.34 boasts a wide range of measurement capabilities, starting from a low of 10” H2O (25 mbar), making it suitable for a diverse set of low-pressure monitoring needs.
With our commitment to quality products and exceptional service, we ensure you receive the right gauge for your specific application. Explore the Wika 61x.34 Series at Branom today and experience the confidence of precise low-pressure measurement.
Specifications
| Wika 6xx.34 | |
|---|---|
| Case Filling | Without, With |
| Scale Range | ￭ psi ￭, -5 psi...0 psi, -5 psi...5 psi, -3 psi...3 psi, -2,5 psi...0 psi, -1,5 psi...1,5 psi, -1 psi...1 psi, -1 psi...2 psi, -0,5 psi...1,5 psi, -0,5 psi...6 psi, 0 psi...0,36 psi, 0 psi...2 psi, 0 psi...3 psi, 0 psi...3,6 psi, 0 psi...4 psi, 0 psi...5 psi, 0 psi...5,8 psi, 0 psi...6 psi, 0 psi...8 psi, 0 psi...10 psi, ￭ kg/cm2 ￭, -0,16 kg/cm2...0 kg/cm2, -0,125 kg/cm2...0,125 kg/cm2, -0,1 kg/cm2...0,15 kg/cm2, -0,1 kg/cm2...0,2 kg/cm2, -0,04 kg/cm2...0 kg/cm2, -0,025 kg/cm2...0 kg/cm2, -0,025 kg/cm2...0,015 kg/cm2, 0 kg/cm2...0,03 kg/cm2, 0 kg/cm2...0,06 kg/cm2, 0 kg/cm2...0,1 kg/cm2, 0 kg/cm2...0,2 kg/cm2, 0 kg/cm2...0,25 kg/cm2, 0 kg/cm2...0,3 kg/cm2, 0 kg/cm2...0,4 kg/cm2, ￭ kPa ￭, -55 kPa...0 kPa, -20 kPa...0 kPa, -15 kPa...0 kPa, -15 kPa...30 kPa, -10 kPa...25 kPa, -8 kPa...0 kPa, -6 kPa...2 kPa, -3,75 kPa...0 kPa, -3,5 kPa...6 kPa, -2 kPa...2 kPa, -2 kPa...30 kPa, -2 kPa...40 kPa, -1,5 kPa...2 kPa, -1,2 kPa...1,3 kPa, 0 kPa...5 kPa, 0 kPa...7 kPa, 0 kPa...15 kPa, 0 kPa...26 kPa, 0 kPa...27 kPa, 0 kPa...35 kPa, 0 kPa...50 kPa, ￭ mbar ￭, -240 mbar...400 mbar, -150 mbar...20 mbar, -130 mbar...0 mbar, -120 mbar...0 mbar, -100 mbar...20 mbar, -100 mbar...200 mbar, -100 mbar...250 mbar, -75 mbar...0 mbar, -75 mbar...75 mbar, -60 mbar...60 mbar, -60 mbar...160 mbar, -50 mbar...10 mbar, -40 mbar...40 mbar, -40 mbar...100 mbar, -35 mbar...15 mbar, -30 mbar...5 mbar, -30 mbar...200 mbar, -25 mbar...10 mbar, -25 mbar...20 mbar, -25 mbar...25 mbar, -25 mbar...100 mbar, -20 mbar...20 mbar, -20 mbar...70 mbar, -16 mbar...16 mbar, -15 mbar...30 mbar, -15 mbar...10 mbar, -15 mbar...40 mbar, -12,5 mbar...12,5 mbar, -10 mbar...15 mbar, -10 mbar...16 mbar, -10 mbar...25 mbar, -10 mbar...40 mbar, -10 mbar...60 mbar, -10 mbar...80 mbar, -10 mbar...100 mbar, -5 mbar...20 mbar, 0 mbar...30 mbar, 0 mbar...50 mbar, 0 mbar...120 mbar, 0 mbar...150 mbar, 0 mbar...168,7 mbar, 0 mbar...350 mbar, 0 mbar...500 mbar, ￭ mmH2O ￭, -1600 mmH2O...1000 mmH2O, -1000 mmH2O...1000 mmH2O, -800 mmH2O...200 mmH2O, -400 mmH2O...1200 mmH2O, -375 mmH2O...375 mmH2O, -100 mmH2O...250 mmH2O, -100 mmH2O...400 mmH2O, -25 mmH2O...300 mmH2O, 0 mmH2O...300 mmH2O, 0 mmH2O...350 mmH2O, 0 mmH2O...500 mmH2O, 0 mmH2O...3000 mmH2O, 0 mmH2O...5000 mmH2O, ￭ inH2O ￭, -100 inH2O...0 inH2O, -60 inH2O...0 inH2O, -60 inH2O...60 inH2O, -50 inH2O...50 inH2O, -50 inH2O...150 inH2O, -30 inH2O...0 inH2O, -30 inH2O...30 inH2O, -30 inH2O...60 inH2O, -20 inH2O...20 inH2O, -15 inH2O...0 inH2O, -15 inH2O...15 inH2O, -10 inH2O...0 inH2O, -10 inH2O...10 inH2O, -6 inH2O...6 inH2O, -5 inH2O...5 inH2O, 0 inH2O...10 inH2O, 0 inH2O...15 inH2O, 0 inH2O...16 inH2O, 0 inH2O...20 inH2O, 0 inH2O...25 inH2O, 0 inH2O...30 inH2O, 0 inH2O...40 inH2O, 0 inH2O...60 inH2O, 0 inH2O...80 inH2O, 0 inH2O...100 inH2O, 0 inH2O...150 inH2O, 0 inH2O...160 inH2O, 0 inH2O...200 inH2O, ￭ oz/in2 ￭, -30 oz/in2...30 oz/in2, -10 oz/in2...10 oz/in2, 0 oz/in2...10 oz/in2, 0 oz/in2...14 oz/in2, 0 oz/in2...15 oz/in2, 0 oz/in2...20 oz/in2, 0 oz/in2...30 oz/in2, 0 oz/in2...32 oz/in2, 0 oz/in2...35 oz/in2, 0 oz/in2...60 oz/in2, 0 oz/in2...100 oz/in2, 0 oz/in2...160 oz/in2 |
| 2nd Scale | Without, in.HG dual scale, bar dual scale, Pa dual scale, MPa dual scale, oz/in2 dual scale, kPa dual scale, mbar dual scale, psi dual scale, mmH2O dual scale, cmH2O dual scale, mH2O dual scale, inH2O dual scale |
| Process Connection | G 1/4 B, 1/4 NPT, G 1/2 B, 1/2 NPT, G 1/8 B, 1/8 NPT |
| Overpressure Safety | Without, Overpressure Safe (10 inWc 3-time, From 16 inWc 10-time), Vacuum Safe (10 inWc 3-time, From 16 inWc 10-time), Overpressure and Vacuum Safe (10 inWc 3-time, From 16 inWc 10-time) |
| Window | Acrylic Window, Flat Instrument Glass Window, Laminated Safety Glass Window |
| Restrictor | Without, Brass, D 0.3, Brass, Orifice 0.5mm (0.02 in) |
| Set / Drag Pointer | Without, Red Drag Pointer (Max Hand), Permanent-On Acrylic Window |
| Movement | Copper Alloy, Stainless Steel |
| Ingress Protection | IP 54, IP 65 |
| Case Filling | Dry, Silicon Oil, 50 cSt |
| Thread Protection | Without, With Thread Protection |
| Nominal Size | 4.5" |
| Connector Location | Lower Mount |
| Special Design Features | Without |
| Certificates | Without |
| Approvals | Without |
| Additional Ordering Info | Without |
| Case Type | No Blow-Out Disc on Top |
| Accuracy Class | ± 2/1/2% |
| Tags & Labels | Without |
| Packing | Single Packing |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psi, mbar, mmH2O, inH2O, oz/in2 |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Ingress Protection | IP 65, IP 54 |
| Gauge: Case Material | Plastic |
| Gauge: Window | Acrylic (PMMA), Laminated Safety Glass, Flat Instrument Glass |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Plastic |
| Gauge: Wetted Material | Copper Alloy (Brass) |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Dial Size | 4-1/2 in (110 & 115 mm) |
| Gauge: Process Connection Size | 1/2 NPT, 1/4 NPT, G 1/4 B, G 1/2 B |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Capsule Element |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 612.34, 613.34 |
| Gauge: Scale Range | ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar) |
