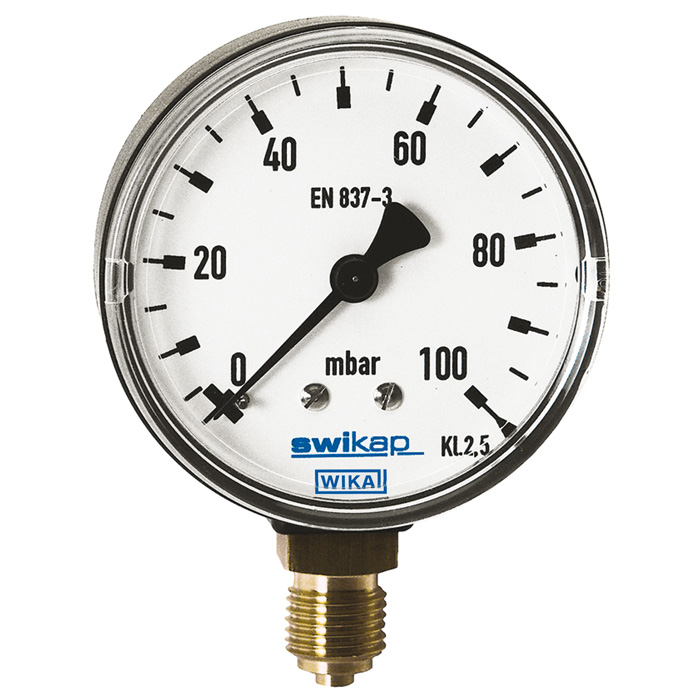

Wika 611.13 Series 2" or 2.5" Dry Plastic Capsule Pressure Gauge, Brass Wetted Parts
Representative photo. Please check item description for details.

Wika 611.13 Series 2" or 2.5" Dry Plastic Capsule Pressure Gauge, Brass Wetted Parts

https://www.pressureworx.com/web/image/product.template/543929/image_1920?unique=6fed74c
(0 review)

Manufacturer
Wika Instrument Lp
MADE TO ORDER


Datasheet

The Wika 611.13 Series Capsule Pressure Gauge is an ideal solution for precise pressure measurement in protected environments. This versatile gauge excels in medical, vacuum, environmental, and laboratory technology, making it perfect for contents measurement and filter monitoring with gaseous, dry, and non-aggressive media.


With its compact design and ingress protection rated at IP53, the Wika 611.13 is both durable and reliable. The gauge features a robust plastic case and brass wetted parts, ensuring longevity and accurate performance. The special connection location can be customized upon request, enhancing its adaptability for various applications.


The Wika 611.13 operates using a sophisticated capsule measuring system. The capsule element, comprised of a plastic case and a copper-beryllium alloy (CuBe) component, expands proportionally to the incident pressure. This expansion is then transmitted to the movement mechanism, providing a precise pressure reading.


This gauge is particularly suited for low pressure ranges, from 0 to 60 mbar up to 0 to 1,000 mbar, or 0 to 24 inH2O to 0 to 400 inH2O. Its wide range of scale options, including vacuum and +/- scale ranges, makes it suitable for a variety of specific needs.


Branom is the premier destination to purchase the Wika 611.13 Series Capsule Pressure Gauge. Known for their exceptional customer service and extensive product knowledge, Branom ensures you get the best instrument for your application. Whether for medical engineering, environmental monitoring, or laboratory use, the Wika 611.13 provides the precision and reliability you require.

$ 106.19 106.18965 USD $ 112.37

$ 112.37

Not Available For Sale

  • Nominal Size
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Overpressure Safety
  • Restrictor
  • Accuracy Class
  • Zero Adjustment
  • Special Design Features
  • Certificates
  • Approvals
  • Additional Ordering Info
  • Packing
  • Gauge: Brand
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Fill Type
  • Gauge: Dial Size
  • Gauge: Dial Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Measuring Principle
  • Gauge: Pressure Type
  • Gauge: Model
  • Gauge: Scale Range
  • Gauge: Type

This combination does not exist.

The Wika 611.13 Series Capsule Pressure Gauge is an ideal solution for precise pressure measurement in protected environments. This versatile gauge excels in medical, vacuum, environmental, and laboratory technology, making it perfect for contents measurement and filter monitoring with gaseous, dry, and non-aggressive media.


With its compact design and ingress protection rated at IP53, the Wika 611.13 is both durable and reliable. The gauge features a robust plastic case and brass wetted parts, ensuring longevity and accurate performance. The special connection location can be customized upon request, enhancing its adaptability for various applications.


The Wika 611.13 operates using a sophisticated capsule measuring system. The capsule element, comprised of a plastic case and a copper-beryllium alloy (CuBe) component, expands proportionally to the incident pressure. This expansion is then transmitted to the movement mechanism, providing a precise pressure reading.


This gauge is particularly suited for low pressure ranges, from 0 to 60 mbar up to 0 to 1,000 mbar, or 0 to 24 inH2O to 0 to 400 inH2O. Its wide range of scale options, including vacuum and +/- scale ranges, makes it suitable for a variety of specific needs.


Branom is the premier destination to purchase the Wika 611.13 Series Capsule Pressure Gauge. Known for their exceptional customer service and extensive product knowledge, Branom ensures you get the best instrument for your application. Whether for medical engineering, environmental monitoring, or laboratory use, the Wika 611.13 provides the precision and reliability you require.

Contact Us

Share

Specifications

Wika 611.13
Nominal Size [611.13-B] 2", [611.13-C] 2-1/2"
Scale Range ￭ mbar ￭, [MAAA] -1000 mbar...0 mbar, [MAAC] -600 mbar...0 mbar, [MAAD] -400 mbar...0 mbar, [MAAH] -250 mbar...0 mbar, [MAAP] -160 mbar...0 mbar, [MAAY] -100 mbar...0 mbar, [MABJ] -60 mbar...0 mbar, [MAEQ] 0 mbar...60 mbar, [MAER] 0 mbar...100 mbar, [MAEU] 0 mbar...160 mbar, [MAEX] 0 mbar...250 mbar, [MAFA] 0 mbar...400 mbar, [MAFC] 0 mbar...600 mbar, [MAFD] 0 mbar...1000 mbar, ￭ kg/cm2 ￭, [KAAA] -0,16 kg/cm2...0 kg/cm2, [KAAB] -0,125 kg/cm2...0,125 kg/cm2, [KAAC] -0,1 kg/cm2...0,15 kg/cm2, [KAAD] -0,1 kg/cm2...0,2 kg/cm2, [KAAI] 0 kg/cm2...0,06 kg/cm2, [KAAJ] 0 kg/cm2...0,1 kg/cm2, [KAAK] 0 kg/cm2...0,2 kg/cm2, [KAAL] 0 kg/cm2...0,25 kg/cm2, [KAAM] 0 kg/cm2...0,3 kg/cm2, [KAAN] 0 kg/cm2...0,4 kg/cm2, ￭ oz/in2 ￭, [JAAA] -30 oz/in2...30 oz/in2, [JAAB] -10 oz/in2...10 oz/in2, [JAAD] 0 oz/in2...14 oz/in2, [JAAE] 0 oz/in2...15 oz/in2, [JAAF] 0 oz/in2...20 oz/in2, [JAAG] 0 oz/in2...30 oz/in2, [JAAH] 0 oz/in2...32 oz/in2, [JAAI] 0 oz/in2...35 oz/in2, [JAAJ] 0 oz/in2...60 oz/in2, [JAAK] 0 oz/in2...100 oz/in2
2nd Scale [ZZ] Without, [AA] in.HG, [BA] bar, [DA] Pa, [EA] MPa, [JA] oz/in2, [LA] kPa, [MA] mbar, [PA] psi, [UA] mmH2O, [VA] cmH2O, [YA] mH2O, [7A] inH2O
Process Connection [GB] G 1/4 B, [NB] 1/4 NPT, [GA] G 1/8 B, [NH] 1/8 NPT
Connector Location [UZ] Lower Mount, [AZ] Back Mount
Restrictor [Z] Without, [L] Brass, D 0.3, [M] Brass, Orifice 0.5mm (0.02 in)
Accuracy Class [I] ± 2/1/2% (ASME B40.100 Grade A), [J] ±3/2/3% (ASME B40.100 Grade B), [A] NBR 14105-1 Class A ±1.6%, [C] NBR 14105-1 Class B ± 3/2/3%, [3] Class 1.6, [4] Class 2.5
Zero Adjustment [ZZ-ZZZ2MQ] Without, [KZ-ZZZ2MQ] Over Movement
Overpressure Safety [Z] Without
Special Design Features [Z] Without
Certificates [Z] Without
Approvals [Z] Without
Additional Ordering Info [Z] Without
Packing [2MQ] Single Packaging
Gauge Features
Gauge: Brand Wika
Gauge: Product Unit of Measure mbar, kg/cm2, oz/in2
Gauge: Process Connection Location Lower Mount, Back Mount
Gauge: Fill Type Dry
Gauge: Dial Size 2 in (50 mm), 2-1/2 in (63 mm & 68 mm)
Gauge: Process Connection Size G 1/4 B, 1/4 NPT, G 1/8 B, 1/8 NPT
Gauge: Accuracy ±1.5%, ±3%, ±2%
Gauge: Measuring Principle Capsule Element
Gauge: Pressure Type Gauge Pressure
Gauge: Model 611.13
Gauge: Scale Range ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar)
Gauge: Type Dial Indicating Gauge
