  3. Wika 611.10 Series 2" or 2.5" Plastic or Steel Dry Low Pressure Capsule Gauge, Brass Wetted Parts
PressureWorx
‎
Wika 611.10 Series 2" or 2.5" Plastic or Steel Dry Low Pressure Capsule Gauge, Brass Wetted Parts

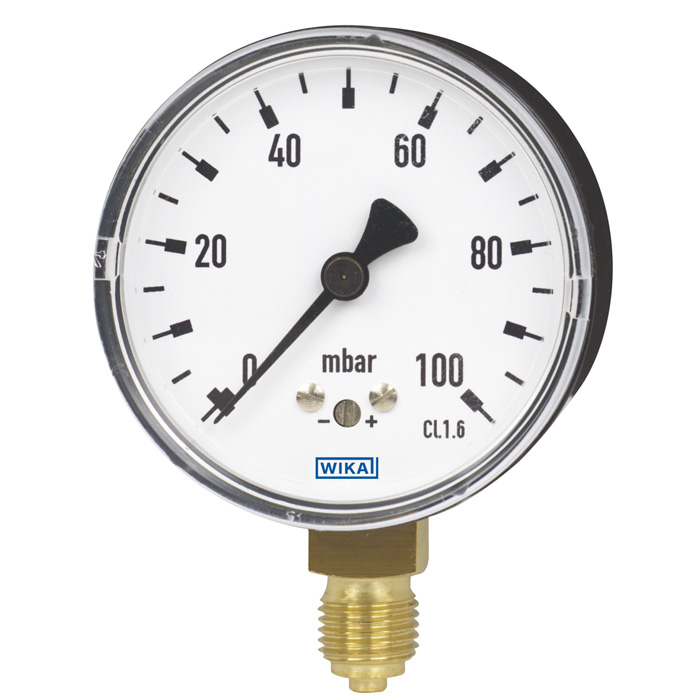

Representative photo. Please check item description for details.

Wika 611.10 Series 2" or 2.5" Plastic or Steel Dry Low Pressure Capsule Gauge, Brass Wetted Parts

https://www.pressureworx.com/web/image/product.template/543778/image_1920?unique=2811a04
(0 review)
Some configurations may require a large minimum purchase. Configure and request quote for further information.

  • Nominal Size
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Mounting Flange / Bracket / Bezel
  • Overpressure Safety
  • Window
  • Restrictor
  • Set / Drag Pointer
  • Special Design Features
  • Certificates
  • Approvals
  • Additional Ordering Info
  • Case Type
  • Accuracy Class
  • Movement
  • Ingress Protection
  • Thread Protection
  • Tags & Labels
  • Packing
  • Case
  • Case Color
  • Pointer Color
  • Gauge: Brand
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Ingress Protection
  • Gauge: Ingress Protection
  • Gauge: Case Material
  • Gauge: Case Material
  • Gauge: Case Material
  • Gauge: Window
  • Gauge: Window
  • Gauge: Window
  • Gauge: Window
  • Gauge: Dial Material
  • Gauge: Pointer Material
  • Gauge: Bezel Material
  • Gauge: Bezel Material
  • Gauge: Wetted Material
  • Gauge: Fill Type
  • Gauge: Dial Size
  • Gauge: Dial Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Accuracy
  • Gauge: Measuring Principle
  • Gauge: Pressure Type
  • Gauge: Model
  • Gauge: Scale Range
  • Gauge: Type

This combination does not exist.

Contact Us
Product Datasheets

Datasheet 1

Share

Some configurations may require a large minimum purchase. Configure and request quote for further information.

Specifications

Wika 611.10
Nominal Size [611.10-C] 2.5", [611.10-B] 2"
Scale Range ￭ psi ￭, [PAAA] -5 psi...0 psi, [PAAB] -5 psi...5 psi, [PAAC] -3 psi...3 psi, [PAAD] -2,5 psi...0 psi, [PAAE] -1,5 psi...1,5 psi, [PAIU] -1,2 psi...0 psi, [PAAF] -1 psi...1 psi, [PAAG] -1 psi...2 psi, [PABU] -0,6 psi…0,6 psi, [PAAH] -0,5 psi...1,5 psi, [PAAI] -0,5 psi...6 psi, [PAGB] -0,3 psi…0,9 psi, [PAGC] -0,15 psi…0,9 psi, [PAHU] 0 psi…1,2 psi, [PAAJ] 0 psi...0,36 psi, [PAAK] 0 psi...2 psi, [PAAL] 0 psi...3 psi, [PAAM] 0 psi...3,6 psi, [PAAN] 0 psi...4 psi, [PAAO] 0 psi...5 psi, [PAAP] 0 psi...5,8 psi, [PAAQ] 0 psi...6 psi, [PAAR] 0 psi...8 psi, ￭ bar ￭, [BABU] -0,04 bar…0,04 bar, [BAIU] -0,08 bar…0 bar, [BAGB] -0,02 bar…0,06 bar, [BAGC] -0,01 bar…0,06 bar, [BAAA] -0,6 bar...0 bar, [BAAB] -0,4 bar...0 bar, [BAAC] -0,25 bar...0 bar, [BAAD] -0,1 bar...0,2 bar, [BAAE] -0,1 bar...0,4 bar, [BAAF] -0,025 bar...0,025 bar, [BAAG] 0 bar...0,06 bar, [BAHU] 0 bar…0,08 bar, [BAAH] 0 bar...0,1 bar, [BAAI] 0 bar...0,25 bar, [BAAJ] 0 bar...0,4 bar, [BAAK] 0 bar...0,6 bar, ￭ Pa ￭, [DAAA] -25000 Pa...0 Pa, [DAAB] -20000 Pa...0 Pa, [DAAC] -16000 Pa...0 Pa, [DAAD] -12500 Pa...0 Pa, [DAAE] -7500 Pa...0 Pa, [DAAF] -5000 Pa...0 Pa, [DAAG] -4000 Pa...0 Pa, [DAAH] -2500 Pa...0 Pa, [DAAJ] -1250 Pa...1250 Pa, [DAAN] -600 Pa...4000 Pa, [DAGC] -1000 Pa…6000 Pa, [DAGB] -2000 Pa…6000 Pa, [DABU] -4000 Pa…4000 Pa, [DAIU] -8000 Pa…0 Pa, [DABH] 0 Pa...2500 Pa, [DABI] 0 Pa...4000 Pa, [DABJ] 0 Pa...6000 Pa, [DABK] 0 Pa...7000 Pa, [DAHU] 0 Pa…8000 Pa, [DABL] 0 Pa...10000 Pa, ￭ oz/in2 ￭, [JAAA] -30 oz/in2...30 oz/in2, [JAAB] -10 oz/in2...10 oz/in2, [JAGC] -2 oz/in2…14 oz/in3, [JAGB] -5 oz/in2…15 oz/in3, [JAIU] -20 oz/in2…0 oz/in2, [JAAC] 0 oz/in2...10 oz/in2, [JAAD] 0 oz/in2...14 oz/in2, [JAAE] 0 oz/in2...15 oz/in2, [JAAF] 0 oz/in2...20 oz/in2, [JAAG] 0 oz/in2...30 oz/in2, [JAAH] 0 oz/in2...32 oz/in2, [JAAI] 0 oz/in2...35 oz/in2, [JAAJ] 0 oz/in2...60 oz/in2, [JAAK] 0 oz/in2...100 oz/in2, ￭ osi ￭, [JBAA] -30 osi...30 osi, [JBAB] -10 osi...10 osi, [JBGC] -2 osi…14 osi, [JBGB] -5 osi…15 osi, [JBIU] -20 osi...0 osi, [JBAC] 0 osi...10 osi, [JBAD] 0 osi...14 osi, [JBAE] 0 osi...15 osi, [JBAF] 0 osi...20 osi, [JBAG] 0 osi...30 osi, [JBAH] 0 osi...32 osi, [JBAI] 0 osi...35 osi, [JBAJ] 0 osi...60 osi, [JBAK] 0 osi...100 osi, ￭ mbar ￭, [MAAC] -600 mbar...0 mbar, [MAAD] -400 mbar...0 mbar, [MAAF] -300 mbar...0 mbar, [MAAH] -250 mbar...0 mbar, [MAAL] -200 mbar...0 mbar, [MAAP] -160 mbar...0 mbar, [MAAS] -150 mbar...150 mbar, [MAAX] -120 mbar...0 mbar, [MAAY] -100 mbar...0 mbar, [MABB] -100 mbar...100 mbar, [MABD] -100 mbar...200 mbar, [MABE] -100 mbar...250 mbar, [MAIU] -80 mbar…0 mbar, [MABI] -75 mbar...75 mbar, [MABJ] -60 mbar...0 mbar, [MABK] -60 mbar...40 mbar, [MABL] -60 mbar...60 mbar, [MABM] -60 mbar...100 mbar, [MABP] -50 mbar...50 mbar, [MABQ] -50 mbar...100 mbar, [MABS] -40 mbar...0 mbar, [MABT] -40 mbar...20 mbar, [MABU] -40 mbar...40 mbar, [MABV] -40 mbar...60 mbar, [MABW] -40 mbar...100 mbar, [MACD] -25 mbar...0 mbar, [MACH] -25 mbar...25 mbar, [MACL] -20 mbar...20 mbar, [MACM] -20 mbar...40 mbar, [MACY] -12,5 mbar...12,5 mbar, [MAEM] 0 mbar...25 mbar, [MAEN] 0 mbar...30 mbar, [MAEO] 0 mbar...40 mbar, [MAEP] 0 mbar...50 mbar, [MAEQ] 0 mbar...60 mbar, [MAHU] 0 mbar...80 mbar, [MAER] 0 mbar...100 mbar, [MAES] 0 mbar...120 mbar, [MAET] 0 mbar...150 mbar, [MAEU] 0 mbar...160 mbar, [MAEW] 0 mbar...200 mbar, [MAEX] 0 mbar...250 mbar, [MAEY] 0 mbar...300 mbar, [MAEZ] 0 mbar...350 mbar, [MAFA] 0 mbar...400 mbar, [MAFB] 0 mbar...500 mbar, [MAFC] 0 mbar...600 mbar, ￭ mmH2O ￭, [UAAA] -6000 mmH2O...0 mmH2O, [UAAB] -2500 mmH2O...0 mmH2O, [UAAC] -2500 mmH2O...1500 mmH2O, [UAAD] -2000 mmH2O...2000 mmH2O, [UAAE] -2000 mmH2O...3000 mmH2O, [UAAF] -1600 mmH2O...0 mmH2O, [UAAG] -1600 mmH2O...1000 mmH2O, [UAAH] -1250 mmH2O...1250 mmH2O, [UAAI] -1000 mmH2O...0 mmH2O, [UAAJ] -1000 mmH2O...1000 mmH2O, [UAAK] -1000 mmH2O...1500 mmH2O, [UAAL] -1000 mmH2O...2000 mmH2O, [UAIU] -800 mmH2O…0 mmH2O, [UAAM] -800 mmH2O...200 mmH2O, [UAAN] -600 mmH2O...0 mmH2O, [UAAO] -600 mmH2O...400 mmH2O, [UAAP] -500 mmH2O...500 mmH2O, [UAAQ] -400 mmH2O...0 mmH2O, [UAGA] -400 mmH2O…400 mmH2O, [UAAR] -400 mmH2O...600 mmH2O, [UAAS] -400 mmH2O...1200 mmH2O, [UAAT] -375 mmH2O...375 mmH2O, [UAAU] -300 mmH2O...0 mmH2O, [UAAV] -300 mmH2O...100 mmH2O, [UAAW] -300 mmH2O...300 mmH2O, [UAAX] -300 mmH2O...700 mmH2O, [UAAY] -250 mmH2O...0 mmH2O, [UAAZ] -250 mmH2O...150 mmH2O, [UABA] -250 mmH2O...250 mmH2O, [UABC] -200 mmH2O...200 mmH2O, [UABD] -200 mmH2O...400 mmH2O, [UAGB] -200 mmH2O…600 mmH2O, [UABE] -200 mmH2O...800 mmH2O, [UABG] -150 mmH2O...150 mmH2O, [UABH] -125 mmH2O...125 mmH2O, [UABL] -100 mmH2O...150 mmH2O, [UABM] -100 mmH2O...250 mmH2O, [UABN] -100 mmH2O...300 mmH2O, [UABO] -100 mmH2O...400 mmH2O, [UABP] -100 mmH2O...500 mmH2O, [UABQ] -100 mmH2O...600 mmH2O, [UABV] -50 mmH2O...200 mmH2O, [UABW] -50 mmH2O...250 mmH2O, [UABX] -50 mmH2O...300 mmH2O, [UACH] -25 mmH2O...300 mmH2O, [UACU] 0 mmH2O...250 mmH2O, [UACV] 0 mmH2O...300 mmH2O, [UACW] 0 mmH2O...350 mmH2O, [UACX] 0 mmH2O...400 mmH2O, [UACY] 0 mmH2O...500 mmH2O, [UACZ] 0 mmH2O...600 mmH2O, [UAHU] 0 mmH2O…800 mmH2O, [UADA] 0 mmH2O...1000 mmH2O, [UADB] 0 mmH2O...1500 mmH2O, [UADC] 0 mmH2O...1600 mmH2O, [UADD] 0 mmH2O...2000 mmH2O, [UADE] 0 mmH2O...2500 mmH2O, [UADF] 0 mmH2O...3000 mmH2O, [UADG] 0 mmH2O...4000 mmH2O, [UADH] 0 mmH2O...5000 mmH2O, [UADI] 0 mmH2O...6000 mmH2O, ￭ cmH2O ￭, [VAIU] -80 cmH2O…0 mmH2O, [VAAA] -80 cmH2O...80 cmH2O, [VAAB] -60 cmH2O...0 cmH2O, [VAAC] -40 cmH2O...0 cmH2O, [VAGA] -40 cmH2O…40 mmH2O, [VAAD] -30 cmH2O...60 cmH2O, [VAGB] -20 cmH2O…60 mmH2O, [VAAE] -20 cmH2O...80 cmH2O, [VAAF] -20 cmH2O...100 cmH2O, [VAAG] -10 cmH2O...30 cmH2O, [VAAH] -10 cmH2O...60 cmH2O, [VAAI] -10 cmH2O...90 cmH2O, [VAAJ] -10 cmH2O...100 cmH2O, [VAAK] -10 cmH2O...120 cmH2O, [VAAL] -5 cmH2O...20 cmH2O, [VAAM] 0 cmH2O...25 cmH2O, [VAHU] 0 cmH2O…80 cmH2O, [VAAN] 0 cmH2O...100 cmH2O, ￭ inH2O ￭, [7AAA] -100 inH2O...0 inH2O, [7AAB] -60 inH2O...0 inH2O, [7AAC] -60 inH2O...60 inH2O, [7AAD] -50 inH2O...50 inH2O, [7AAE] -50 inH2O...150 inH2O, [7AAF] -30 inH2O...0 inH2O, [7AAG] -30 inH2O...30 inH2O, [7AAH] -30 inH2O...60 inH2O, [7AAI] -20 inH2O...20 inH2O, [7AAJ] -15 inH2O...0 inH2O, [7AAK] -15 inH2O...15 inH2O, [7AAL] -10 inH2O...0 inH2O, [7AAM] -10 inH2O...10 inH2O, [7AAN] -6 inH2O...6 inH2O, [7AAO] -5 inH2O...5 inH2O, [7AAR] 0 inH2O...10 inH2O, [7AAS] 0 inH2O...15 inH2O, [7AAT] 0 inH2O...16 inH2O, [7AAU] 0 inH2O...20 inH2O, [7AAV] 0 inH2O...25 inH2O, [7AAW] 0 inH2O...30 inH2O, [7AAX] 0 inH2O...40 inH2O, [7AAY] 0 inH2O...60 inH2O, [7AAZ] 0 inH2O...80 inH2O, [7ABA] 0 inH2O...85 inH2O, [7ABB] 0 inH2O...100 inH2O, [7ABC] 0 inH2O...150 inH2O, [7ABD] 0 inH2O...160 inH2O, [7ABE] 0 inH2O...200 inH2O, [7AGC] -4 inH2O…24 inH2O, [7AGB] -8 inH2O…24 inH2O
2nd Scale [ZZ] Without, [AA] in.HG, [BA] bar, [DA] Pa, [EA] MPa, [JA] oz/in2, [LA] kPa, [MA] mbar, [PA] psi, [UA] mmH2O, [VA] cmH2O, [YA] mH2O, [7A] inH2O
Process Connection [GB] G 1/4 B, [NB] 1/4 NPT, [GA] G 1/8 B, [NH] 1/8 NPT, [R] R 1/4-ISO7 (DIN2999), [MK] M12 x 1.5
Connector Location [U] Lower Mount, [B] Center Back Mount
Mounting Flange / Bracket / Bezel [Z] Without, [H] Rear Flange, Black Painted Steel, [K] Front Flange, Black Painted Steel, Screw Retained, [V] Chrome Plated Steel Front Flange, Screw Retained, [N] Friction Ring, Black Painted Steel, [Q] Stainless Steel Slip-on Bezel Ring, Pressfit, [R] Friction Ring, Stainless Steel Polished, [S] Black Steel Narrow Panel Ring w/Mounting Bracket, [T] Profile Ring, Stainless Steel w/Zinc Plated Steel U-Clamp Bracket
Overpressure Safety [Z] Without, [A] Overpressure Safe (10 inWc 3-time, From 16 inWc 10-time), [B] Vacuum Safe (10 inWc 3-time, From 16 inWc 10-time), [C] Overpressure and Vacuum Safe (10 inWc 3-time, From 16 inWc 10-time)
Window [A] Acrylic (PMMA), [H] Laminated Safety Glass, [L] Laminated Safety Glass, for Zero Correction, [E] Polycarbonate, [P] Polycarbonate, for Zero Correction, [G] Flat Instrument Glass, [X] Flat Instrument Glass, for Zero Correction, [K] Acrylic, Snap Fit, for Zero Correction
Restrictor [Z] Without, [L] Brass, D 0.3, [M] Brass, Orifice 0.5 mm (0.02 in)
Set / Drag Pointer [ZZ-ZZZ] Without, [BZ-ZZZ] Adjustable Red Mark Pointer (Set Pointer), [SZ-ZZZ] Externally Adjustable Red Drag Pointer on Window
Case Type [V] Without Blow-Out Disc on Top, [T] Blow-Out Disc Back
Accuracy Class [3] Class 1.6, [A] NBR 14105-1 Class A ±1.6%, [I] ±2/1/2% (ASME B40.100 Grade A)
Movement [A] Copper Alloy, [B] Stainless Steel
Ingress Protection [B] IP 32, [F] IP 54
Thread Protection [ZZ2] Without, [1Z2] With Thread Protection
Case [C] Steel, Painted Black, [F] Stainless Steel, [P] Steel, Chrome Plated
Case Color [BK] Black, [A3] Green, [A4] Blue, [A1] Red, [GR] Light Grey, [A2] White
Pointer Color [AMC] Black, [BMC] White, [CMC] Red, [DMC] Yellow
Special Design Features [Z] Without
Certificates [Z] Without
Approvals [Z] Without
Additional Ordering Info [Z] Without
Tags & Labels [Z] Without
Packing [2] Single Packing
Gauge Features
Gauge: Brand Wika
Gauge: Product Unit of Measure psi, bar, Pa, oz/in2, osi, mbar, mmH2O, cmH2O, inH2O
Gauge: Process Connection Location Lower Mount, Center Back Mount
Gauge: Ingress Protection IP 32, IP 54
Gauge: Case Material Plastic, Steel, Stainless Steel
Gauge: Window Acrylic (PMMA), Laminated Safety Glass, Polycarbonate, Flat Instrument Glass
Gauge: Dial Material Aluminum
Gauge: Pointer Material Plastic
Gauge: Bezel Material None, Steel
Gauge: Wetted Material Copper Alloy (Brass)
Gauge: Fill Type Dry
Gauge: Dial Size 2-1/2 in (63 mm & 68 mm), 2 in (50 mm)
Gauge: Process Connection Size 1/8 NPT, 1/4 NPT, G 1/4 B, G 1/8 B, R 1/4-ISO7, M12 x 1.5
Gauge: Accuracy ±2%
Gauge: Measuring Principle Capsule Element
Gauge: Pressure Type Gauge Pressure
Gauge: Model 611.10
Gauge: Scale Range ≥ 6 In.H2O (16 mbar) to < 10 psi (600 mbar)
Gauge: Type Dial Indicating Gauge
