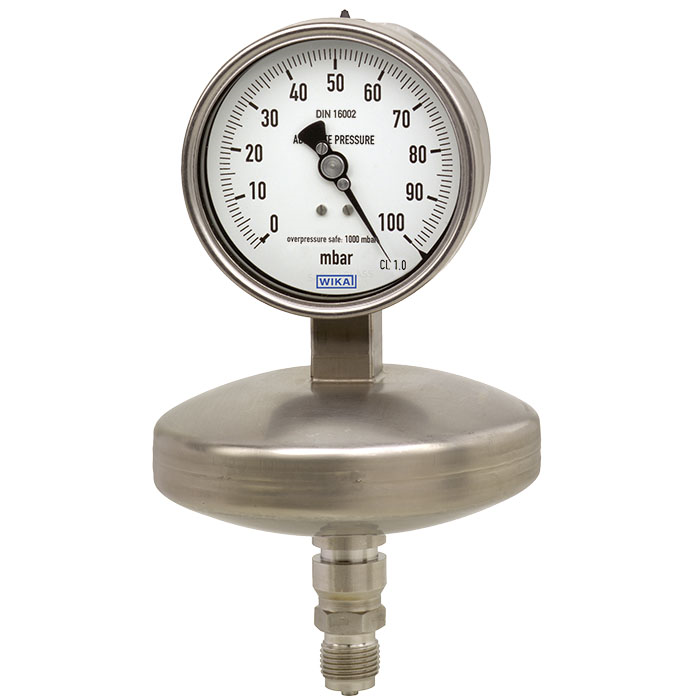

Wika 532.5x Series 4" or 6" SS Dry Absolute Diaphragm Pressure Gauge, SS Wetted Parts, Pressure Vent
The Wika 532.5x Series Absolute Diaphragm Pressure Gauge is designed for precise pressure measurements that remain unaffected by atmospheric pressure fluctuations. Constructed entirely of stainless steel, this gauge is ideal for monitoring vacuum pumps, controlling vacuum packaging machines, and measuring condensation and vapor pressures in liquids. Its ability to handle gaseous, liquid, and aggressive media makes it versatile for various industrial applications.
With scale ranges starting from 0 to 25 mbar absolute pressure, this gauge ensures accuracy even in extremely low-pressure environments. It boasts exceptional overload safety, withstanding up to 25 bar absolute pressure depending on the model. The durable design features a metal media chamber sealing and an extremely gas-tight reference chamber, offering long-term stability and extended service life. Additionally, the gauge can be equipped with liquid filling for applications subjected to shock or vibration.
When you need reliable absolute pressure measurement, Branom Instrument Co. offers the Wika 532.5x Series, ensuring top-quality products and expert service to meet your specific requirements. Choose Branom for the best in industrial instrumentation.
Specifications
| Wika 532.5x | |
|---|---|
| Accuracy Class | [532.54-ZZZ] Class 2.5, [532.53-ZZZ] Class 1.6, [532.52-ZZZ] Class 1.0 |
| Nominal Size | [E] 4", [F] 6" |
| Scale Range | ￭ mbar absolute ￭, [TAG] 0 mbar...25 mbar absolute, [TAH] 0 mbar...40 mbar absolute, [TAK] 0 mbar...60 mbar absolute, [TAL] 0 mbar...100 mbar absolute, [TAM] 0 mbar...160 mbar absolute, [TAN] 0 mbar...250 mbar absolute, [TAP] 0 mbar...400 mbar absolute, [TAR] 0 mbar...600 mbar absolute, [TAS] 0 mbar...1000 mbar absolute, [TAT] 0 mbar...1020 mbar absolute, ￭ bar absolute ￭, [SA2] 0 bar...1,2 bar absolute, [SBC] 0 bar...0.6 bar absolute, [SBD] 0 bar...1 bar absolute, [SBE] 0 bar...1.6 bar absolute, [SBF] 0 bar...2.5 bar absolute, [SBG] 0 bar...4 bar absolute, [SBH] 0 bar...6 bar absolute, [SBI] 0 bar...10 bar absolute, [SBK] 0 bar...16 bar absolute, [SBL] 0 bar...25 bar absolute, ￭ kPa absolute ￭, [9AG] 0 kPa...2,5 kPa absolute, [9AH] 0 kPa...4 kPa absolute, [9AI] 0 kPa...6 kPa absolute, [9AJ] 0 kPa...10 kPa absolute, [9AK] 0 kPa...16 kPa absolute, [9AL] 0 kPa...25 kPa absolute, [9AM] 0 kPa...40 kPa absolute, [9AN] 0 kPa...60 kPa absolute, [9AO] 0 kPa...100 kPa absolute, [9AU] 0 kPa...1200 kPa absolute, [9AP] 0 kPa...160 kPa absolute, [9AQ] 0 kPa...250 kPa absolute, [9AR] 0 kPa...400 kPa absolute, [9AS] 0 kPa...600 kPa absolute, [9AT] 0 kPa...1000 kPa absolute, [9AV] 0 kPa...1600 kPa absolute, [9AW] 0 kPa...2500 kPa absolute, ￭ mmHg absolute ￭, [AAF] 0 mmHG...20 mmHG absolute, [AAG] 0 mmHG...30 mmHG absolute, [AAH] 0 mmHG...45 mmHG absolute, [AAI] 0 mmHG...75 mmHG absolute, [AAL] 0 mmHG...100 mmHG absolute, [AAM] 0 mmHG...160 mmHG absolute, [AAN] 0 mmHG...200 mmHG absolute, [AAO] 0 mmHG...300 mmHG absolute, [AAP] 0 mmHG...500 mmHG absolute, [AAQ] 0 mmHG...760 mmHG absolute, [AAS] 0 mmHG...1000 mmHG absolute, [AAV] 0 mmHG...2000 mmHG absolut, ￭ psi absolute ￭, [JAI] 0 psi...6 psi absolute, [JAL] 0 psi...10 psi absolute, [JAH] 0 psi...4 psi absolute, [JAM] 0 psi...15 psi absolute, [JAN] 0 psi...30 psi absolute, [JAO] 0 psi...60 psi absolute, ￭ torr absolute ￭, [OTF] 0 torr...20 torr absolute, [OTG] 0 torr...30 torr absolute, [OTH] 0 torr...45 torr absolute, [OTI] 0 torr...75 torr absolute, [OTL] 0 torr...100 torr absolute, [OTM] 0 torr...160 torr absolute, [OTN] 0 torr...200 torr absolute, [OTO] 0 torr...300 torr absolute, [OTP] 0 torr...500 torr absolute, [OTQ] 0 torr...760 torr absolute, [OTS] 0 torr...1000 torr absolute, [OTV] 0 torr...2000 torr absolute |
| 2nd Scale | [Z] Without, [M] mbar, [B] bar, [L] kPa, [5] mmHg, [P] psi, [I] kgf/cm2 |
| Process Connection | [GD] G 1/2 B, [ND] 1/2 NPT, [MI] M20 x 1.5, [FO] DN25 PN25, EN 1092-1, Form B1, [FP] DN50 PN25, EN 1092-1, Form B1, [FA] DN 25 PN 25, [FB] DN 50 PN 25, [FK] Small Flange DN 10, [FL] Small Flange DN 16 |
| Diaphragm Material | [I] Inconel 718, [A] Stainless Steel |
| Mounting Device | [Z] Without, [2] Panel Mounting Flange (4"), [2] Panel Mounting Flange (6") |
| Overpressure Safety | [1] 10 x FSV, max. 25 bar abs, min 1 bar abs, [2] 20 x FSV, max. 25 bar abs, min 1 bar abs, [3] 6 bar abs, [3] 6 bar abs¹, [3] 6 bar abs², [3] 6 bar abs³ |
| Permissible Medium Temp | [SZ-ZZZZZZZ] -20...+100 °C, [HZ-ZZZZZZZ] -20...+200 °C |
| Case Material | [3Z] 304 SS, [EZ] 316 Ti |
| Ingress Protection | [F] IP 54, [I] IP 65 |
| Window | [H-U] Laminated Safety Glass, [E-U] Polycarbonate (4"), [E-U] Polycarbonate (6") |
| Color for Inner Scale | [ZZZZZZ22] Without, [CZZZZZ22] Red, [AZZZZZ22] Black |
| Stop Pin on Dial | [ZZZ] Without, [2ZZ] At 6 O'Clock |
| Case Filling | [2] Without |
| Case Style | [5] With Pressure Vent |
| Explosion Protection | [Z] Without |
| Ignition Protection | [Z] Without |
| Zone | [Z] Without |
| Connector Location | [U] Lower Mount |
| Permissible Ambient Temp | [A] -20...+60 °C |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Assembly Accessory | [Z] Without |
| Electric Arm Contact | [Z] Without |
| Additional Ordering Info | [ZZZ2] Without |
| Case Filling | [Z] Without |
| Pressure Gauge Standard | [U] US-Standard |
| Logo Options | [ZZZZZ2] Without |
| Serial Number | [2] With Serial Number |
| Text for Dial | [Z] Without |
| Origin of Wetted Parts | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 532.54, 532.53, 532.52 |
| Gauge: Dial Size | 4 in (100 mm), 6 in (160 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Absolute Pressure |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Fill Type | Dry |
| Gauge: Product Unit of Measure | mbar, bar, kPa, mmHg, psi, torr |
| Gauge: Process Connection Size | G 1/4 B, 1/2 NPT, M20 x 1.5, DN 25, DN 50, DN 10, DN 16 |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Process Connection Type | Flange |
| Gauge: Accuracy | ±3%, ±2%, ±1% |
| Gauge: Ingress Protection | IP 54, IP 65 |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Laminated Safety Glass, Polycarbonate |
| Gauge: Diaphragm Material | Nickel Alloy, Stainless Steel |
