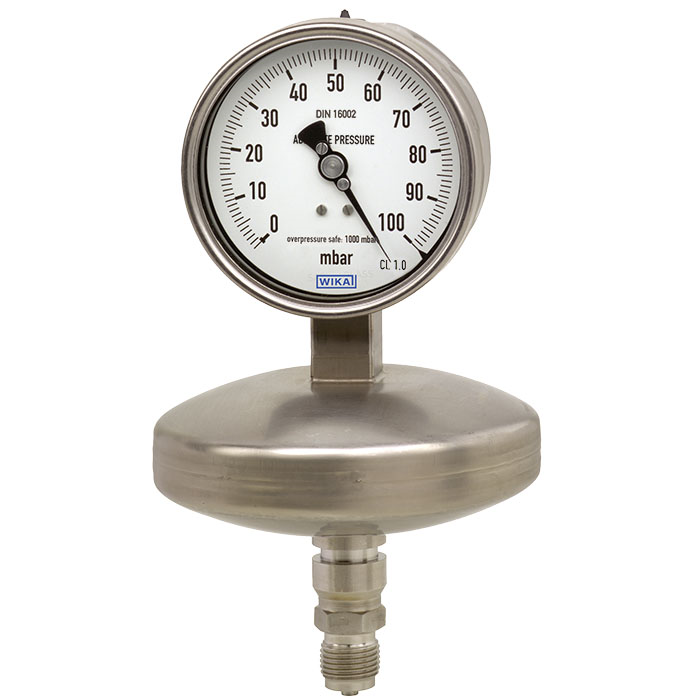

Wika 532.5x Series 4" or 6" SS Dry Absolute Diaphragm Pressure Gauge, SS Wetted Parts, Pressure Vent
|
Manufacturer Wika Instrument Lp |
|
|
MADE TO ORDER
|
Datasheet |
532.5x Absolute Diaphragm Pressure Gauge
Specifications
| Wika 532.5x | |
|---|---|
| Accuracy Class | [532.54-ZZZ] Class 2.5 or [532.53-ZZZ] Class 1.6 or [532.52-ZZZ] Class 1.0 |
| Nominal Size | [E] 4" or [F] 6" |
| Scale Range | ￭ mbar absolute ￭ or [TAG] 0 mbar...25 mbar absolute or [TAH] 0 mbar...40 mbar absolute or [TAK] 0 mbar...60 mbar absolute or [TAL] 0 mbar...100 mbar absolute or [TAM] 0 mbar...160 mbar absolute or [TAN] 0 mbar...250 mbar absolute or [TAP] 0 mbar...400 mbar absolute or [TAR] 0 mbar...600 mbar absolute or [TAS] 0 mbar...1000 mbar absolute or [TAT] 0 mbar...1020 mbar absolute or ￭ bar absolute ￭ or [SA2] 0 bar...1,2 bar absolute or [SBC] 0 bar...0.6 bar absolute or [SBD] 0 bar...1 bar absolute or [SBE] 0 bar...1.6 bar absolute or [SBF] 0 bar...2.5 bar absolute or [SBG] 0 bar...4 bar absolute or [SBH] 0 bar...6 bar absolute or [SBI] 0 bar...10 bar absolute or [SBK] 0 bar...16 bar absolute or [SBL] 0 bar...25 bar absolute or ￭ kPa absolute ￭ or [9AG] 0 kPa...2,5 kPa absolute or [9AH] 0 kPa...4 kPa absolute or [9AI] 0 kPa...6 kPa absolute or [9AJ] 0 kPa...10 kPa absolute or [9AK] 0 kPa...16 kPa absolute or [9AL] 0 kPa...25 kPa absolute or [9AM] 0 kPa...40 kPa absolute or [9AN] 0 kPa...60 kPa absolute or [9AO] 0 kPa...100 kPa absolute or [9AU] 0 kPa...1200 kPa absolute or [9AP] 0 kPa...160 kPa absolute or [9AQ] 0 kPa...250 kPa absolute or [9AR] 0 kPa...400 kPa absolute or [9AS] 0 kPa...600 kPa absolute or [9AT] 0 kPa...1000 kPa absolute or [9AV] 0 kPa...1600 kPa absolute or [9AW] 0 kPa...2500 kPa absolute or ￭ mmHg absolute ￭ or [AAF] 0 mmHG...20 mmHG absolute or [AAG] 0 mmHG...30 mmHG absolute or [AAH] 0 mmHG...45 mmHG absolute or [AAI] 0 mmHG...75 mmHG absolute or [AAL] 0 mmHG...100 mmHG absolute or [AAM] 0 mmHG...160 mmHG absolute or [AAN] 0 mmHG...200 mmHG absolute or [AAO] 0 mmHG...300 mmHG absolute or [AAP] 0 mmHG...500 mmHG absolute or [AAQ] 0 mmHG...760 mmHG absolute or [AAS] 0 mmHG...1000 mmHG absolute or [AAV] 0 mmHG...2000 mmHG absolut or ￭ psi absolute ￭ or [JAI] 0 psi...6 psi absolute or [JAL] 0 psi...10 psi absolute or [JAH] 0 psi...4 psi absolute or [JAM] 0 psi...15 psi absolute or [JAN] 0 psi...30 psi absolute or [JAO] 0 psi...60 psi absolute or ￭ torr absolute ￭ or [OTF] 0 torr...20 torr absolute or [OTG] 0 torr...30 torr absolute or [OTH] 0 torr...45 torr absolute or [OTI] 0 torr...75 torr absolute or [OTL] 0 torr...100 torr absolute or [OTM] 0 torr...160 torr absolute or [OTN] 0 torr...200 torr absolute or [OTO] 0 torr...300 torr absolute or [OTP] 0 torr...500 torr absolute or [OTQ] 0 torr...760 torr absolute or [OTS] 0 torr...1000 torr absolute or [OTV] 0 torr...2000 torr absolute |
| 2nd Scale | [Z] Without or [M] mbar or [B] bar or [L] kPa or [5] mmHg or [P] psi or [I] kgf/cm2 |
| Process Connection | [GD] G 1/2 B or [ND] 1/2 NPT or [MI] M20 x 1.5 or [FO] DN25 PN25, EN 1092-1, Form B1 or [FP] DN50 PN25, EN 1092-1, Form B1 or [FA] DN 25 PN 25 or [FB] DN 50 PN 25 or [FK] Small Flange DN 10 or [FL] Small Flange DN 16 |
| Diaphragm Material | [I] Inconel 718 or [A] Stainless Steel |
| Mounting Device | [Z] Without or [2] Panel Mounting Flange (4") or [2] Panel Mounting Flange (6") |
| Overpressure Safety | [1] 10 x FSV, max. 25 bar abs, min 1 bar abs or [2] 20 x FSV, max. 25 bar abs, min 1 bar abs or [3] 6 bar abs or [3] 6 bar abs¹ or [3] 6 bar abs² or [3] 6 bar abs³ |
| Permissible Medium Temp | [SZ-ZZZZZZZ] -20...+100 °C or [HZ-ZZZZZZZ] -20...+200 °C |
| Case Material | [3Z] 304 SS or [EZ] 316 Ti |
| Ingress Protection | [F] IP 54 or [I] IP 65 |
| Window | [H-U] Laminated Safety Glass or [E-U] Polycarbonate (4") or [E-U] Polycarbonate (6") |
| Color for Inner Scale | [ZZZZZZ22] Without or [CZZZZZ22] Red or [AZZZZZ22] Black |
| Stop Pin on Dial | [ZZZ] Without or [2ZZ] At 6 O'Clock |
| Case Filling | [2] Without |
| Case Style | [5] With Pressure Vent |
| Explosion Protection | [Z] Without |
| Ignition Protection | [Z] Without |
| Zone | [Z] Without |
| Connector Location | [U] Lower Mount |
| Permissible Ambient Temp | [A] -20...+60 °C |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Assembly Accessory | [Z] Without |
| Electric Arm Contact | [Z] Without |
| Additional Ordering Info | [ZZZ2] Without |
| Case Filling | [Z] Without |
| Pressure Gauge Standard | [U] US-Standard |
| Logo Options | [ZZZZZ2] Without |
| Serial Number | [2] With Serial Number |
| Text for Dial | [Z] Without |
| Origin of Wetted Parts | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 532.54, 532.53, 532.52 |
| Gauge: Dial Size | 4 in (100 mm), 6 in (160 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Absolute Pressure |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Fill Type | Dry |
| Gauge: Product Unit of Measure | mbar, bar, kPa, mmHg, psi, torr |
| Gauge: Process Connection Size | G 1/4 B, 1/2 NPT, M20 x 1.5, DN 25, DN 50, DN 10, DN 16 |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Process Connection Type | Flange |
| Gauge: Accuracy | ±3%, ±2%, ±1% |
| Gauge: Ingress Protection | IP 54, IP 65 |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Laminated Safety Glass, Polycarbonate |
| Gauge: Diaphragm Material | Inconel 718, SS |
