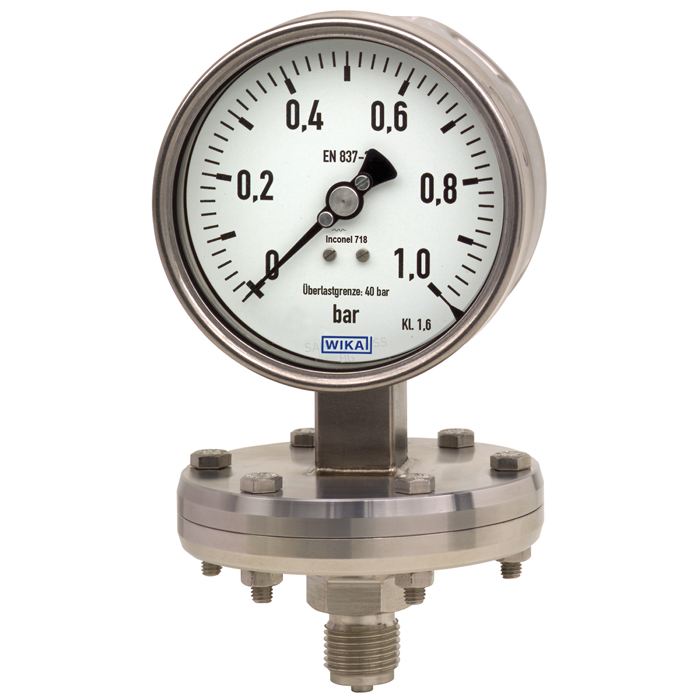

Wika 43x.56 Series 4" or 6" SS Diaphragm Pressure Gauge, High OVP Safe, Dry/Fillable, Pressure Blowout Disk
|
Manufacturer Wika Instrument Lp |
|
|
MADE TO ORDER
|
Datasheet |
The Wika 43x.36 Sealgauge Diaphragm Gauge is engineered to excel in harsh industrial environments. This robust gauge features a liquid-filled case, effectively dampening the effects of pressure fluctuations and vibrations, ensuring accurate readings even under challenging conditions. Built with a blowout disk and constructed entirely from stainless steel, the 43x.36 boasts exceptional durability and high overpressure safety of up to 6,000 psi (400 bar), making it a reliable partner for long-term use.
The 43x.36 offers unmatched versatility. With a wide range of compatible wetted materials, it can handle various media, including corrosive liquids, gases, and even highly viscous substances. This adaptability makes the 43x.36 a valuable asset across diverse industries, from chemical processing and power generation to environmental technology and plant construction. It's particularly well-suited for applications in the demanding water/wastewater industry.
When you need a pressure gauge that delivers unwavering performance in challenging environments, the Wika 43x.36 is the perfect solution. Branom is your trusted supplier for top-tier industrial gauges. We offer a comprehensive selection of measurement instruments to ensure you have the right tools for your specific needs.
Description
The Wika 43x.36 Sealgauge Diaphragm Gauge is engineered to excel in harsh industrial environments. This robust gauge features a liquid-filled case, effectively dampening the effects of pressure fluctuations and vibrations, ensuring accurate readings even under challenging conditions. Built with a blowout disk and constructed entirely from stainless steel, the 43x.36 boasts exceptional durability and high overpressure safety of up to 6,000 psi (400 bar), making it a reliable partner for long-term use.
The 43x.36 offers unmatched versatility. With a wide range of compatible wetted materials, it can handle various media, including corrosive liquids, gases, and even highly viscous substances. This adaptability makes the 43x.36 a valuable asset across diverse industries, from chemical processing and power generation to environmental technology and plant construction. It's particularly well-suited for applications in the demanding water/wastewater industry.
When you need a pressure gauge that delivers unwavering performance in challenging environments, the Wika 43x.36 is the perfect solution. Branom is your trusted supplier for top-tier industrial gauges. We offer a comprehensive selection of measurement instruments to ensure you have the right tools for your specific needs.
Specifications
| Wika 43x.x6 | |
|---|---|
| Nominal Size | 4", 6" |
| Case Filling | [432] Without, [433] With (4"), [433] With (6") |
| Case Style | [56-ZZZE] With Pressure Blowout Disk (4"), [56-ZZZF] With Pressure Blowout Disk (6") |
| Overpressure Safety | [K] 40 Bar, [L] 100 Bar |
| Scale Range | ￭ mbar ￭, [MG116] 0/16 mbar, [MG125] 0/25 mbar ³, [MG140] 0/40 mbar ³, [MG160] 0/60 mbar ³, [MG210] 0/100 mbar ³, [MG216] 0/160 mbar ³, [MG225] 0/250 mbar ³, [MG240] 0/400 mbar ³, [MG260] 0/600 mbar ³, ￭ bar ￭, [BG260] 0/0.6 bar ³, [BG310] 0/1 bar ², [BG316] 0/1.6 bar ³, [BG325] 0/2.5 bar ², [BG340] 0/4 bar ², [BG360] 0/6 bar, [BG410] 0/10 bar, [BG416] 0/16 bar, [BG425] 0/25 bar, [BG440] 0/40 bar, ￭ mbarg ￭, [CG116] 0...16 mbarg, [CG125] 0...25 mbarg, [CG140] 0...40 mbarg, [CG160] 0...60 mbarg, [CG210] 0...100 mbarg, [CG216] 0...160 mbarg, [CG225] 0...250 mbarg, [CG240] 0...400 mbarg, [CG260] 0...600 mbarg, [CG310] 0...1000 mbarg, [CG311] 0...1100 mbarg, [CG312] 0...1200 mbarg, [CG316] 0...1600 mbarg, [CG325] 0...2500 mbarg, [CV116] -16...0 mbarg, [CV125] -25...0 mbarg, [CV140] -40...0 mbarg, [CV160] -60...0 mbarg, [CV210] -100...0 mbarg, [CV216] -160...0 mbarg, [CV225] -250...0 mbarg, [CV240] -400...0 mbarg, [CV260] -600...0 mbarg, [CV310] -1000...0 mbarg |
| 2nd Scale | [Z] Without, [2] mmH2O, [Y] mH2O, [P] psi, [7] inH2O |
| Process Connection | [GD] G 1/2 B, [ND] 1/2 NPT, [NQ] 1/2 NPT Female, [MI] M20 x 1.5, [FG] DN25 PN40, EN 1092-1 Form B (4"), [FG] DN25 PN40, EN 1092-1 Form B (6"), [FH] DN50 PN40, EN 1092-1 Form B (4"), [FH] DN50 PN40, EN 1092-1 Form B (6"), [FI] DN25 PN40, EN 1092-1, Overload Limit 100 bar, [FJ] DN50 PN40, EN 1092-1, Overload Limit 100 bar |
| Vacuum Safety Up to -1 bar | [2] No, [1] Yes, [1] Yes ², [1] Yes ³ |
| Diaphragm Material | [Z] S304 SS, [I] Inconel 718 |
| Pointer | [C] Standard Pointer, [A] Adjustable Pointer (4"), [A] Adjustable Pointer (6") |
| Accuracy Class | [L] ± 1% (ASME B40.100 Grade 1A), [I] ± 2/1/2% (ASME B40.100 Grade A), [J] ± 3/2/3% (ASME B40.100 Grade B) |
| Permissible Ambient Temp | -20...+60 °C, -40...+60 °C |
| Permissible Medium Temp | [ASZ-ZZZZZ] -20...+100 °C, [A7Z-ZZZZZ] -20...+120 °C, [AGZ-ZZZZZ] -20...+160 °C, [AHZ-ZZZZZ] -20...+200 °C, [BLZ-ZZZZZ] -40...+100 °C, [B7Z-ZZZZZ] -40...+120 °C, [BHZ-ZZZZZ] -40...+200 °C |
| Case Filling | [Z] Without, [G] Glycerine-Water-Mixture, [D] Silicon Oil, 50 cSt (4"), [D] Silicon Oil, 50 cSt (6") |
| Case Material | [3] 304 SS, [E] 316 Ti (4"), [E] 316 Ti (6") |
| Ingress Protection | [F] IP 54, [I] IP 65 |
| Sealing of Pressure Chamber-Wetted Part | [J] FPM, [E] PTFE |
| Thread Protection | [ZZZ-U] Without, [1ZZ-U] With Thread Protection, [2ZZ-U] With Flange-Protection |
| Color for Inner Scale | [ZZZZZZ22] Without, [CZZZZZ22] Red, [AZZZZZ22] Black |
| Stop Pin on Dial | [ZZ] Without, [2Z] At 6 o'clock |
| Explosion Protection | [Z] Without |
| Ignition Protection | [Z] Without |
| Zone | [Z] Without |
| Connector Location | [U] Lower Mount |
| Lower Body Material | [Z] Stainless Steel |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Electric Arm Contact | [Z] Without |
| Additional Ordering Info | [Z2ZZ] Without, [Z2ZZ] Without |
| Customer Design | [Z] Without |
| Origin of Wetted Parts | [Z] Without |
| Pressure Gauge Standard | [U] US-Standard |
| Logo Options | [ZZZZZ] |
| Manufacturer Logo | [2] *WIKA®* |
| Serial Number | [2] With |
| Text / Mark on Dial | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 432.56, 433.56 |
| Gauge: Dial Size | 4 in (100 mm), 6 in (160 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi / inHg, psi, mbar, bar, mmH2O, mH2O, inH2O, kPa, MPa, oz/in2, kg/cm2, psig, barg, mbarg, kPag, MPag, kg/cm2g, psig / inHg |
| Gauge: Process Connection Size | G 1/2 B, 1/2 NPT, 1/2 NPT Female, M20 x 1.5, DN 25, DN 50 |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Wetted Material | Plastic, Rubber |
| Gauge: Accuracy | ±1%, ±2%, ±3% |
| Gauge: Ingress Protection | IP 54, IP 65 |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Laminated Safety Glass |
| Gauge: Pointer Material | Aluminum |
| Gauge: Pointer Type | Adjustable |
