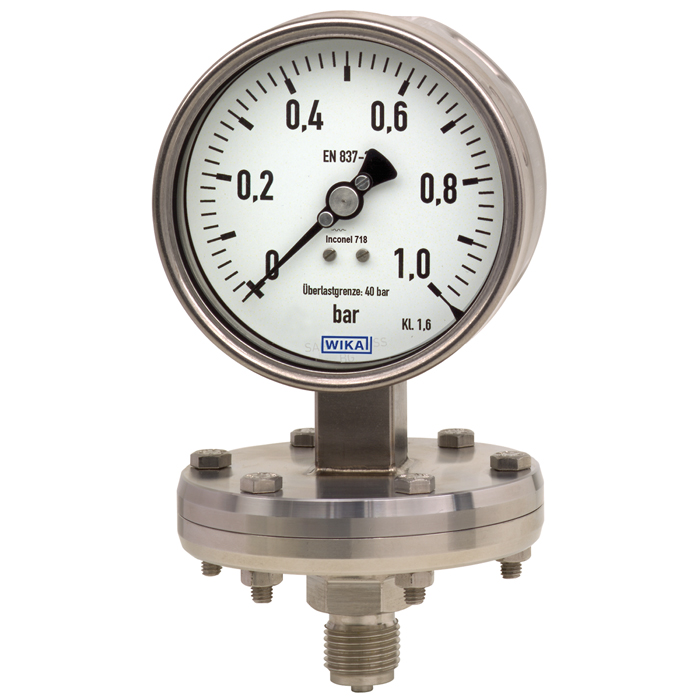

Wika 43x.56 Series 4" or 6" SS Diaphragm Pressure Gauge, High OVP Safe, Dry/Fillable, Pressure Blowout Disk
The Wika 43x.36 Sealgauge Diaphragm Gauge is engineered to excel in harsh industrial environments. This robust gauge features a liquid-filled case, effectively dampening the effects of pressure fluctuations and vibrations, ensuring accurate readings even under challenging conditions. Built with a blowout disk and constructed entirely from stainless steel, the 43x.36 boasts exceptional durability and high overpressure safety of up to 6,000 psi (400 bar), making it a reliable partner for long-term use.
The 43x.36 offers unmatched versatility. With a wide range of compatible wetted materials, it can handle various media, including corrosive liquids, gases, and even highly viscous substances. This adaptability makes the 43x.36 a valuable asset across diverse industries, from chemical processing and power generation to environmental technology and plant construction. It's particularly well-suited for applications in the demanding water/wastewater industry.
When you need a pressure gauge that delivers unwavering performance in challenging environments, the Wika 43x.36 is the perfect solution. Branom is your trusted supplier for top-tier industrial gauges. We offer a comprehensive selection of measurement instruments to ensure you have the right tools for your specific needs.
Specifications
Wika 43x.x6 | |
---|---|
Nominal Size | 4", 6" |
Case Filling | [432] Without, [433] With (4"), [433] With (6") |
Case Style | [56-ZZZE] With Pressure Blowout Disk (4"), [56-ZZZF] With Pressure Blowout Disk (6") |
Overpressure Safety | [K] 40 Bar, [L] 100 Bar |
Scale Range | ■ mbar ■, [MG116] 0/16 mbar, [MG125] 0/25 mbar ³, [MG140] 0/40 mbar ³, [MG160] 0/60 mbar ³, [MG210] 0/100 mbar ³, [MG216] 0/160 mbar ³, [MG225] 0/250 mbar ³, [MG240] 0/400 mbar ³, [MG260] 0/600 mbar ³, ■ bar ■, [BG260] 0/0.6 bar ³, [BG310] 0/1 bar ², [BG316] 0/1.6 bar ³, [BG325] 0/2.5 bar ², [BG340] 0/4 bar ², [BG360] 0/6 bar, [BG410] 0/10 bar, [BG416] 0/16 bar, [BG425] 0/25 bar, [BG440] 0/40 bar, ■ mbarg ■, [CG116] 0...16 mbarg, [CG125] 0...25 mbarg, [CG140] 0...40 mbarg, [CG160] 0...60 mbarg, [CG210] 0...100 mbarg, [CG216] 0...160 mbarg, [CG225] 0...250 mbarg, [CG240] 0...400 mbarg, [CG260] 0...600 mbarg, [CG310] 0...1000 mbarg, [CG311] 0...1100 mbarg, [CG312] 0...1200 mbarg, [CG316] 0...1600 mbarg, [CG325] 0...2500 mbarg, [CV116] -16...0 mbarg, [CV125] -25...0 mbarg, [CV140] -40...0 mbarg, [CV160] -60...0 mbarg, [CV210] -100...0 mbarg, [CV216] -160...0 mbarg, [CV225] -250...0 mbarg, [CV240] -400...0 mbarg, [CV260] -600...0 mbarg, [CV310] -1000...0 mbarg |
2nd Scale | [Z] Without, [2] mmH2O, [Y] mH2O, [P] psi, [7] inH2O |
Process Connection | [GD] G 1/2 B, [ND] 1/2 NPT, [NQ] 1/2 NPT Female, [MI] M20 x 1.5, [FG] DN25 PN40, EN 1092-1 Form B (4"), [FG] DN25 PN40, EN 1092-1 Form B (6"), [FH] DN50 PN40, EN 1092-1 Form B (4"), [FH] DN50 PN40, EN 1092-1 Form B (6"), [FI] DN25 PN40, EN 1092-1, Overload Limit 100 bar, [FJ] DN50 PN40, EN 1092-1, Overload Limit 100 bar |
Vacuum Safety Up to -1 bar | [2] No, [1] Yes, [1] Yes ², [1] Yes ³ |
Diaphragm Material | [Z] S304 SS, [I] Inconel 718 |
Pointer | [C] Standard Pointer, [A] Adjustable Pointer (4"), [A] Adjustable Pointer (6") |
Accuracy Class | [L] ± 1% (ASME B40.100 Grade 1A), [I] ± 2/1/2% (ASME B40.100 Grade A), [J] ± 3/2/3% (ASME B40.100 Grade B) |
Permissible Ambient Temp | -20...+60 °C, -40...+60 °C |
Permissible Medium Temp | [ASZ-ZZZZZ] -20...+100 °C, [A7Z-ZZZZZ] -20...+120 °C, [AGZ-ZZZZZ] -20...+160 °C, [AHZ-ZZZZZ] -20...+200 °C, [BLZ-ZZZZZ] -40...+100 °C, [B7Z-ZZZZZ] -40...+120 °C, [BHZ-ZZZZZ] -40...+200 °C |
Case Filling | [Z] Without, [G] Glycerine-Water-Mixture, [D] Silicon Oil, 50 cSt (4"), [D] Silicon Oil, 50 cSt (6") |
Case Material | [3] 304 SS, [E] 316 Ti (4"), [E] 316 Ti (6") |
Ingress Protection | [F] IP 54, [I] IP 65 |
Sealing of Pressure Chamber-Wetted Part | [J] FPM, [E] PTFE |
Thread Protection | [ZZZ-U] Without, [1ZZ-U] With Thread Protection, [2ZZ-U] With Flange-Protection |
Color for Inner Scale | [ZZZZZZ22] Without, [CZZZZZ22] Red, [AZZZZZ22] Black |
Stop Pin on Dial | [ZZ] Without, [2Z] At 6 o'clock |
Explosion Protection | [Z] Without |
Ignition Protection | [Z] Without |
Zone | [Z] Without |
Connector Location | [U] Lower Mount |
Lower Body Material | [Z] Stainless Steel |
Special Design Features | [Z] Without |
Certificates | [Z] Without |
Approvals | [Z] Without |
Electric Arm Contact | [Z] Without |
Additional Ordering Info | [Z2ZZ] Without, [Z2ZZ] Without |
Customer Design | [Z] Without |
Origin of Wetted Parts | [Z] Without |
Pressure Gauge Standard | [U] US-Standard |
Logo Options | [ZZZZZ] |
Manufacturer Logo | [2] *WIKA®* |
Serial Number | [2] With |
Text / Mark on Dial | [Z] Without |
Gauge Features | |
---|---|
Gauge: Brand | Wika |
Gauge: Type | Dial Indicating Gauge |
Gauge: Model | 432.56, 433.56 |
Gauge: Dial Size | 4 in (100 mm), 6 in (160 mm) |
Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
Gauge: Pressure Type | Gauge Pressure |
Gauge: Measuring Principle | Diaphragm Element |
Gauge: Fill Type | Dry, Liquid Filled / Fillable |
Gauge: Product Unit of Measure | psi / inHg, psi, mbar, bar, mmH2O, mH2O, inH2O, kPa, MPa, oz/in2, kg/cm2, psig, barg, mbarg, kPag, MPag, kg/cm2g, psig / inHg |
Gauge: Process Connection Size | G 1/2 B, 1/2 NPT, 1/2 NPT Female, M20 x 1.5, DN 25, DN 50 |
Gauge: Process Connection Location | Lower Mount |
Gauge: Wetted Material | Plastic, Rubber |
Gauge: Accuracy | ±1%, ±2%, ±3% |
Gauge: Ingress Protection | IP 54, IP 65 |
Gauge: Case Material | Stainless Steel |
Gauge: Window | Laminated Safety Glass |
Gauge: Pointer Material | Aluminum |
Gauge: Pointer Type | Adjustable |
