Wika 43x.36 Series 4" or 6" SS Diaphragm Pressure Gauge, High OVP Safe, Dry/Fillable, FPM or PTFE Wetted Parts, Solid Front Design

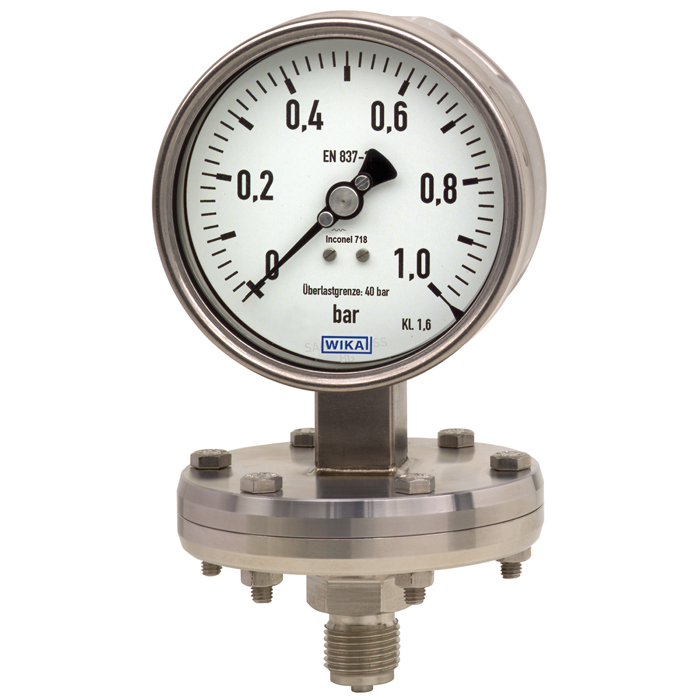

Representative photo. Please check item description for details.

Wika 43x.36 Series 4" or 6" SS Diaphragm Pressure Gauge, High OVP Safe, Dry/Fillable, FPM or PTFE Wetted Parts, Solid Front Design

https://www.pressureworx.com/web/image/product.template/543878/image_1920?unique=3bcc362
(0 review)

Manufacturer
Wika Instrument Lp
MADE TO ORDER


Datasheet

The Wika 43x.36 Sealgauge Diaphragm Gauge is engineered to excel in harsh industrial environments.  This robust gauge features a liquid-filled case, effectively dampening the effects of pressure fluctuations and vibrations, ensuring accurate readings even under challenging conditions.  Built with a solid-front case and constructed entirely from stainless steel, the 43x.36 boasts exceptional durability and high overpressure safety of up to 6,000 psi (400 bar), making it a reliable partner for long-term use.


The 43x.36 offers unmatched versatility.  With a wide range of compatible wetted materials, it can handle various media, including corrosive liquids, gases, and even highly viscous substances.  This adaptability makes the 43x.36 a valuable asset across diverse industries, from chemical processing and power generation to environmental technology and plant construction.  It's particularly well-suited for applications in the demanding water/wastewater industry.


When you need a pressure gauge that delivers unwavering performance in challenging environments, the Wika 43x.36 is the perfect solution.  Branom is your trusted supplier for top-tier industrial gauges.  We offer a comprehensive selection of measurement instruments to ensure you have the right tools for your specific needs.

$ 1,592.03 1592.0320499999998 USD $ 1,684.69

$ 1,429.87

Not Available For Sale

  • Nominal Size
  • Case Filling
  • Case Style
  • Explosion Protection
  • Ignition Protection
  • Zone
  • Overpressure Safety
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Vacuum Safety Up to -1 bar
  • Diaphragm Material
  • Lower Body Material
  • Pointer
  • Accuracy Class
  • Permissible Ambient Temp
  • Permissible Medium Temp
  • Special Design Features
  • Certificates
  • Approvals
  • Electric Arm Contact
  • Additional Ordering Info
  • Additional Ordering Info
  • Case Filling
  • Case Material
  • Ingress Protection
  • Sealing of Pressure Chamber-Wetted Part
  • Thread Protection
  • Customer Design
  • Origin of Wetted Parts
  • Pressure Gauge Standard
  • Color for Inner Scale
  • Logo Options
  • Manufacturer Logo
  • Serial Number
  • Stop Pin on Dial
  • Text / Mark on Dial
  • Gauge: Brand
  • Gauge: Type
  • Gauge: Model
  • Gauge: Model
  • Gauge: Dial Size
  • Gauge: Dial Size
  • Gauge: Scale Range
  • Gauge: Pressure Type
  • Gauge: Measuring Principle
  • Gauge: Fill Type
  • Gauge: Fill Type
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Location
  • Gauge: Process Connection Type
  • Gauge: Wetted Material
  • Gauge: Wetted Material
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Ingress Protection
  • Gauge: Ingress Protection
  • Gauge: Case Material
  • Gauge: Window
  • Gauge: Pointer Material
  • Gauge: Pointer Type

This combination does not exist.

Contact Us

Share

Description

The Wika 43x.36 Sealgauge Diaphragm Gauge is engineered to excel in harsh industrial environments.  This robust gauge features a liquid-filled case, effectively dampening the effects of pressure fluctuations and vibrations, ensuring accurate readings even under challenging conditions.  Built with a solid-front case and constructed entirely from stainless steel, the 43x.36 boasts exceptional durability and high overpressure safety of up to 6,000 psi (400 bar), making it a reliable partner for long-term use.


The 43x.36 offers unmatched versatility.  With a wide range of compatible wetted materials, it can handle various media, including corrosive liquids, gases, and even highly viscous substances.  This adaptability makes the 43x.36 a valuable asset across diverse industries, from chemical processing and power generation to environmental technology and plant construction.  It's particularly well-suited for applications in the demanding water/wastewater industry.


When you need a pressure gauge that delivers unwavering performance in challenging environments, the Wika 43x.36 is the perfect solution.  Branom is your trusted supplier for top-tier industrial gauges.  We offer a comprehensive selection of measurement instruments to ensure you have the right tools for your specific needs.

Specifications

Wika 43x.x6
Nominal Size 4", 6"
Case Filling [432] Without, [433] With (4"), [433] With (6")
Case Style [36-ZZZE] Solid Front Design (4"), [36-ZZZF] Solid Front Design (6")
Overpressure Safety [K] 40 Bar, [L] 100 Bar
Scale Range ￭ psi / -inHg ￭, [PG269] 0/10 psi, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PV251] -15 inHg/0 psi, [PV310] -30 inHg/0 psi, ￭ mbar ￭, [MG116] 0/16 mbar, [MG125] 0/25 mbar ³, [MG140] 0/40 mbar ³, [MG160] 0/60 mbar ³, [MG210] 0/100 mbar ³, [MG216] 0/160 mbar ³, [MG225] 0/250 mbar ³, [MG240] 0/400 mbar ³, [MG260] 0/600 mbar ³, [MG310] 0/1000 mbar, [MG311] 0/1100 mbar, [MG312] 0/1200 mbar, [MG316] 0/1600 mbar, [MG325] 0/2500 mbar, [MV116] -16/0 mbar, [MV125] -25/0 mbar, [MV140] -40/0 mbar, [MV160] -60/0 mbar, [MV210] -100/0 mbar, [MV216] -160/0 mbar, [MV225] -250/0 mbar, [MV240] -400/0 mbar, [MV260] -600/0 mbar, [MV310] -1000/0 mbar, ￭ bar ￭, [BG260] 0/0.6 bar ³, [BG310] 0/1 bar ², [BG316] 0/1.6 bar ³, [BG320] 0/2 bar, [BG325] 0/2.5 bar ², [BG340] 0/4 bar ², [BG360] 0/6 bar, [BG370] 0/7 bar, [BG410] 0/10 bar, [BG414] 0/14 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG430] 0/30 bar, [BG440] 0/40 bar, [BV260] -0.6/0 bar, [BV310] -1/0 bar, [BV316] -1/0.6 bar, [BV320] -1/1 bar, [BV325] -1/1.5 bar, [BV330] -1/2 bar, [BV340] -1/3 bar, [BV350] -1/4 bar, [BV360] -1/5 bar, [BV380] -1/7 bar, [BV410] -1/9 bar, [BV411] -1/10 bar, [BV416] -1/15 bar, [BV425] -1/24 bar, [BV431] -1/30 bar, ￭ mmH2O ￭, [2G116] 0/160 mmH2O, [2G125] 0/250 mmH2O, [2G139] 0/400 mmH2O, [2G159] 0/600 mmH2O, [2G198] 0/1000 mmH2O, [2G216] 0/1600 mmH2O, [2G225] 0/2500 mmH2O, [2G239] 0/4000 mmH2O, [2G259] 0/6000 mmH2O, [2G298] 0/10000 mmH2O, ￭ mH2O ￭, [YG110] 0/0.1 mH2O, [YG116] 0/0.16 mH2O, [YG125] 0/0.25 mH2O, [YG139] 0/0.4 mH2O, [YG159] 0/0.6 mH2O, [YG198] 0/1 mH2O, [YG216] 0/1.6 mH2O, [YG225] 0/2.5 mH2O, [YG239] 0/4 mH2O, [YG259] 0/6 mH2O, [YG269] 0/7 mH2O, [YG298] 0/10 mH2O, [YG316] 0/16 mH2O, [YG320] 0/20 mH2O, [YG325] 0/25 mH2O, [YG329] 0/30 mH2O, [YG339] 0/40 mH2O, ￭ inH2O ￭, [7G125] 0/10 inH2O, [7G137] 0/15 inH2O, [7G150] 0/20 inH2O, [7G162] 0/25 inH2O, [7G175] 0/30 inH2O, [7G210] 0/40 inH2O, [7G215] 0/60 inH2O, [7G225] 0/100 inH2O, [7G237] 0/150 inH2O, [7G250] 0/200 inH2O, [7G262] 0/250 inH2O, ￭ kPa ￭, [LG116] 0/1.6 kPa, [LG125] 0/2.5 kPa, [LG140] 0/4 kPa, [LG160] 0/6 kPa, [LG210] 0/10 kPa, [LG216] 0/16 kPa, [LG225] 0/25 kPa, [LG240] 0/40 kPa, [LG260] 0/60 kPa, [LG270] 0/70 kPa, [LG310] 0/100 kPa, [LG316] 0/160 kPa, [LG320] 0/200 kPa, [LG325] 0/250 kPa, [LG330] 0/300 kPa, [LG340] 0/400 kPa, [LG360] 0/600 kPa, [LG370] 0/700 kPa, [LG380] 0/800 kPa, [LG410] 0/1000 kPa, [LG414] 0/1400 kPa, [LG416] 0/1600 kPa, [LG425] 0/2500 kPa, [LG430] 0/3000 kPa, [LG440] 0/4000 kPa, [LV260] -60/0 kPa, [LV310] -100/0 kPa, [L3160] -2/4 kPa, [L4210] -4...+6 kPa, [L6210] -6/4 kPa, ￭ MPa ￭, [EG260] 0/0.06 MPa, [EG310] 0/0.1 MPa, [EG316] 0/0.16 MPa, [EG320] 0/0.2 MPa, [EG325] 0/0.25 MPa, [EG340] 0/0.4 MPa, [EG360] 0/0.6 MPa, [EG370] 0/0.7 MPa, [EG410] 0/1 MPa, [EG414] 0/1.4 MPa, [EG416] 0/1.6 MPa, [EG420] 0/2 MPa, [EG425] 0/2.5 MPa, [EG430] 0/3 MPa, [EG440] 0/4 MPa, [EV260] -0.06/0 MPa, [EV310] -0.1/0 MPa, ￭ oz/in2 ￭, [JG122] 0/5 oz/in2, [JG143] 0/10 oz/in2, [JG165] 0/15 oz/in2, [JG186] 0/20 oz/in2, [JG211] 0/25 oz/in2, [JG213] 0/30 oz/in2, [JG217] 0/40 oz/in2, [JG226] 0/60 oz/in2, [JG243] 0/100 oz/in2, [JG286] 0/200 oz/in2, [JG311] 0/250 oz/in2, ￭ kg/cm2 ￭, [KG259] 0/0.6 kg/cm2, [KG298] 0/1 kg/cm2, [KG316] 0/1.6 kg/cm2, [KG320] 0/2 kg/cm2, [KG325] 0/2.5 kg/cm2, [KG339] 0/4 kg/cm2, [KG359] 0/6 kg/cm2, [KG369] 0/7 kg/cm2, [KG398] 0/10 kg/cm2, [KG414] 0/14 kg/cm2, [KG416] 0/16 kg/cm2, [KG420] 0/20 kg/cm2, [KG425] 0/25 kg/cm2, [KG429] 0/30 kg/cm2, [KG439] 0/40 kg/cm2, [KV259] -0.6/0 kg/cm2, ￭ psig / -inHg ￭, [NG269] 0/10 psig, [NG310] 0/15 psig, [NG321] 0/30 psig, [NG341] 0/60 psig, [NG369] 0/100 psig, [NG410] 0/150 psig, [NG411] 0/160 psig, [NG414] 0/200 psig, [NG417] 0/250 psig, [NG421] 0/300 psig, [NG428] 0/400 psig, [NG434] 0/500 psig, [NG441] 0/600 psig, [NV251] -15 inHG/0 psig, [NV310] -30 inHG/0 psig, ￭ barg ￭, [8G260] 0/0.6 barg, [8G310] 0/1 barg, [8G316] 0/1.6 barg, [8G320] 0/2 barg, [8G325] 0/2.5 barg, [8G340] 0/4 barg, [8G350] 0/5 barg, [8G360] 0/6 barg, [8G370] 0/7 barg, [8G410] 0/10 barg, [8G414] 0/14 barg, [8G416] 0/16 barg, [8G420] 0/20 barg, [8G425] 0/25 barg, [8G430] 0/30 barg, [8G440] 0/40 barg, [8V260] -0.6/0 barg, [8V310] -1/0 barg, [8V316] -1/0.6 barg, [8V320] -1/1 barg, [8V325] -1/1.5 barg, [8V330] -1/2 barg, [8V340] -1/3 barg, [8V350] -1/4 barg, [8V360] -1/5 barg, [8V380] -1/7 barg, [8V410] -1/9 barg, [8V411] -1/10 barg, [8V416] -1/15 barg, [8V425] -1/24 barg, [8V431] -1/30 barg, ￭ mbarg ￭, [CG116] 0...16 mbarg, [CG125] 0...25 mbarg, [CG140] 0...40 mbarg, [CG160] 0...60 mbarg, [CG210] 0...100 mbarg, [CG216] 0...160 mbarg, [CG225] 0...250 mbarg, [CG240] 0...400 mbarg, [CG260] 0...600 mbarg, [CG310] 0...1000 mbarg, [CG311] 0...1100 mbarg, [CG312] 0...1200 mbarg, [CG316] 0...1600 mbarg, [CG325] 0...2500 mbarg, [CV116] -16...0 mbarg, [CV125] -25...0 mbarg, [CV140] -40...0 mbarg, [CV160] -60...0 mbarg, [CV210] -100...0 mbarg, [CV216] -160...0 mbarg, [CV225] -250...0 mbarg, [CV240] -400...0 mbarg, [CV260] -600...0 mbarg, [CV310] -1000...0 mbarg, ￭ kPag ￭, [4G210] 0...10 kPag, [4G260] 0/60 kPag, [4G310] 0/100 kPag, [4G316] 0/160 kPag, [4G320] 0/200 kPag, [4G325] 0/250 kPag, [4G330] 0/300 kPag, [4G340] 0/400 kPag, [4G360] 0/600 kPag, [4G370] 0/700 kPag, [4G380] 0/800 kPag, [4G410] 0/1000 kPag, [4G414] 0/1400 kPag, [4G416] 0/1600 kPag, [4G420] 0/2000 kPag, [4G425] 0/2500 kPag, [4G430] 0/3000 kPag, [4G440] 0/4000 kPag, [4V260] -60/0 kPag, [4V310] -100/0 kPag, [4V316] -100/60 kPag, [4V320] -100/100 kPag, [4V325] -100/150 kPag, [4V330] -100/200 kPag, [4V340] -100/300 kPag, [4V350] -100/400 kPag, [4V360] -100/500 kPag, [4V380] -100/700 kPag, [4V410] -100/900 kPag, [4V411] -100/1000 kPag, [4V416] -100/1500 kPag, [4V425] -100/2400 kPag, [4V431] -100/3000 kPag, ￭ MPag ￭, [3G260] 0/0.06 MPag, [3G310] 0/0.1 MPag, [3G316] 0/0.16 MPag, [3G320] 0/0.2 MPag, [3G325] 0/0.25 MPag, [3G340] 0/0.4 MPag, [3G360] 0/0.6 MPag, [3G370] 0/0.7 MPag, [3G410] 0/1 MPag, [3G414] 0/1.4 MPag, [3G416] 0/1.6 MPag, [3G425] 0/2.5 MPag, [3G430] 0/3 MPag, [3G440] 0/4 MPag, [3V260] -0.06/0 MPag, [3V310] -0.1/0 MPag, [3V316] -0.1/0.06 MPag, [3V320] -0.1/0.1 MPag, [3V325] -0.1/0.15 MPag, [3V330] -0.1/0.2 MPag, [3V340] -0.1/0.3 MPag, [3V350] -0.1/0.4 MPag, [3V360] -0.1/0.5 MPag, [3V380] -0.1/0.7 MPag, [3V410] -0.1/0.9 MPag, [3V411] -0.1/1 MPag, [3V416] -0.1/1.5 MPag, [3V425] -0.1/2.4 MPag, [3V431] -0.1/3 MPag, ￭ kg/cm2g ￭, [AG259] 0/0.6 kg/cm2g, [AG298] 0/1 kg/cm2g, [AG316] 0/1.6 kg/cm2g, [AG320] 0/2 kg/cm2g, [AG325] 0/2.5 kg/cm2g, [AG339] 0/4 kg/cm2g, [AG349] 0/5 kg/cm2g, [AG359] 0/6 kg/cm2g, [AG369] 0/7 kg/cm2g, [AG398] 0/10 kg/cm2g, [AG414] 0/14 kg/cm2g, [AG416] 0/16 kg/cm2g, [AG420] 0/20 kg/cm2g, [AG425] 0/25 kg/cm2g, [AG429] 0/30 kg/cm2g, [AG439] 0/40 kg/cm2g
2nd Scale [Z] Without, [2] mmH2O, [Y] mH2O, [P] psi, [7] inH2O, [M] mbar, [B] bar, [L] kPa, [E] MPa, [K] kg/cm2, [J] oz/in2, [N] psig, [3] MPag, [4] kPag, [5] mmHg, [8] barg, [A] kg/cm2g
Process Connection [GD] G 1/2 B, [ND] 1/2 NPT, [NQ] 1/2 NPT Female, [MI] M20 x 1.5, [FG] DN25 PN40, EN 1092-1 Form B (4"), [FG] DN25 PN40, EN 1092-1 Form B (6"), [FH] DN50 PN40, EN 1092-1 Form B (4"), [FH] DN50 PN40, EN 1092-1 Form B (6"), [FI] DN25 PN40, EN 1092-1, Overload Limit 100 bar, [FJ] DN50 PN40, EN 1092-1, Overload Limit 100 bar
Vacuum Safety Up to -1 bar [2] No, [1] Yes, [1] Yes ², [1] Yes ³
Diaphragm Material [Z] S304 SS, [I] Inconel 718
Pointer [C] Standard Pointer, [A] Adjustable Pointer (4"), [A] Adjustable Pointer (6")
Accuracy Class [L] ± 1% (ASME B40.100 Grade 1A), [I] ± 2/1/2% (ASME B40.100 Grade A), [J] ± 3/2/3% (ASME B40.100 Grade B)
Permissible Ambient Temp -20...+60 °C, -40...+60 °C
Permissible Medium Temp [ASZ-ZZZZZ] -20...+100 °C, [A7Z-ZZZZZ] -20...+120 °C, [AGZ-ZZZZZ] -20...+160 °C, [AHZ-ZZZZZ] -20...+200 °C, [BLZ-ZZZZZ] -40...+100 °C, [B7Z-ZZZZZ] -40...+120 °C, [BHZ-ZZZZZ] -40...+200 °C
Case Filling [Z] Without, [G] Glycerine-Water-Mixture, [D] Silicon Oil, 50 cSt (4"), [D] Silicon Oil, 50 cSt (6")
Case Material [3] 304 SS, [E] 316 Ti (4"), [E] 316 Ti (6")
Ingress Protection [F] IP 54, [I] IP 65
Sealing of Pressure Chamber-Wetted Part [J] FPM, [E] PTFE
Thread Protection [ZZZ-U] Without, [1ZZ-U] With Thread Protection, [2ZZ-U] With Flange-Protection
Color for Inner Scale [ZZZZZZ22] Without, [CZZZZZ22] Red, [AZZZZZ22] Black
Stop Pin on Dial [ZZ] Without, [2Z] At 6 o'clock
Explosion Protection [Z] Without
Ignition Protection [Z] Without
Zone [Z] Without
Connector Location [U] Lower Mount
Lower Body Material [Z] Stainless Steel
Special Design Features [Z] Without
Certificates [Z] Without
Approvals [Z] Without
Electric Arm Contact [Z] Without
Additional Ordering Info [Z2ZZ] Without, [Z2ZZ] Without
Customer Design [Z] Without
Origin of Wetted Parts [Z] Without
Pressure Gauge Standard [U] US-Standard
Logo Options [ZZZZZ]
Manufacturer Logo [2] *WIKA®*
Serial Number [2] With
Text / Mark on Dial [Z] Without
Gauge Features
Gauge: Brand Wika
Gauge: Type Dial Indicating Gauge
Gauge: Model 432.36, 433.36
Gauge: Dial Size 4 in (100 mm), 6 in (160 mm)
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type Gauge Pressure
Gauge: Measuring Principle Diaphragm Element
Gauge: Fill Type Dry, Liquid Filled / Fillable
Gauge: Product Unit of Measure psi / inHg, psi, mbar, bar, mmH2O, mH2O, inH2O, kPa, MPa, oz/in2, kg/cm2, psi / inHg, psig, barg, mbarg, kPag, MPag, kg/cm2g, psig / inHg
Gauge: Process Connection Size G 1/2 B, 1/2 NPT, 1/2 NPT Female, M20 x 1.5, DN 25, DN 50
Gauge: Process Connection Location Lower Mount
Gauge: Process Connection Type 2-Way (2 x)
Gauge: Wetted Material Plastic, Rubber
Gauge: Accuracy ±1%, ±2%, ±3%
Gauge: Ingress Protection IP 54, IP 65
Gauge: Case Material Stainless Steel
Gauge: Window Laminated Safety Glass
Gauge: Pointer Material Aluminum
Gauge: Pointer Type Adjustable
