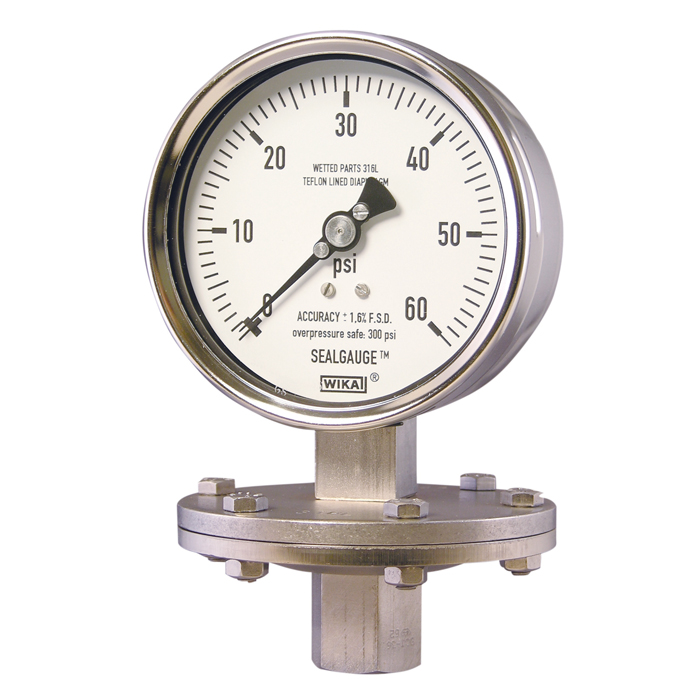

Wika 43x.30 Series 6" SS Diaphragm Pressure Gauge, Dry/Fillable, Solid Front Design
The Wika 43x.30 Series Diaphragm Pressure Gauge is designed for robust performance in demanding environments. Ideal for applications involving high dynamic pressure pulsations or vibrations, this gauge excels in both corrosive and harsh settings, making it perfect for gaseous, liquid, or highly viscous media. It is particularly suited for the chemical and petrochemical industries, power stations, mining operations, onshore and offshore facilities, environmental technology, mechanical engineering, and plant construction.
Constructed entirely from stainless steel, the Wika 43x.30 Series offers exceptional durability and longevity. It features threaded or open flange process connections, providing versatility for various applications. The gauge's high overpressure safety ensures reliable performance under extreme conditions. Additionally, it offers a wide selection of special materials to meet specific industry needs.
The Wika 43x.50 Series Diaphragm Pressure Gauge covers a range from 6" H2O (16 mbar), catering to a broad spectrum of pressure measurement requirements. Whether dealing with high pressures or delicate, precise measurements, this gauge delivers accurate and consistent results.
For those seeking the best source for purchasing the Wika 43x.30 Series Diaphragm Pressure Gauge, Branom stands out as the top choice. With a reputation for quality products and exceptional customer service, Branom ensures you receive the best instruments for your needs.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Wika 43x.x0 | |
|---|---|
| Case Filling | [433] With, [432] Without |
| Water Column | - Select - , > 100 in.WC, < 100 in.WC |
| Scale Range | ￭ psi / -inHg ￭, [PG269] 0/10 psi, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PV251] -15 inHg/0 psi, [PV310] -30 inHg/0 psi, ￭ bar ￭, [BV260] -0.6/0 bar, [BV310] -1/0 bar, [BV316] -1/0.6 bar, [BV320] -1/1 bar, [BV325] -1/1.5 bar, [BV330] -1/2 bar, [BV340] -1/3 bar, [BV350] -1/4 bar, [BV360] -1/5 bar, [BV380] -1/7 bar, [BV410] -1/9 bar, [BV411] -1/10 bar, [BV416] -1/15 bar, [BV425] -1/24 bar, [BV426] -1/25 bar, [BG260] 0/0.6 bar, [BG310] 0/1 bar, [BG316] 0/1.6 bar, [BG320] 0/2 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG370] 0/7 bar, [BG410] 0/10 bar, [BG414] 0/14 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG430] 0/30 bar, ￭ mbar ￭, [MG116] 0/16 mbar, [MG125] 0/25 mbar, [MG140] 0/40 mbar, [MG160] 0/60 mbar, [MG210] 0/100 mbar, [MG216] 0/160 mbar, [MG225] 0/250 mbar, [MG240] 0/400 mbar, [MG260] 0/600 mbar, [MG310] 0/1000 mbar, [MG311] 0/1100 mbar, [MG312] 0/1200 mbar, [MG316] 0/1600 mbar, [MG325] 0/2500 mbar, [MV116] -16/0 mbar, [MV125] -25/0 mbar, [MV140] -40/0 mbar, [MV160] -60/0 mbar, [MV210] -100/0 mbar, [MV216] -160/0 mbar, [MV225] -250/0 mbar, [MV240] -400/0 mbar, [MV260] -600/0 mbar, [MV310] -1000/0 mbar, [MV311] -1100/0 mbar, [MV312] -1200/0 mbar, ￭ mmH2O ￭, [2G116] 0/160 mmH2O, [2G125] 0/250 mmH2O, [2G139] 0/400 mmH2O, [2G159] 0/600 mmH2O, [2G198] 0/1000 mmH2O, [2G216] 0/1600 mmH2O, [2G225] 0/2500 mmH2O, [2G239] 0/4000 mmH2O, [2G259] 0/6000 mmH2O, [2G298] 0/10000 mmH2O, [2G311] 0...11000 mmH2O, [2G312] 0...12000 mmH2O, [2G316] 0...16000 mmH2O, [2G325] 0...25000 mmH2O, [2V116] -160...0 mmH2O, [2V125] -250...0 mmH2O, [2V140] -400...0 mmH2O, [2V160] -600...0 mmH2O, [2V210] -1000...0 mmH2O, [2V216] -1600...0 mmH2O, [2V225] -2500...0 mmH2O, [2V240] -4000...0 mmH2O, [2V260] -6000...0 mmH2O, [2V310] -10000...0 mmH2O, [2V311] -11000...0 mmH2O, [2V312] -12000...0 mmH2O, ￭ mH2O ￭, [YG116] 0/0.16 mH2O, [YG125] 0/0.25 mH2O, [YG139] 0/0.4 mH2O, [YG159] 0/0.6 mH2O, [YG198] 0/1 mH2O, [YG216] 0/1.6 mH2O, [YG225] 0/2.5 mH2O, [YG239] 0/4 mH2O, [YG259] 0/6 mH2O, [YG269] 0/7 mH2O, [YG298] 0/10 mH2O, [YG316] 0/16 mH2O, [YG320] 0/20 mH2O, [YG325] 0/25 mH2O, [YG329] 0/30 mH2O, [YG339] 0/40 mH2O, ￭ inH2O ￭, [7G125] 0/10 inH2O, [7G137] 0/15 inH2O, [7G150] 0/20 inH2O, [7G162] 0/25 inH2O, [7G175] 0/30 inH2O, [7G210] 0/40 inH2O, [7G215] 0/60 inH2O, [7G225] 0/100 inH2O, [7G237] 0/150 inH2O, [7G250] 0/200 inH2O, [7G262] 0/250 inH2O, ￭ mmHg ￭, [5G310] 760 mmHG, [5V310] -760...0 mmHG, ￭ kPa ￭, [LG116] 0/1.6 kPa, [LG125] 0/2.5 kPa, [LG140] 0/4 kPa, [LG160] 0/6 kPa, [LG210] 0/10 kPa, [LG216] 0/16 kPa, [LG225] 0/25 kPa, [LG240] 0/40 kPa, [LG260] 0/60 kPa, [LG270] 0/70 kPa, [LG310] 0/100 kPa, [LG316] 0/160 kPa, [LG320] 0/200 kPa, [LG325] 0/250 kPa, [LG330] 0/300 kPa, [LG340] 0/400 kPa, [LG360] 0/600 kPa, [LG370] 0/700 kPa, [LG380] 0/800 kPa, [LG410] 0/1000 kPa, [LG414] 0/1400 kPa, [LG416] 0/1600 kPa, [LG425] 0/2500 kPa, [LG430] 0/3000 kPa, [LV260] -60/0 kPa, [LV310] -100/0 kPa, ￭ MPa ￭, [EG260] 0/0.06 MPa, [EG310] 0/0.1 MPa, [EG316] 0/0.16 MPa, [EG320] 0/0.2 MPa, [EG325] 0/0.25 MPa, [EG340] 0/0.4 MPa, [EG360] 0/0.6 MPa, [EG370] 0/0.7 MPa, [EG410] 0/1 MPa, [EG414] 0/1.4 MPa, [EG416] 0/1.6 MPa, [EG420] 0/2 MPa, [EG425] 0/2.5 MPa, [EG430] 0/3 MPa, ￭ kgf/cm2 ￭, [IG259] 0...0,6 kgf/cm2, [IG298] 0...1 kgf/cm2, [IG316] 0...1,6 kgf/cm2, [IG320] 0...2 kgf/cm2, [IG325] 0...2,5 kgf/cm2, [IG339] 0...4 kgf/cm2, [IG359] 0...6 kgf/cm2, [IG369] 0...7 kgf/cm2, [IG398] 0...10 kgf/cm2, [IG414] 0...14 kgf/cm2, [IG416] 0...16 kgf/cm2, [IG420] 0...20 kgf/cm2, [IG425] 0...25 kgf/cm2, [IG429] 0...30 kgf/cm2, [IV259] -0,6 kgf/cm2, [IV298] -1 kgf/cm2, [IV316] -1/+0,6 kgf/cm2, [IV320] -1/+1 kgf/cm2, [IV325] -1/+1,5 kgf/cm2, [IV329] -1...+2 kgf/cm2, [IV339] -1...+3 kgf/cm2, [IV349] -1...+4 kgf/cm2, [IV359] -1...+5 kgf/cm2, [IV378] -1...+7 kgf/cm2, [IV398] -1...+9 kgf/cm2, [IV411] -1...+10 kgf/cm2, [IV416] -1...+15 kgf/cm2, [IV425] -1...+24 kgf/cm2, ￭ oz/in2 ￭, [JG143] 0/10 oz/in2, [JG165] 0/15 oz/in2, [JG186] 0/20 oz/in2, [JG211] 0/25 oz/in2, [JG213] 0/30 oz/in2, [JG217] 0/40 oz/in2, [JG226] 0/60 oz/in2, [JG243] 0/100 oz/in2, [JG269] 0/160 oz/in2, [JG286] 0/200 oz/in2, [JG311] 0/250 oz/in2, ￭ kg/cm2 ￭, [KG259] 0/0.6 kg/cm2, [KG298] 0/1 kg/cm2, [KG316] 0/1.6 kg/cm2, [KG320] 0/2 kg/cm2, [KG325] 0/2.5 kg/cm2, [KG339] 0/4 kg/cm2, [KG359] 0/6 kg/cm2, [KG369] 0/7 kg/cm2, [KG398] 0/10 kg/cm2, [KG414] 0/14 kg/cm2, [KG416] 0/16 kg/cm2, [KG420] 0/20 kg/cm2, [KG425] 0/25 kg/cm2, [KG429] 0/30 kg/cm2, [KV259] -0.6/0 kg/cm2, ￭ psig / -inHg ￭, [NG269] 0/10 psig, [NG310] 0/15 psig, [NG321] 0/30 psig, [NG341] 0/60 psig, [NG369] 0/100 psig, [NG410] 0/150 psig, [NG411] 0/160 psig, [NG414] 0/200 psig, [NG417] 0/250 psig, [NG421] 0/300 psig, [NG428] 0/400 psig, [NV251] -15 inHG/0 psig, [NV310] -30 inHG/0 psig, ￭ barg ￭, [8G260] 0/0.6 barg, [8G310] 0/1 barg, [8G316] 0/1.6 barg, [8G320] 0/2 barg, [8G325] 0/2.5 barg, [8G340] 0/4 barg, [8G350] 0/5 barg, [8G360] 0/6 barg, [8G370] 0/7 barg, [8G410] 0/10 barg, [8G414] 0/14 barg, [8G416] 0/16 barg, [8G420] 0/20 barg, [8G425] 0/25 barg, [8G430] 0/30 barg, [8V260] -0.6/0 barg, [8V310] -1/0 barg, [8V316] -1/0.6 barg, [8V320] -1/1 barg, [8V325] -1/1.5 barg, [8V330] -1/2 barg, [8V340] -1/3 barg, [8V350] -1/4 barg, [8V360] -1/5 barg, [8V380] -1/7 barg, [8V410] -1/9 barg, [8V411] -1/10 barg, [8V416] -1/15 barg, [8V425] -1/24 barg, ￭ kPag ￭, [4G116] 0...1,6 kPag, [4G125] 0...2,5 kPag, [4G140] 0...4 kPag, [4G160] 0...6 kPag, [4G210] 0...10 kPag, [4G216] 0...16 kPag, [4G225] 0...25 kPag, [4G240] 0...40 kPag, [4G260] 0/60 kPag, [4G310] 0/100 kPag, [4G316] 0/160 kPag, [4G320] 0/200 kPag, [4G325] 0/250 kPag, [4G330] 0/300 kPag, [4G340] 0/400 kPag, [4G360] 0/600 kPag, [4G370] 0/700 kPag, [4G380] 0/800 kPag, [4G410] 0/1000 kPag, [4G414] 0/1400 kPag, [4G416] 0/1600 kPag, [4G420] 0/2000 kPag, [4G425] 0/2500 kPag, [4G430] 0/3000 kPag, [4V260] -60/0 kPag, [4V310] -100/0 kPag, [4V316] -100/60 kPag, [4V320] -100/100 kPag, [4V325] -100/150 kPag, [4V330] -100/200 kPag, [4V340] -100/300 kPag, [4V350] -100/400 kPag, [4V360] -100/500 kPag, [4V380] -100/700 kPag, [4V410] -100/900 kPag, [4V411] -100/1000 kPag, [4V416] -100/1500 kPag, [4V425] -100/2400 kPag, ￭ MPag ￭, [3G260] 0/0.06 MPag, [3G310] 0/0.1 MPag, [3G316] 0/0.16 MPag, [3G320] 0/0.2 MPag, [3G325] 0/0.25 MPag, [3G340] 0/0.4 MPag, [3G360] 0/0.6 MPag, [3G370] 0/0.7 MPag, [3G410] 0/1 MPag, [3G414] 0/1.4 MPag, [3G416] 0/1.6 MPag, [3G425] 0/2.5 MPag, [3G430] 0/3 MPag, [3V260] -0.06/0 MPag, [3V310] -0.1/0 MPag, [3V316] -0.1/0.06 MPag, [3V320] -0.1/0.1 MPag, [3V325] -0.1/0.15 MPag, [3V330] -0.1/0.2 MPag, [3V340] -0.1/0.3 MPag, [3V350] -0.1/0.4 MPag, [3V360] -0.1/0.5 MPag, [3V380] -0.1/0.7 MPag, [3V410] -0.1/0.9 MPag, [3V411] -0.1/1 MPag, [3V416] -0.1/1.5 MPag, [3V425] -0.1/2.4 MPag, ￭ kg/cm2g ￭, [AG259] 0/0.6 kg/cm2g, [AG298] 0/1 kg/cm2g, [AG316] 0/1.6 kg/cm2g, [AG320] 0/2 kg/cm2g, [AG325] 0/2.5 kg/cm2g, [AG339] 0/4 kg/cm2g, [AG349] 0/5 kg/cm2g, [AG359] 0/6 kg/cm2g, [AG369] 0/7 kg/cm2g, [AG398] 0/10 kg/cm2g, [AG414] 0/14 kg/cm2g, [AG416] 0/16 kg/cm2g, [AG420] 0/20 kg/cm2g, [AG425] 0/25 kg/cm2g, [AG429] 0/30 kg/cm2g |
| 2nd Scale | [Z] Without, [2] mmH2O, [Y] mH2O, [P] psi, [7] inH2O, [M] mbar, [B] bar, [L] kPa, [E] MPa, [K] kg/cm2, [J] oz/in2, [N] psig, [3] MPag, [4] kPag, [5] mmHg, [Q] inHg, [8] barg, [T] mbarg, [A] kg/cm2g, [I] kgf/cm2 |
| Process Connection | [ND] 1/2 NPT, [NQ] 1/2 NPT Female, [FS] 1" Class 150, RF (> 100 in WC), [FS] 1" Class 150, RF (< 100 in WC), [FT] 2" Class 150, RF (> 100 in WC), [FT] 2" Class 150, RF (< 100 in WC), [GD] G 1/2 B, [RN] G 1 B, [Y5] 3" Class 150, RF Acc to ASME B16.5 |
| Diaphragm Material | [I] Inconel 718, [Z] 316L SS |
| Pointer | [C] Standard Pointer, [A] Adjustable Pointer |
| Permissible Ambient Temp | -20...+60 °C, -40...+60 °C |
| Permissible Medium Temp | [AS] -20...+100 °C, [A7] -20...+120 °C, [AG] -20...+160 °C, [AH] -20...+200 °C, [BE] -40...+60 °C, [BS] -40...+100 °C, [B7] -40...+120 °C, [BF] -40...+180 °C, [BH] -40...+200 °C |
| Set / Drag Pointer | [ZZ-ZZZ4*2] Without, [AZ-ZZZ4*2] (6") Red Mark Pointer on Dial (6 in), [RZ-ZZZ4*2] (6") Externally Adjustable Red Set Pointer on Window, [SZ-ZZZ4*2] Externally Adjustable Red Drag Pointer on Window, [XZ-ZZZ4*2] Adjustable Set Pointer on Bayonet Ring |
| Accuracy Class | [L] ± 1% (ASME B40.100 Grade 1A), [I] (6") ± 2/1/2% (ASME B40.100 Grade A), [J] ± 3/2/3% (ASME B40.100 Grade B) |
| Overpressure Safety (bar range) | [A] 5 x FSV, max 40 bar, [1] 5 x FSV, max 40 bar + Vacuum Service (xG339 thru xG430), [1] 5 x FSV, max 40 bar + Vacuum Service (xG269 thru xG330 | xV316 thru xV340), [1] 5 x FSV, max 40 bar + Vacuum Service (xG311), [1] 5 x FSV, max 40 bar + Vacuum Service (xG116 thru xG259), [U] Maximum Scale Reading (fsd) |
| Case Material | [3] 304 SS, [E] (6") SS 316 Ti |
| Case Surface | [D] Bare, [5] Epoxy Coated, [6] Bare Case / Polished Ring, [R] PTFE Coated, [U] Case, Ring and Upper Part PTFE Coated |
| Case Filling | [Z] Without, [1] Prepared for Filling, [G] Glycerine-Water-Mixture, [D] Silicon Oil, 50 cSt |
| Ingress Protection | [F] IP 54, [I] IP 65 |
| Sealing of Pressure Chamber-Wetted Part | [J] FPM, [E] PTFE (> 100 in WC), [E] PTFE (< 100 in WC) |
| Thread Protection | [ZGZZ-U] Without, [1GZZ-U] With Thread Protection (G 1/2 B & 1/2 NPT), [1GZZ-U] With Thread Protection, [2GZZ-U] With Flange-Protection, [2GZZ-U] With Flange-Protection (3" Class 150) |
| Color for Inner Scale | [Z] Without, [C] Red |
| Stop Pin on Dial | [ZZ] Without, [1Z] at Zero, [2Z] at 6 o'clock |
| Text / Mark on Dial | [Z] Without, [R] *Made in ...* |
| Case Type | [30-ZZZ] Solid Front Design EN837 "S3" |
| Explosion Protection | [ZZZ] Without |
| Nominal Size (43x.30) | [F] 6" |
| Connector Location | [U] Lower Mount |
| Lower Body Material | [Z] Stainless Steel |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Assembly Accessory | [Z] Without |
| Additional Info | [4B2] Without |
| Window | [H] Laminated Safety Glass |
| Customer Design | [Z] Without |
| Origin of Wetted Parts | [Z] Without |
| Pressure Gauge Standard | [U] US - Standard |
| Logo Options | [ZZZZZ] Without |
| Manufacturer Logo | [2] *WIKA®* |
| Serial Number | [2] With |
| Red Mark at | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 433.30, 432.30 |
| Gauge: Dial Size | 6 in (160 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi / inHg, bar, mbar, mmH2O, mH2O, inH2O, mmHg, kPa, MPa, kgf/cm2, oz/in2, kg/cm2, psi / inHg, barg, kPag, MPag, kg/cm2g, psig / inHg |
| Gauge: Process Connection Size | 1/2 NPT, 1 in, 2 in, G 1/2 B, G 1 B, 3 in |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Process Connection Type | Class 150 RF |
| Gauge: Accuracy | ±1%, ±2%, ±3% |
| Gauge: Ingress Protection | IP 54, IP 65 |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Laminated Safety Glass |
| Gauge: Diaphragm Material | Nickel Alloy, Stainless Steel |
