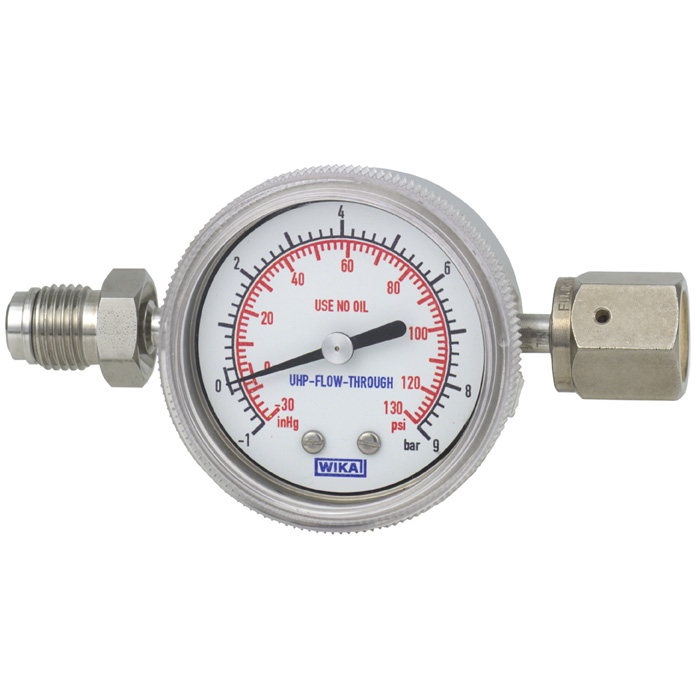

Wika 432.25 Series 2" Dry SS Diaphragm Pressure Gauge for UHP Applications, Inconel Wetted Parts
The Wika 432.25 Series 2" Diaphragm Pressure Gauge is specifically designed for applications requiring the utmost purity. This gauge excels in critical environments where even the slightest contamination can disrupt processes. Whether you're working in the semiconductor industry, handling medical gases, or dealing with aggressive media in a demanding high-purity setting, the 432.25 Series is the ideal choice for precise pressure measurement.
The 432.25 Series prioritizes cleanliness with a dead space-free media chamber, eliminating areas where contaminants could linger. This, combined with its exceptional rinsing behavior, ensures optimal hygiene within the gauge. Furthermore, the gauge undergoes rigorous helium leak testing, boasting a miniscule leak rate, further minimizing the risk of contamination.
The 432.25 Series is built to last in demanding environments. Both the case and media chamber are electropolished, resulting in a surface roughness that minimizes potential entrapment of contaminants. Additionally, the gauge is compatible with all ultra-high purity gas fittings, ensuring seamless integration into your existing high-purity systems.
When it comes to pressure measurement in critical, high-purity applications, the Wika 432.25 Series is the unrivaled choice. Branom is your trusted supplier for top-quality industrial gauges, offering a comprehensive selection of measurement tools to ensure you have the right equipment for even the most demanding clean environments.
Order Code Prefix: 432.25.7-
Specifications
| Wika 432.25 | |
|---|---|
| Scale Range | ￭ psi / -inHg ￭, [PV352] -30 inHg/60 psi, [PV410] -30 inHg...+130 psi, ￭ bar ￭, [BV350] -1/4 bar, [BV410] -1/9 bar, ￭ kg/cm2 ￭, [KV349] -1/4 kg/cm2, [KV398] -1/9 kg/cm2 |
| 2nd Scale | [Z] Without, [K] kg/cm2, [P] psi |
| Process Connection | [1] Weld-In Connection on Both Sides, [2] 1/4" Male Nut on Both Sides, [3] 1/4" Male Nut / Union Nut, [4] 1/4" Union Nut on Both Sides, [5] 1/4" Union Nut / Male Nut, [6] 1/2" Male Nut / Union Nut |
| Connector Location | [8-ZZZZ4GJ6B] Horizontal, [9-ZZZZ4GJ6B] Vertical |
| Color for Inner Scale | [ZZZZZZ] Without, [CZZZZZ] Red, [AZZZZZ] Black |
| Manufacturer Logo | [1] *Wika*, [Z] Without |
| Text / Mark on Dial | [Z] Without, [R] *Made In ....* |
| Nominal Size | 2" |
| Special Design Featurs | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Additional Ordering Info | [Z4G] Without |
| Accuracy Class | [J] ± 3/2/3% (ASME B40.100 Grade B) |
| Permissible Medium Temp | [6] Max. +60 °C |
| Permissible Ambient Temp | [B] -10...+60 °C |
| Logo Options | [ZZZZZ] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 432.25 |
| Gauge: Dial Size | 2 in (50 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Diaphragm Element |
| Gauge: Fill Type | Dry |
| Gauge: Product Unit of Measure | psi / inHg, bar, kg/cm2 |
| Gauge: Process Connection Size | 1/4 in, 1/2 in |
| Gauge: Process Connection Location | Horizontal, Vertical |
| Gauge: Process Connection Type | Weld-In Connection, Both Sides, Male Nut, Both Sides, Union Nut / Male Nut, Male Nut / Union Nut |
| Gauge: Wetted Material | Nickel Alloy |
| Gauge: Accuracy | ±3% |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Polycarbonate |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
