Wika 33x.50 Series 6" SS Test Gauge, Dry/Fillable, SS or NiSpan-C Wetted Parts

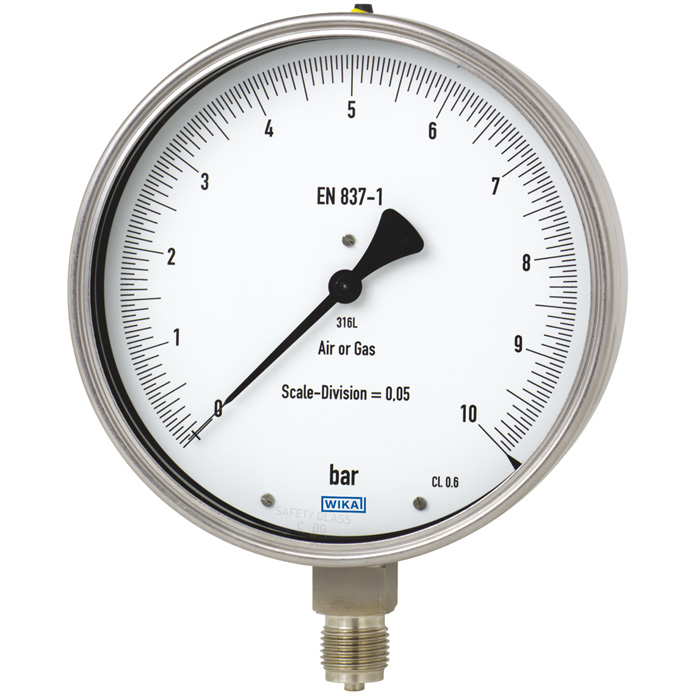

Representative photo. Please check item description for details.

Wika 33x.50 Series 6" SS Test Gauge, Dry/Fillable, SS or NiSpan-C Wetted Parts

https://www.pressureworx.com/web/image/product.template/543634/image_1920?unique=b7c2b8f
(0 review)

Manufacturer
Wika Instrument Lp
MADE TO ORDER


Datasheet

The Wika 33x.50 Series Stainless Steel Test Gauge is engineered for precision in measuring gaseous and liquid aggressive media, ideal for use in laboratories and industrial settings. This gauge is perfect for high-accuracy pressure measurement and testing of industrial-type pressure gauges. It is especially suitable for environments with high dynamic pressure loads or vibrations when opting for the liquid-filled case model (333.50).


Manufactured entirely from stainless steel, this gauge is built to last, even in the most aggressive environments. Its knife-edge pointer ensures optimal accuracy in readings, while the wear-resistant precision movement, also crafted from stainless steel, guarantees long-term reliability. The Wika 33x.50 Series complies with the stringent standards of EN 837-1 and ASME B40.100, ensuring top-notch performance and safety.


This series offers a wide range of scale options, from 0 … 0.6 to 0 … 1,600 bar (0 ... 10 psi to 0 ... 20,000 psi), catering to diverse measurement needs. Whether you require precision in a laboratory or robust testing in an industrial setting, the Wika 33x.50 Series delivers exceptional performance.


For the best purchasing experience, look no further than Branom. Known for their superior customer service and extensive product knowledge, Branom ensures you get the right gauge for your specific needs. With their commitment to quality and customer satisfaction, Branom stands out as the premier choice for all your precision measurement tools.

$ 1,670.76 1670.76 USD $ 1,768.00

$ 1,517.09

Not Available For Sale

  • Nominal Size
  • Case Filling
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Mounting Flange / Bracket
  • Window
  • Restrictor
  • Pointer
  • Set / Drag Pointer
  • Dial Specials
  • Special Design Features
  • Certificates
  • Approvals
  • Additional Ordering Info
  • Accuracy Class
  • Overpressure Safety
  • Process Connection Material
  • Pressure Element Material
  • Case Surface
  • Permissible Medium Temp
  • Permissible Ambient Temp
  • Case Filling
  • Thread Protection
  • Packing
  • Pressure Gauge Standard
  • Color for Inner Scale
  • Logo Options
  • Manufacturer Logo
  • Serial Number
  • Stop Pin on Dial
  • Text for Dial
  • Gauge: Brand
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Case Material
  • Gauge: Window
  • Gauge: Window
  • Gauge: Window
  • Gauge: Dial Material
  • Gauge: Pointer Material
  • Gauge: Window Ring
  • Gauge: Pointer Type
  • Gauge: Wetted Material
  • Gauge: Wetted Material
  • Gauge: Fill Type
  • Gauge: Fill Type
  • Gauge: Dial Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Measuring Principle
  • Gauge: Pressure Type
  • Gauge: Model
  • Gauge: Model
  • Gauge: Scale Range
  • Gauge: Type

This combination does not exist.

The Wika 33x.50 Series Stainless Steel Test Gauge is engineered for precision in measuring gaseous and liquid aggressive media, ideal for use in laboratories and industrial settings. This gauge is perfect for high-accuracy pressure measurement and testing of industrial-type pressure gauges. It is especially suitable for environments with high dynamic pressure loads or vibrations when opting for the liquid-filled case model (333.50).


Manufactured entirely from stainless steel, this gauge is built to last, even in the most aggressive environments. Its knife-edge pointer ensures optimal accuracy in readings, while the wear-resistant precision movement, also crafted from stainless steel, guarantees long-term reliability. The Wika 33x.50 Series complies with the stringent standards of EN 837-1 and ASME B40.100, ensuring top-notch performance and safety.


This series offers a wide range of scale options, from 0 … 0.6 to 0 … 1,600 bar (0 ... 10 psi to 0 ... 20,000 psi), catering to diverse measurement needs. Whether you require precision in a laboratory or robust testing in an industrial setting, the Wika 33x.50 Series delivers exceptional performance.


For the best purchasing experience, look no further than Branom. Known for their superior customer service and extensive product knowledge, Branom ensures you get the right gauge for your specific needs. With their commitment to quality and customer satisfaction, Branom stands out as the premier choice for all your precision measurement tools.

Contact Us

Share

Specifications

Wika 33x.50
Case Filling [333.50-F] With, [332.50-F] Without
Scale Range ￭ psi ￭, [PG269] 0/10 psi, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi, [PG514] 0/2000 psi, [PG521] 0/3000 psi, [PG528] 0/4000 psi, [PG534] 0/5000 psi, [PG541] 0/6000 psi, [PG552] 0/7500 psi, [PG569] 0/10000 psi, [PG610] 0/15000 psi, [PG614] 0/20000 psi, ￭ psi / -inHg ￭, [PV251] -15 inHg/0 psi, [PV310] -30 inHg/0 psi, [PV321] -30 inHg/15 psi, [PV331] -30 inHg/30 psi, [PV352] -30 inHg/60 psi, [PV379] -30 inHg/100 psi, [PV412] -30 inHg/160 psi, [PV415] -30 inHg/200 psi, [PV422] -30 inHg/300 psi, ￭ bar ￭, [BG260] 0/0.6 bar, [BG310] 0/1 bar, [BG316] 0/1.6 bar, [BG320] 0/2 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG370] 0/7 bar, [BG410] 0/10 bar, [BG414] 0/14 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG430] 0/30 bar, [BG440] 0/40 bar, [BG460] 0/60 bar, [BG470] 0/70 bar, [BG510] 0/100 bar, [BG514] 0/140 bar, [BG516] 0/160 bar, [BG520] 0/200 bar, [BG525] 0/250 bar, [BG532] 0/315 bar, [BG540] 0/400 bar, [BG560] 0/600 bar, [BG570] 0/700 bar, [BG610] 0/1000 bar, [BG614] 0/1400 bar, [BG616] 0/1600 bar, ￭ bar vacuum ￭, [BV260] -0.6/0 bar, [BV310] -1/0 bar, [BV316] -1/0.6 bar, [BV320] -1/1 bar, [BV325] -1/1.5 bar, [BV330] -1/2 bar, [BV340] -1/3 bar, [BV350] -1/4 bar, [BV360] -1/5 bar, [BV380] -1/7 bar, [BV410] -1/9 bar, [BV411] -1/10 bar, [BV416] -1/15 bar, [BV425] -1/24 bar, [BV431] -1/30 bar, ￭ kPa ￭, [LG260] 0/60 kPa, [LG270] 0/70 kPa, [LG310] 0/100 kPa, [LG316] 0/160 kPa, [LG320] 0/200 kPa, [LG325] 0/250 kPa, [LG330] 0/300 kPa, [LG340] 0/400 kPa, [LG360] 0/600 kPa, [LG370] 0/700 kPa, [LG410] 0/1000 kPa, [LG414] 0/1400 kPa, [LG416] 0/1600 kPa, [LG425] 0/2500 kPa, [LG430] 0/3000 kPa, [LG440] 0/4000 kPa, [LG460] 0/6000 kPa, [LG470] 0/7000 kPa, [LG510] 0/10000 kPa, [LG514] 0/14000 kPa, [LG516] 0/16000 kPa, [LG520] 0/20000 kPa, [LG525] 0/25000 kPa, [LG532] 0/31500 kPa, [LG540] 0/40000 kPa, [LG560] 0/60000 kPa, [LG570] 0/70000 kPa, [LG610] 0/100000 kPa, ￭ kPa vacuum ￭, [LV260] -60/0 kPa, [LV310] -100/0 kPa, [LV316] -100/60 kPa, [LV320] -100/100 kPa, [LV325] -100/150 kPa, [LV330] -100/200 kPa, [LV340] -100/300 kPa, [LV350] -100/400 kPa, [LV360] -100/500 kPa, [LV380] -100/700 kPa, [LV410] -100/900 kPa, [LV411] -100/1000 kPa, [LV416] -100/1500 kPa, [LV425] -100/2400 kPa, [LV431] -100/3000 kPa, ￭ MPa ￭, [EG260] 0/0.06 MPa, [EG310] 0/0.1 MPa, [EG316] 0/0.16 MPa, [EG320] 0/0.2 MPa, [EG325] 0/0.25 MPa, [EG340] 0/0.4 MPa, [EG360] 0/0.6 MPa, [EG370] 0/0.7 MPa, [EG410] 0/1 MPa, [EG414] 0/1.4 MPa, [EG416] 0/1.6 MPa, [EG420] 0/2 MPa, [EG425] 0/2.5 MPa, [EG430] 0/3 MPa, [EG440] 0/4 MPa, [EG460] 0/6 MPa, [EG470] 0/7 MPa, [EG510] 0/10 MPa, [EG514] 0/14 MPa, [EG516] 0/16 MPa, [EG520] 0/20 MPa, [EG525] 0/25 MPa, [EG532] 0/31.5 MPa, [EG540] 0/40 MPa, [EG560] 0/60 MPa, [EG570] 0/70 MPa, [EG610] 0/100 MPa, [EG614] 0/140 MPa, [EG616] 0/160 MPa, ￭ MPa vacuum ￭, [EV260] -0.06/0 MPa, [EV310] -0.1/0 MPa, [EV316] -0.1/0.06 MPa, [EV320] -0.1/0.1 MPa, [EV325] -0.1/0.15 MPa, [EV330] -0.1/0.2 MPa, [EV340] -0.1/0.3 MPa, [EV350] -0.1/0.4 MPa, [EV360] -0.1/0.5 MPa, [EV380] -0.1/0.7 MPa, [EV410] -0.1/0.9 MPa, [EV411] -0.1/1 MPa, [EV416] -0.1/1.5 MPa, [EV425] -0.1/2.4 MPa, [EV431] -0.1/3 MPa, ￭ kg/cm2 ￭, [KG259] 0/0.6 kg/cm2, [KG298] 0/1 kg/cm2, [KG316] 0/1.6 kg/cm2, [KG320] 0/2 kg/cm2, [KG325] 0/2.5 kg/cm2, [KG339] 0/4 kg/cm2, [KG359] 0/6 kg/cm2, [KG369] 0/7 kg/cm2, [KG398] 0/10 kg/cm2, [KG414] 0/14 kg/cm2, [KG416] 0/16 kg/cm2, [KG420] 0/20 kg/cm2, [KG425] 0/25 kg/cm2, [KG429] 0/30 kg/cm2, [KG439] 0/40 kg/cm2, [KG459] 0/60 kg/cm2, [KG469] 0/70 kg/cm2, [KG498] 0/100 kg/cm2, [KG514] 0/140 kg/cm2, [KG516] 0/160 kg/cm2, [KG520] 0/200 kg/cm2, [KG525] 0/250 kg/cm2, [KG531] 0/315 kg/cm2, [KG539] 0/400 kg/cm2, [KG559] 0/600 kg/cm2, [KG569] 0/700 kg/cm2, [KG598] 0/1000 kg/cm2, [KG614] 0/1400 kg/cm2, [KG616] 0/1600 kg/cm2, ￭ kg/cm2 vacuum ￭, [KV259] -0.6/0 kg/cm2, [KV298] -1/0 kg/cm2, [KV316] -1/0.6 kg/cm2, [KV320] -1/1 kg/cm2, [KV325] -1/1.5 kg/cm2, [KV329] -1/2 kg/cm2, [KV339] -1/3 kg/cm2, [KV349] -1/4 kg/cm2, [KV359] -1/5 kg/cm2, [KV378] -1/7 kg/cm2, [KV398] -1/9 kg/cm2, [KV411] -1/10 kg/cm2, [KV416] -1/15 kg/cm2, [KV425] -1/24 kg/cm2, [KV430] -1/30 kg/cm2, ￭ mbar ￭, [MG260] 0/600 mbar, [MG310] 0/1000 mbar, [MG311] 0/1100 mbar, [MG312] 0/1200 mbar, [MG316] 0/1600 mbar, [MG325] 0/2500 mbar, ￭ mbar vacuum ￭, [MV260] -600/0 mbar, [MV310] -1000/0 mbar, [MV311] -1100/0 mbar, [MV312] -1200/0 mbar, [MV316] -1000/600 mbar, [MV320] -1000/1000 mbar, [MV325] -1000/1500 mbar, [MV340] -1000/3000 mbar, ￭ barg ￭, [8G260] 0/0.6 barg, [8G310] 0/1 barg, [8G316] 0/1.6 barg, [8G320] 0/2 barg, [8G325] 0/2.5 barg, [8G340] 0/4 barg, [8G350] 0/5 barg, [8G360] 0/6 barg, [8G370] 0/7 barg, [8G410] 0/10 barg, [8G414] 0/14 barg, [8G416] 0/16 barg, [8G420] 0/20 barg, [8G425] 0/25 barg, [8G430] 0/30 barg, [8G440] 0/40 barg, [8G460] 0/60 barg, [8G470] 0/70 barg, [8G510] 0/100 barg, [8G514] 0/140 barg, [8G516] 0/160 barg, [8G520] 0/200 barg, [8G525] 0/250 barg, [8G532] 0/315 barg, [8G540] 0/400 barg, [8G560] 0/600 barg, [8G570] 0/700 barg, [8G610] 0/1000 barg, [8G614] 0/1400 barg, [8G616] 0/1600 barg, ￭ barg vacuum ￭, [8V260] -0.6/0 barg, [8V310] -1/0 barg, [8V316] -1/0.6 barg, [8V320] -1/1 barg, [8V325] -1/1.5 barg, [8V330] -1/2 barg, [8V340] -1/3 barg, [8V350] -1/4 barg, [8V360] -1/5 barg, [8V380] -1/7 barg, [8V410] -1/9 barg, [8V411] -1/10 barg, [8V416] -1/15 barg, [8V425] -1/24 barg, [8V431] -1/30 barg, ￭ psig ￭, [NG269] 0/10 psig, [NG310] 0/15 psig, [NG321] 0/30 psig, [NG341] 0/60 psig, [NG369] 0/100 psig, [NG410] 0/150 psig, [NG411] 0/160 psig, [NG414] 0/200 psig, [NG417] 0/250 psig, [NG421] 0/300 psig, [NG428] 0/400 psig, [NG434] 0/500 psig, [NG441] 0/600 psig, [NG455] 0/800 psig, [NG469] 0/1000 psig, [NG510] 0/1500 psig, [NG514] 0/2000 psig, [NG521] 0/3000 psig, [NG528] 0/4000 psig, [NG534] 0/5000 psig, [NG541] 0/6000 psig, [NG552] 0/7500 psig, [NG569] 0/10000 psig, [NG610] 0/15000 psig, [NG614] 0/20000 psig, ￭ psig / -inHg ￭, [NV251] -15 inHG/0 psig, [NV310] -30 inHG/0 psig, [NV321] -30 inHg/15 psig, [NV331] -30 inHg/30 psig, [NV352] -30 inHg/60 psig, [NV379] -30 inHg/100 psig, [NV412] -30 inHg/160 psig, [NV415] -30 inHg/200 psig, [NV422] -30 inHg/300 psig, ￭ kPag ￭, [4G260] 0/60 kPag, [4G310] 0/100 kPag, [4G316] 0/160 kPag, [4G320] 0/200 kPag, [4G325] 0/250 kPag, [4G330] 0/300 kPag, [4G340] 0/400 kPag, [4G360] 0/600 kPag, [4G370] 0/700 kPag, [4G410] 0/1000 kPag, [4G414] 0/1400 kPag, [4G416] 0/1600 kPag, [4G420] 0/2000 kPag, [4G425] 0/2500 kPag, [4G430] 0/3000 kPag, [4G440] 0/4000 kPag, [4G460] 0/6000 kPag, [4G470] 0/7000 kPag, [4G510] 0/10000 kPag, [4G514] 0/14000 kPag, [4G516] 0/16000 kPag, [4G520] 0/20000 kPag, [4G525] 0/25000 kPag, [4G532] 0/31500 kPag, [4G540] 0/40000 kPag, [4G560] 0/60000 kPag, [4G570] 0/70000 kPag, [4G610] 0/100000 kPag, ￭ kPag vacuum ￭, [4V260] -60/0 kPag, [4V310] -100/0 kPag, [4V316] -100/60 kPag, [4V320] -100/100 kPag, [4V325] -100/150 kPag, [4V330] -100/200 kPag, [4V340] -100/300 kPag, [4V350] -100/400 kPag, [4V360] -100/500 kPag, [4V380] -100/700 kPag, [4V410] -100/900 kPag, [4V411] -100/1000 kPag, [4V416] -100/1500 kPag, [4V425] -100/2400 kPag, [4V431] -100/3000 kPag, ￭ MPag ￭, [3G260] 0/0.06 MPag, [3G310] 0/0.1 MPag, [3G316] 0/0.16 MPag, [3G320] 0/0.2 MPag, [3G325] 0/0.25 MPag, [3G340] 0/0.4 MPag, [3G360] 0/0.6 MPag, [3G370] 0/0.7 MPag, [3G410] 0/1 MPag, [3G414] 0/1.4 MPag, [3G416] 0/1.6 MPag, [3G425] 0/2.5 MPag, [3G430] 0/3 MPag, [3G440] 0/4 MPag, [3G460] 0/6 MPag, [3G470] 0/7 MPag, [3G510] 0/10 MPag, [3G514] 0/14 MPag, [3G516] 0/16 MPag, [3G520] 0/20 MPag, [3G525] 0/25 MPag, [3G532] 0/31.5 MPag, [3G540] 0/40 MPag, [3G560] 0/60 MPag, [3G570] 0/70 MPag, [3G610] 0/100 MPag, [3G614] 0/140 MPag, [3G616] 0/160 MPag, ￭ MPag vacuum ￭, [3V260] -0.06/0 MPag, [3V310] -0.1/0 MPag, [3V316] -0.1/0.06 MPag, [3V320] -0.1/0.1 MPag, [3V325] -0.1/0.15 MPag, [3V330] -0.1/0.2 MPag, [3V340] -0.1/0.3 MPag, [3V350] -0.1/0.4 MPag, [3V360] -0.1/0.5 MPag, [3V380] -0.1/0.7 MPag, [3V410] -0.1/0.9 MPag, [3V411] -0.1/1 MPag, [3V416] -0.1/1.5 MPag, [3V425] -0.1/2.4 MPag, [3V431] -0.1/3 MPag, ￭ kg/cm2g ￭, [AG259] 0/0.6 kg/cm2g, [AG298] 0/1 kg/cm2g, [AG316] 0/1.6 kg/cm2g, [AG320] 0/2 kg/cm2g, [AG325] 0/2.5 kg/cm2g, [AG339] 0/4 kg/cm2g, [AG349] 0/5 kg/cm2g, [AG359] 0/6 kg/cm2g, [AG369] 0/7 kg/cm2g, [AG398] 0/10 kg/cm2g, [AG414] 0/14 kg/cm2g, [AG416] 0/16 kg/cm2g, [AG420] 0/20 kg/cm2g, [AG425] 0/25 kg/cm2g, [AG429] 0/30 kg/cm2g, [AG439] 0/40 kg/cm2g, [AG459] 0/60 kg/cm2g, [AG469] 0/70 kg/cm2g, [AG498] 0/100 kg/cm2g, [AG514] 0/140 kg/cm2g, [AG516] 0/160 kg/cm2g, [AG520] 0/200 kg/cm2g, [AG525] 0/250 kg/cm2g, [AG531] 0/315 kg/cm2g, [AG539] 0/400 kg/cm2g, [AG559] 0/600 kg/cm2g, [AG569] 0/700 kg/cm2g, [AG598] 0/1000 kg/cm2g, [AG614] 0/1400 kg/cm2g, [AG616] 0/1600 kg/cm2g, ￭ kg/cm2g vacuum ￭, [AV259] -0.6/0 kg/cm2g, [AV298] -1/0 kg/cm2g, [AV316] -1/0.6 kg/cm2g, [AV320] -1/1 kg/cm2g, [AV325] -1/1.5 kg/cm2g, [AV329] -1/2 kg/cm2g, [AV339] -1/3 kg/cm2g, [AV349] -1/4 kg/cm2g, [AV359] -1/5 kg/cm2g, [AV378] -1/7 kg/cm2g, [AV398] -1/9 kg/cm2g, [AV411] -1/10 kg/cm2g, [AV416] -1/15 kg/cm2g, [AV425] -1/24 kg/cm2g, [AV430] -1/30 kg/cm2g, ￭ kgf/cm2 ￭, [IG259] 0...0,6 kgf/cm2, [IG298] 0...1 kgf/cm2, [IG316] 0...1,6 kgf/cm2, [IG320] 0...2 kgf/cm2, [IG325] 0...2,5 kgf/cm2, [IG339] 0...4 kgf/cm2, [IG359] 0...6 kgf/cm2, [IG369] 0...7 kgf/cm2, [IG398] 0...10 kgf/cm2, [IG414] 0...14 kgf/cm2, [IG416] 0...16 kgf/cm2, [IG420] 0...20 kgf/cm2, [IG425] 0...25 kgf/cm2, [IG429] 0...30 kgf/cm2, [IG439] 0...40 kgf/cm2, [IG459] 0...60 kgf/cm2, [IG469] 0...70 kgf/cm2, [IG498] 0...100 kgf/cm2, [IG514] 0...140 kgf/cm2, [IG516] 0...160 kgf/cm2, [IG520] 0...200 kgf/cm2, [IG525] 0...250 kgf/cm2, [IG531] 0...315 kgf/cm2, [IG539] 0...400 kgf/cm2, [IG559] 0...600 kgf/cm2, [IG569] 0...700 kgf/cm2, [IG598] 0...1000 kgf/cm2, [IG614] 0...1400 kgf/cm2, [IG616] 0...1600 kgf/cm2, ￭ kgf/cm2 vacuum ￭, [IV416] -1...+15 kgf/cm2, [IV425] -1...+24 kgf/cm2, [IV430] -1...+30 kgf/cm2, [IV259] -0,6 kgf/cm2, [IV298] -1 kgf/cm2, [IV316] -1/+0,6 kgf/cm2, [IV320] -1/+1 kgf/cm2, [IV325] -1/+1,5 kgf/cm2, [IV329] -1...+2 kgf/cm2, [IV339] -1...+3 kgf/cm2, [IV349] -1...+4 kgf/cm2, [IV359] -1...+5 kgf/cm2, [IV378] -1...+7 kgf/cm2, [IV398] -1...+9 kgf/cm2, [IV411] -1...+10 kgf/cm2
2nd Scale [Z] Without, [B] bar, [P] psi, [L] kPa, [E] MPa, [K] kg/cm2, [M] mbar, [8] barg, [N] psig, [4] kPag, [3] MPag, [A] kg/cm2g, [Y] mH2O, [5] mmHg, [7] inH2O, [Q] inHg, [2] mmH2O, [J] oz/in2, [I] kgf/cm2
Process Connection [GD] G 1/2 B, [ND] 1/2 NPT, [GB] G 1/4 B, [GC] G 3/8 B, [NB] 1/4 NPT, [MI] M20 x 1.5, [VY] 9/16 - 18 UNF Female, [ML] M16 x 1.5 Female, w/Sealing Cone
Connector Location [U] Lower Mount, [3] Lower Back Mount
Mounting Flange / Bracket [Z] Without, [C] Rear Flange, Stainless Steel, [M] Front Flange, Stainless Steel, [F] Front Flange, Polished SS (Standard), [K] Panel Mount With Stainless Steel U-Clamp
Window [H] Laminated Safety Glass, [E] Polycarbonate, [D] Acrylic, Green Tinted
Restrictor [Z] Without, [Q] Stainless Steel, D 0.6, [R] Stainless Steel, Orifice 0.3 mm (0.012 in)
Pointer [G] Knife-Edge Pointer, Aluminum, Black, [K] Adjustable Knife-Edge Pointer
Set / Drag Pointer [Z] Without, [A] Red Mark Pointer on Dial, [R] Externally Adjustable Red Set Pointer on Window, [X] Adjustable Set Pointer on Bayonet Ring, [S] Externally Adjustable Red Drag Pointer on Window
Dial Specials [ZZ-ZZZZ23C] Without, [SZ-ZZZZ23C] Mirror-Scale
Accuracy Class [K] ± .5% (ASME B40.100 2A), [N] ± .25% (ASME B40.100 Grade 3A)
Pressure Element Material [3] Stainless Steel, [5] Ni-SPAN-C
Case Surface [D] Bare, [6] Bare Case / Polished Ring
Permissible Medium Temp [3] + 200 °C, [Y] + 100 °C
Permissible Ambient Temp [W] -40 ... +60 °C, [G] -20 ... +60 °C
Case Filling [Z1G-U] Without, [A1G-U] Glycerine, [51G-U] Glycerine For Oxygen Applications, [G1G-U] Glycerine-Water-Mixture, [D1G-U] Silicon Oil, 50 Cst
Color for Inner Scale [ZZZZZZ22] Without, [CZZZZZ22] Red, [AZZZZZ22] Black
Stop Pin on Dial [ZZ] Without, [2Z] At 6 o'clock
Nominal Size 6"
Special Design Features [Z] Without
Certificates [Z] Without
Approvals [Z] Without
Additional Ordering Info [ZZ23C] Without
Overpressure Safety [33] 1.3 x Full Scale Value
Process Connection Material [3] Stainless Steel
Thread Protection [1] With Thread Protection
Packing [G] Packed w/Improved Shock Resistance
Pressure Gauge Standard [U] US-Standard
Logo Options [ZZZZZ] Without
Manufacturer Logo [2] *WIKA®*
Serial Number [2] With Serial Number
Text for Dial [Z] Without
Gauge Features
Gauge: Brand Wika
Gauge: Product Unit of Measure psi / inHg, bar, kPa, MPa, kg/cm2, mbar, barg, psig, kPag, MPag, kg/cm2g, kgf/cm2
Gauge: Process Connection Location Lower Mount, Lower Back Mount
Gauge: Case Material Stainless Steel
Gauge: Window Laminated Safety Glass, Polycarbonate, Acrylic, Green Tinted
Gauge: Dial Material Aluminum
Gauge: Pointer Material Aluminum
Gauge: Window Ring Bayonet Ring
Gauge: Pointer Type Adjustable, Knife Edge
Gauge: Wetted Material Stainless Steel, Nickel Alloy
Gauge: Fill Type Dry, Liquid Filled / Fillable
Gauge: Dial Size 6 in (160 mm)
Gauge: Process Connection Size 1/2 NPT, G 1/2 B, M20 x 1.5, 1/4 NPT, G 1/4 B, G 3/8 B, 9/16 - 18 UNF Female, M16 x 1.5 Female
Gauge: Accuracy ±0.5%, ±0.25%
Gauge: Measuring Principle Bourdon Tube
Gauge: Pressure Type Gauge Pressure
Gauge: Model 332.50, 333.50
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Type Dial Indicating Gauge
