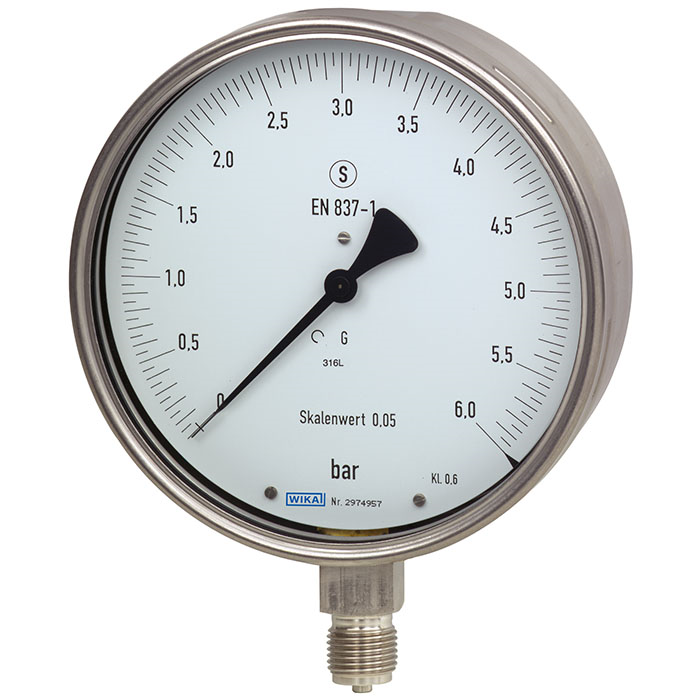

Wika 33x.30 Series 6" SS Test Gauge, Dry/Fillable, SS Wetted Parts

https://www.pressureworx.com/web/image/product.template/543629/image_1920?unique=e52213b
(0 review)

The Wika 33x.30 Series Stainless Steel Test Gauge is the ideal solution for precision measurement in challenging environments. Designed for both gaseous and liquid aggressive media, this gauge excels even in harsh conditions where media is not highly viscous or crystallizing. It's perfect for laboratory precision measurements and testing industrial pressure gauges, ensuring the highest levels of accuracy. With increased safety requirements in mind, this gauge provides enhanced personal protection, making it a reliable choice for critical applications.


The 33x.30 Series boasts a range of special features that set it apart. Constructed entirely from stainless steel, it offers exceptional durability and resistance to wear. The knife edge pointer ensures optimal accuracy of readings, while the wear-resistant precision movement guarantees long-lasting performance. The gauge covers an extensive range of scale options, from 0 to 0.6 bar up to 0 to 1,600 bar (10 psi to 20,000 psi), catering to diverse pressure measurement needs.


One of the standout aspects of this gauge is its compliance with the stringent requirements and test conditions of EN 837-1, featuring a solid baffle wall for added safety. Additionally, the liquid-filled case is designed to handle applications with high dynamic pressure loads or vibrations, providing reliable performance under demanding conditions.


For those seeking the highest quality in precision measurement, the Wika 33x.30 Series Stainless Steel Test Gauge is available at Branom, the premier store for purchasing top-of-the-line instrumentation. Branom’s commitment to excellence ensures that you receive a product that meets the highest standards of accuracy and durability.

2,610.55 2610.55305 USD 2,762.49

2,169.64

Not Available For Sale

  • Nominal Size
  • Case Filling
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Mounting Flange / Bracket
  • Restrictor
  • Pointer
  • Set / Drag Pointer
  • Dial Specials
  • Special Design Features
  • Certificates
  • Approvals
  • Additional Ordering Info
  • Accuracy Class
  • Overpressure Safety
  • Process Connection Material
  • Pressure Element Material
  • Case Surface
  • Permissible Medium Temp
  • Permissible Ambient Temp
  • Case Filling
  • Thread Protection
  • Packing
  • Pressure Gauge Standard
  • Color for Inner Scale
  • Logo Options
  • Manufacturer Logo
  • Serial Number
  • Stop Pin on Dial
  • Text for Dial
  • Gauge: Brand
  • Gauge: Type
  • Gauge: Model
  • Gauge: Model
  • Gauge: Dial Size
  • Gauge: Scale Range
  • Gauge: Pressure Type
  • Gauge: Measuring Principle
  • Gauge: Fill Type
  • Gauge: Fill Type
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Location
  • Gauge: Wetted Material
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Case Material
  • Gauge: Window
  • Gauge: Dial Material
  • Gauge: Pointer Material
  • Gauge: Window Ring
  • Gauge: Pointer Type

This combination does not exist.

Specifications

Wika 33x.30
Case Filling [333.30-F] With, [332.30-F] Without
Scale Range ■ psi ■, [PG269] 0/10 psi, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi, [PG514] 0/2000 psi, [PG521] 0/3000 psi, [PG528] 0/4000 psi, [PG534] 0/5000 psi, [PG541] 0/6000 psi, [PG552] 0/7500 psi, [PG569] 0/10000 psi, [PG610] 0/15000 psi, [PG614] 0/20000 psi, ■ psi / -inHg ■, [PV251] -15 inHg/0 psi, [PV310] -30 inHg/0 psi, [PV321] -30 inHg/15 psi, [PV331] -30 inHg/30 psi, [PV352] -30 inHg/60 psi, [PV379] -30 inHg/100 psi, [PV412] -30 inHg/160 psi, [PV415] -30 inHg/200 psi, [PV422] -30 inHg/300 psi, ■ bar ■, [BG260] 0/0.6 bar, [BG310] 0/1 bar, [BG316] 0/1.6 bar, [BG320] 0/2 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG370] 0/7 bar, [BG410] 0/10 bar, [BG414] 0/14 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG430] 0/30 bar, [BG440] 0/40 bar, [BG460] 0/60 bar, [BG470] 0/70 bar, [BG510] 0/100 bar, [BG514] 0/140 bar, [BG516] 0/160 bar, [BG520] 0/200 bar, [BG525] 0/250 bar, [BG532] 0/315 bar, [BG540] 0/400 bar, [BG560] 0/600 bar, [BG570] 0/700 bar, [BG610] 0/1000 bar, [BG614] 0/1400 bar, [BG616] 0/1600 bar, ■ bar vacuum ■, [BV260] -0.6/0 bar, [BV310] -1/0 bar, [BV316] -1/0.6 bar, [BV320] -1/1 bar, [BV325] -1/1.5 bar, [BV330] -1/2 bar, [BV340] -1/3 bar, [BV350] -1/4 bar, [BV360] -1/5 bar, [BV380] -1/7 bar, [BV410] -1/9 bar, [BV411] -1/10 bar, [BV416] -1/15 bar, [BV425] -1/24 bar, [BV431] -1/30 bar, ■ kPa ■, [LG260] 0/60 kPa, [LG270] 0/70 kPa, [LG310] 0/100 kPa, [LG316] 0/160 kPa, [LG320] 0/200 kPa, [LG325] 0/250 kPa, [LG330] 0/300 kPa, [LG340] 0/400 kPa, [LG360] 0/600 kPa, [LG370] 0/700 kPa, [LG410] 0/1000 kPa, [LG414] 0/1400 kPa, [LG416] 0/1600 kPa, [LG425] 0/2500 kPa, [LG430] 0/3000 kPa, [LG440] 0/4000 kPa, [LG460] 0/6000 kPa, [LG470] 0/7000 kPa, [LG510] 0/10000 kPa, [LG514] 0/14000 kPa, [LG516] 0/16000 kPa, [LG520] 0/20000 kPa, [LG525] 0/25000 kPa, [LG532] 0/31500 kPa, [LG540] 0/40000 kPa, [LG560] 0/60000 kPa, [LG570] 0/70000 kPa, [LG610] 0/100000 kPa, ■ kPa vacuum ■, [LV260] -60/0 kPa, [LV310] -100/0 kPa, [LV316] -100/60 kPa, [LV320] -100/100 kPa, [LV325] -100/150 kPa, [LV330] -100/200 kPa, [LV340] -100/300 kPa, [LV350] -100/400 kPa, [LV360] -100/500 kPa, [LV380] -100/700 kPa, [LV410] -100/900 kPa, [LV411] -100/1000 kPa, [LV416] -100/1500 kPa, [LV425] -100/2400 kPa, [LV431] -100/3000 kPa, ■ MPa ■, [EG260] 0/0.06 MPa, [EG310] 0/0.1 MPa, [EG316] 0/0.16 MPa, [EG320] 0/0.2 MPa, [EG325] 0/0.25 MPa, [EG340] 0/0.4 MPa, [EG360] 0/0.6 MPa, [EG370] 0/0.7 MPa, [EG410] 0/1 MPa, [EG414] 0/1.4 MPa, [EG416] 0/1.6 MPa, [EG420] 0/2 MPa, [EG425] 0/2.5 MPa, [EG430] 0/3 MPa, [EG440] 0/4 MPa, [EG460] 0/6 MPa, [EG470] 0/7 MPa, [EG510] 0/10 MPa, [EG514] 0/14 MPa, [EG516] 0/16 MPa, [EG520] 0/20 MPa, [EG525] 0/25 MPa, [EG532] 0/31.5 MPa, [EG540] 0/40 MPa, [EG560] 0/60 MPa, [EG570] 0/70 MPa, [EG610] 0/100 MPa, [EG614] 0/140 MPa, [EG616] 0/160 MPa, ■ MPa vacuum ■, [EV260] -0.06/0 MPa, [EV310] -0.1/0 MPa, [EV316] -0.1/0.06 MPa, [EV320] -0.1/0.1 MPa, [EV325] -0.1/0.15 MPa, [EV330] -0.1/0.2 MPa, [EV340] -0.1/0.3 MPa, [EV350] -0.1/0.4 MPa, [EV360] -0.1/0.5 MPa, [EV380] -0.1/0.7 MPa, [EV410] -0.1/0.9 MPa, [EV411] -0.1/1 MPa, [EV416] -0.1/1.5 MPa, [EV425] -0.1/2.4 MPa, [EV431] -0.1/3 MPa, ■ kg/cm2 ■, [KG259] 0/0.6 kg/cm2, [KG298] 0/1 kg/cm2, [KG316] 0/1.6 kg/cm2, [KG320] 0/2 kg/cm2, [KG325] 0/2.5 kg/cm2, [KG339] 0/4 kg/cm2, [KG359] 0/6 kg/cm2, [KG369] 0/7 kg/cm2, [KG398] 0/10 kg/cm2, [KG414] 0/14 kg/cm2, [KG416] 0/16 kg/cm2, [KG420] 0/20 kg/cm2, [KG425] 0/25 kg/cm2, [KG429] 0/30 kg/cm2, [KG439] 0/40 kg/cm2, [KG459] 0/60 kg/cm2, [KG469] 0/70 kg/cm2, [KG498] 0/100 kg/cm2, [KG514] 0/140 kg/cm2, [KG516] 0/160 kg/cm2, [KG520] 0/200 kg/cm2, [KG525] 0/250 kg/cm2, [KG531] 0/315 kg/cm2, [KG539] 0/400 kg/cm2, [KG559] 0/600 kg/cm2, [KG569] 0/700 kg/cm2, [KG598] 0/1000 kg/cm2, [KG614] 0/1400 kg/cm2, [KG616] 0/1600 kg/cm2, ■ kg/cm2 vacuum ■, [KV259] -0.6/0 kg/cm2, [KV298] -1/0 kg/cm2, [KV316] -1/0.6 kg/cm2, [KV320] -1/1 kg/cm2, [KV325] -1/1.5 kg/cm2, [KV329] -1/2 kg/cm2, [KV339] -1/3 kg/cm2, [KV349] -1/4 kg/cm2, [KV359] -1/5 kg/cm2, [KV378] -1/7 kg/cm2, [KV398] -1/9 kg/cm2, [KV411] -1/10 kg/cm2, [KV416] -1/15 kg/cm2, [KV425] -1/24 kg/cm2, [KV430] -1/30 kg/cm2
2nd Scale [Z] Without, [B] bar, [P] psi, [L] kPa, [E] MPa, [K] kg/cm2
Process Connection [GD] G 1/2 B, [ND] 1/2 NPT, [GB] G 1/4 B, [GC] G 3/8 B, [NB] 1/4 NPT, [MI] M20 x 1.5, [VY] 9/16 - 18 UNF Female, [ML] M16 X 1.5 Female, w/Sealing Cone
Mounting Flange / Bracket [ZH] Without, [SH] SS Surface Mounting Lugs, [MH] Front Flange, Stainless Steel, [FH] Front Flange, Polished SS (Standard)
Restrictor [Z] Without, [Q] Stainless Steel, D 0.6, [R] Stainless Steel, Orifice 0.3 mm (0.012 in)
Pointer [G] Knife-Edge Pointer, Aluminum, Black, [K] Adjustable Knife-Edge Pointer
Set / Drag Pointer [Z] Without, [A] Red Mark Pointer on Dial, [R] Externally Adjustable Red Set Pointer on Window
Dial Specials [ZZ-ZZZZ3B] Without, [SZ-ZZZZ3B] Mirror-Scale
Accuracy Class [K] ± .5% (ASME B40.100 2A), [N] ± .25% (ASME B40.100 Grade 3A)
Pressure Element Material [3] Stainless Steel, [5] Ni-SPAN-C
Case Surface [D] Bare, [6] Bare Case / Polished Ring
Permissible Medium Temp [3] + 200 °C, [Y] + 100 °C
Permissible Ambient Temp [W] -40 ... +60 °C, [G] -20 ... +60 °C
Case Filling [Z1G-U] Without, [A1G-U] Glycerine, [51G-U] Glycerine For Oxygen Applications, [G1G-U] Glycerine-Water-Mixture, [D1G-U] Silicon Oil, 50 Cst
Color for Inner Scale [ZZZZZZ22] Without, [CZZZZZ22] Red, [AZZZZZ22] Black
Stop Pin on Dial [ZZ] Without, [2Z] At 6 o'clock
Nominal Size 6"
Connector Location [U] Lower Mount
Special Design Features [Z] Without
Certificates [Z] Without
Approvals [Z] Without
Additional Ordering Info [ZZ23B] Without
Overpressure Safety [33] 1.3 x Full Scale Value
Process Connection Material [3] Stainless Steel
Thread Protection [1] With Thread Protection
Packing [G] Packed w/Improved Shock Resistance
Pressure Gauge Standard [U] US-Standard
Logo Options [ZZZZZ] Without
Manufacturer Logo [2] *WIKA®*
Serial Number [2] With Serial Number
Text for Dial [Z] Without
Gauge Features
Gauge: Brand Wika
Gauge: Type Dial Indicating Gauge
Gauge: Model 332.30, 333.30
Gauge: Dial Size 6 in (160 mm)
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type Gauge Pressure
Gauge: Measuring Principle Bourdon Tube
Gauge: Fill Type Dry, Liquid Filled / Fillable
Gauge: Product Unit of Measure psi / inHg, bar, kPa, MPa, kg/cm2
Gauge: Process Connection Size 1/2 NPT, G 1/2 B, M20 x 1.5, 1/4 NPT, G 1/4 B, G 3/8 B, 9/16 - 18 UNF Female, M16 x 1.5 Female
Gauge: Process Connection Location Lower Mount
Gauge: Wetted Material Stainless Steel
Gauge: Accuracy ±0.5%, ±0.25%
Gauge: Case Material Stainless Steel
Gauge: Window Laminated Safety Glass
Gauge: Dial Material Aluminum
Gauge: Pointer Material Aluminum
Gauge: Window Ring Bayonet Ring
Gauge: Pointer Type Adjustable
