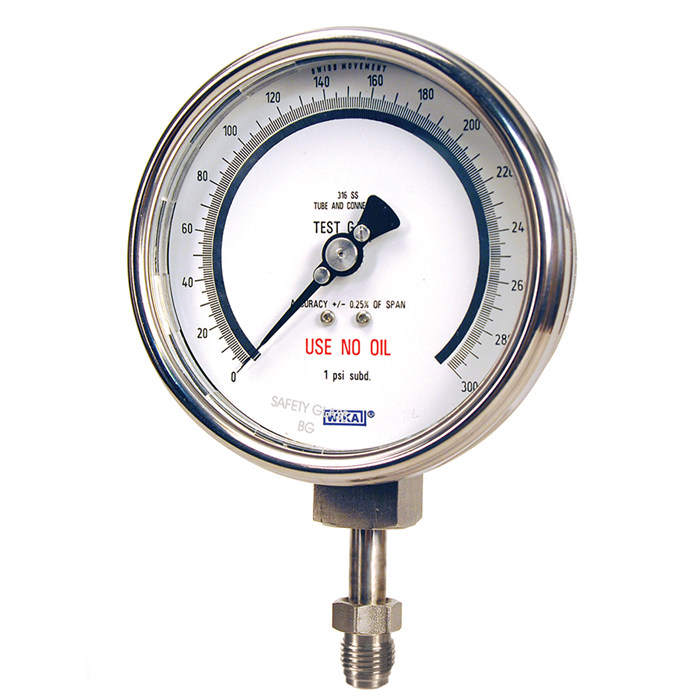

Wika 332.54-UHP 4" SS Dry Pressure Gauge, Lower Mount, SS Wetted Parts

https://www.pressureworx.com/web/image/product.template/544124/image_1920?unique=d25f60f
(0 review)

The Wika 332.54-UHP 4" SS Pressure Gauge with a lower mount is the ideal choice for inspector's test gauges and for the testing and calibration of other pressure measuring instruments.

Designed with all stainless steel construction, it ensures durability and reliability in various environments. The removable bezel ring allows for easy maintenance and adjustments.

This pressure gauge is calibrated in accordance with NIST standards, ensuring precise and accurate readings. Additionally, it is O2 cleaned in accordance with ASME standards, making it suitable for oxygen service.

For top-quality instrumentation and exceptional service, Branom is the preferred store to purchase this reliable and efficient pressure gauge.

Order Code Prefix: 332.54.100-

809.55 809.55315 USD 856.67

666.92

Not Available For Sale

  • Nominal Size
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Mounting Flange / Bracket
  • Restrictor
  • Special Design Features
  • Certificates
  • Additional Ordering Info
  • Accuracy Class
  • Overpressure Safety
  • Case Material
  • Pressure Element Material
  • Pointer
  • Set / Drag Pointer
  • Window
  • Special Measuring Element
  • Ingress Protection
  • Movement
  • Assembly Accessory
  • Thread Protection
  • Packing
  • Gauge: Brand
  • Gauge: Type
  • Gauge: Model
  • Gauge: Dial Size
  • Gauge: Scale Range
  • Gauge: Pressure Type
  • Gauge: Measuring Principle
  • Gauge: Fill Type
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Size
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Wetted Material
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Ingress Protection
  • Gauge: Case Material
  • Gauge: Window

This combination does not exist.

Specifications

Wika 332.54-UHP
Scale Range ■ psi ■, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi, [PG514] 0/2000 psi, [PG521] 0/3000 psi, [PG528] 0/4000 psi, [PG534] 0/5000 psi, ■ psi / -inHg ■, [PV310] -30 inHg/0 psi, [PV321] -30 inHg/15 psi, [PV331] -30 inHg/30 psi, [PV352] -30 inHg/60 psi, [PV379] -30 inHg/100 psi, [PV412] -30 inHg/160 psi, [PV415] -30 inHg/200 psi, [PV422] -30 inHg/300 psi, ■ bar ■, [BG310] 0/1 bar, [BG316] 0/1.6 bar, [BG320] 0/2 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG370] 0/7 bar, [BG410] 0/10 bar, [BG414] 0/14 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG430] 0/30 bar, [BG440] 0/40 bar, [BG460] 0/60 bar, [BG470] 0/70 bar, [BG510] 0/100 bar, [BG514] 0/140 bar, [BG516] 0/160 bar, [BG520] 0/200 bar, [BG525] 0/250 bar, [BG532] 0/315 bar, ■ bar vacuum ■, [BV310] -1/0 bar, [BV316] -1/0.6 bar, [BV320] -1/1 bar, [BV325] -1/1.5 bar, [BV330] -1/2 bar, [BV340] -1/3 bar, [BV350] -1/4 bar, [BV360] -1/5 bar, [BV380] -1/7 bar, [BV410] -1/9 bar, [BV411] -1/10 bar, [BV416] -1/15 bar, [BV425] -1/24 bar, [BV426] -1/25 bar, [BV431] -1/30 bar, ■ kPa ■, [LG310] 0/100 kPa, [LG316] 0/160 kPa, [LG320] 0/200 kPa, [LG325] 0/250 kPa, [LG330] 0/300 kPa, [LG340] 0/400 kPa, [LG360] 0/600 kPa, [LG370] 0/700 kPa, [LG410] 0/1000 kPa, [LG414] 0/1400 kPa, [LG416] 0/1600 kPa, [LG425] 0/2500 kPa, [LG430] 0/3000 kPa, [LG440] 0/4000 kPa, [LG460] 0/6000 kPa, [LG470] 0/7000 kPa, [LG510] 0/10000 kPa, [LG514] 0/14000 kPa, [LG516] 0/16000 kPa, [LG520] 0/20000 kPa, [LG525] 0/25000 kPa, [LG532] 0/31500 kPa, ■ kPa vacuum ■, [LV310] -100/0 kPa, [LV316] -100/60 kPa, [LV320] -100/100 kPa, [LV325] -100/150 kPa, [LV330] -100/200 kPa, [LV340] -100/300 kPa, [LV350] -100/400 kPa, [LV360] -100/500 kPa, [LV380] -100/700 kPa, [LV410] -100/900 kPa, [LV411] -100/1000 kPa, [LV416] -100/1500 kPa, [LV425] -100/2400 kPa, [LV431] -100/3000 kPa, ■ MPa ■, [EG310] 0/0.1 MPa, [EG316] 0/0.16 MPa, [EG320] 0/0.2 MPa, [EG325] 0/0.25 MPa, [EG340] 0/0.4 MPa, [EG360] 0/0.6 MPa, [EG370] 0/0.7 MPa, [EG410] 0/1 MPa, [EG414] 0/1.4 MPa, [EG416] 0/1.6 MPa, [EG420] 0/2 MPa, [EG425] 0/2.5 MPa, [EG430] 0/3 MPa, [EG440] 0/4 MPa, [EG460] 0/6 MPa, [EG470] 0/7 MPa, [EG510] 0/10 MPa, [EG514] 0/14 MPa, [EG516] 0/16 MPa, [EG520] 0/20 MPa, [EG525] 0/25 MPa, [EG532] 0/31.5 MPa, ■ MPa vacuum ■, [EV310] -0.1/0 MPa, [EV316] -0.1/0.06 MPa, [EV320] -0.1/0.1 MPa, [EV325] -0.1/0.15 MPa, [EV330] -0.1/0.2 MPa, [EV340] -0.1/0.3 MPa, [EV350] -0.1/0.4 MPa, [EV360] -0.1/0.5 MPa, [EV380] -0.1/0.7 MPa, [EV410] -0.1/0.9 MPa, [EV411] -0.1/1 MPa, [EV416] -0.1/1.5 MPa, [EV425] -0.1/2.4 MPa, [EV431] -0.1/3 MPa, ■ kg/cm2 ■, [KG298] 0/1 kg/cm2, [KG316] 0/1.6 kg/cm2, [KG320] 0/2 kg/cm2, [KG325] 0/2.5 kg/cm2, [KG339] 0/4 kg/cm2, [KG359] 0/6 kg/cm2, [KG369] 0/7 kg/cm2, [KG398] 0/10 kg/cm2, [KG414] 0/14 kg/cm2, [KG416] 0/16 kg/cm2, [KG420] 0/20 kg/cm2, [KG425] 0/25 kg/cm2, [KG429] 0/30 kg/cm2, [KG439] 0/40 kg/cm2, [KG459] 0/60 kg/cm2, [KG469] 0/70 kg/cm2, [KG498] 0/100 kg/cm2, [KG514] 0/140 kg/cm2, [KG516] 0/160 kg/cm2, [KG520] 0/200 kg/cm2, [KG525] 0/250 kg/cm2, [KG531] 0/315 kg/cm2, ■ kg/cm2 vacuum ■, [KV298] -1/0 kg/cm2, [KV316] -1/0.6 kg/cm2, [KV320] -1/1 kg/cm2, [KV325] -1/1.5 kg/cm2, [KV329] -1/2 kg/cm2, [KV339] -1/3 kg/cm2, [KV349] -1/4 kg/cm2, [KV359] -1/5 kg/cm2, [KV378] -1/7 kg/cm2, [KV398] -1/9 kg/cm2, [KV411] -1/10 kg/cm2, [KV416] -1/15 kg/cm2, [KV425] -1/24 kg/cm2, [KV430] -1/30 kg/cm2, ■ barg ■, [8G310] 0/1 barg, [8G316] 0/1.6 barg, [8G320] 0/2 barg, [8G325] 0/2.5 barg, [8G340] 0/4 barg, [8G350] 0/5 barg, [8G360] 0/6 barg, [8G370] 0/7 barg, [8G410] 0/10 barg, [8G414] 0/14 barg, [8G416] 0/16 barg, [8G420] 0/20 barg, [8G425] 0/25 barg, [8G430] 0/30 barg, [8G440] 0/40 barg, [8G460] 0/60 barg, [8G470] 0/70 barg, [8G510] 0/100 barg, [8G514] 0/140 barg, [8G516] 0/160 barg, [8G520] 0/200 barg, [8G525] 0/250 barg, [8G532] 0/315 barg, ■ barg vacuum ■, [8V310] -1/0 barg, [8V316] -1/0.6 barg, [8V320] -1/1 barg, [8V325] -1/1.5 barg, [8V330] -1/2 barg, [8V340] -1/3 barg, [8V350] -1/4 barg, [8V360] -1/5 barg, [8V380] -1/7 barg, [8V410] -1/9 barg, [8V411] -1/10 barg, [8V416] -1/15 barg, [8V425] -1/24 barg, [8V431] -1/30 barg, ■ psig ■, [NG310] 0/15 psig, [NG321] 0/30 psig, [NG341] 0/60 psig, [NG369] 0/100 psig, [NG410] 0/150 psig, [NG411] 0/160 psig, [NG414] 0/200 psig, [NG417] 0/250 psig, [NG421] 0/300 psig, [NG428] 0/400 psig, [NG434] 0/500 psig, [NG441] 0/600 psig, [NG455] 0/800 psig, [NG469] 0/1000 psig, [NG510] 0/1500 psig, [NG514] 0/2000 psig, [NG521] 0/3000 psig, [NG528] 0/4000 psig, [NG534] 0/5000 psig, ■ psig / -inHg ■, [NV310] -30 inHG/0 psig, [NV321] -30 inHg/15 psig, [NV331] -30 inHg/30 psig, [NV352] -30 inHg/60 psig, [NV379] -30 inHg/100 psig, [NV412] -30 inHg/160 psig, [NV415] -30 inHg/200 psig, [NV422] -30 inHg/300 psig, ■ kPag ■, [4G310] 0/100 kPag, [4G316] 0/160 kPag, [4G320] 0/200 kPag, [4G325] 0/250 kPag, [4G330] 0/300 kPag, [4G340] 0/400 kPag, [4G360] 0/600 kPag, [4G370] 0/700 kPag, [4G410] 0/1000 kPag, [4G414] 0/1400 kPag, [4G416] 0/1600 kPag, [4G420] 0/2000 kPag, [4G425] 0/2500 kPag, [4G430] 0/3000 kPag, [4G440] 0/4000 kPag, [4G460] 0/6000 kPag, [4G470] 0/7000 kPag, [4G510] 0/10000 kPag, [4G514] 0/14000 kPag, [4G516] 0/16000 kPag, [4G520] 0/20000 kPag, [4G525] 0/25000 kPag, [4G532] 0/31500 kPag, ■ kPag vacuum ■, [4V310] -100/0 kPag, [4V316] -100/60 kPag, [4V320] -100/100 kPag, [4V325] -100/150 kPag, [4V330] -100/200 kPag, [4V340] -100/300 kPag, [4V350] -100/400 kPag, [4V360] -100/500 kPag, [4V380] -100/700 kPag, [4V410] -100/900 kPag, [4V411] -100/1000 kPag, [4V416] -100/1500 kPag, [4V425] -100/2400 kPag, [4V431] -100/3000 kPag, ■ MPag ■, 0/0.1 MPag (3G310), 0/0.16 MPag (3G316), 0/0.2 MPag (3G320), 0/0.25 MPag (3G325), 0/0.4 MPag (3G340), 0/0.6 MPag (3G360), 0/0.7 MPag (3G370), 0/1 MPag (3G410), 0/1.4 MPag (3G414), 0/1.6 MPag (3G416), 0/2.5 MPag (3G425), 0/3 MPag (3G430), 0/4 MPag (3G440), 0/6 MPag (3G460), 0/7 MPag (3G470), 0/10 MPag (3G510), 0/14 MPag (3G514), 0/16 MPag (3G516), 0/20 MPag (3G520), 0/25 MPag (3G525), 0/31.5 MPag (3G532), ■ MPag vacuum ■, [3V310] -0.1/0 MPag, [3V316] -0.1/0.06 MPag, [3V320] -0.1/0.1 MPag, [3V325] -0.1/0.15 MPag, [3V330] -0.1/0.2 MPag, [3V340] -0.1/0.3 MPag, [3V350] -0.1/0.4 MPag, [3V360] -0.1/0.5 MPag, [3V380] -0.1/0.7 MPag, [3V410] -0.1/0.9 MPag, [3V411] -0.1/1 MPag, [3V416] -0.1/1.5 MPag, [3V425] -0.1/2.4 MPag, [3V431] -0.1/3 MPag, ■ kg/cm2g ■, [AG298] 0/1 kg/cm2g, [AG316] 0/1.6 kg/cm2g, [AG320] 0/2 kg/cm2g, [AG325] 0/2.5 kg/cm2g, [AG339] 0/4 kg/cm2g, [AG349] 0/5 kg/cm2g, [AG359] 0/6 kg/cm2g, [AG369] 0/7 kg/cm2g, [AG398] 0/10 kg/cm2g, [AG414] 0/14 kg/cm2g, [AG416] 0/16 kg/cm2g, [AG420] 0/20 kg/cm2g, [AG425] 0/25 kg/cm2g, [AG429] 0/30 kg/cm2g, [AG439] 0/40 kg/cm2g, [AG459] 0/60 kg/cm2g, [AG469] 0/70 kg/cm2g, [AG498] 0/100 kg/cm2g, [AG514] 0/140 kg/cm2g, [AG516] 0/160 kg/cm2g, [AG520] 0/200 kg/cm2g, [AG525] 0/250 kg/cm2g, [AG531] 0/315 kg/cm2g, ■ kg/cm2g vacuum ■, [AV298] -1/0 kg/cm2g, [AV316] -1/0.6 kg/cm2g, [AV320] -1/1 kg/cm2g, [AV325] -1/1.5 kg/cm2g, [AV329] -1/2 kg/cm2g, [AV339] -1/3 kg/cm2g, [AV349] -1/4 kg/cm2g, [AV359] -1/5 kg/cm2g, [AV378] -1/7 kg/cm2g, [AV398] -1/9 kg/cm2g, [AV411] -1/10 kg/cm2g, [AV416] -1/15 kg/cm2g, [AV425] -1/24 kg/cm2g, [AV430] -1/30 kg/cm2g
2nd Scale [Z] Without, [B] bar, [P] psi, [L] kPa, [E] MPa, [K] kg/cm2
Process Connection [WI] 1/4" Swivel Female Face Seal, 9/16-18 UNF, [WH] 1/4" Swivel Male Face Seal, 9/16-18 UNF, [9F] 1/4" Swivel Female Face Seal-GR, 9/16-18 UNF, Gall Resistant, [9M] 1/4" Swivel Male Face Seal-GR, 9/16-18 UNF, Gall Resistant
Connector Location [UZZ] Lower Mount, [EZZ] 3 O'Clock, [GZZ] 9 O'Clock, [DZZ] 12 O'Clock
Accuracy Class [N] ± .25% (ASME B40.100 Grade 3A), [K] ± .5% (ASME B40.100 2A)
Set / Drag Pointer [Z] Without, [V] Drag Pointer Assembly, Permanent Reset Knob, [W] Drag Pointer Assembly, Removeable Reset Knob, [R] Externally Adjustable Red Set Pointer on Window
Nominal Size 4"
Mounting Flange / Bracket [Z] Without
Restrictor [Z] Without
Special Design Features [G] Oil And Grease Free for Oxygen Based on ASME B40.1 Level IV
Certificates [1Z24] Quality Certificates (Calibration of Listed Values)
Additional Ordering Info [Z24] Without
Overpressure Safety [1] Full Scale Value
Case Material [3] 304 SS
Pressure Element Material [3] 316L
Pointer [K] Adjustable Knife-Edge Pointer
Window [HZ] Laminated Safety Glass
Special Measuring Element [Z] Without
Ingress Protection [I2Z] IP 65
Movement [2] Standard
Assembly Accessory [Z] Without
Thread Protection [10] With Thread Protection
Packing [0] Individual Packing in Plastic Bag
Gauge Features
Gauge: Brand Wika
Gauge: Type Dial Indicating Gauge
Gauge: Model 332.54
Gauge: Dial Size 4 in (100 mm)
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type Gauge Pressure
Gauge: Measuring Principle Bourdon Tube
Gauge: Fill Type Dry
Gauge: Product Unit of Measure bar, psi / inHg, psi, kPa, MPa, barg, kg/cm2, psig, kPag, MPag, kg/cm2g
Gauge: Process Connection Size 9/16 - 18 UNF Female
Gauge: Process Connection Location Lower Mount, 3 o'clock, 9 o'clock, 12 o'clock
Gauge: Wetted Material Stainless Steel
Gauge: Accuracy ±0.5%, ±0.25%
Gauge: Ingress Protection IP 65
Gauge: Case Material Stainless Steel
Gauge: Window Laminated Safety Glass
