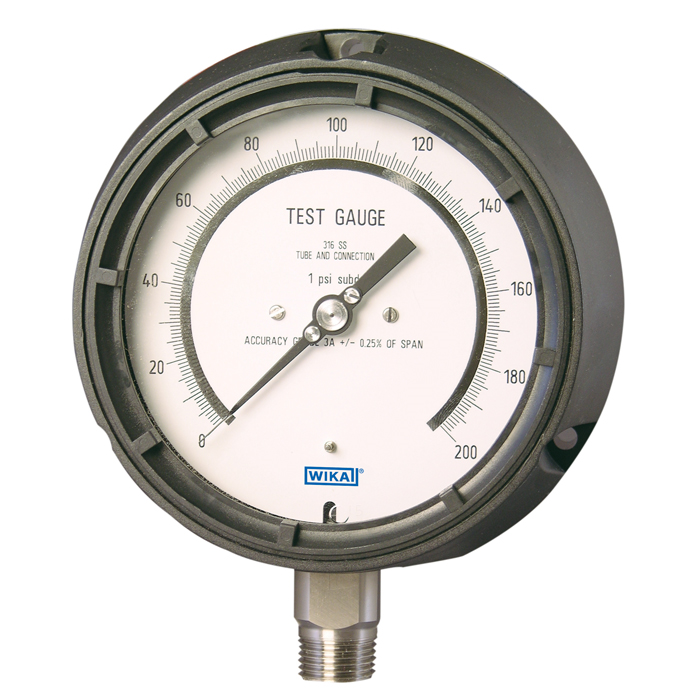

Representative photo. Please check item description for details.
Wika 332.34 Series 4.5" or 6" Dry POCAN Test Gauge, SS Wetted Parts
Manufacturer Wika Instrument Lp |
|
MADE TO ORDER
|
Datasheet |
332.34 SS Test Gauge
Specifications
Wika 332.34 | |
---|---|
Nominal Size | [U] 4.5" or [F] 6" |
Scale Range | ■ psi ■ or [PG310] 0/15 psi or [PG321] 0/30 psi or [PG341] 0/60 psi or [PG369] 0/100 psi or [PG410] 0/150 psi or [PG411] 0/160 psi or [PG414] 0/200 psi or [PG417] 0/250 psi or [PG421] 0/300 psi or [PG428] 0/400 psi or [PG434] 0/500 psi or [PG441] 0/600 psi or [PG455] 0/800 psi or [PG469] 0/1000 psi or [PG510] 0/1500 psi or [PG514] 0/2000 psi or [PG521] 0/3000 psi or [PG528] 0/4000 psi or [PG534] 0/5000 psi or [PG541] 0/6000 psi or [PG552] 0/7500 psi or [PG569] 0/10000 psi or [PG610] 0/15000 psi or [PG614] 0/20000 psi or ■ psi / -inHg ■ or [PV310] -30 inHg/0 psi or [PV321] -30 inHg/15 psi or [PV331] -30 inHg/30 psi or [PV352] -30 inHg/60 psi or [PV379] -30 inHg/100 psi or [PV412] -30 inHg/160 psi or [PV415] -30 inHg/200 psi or [PV422] -30 inHg/300 psi or ■ bar ■ or [BG310] 0/1 bar or [BG316] 0/1.6 bar or [BG320] 0/2 bar or [BG325] 0/2.5 bar or [BG340] 0/4 bar or [BG360] 0/6 bar or [BG370] 0/7 bar or [BG410] 0/10 bar or [BG414] 0/14 bar or [BG416] 0/16 bar or [BG420] 0/20 bar or [BG425] 0/25 bar or [BG430] 0/30 bar or [BG440] 0/40 bar or [BG460] 0/60 bar or [BG470] 0/70 bar or [BG510] 0/100 bar or [BG514] 0/140 bar or [BG516] 0/160 bar or [BG520] 0/200 bar or [BG525] 0/250 bar or [BG532] 0/315 bar or [BG540] 0/400 bar or [BG560] 0/600 bar or [BG570] 0/700 bar or [BG610] 0/1000 bar or [BG614] 0/1400 bar or [BG616] 0/1600 bar or ■ bar vacuum ■ or [BV260] -0.6/0 bar or [BV310] -1/0 bar or [BV316] -1/0.6 bar or [BV320] -1/1 bar or [BV325] -1/1.5 bar or [BV330] -1/2 bar or [BV340] -1/3 bar or [BV350] -1/4 bar or [BV360] -1/5 bar or [BV380] -1/7 bar or [BV410] -1/9 bar or [BV411] -1/10 bar or [BV416] -1/15 bar or [BV425] -1/24 bar or [BV431] -1/30 bar or ■ MPa ■ or [EG310] 0/0.1 MPa or [EG316] 0/0.16 MPa or [EG320] 0/0.2 MPa or [EG325] 0/0.25 MPa or [EG340] 0/0.4 MPa or [EG360] 0/0.6 MPa or [EG370] 0/0.7 MPa or [EG410] 0/1 MPa or [EG414] 0/1.4 MPa or [EG416] 0/1.6 MPa or [EG420] 0/2 MPa or [EG425] 0/2.5 MPa or [EG430] 0/3 MPa or [EG440] 0/4 MPa or [EG460] 0/6 MPa or [EG470] 0/7 MPa or [EG510] 0/10 MPa or [EG514] 0/14 MPa or [EG516] 0/16 MPa or [EG520] 0/20 MPa or [EG525] 0/25 MPa or [EG532] 0/31.5 MPa or [EG540] 0/40 MPa or [EG560] 0/60 MPa or [EG570] 0/70 MPa or [EG610] 0/100 MPa or [EG614] 0/140 MPa or [EG616] 0/160 MPa or ■ MPa vacuum ■ or [EV310] -0.1/0 MPa or [EV316] -0.1/0.06 MPa or [EV320] -0.1/0.1 MPa or [EV325] -0.1/0.15 MPa or [EV330] -0.1/0.2 MPa or [EV340] -0.1/0.3 MPa or [EV350] -0.1/0.4 MPa or [EV360] -0.1/0.5 MPa or [EV380] -0.1/0.7 MPa or [EV410] -0.1/0.9 MPa or [EV411] -0.1/1 MPa or [EV416] -0.1/1.5 MPa or [EV425] -0.1/2.4 MPa or [EV431] -0.1/3 MPa |
2nd Scale | [Z] Without or [B] bar or [P] psi or [L] kPa or [K] kg/cm2 |
Process Connection | [ND] 1/2 NPT or [NB] 1/4 NPT |
Connector Location | [U] Lower Mount or [3] Lower Back Mount |
Mounting Flange / Bracket | [Z] Without or [Q] Panel Adapter, Stainless Steel, Polished |
Window | [A] Acrylic (PMMA) or [G] Flat Instrument Glass or [H] Laminated Safety Glass |
Restrictor | [Z] Without or [Q] Stainless Steel, D 0.6 |
Accuracy Class | [K] ± .5% (ASME B40.100 2A) or [N] ± .25% (ASME B40.100 Grade 3A) |
Thread Protection | [Z2-UA] Without or [12-UA] With Thread Protection |
Color for Inner Scale | [ZZZZZZZZA126] Without or [CZZZZZZZA126] Red or [AZZZZZZZA126] Black |
Accuracy Class on Dial | [NRZ] *TEST-GAUGE* *ACCURACY +/- 0.25% OF SPAN* or [6RZ] *TEST GAUGE* *ACCURACY +/- 0.5% OF SPAN* |
Pointer | [KZ] Adjustable Knife-Edge Pointer |
Special Design Features | [Z] Without |
Certificates | [TZ] Non-NIST Calibration Test Report |
Additional Ordering Info | [Z] Without |
Packing | [2] Single Packing |
Pressure Gauge Standard | [U] US-Standard |
Color for Outer Scale | [A] Black |
Logo Options | [ZZZZZZZ] Without |
Manufacturer Logo | [A2] *WIKA®* |
Serial Number | [1] With Serial Number |
Stop Pin on Dial | [2] At 6 O'Clock |
Imprint Material on Dial | [6] *316 SS Tube and Connection* |
Norm-Mark on Dial | [R] *X X X SUBD* |
Text on Dial | [Z] Without |
Gauge Features | |
---|---|
Gauge: Brand | Wika |
Gauge: Type | Dial Indicating Gauge |
Gauge: Model | 332.34 |
Gauge: Dial Size | 4-1/2 in (110 & 115 mm), 6 in (160 mm) |
Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
Gauge: Pressure Type | Gauge Pressure |
Gauge: Measuring Principle | Bourdon Tube |
Gauge: Fill Type | Dry |
Gauge: Product Unit of Measure | psi / inHg, bar, MPa |
Gauge: Process Connection Size | 1/2 NPT, 1/4 NPT |
Gauge: Process Connection Location | Lower Mount, Lower Back Mount |
Gauge: Wetted Material | Stainless Steel |
Gauge: Accuracy | ±0.5%, ±0.25% |
Gauge: Case Material | POCAN |
Gauge: Window | Laminated Safety Glass, Flat Instrument Glass, Acrylic (PMMA) |
Gauge: Dial Material | Aluminum, White |
Gauge: Pointer Material | Aluminum, Black |
Gauge: Window Ring | Bayonet Ring |
Gauge: Pointer Type | Adjustable |
