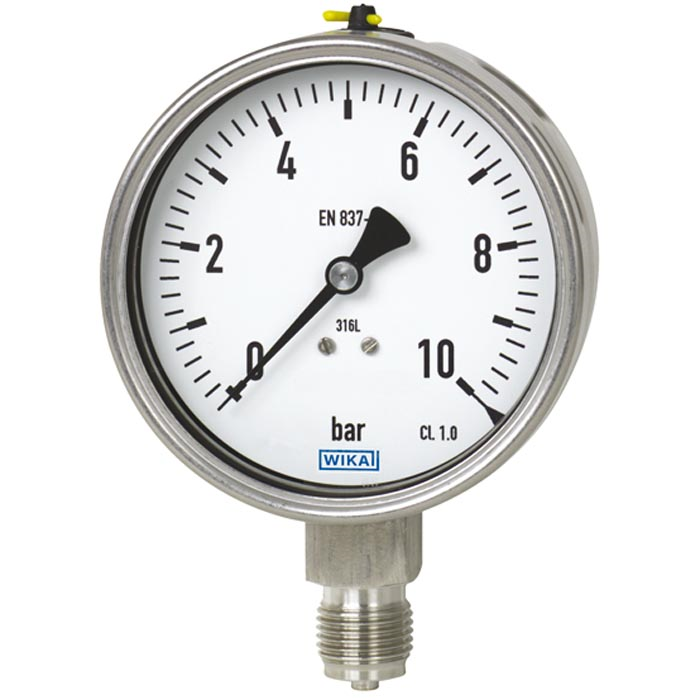

Wika 23x.50 Series 2.5" SS Pressure Gauge, Dry/Fillable, SS Wetted Parts
The Wika 23x.50 Stainless Steel Pressure Gauge is the optimal choice for demanding industrial applications. Its liquid-filled case makes it particularly well-suited for environments with high dynamic pressure pulsations or significant vibration, ensuring reliable performance even under the harshest conditions. Designed for use in corrosive environments, it excels in handling both gaseous and liquid media that do not obstruct the pressure system. This gauge is indispensable in the process industry, including chemical and petrochemical sectors, power stations, mining operations, both onshore and offshore platforms, environmental technology projects, as well as mechanical engineering and plant construction.
One of the standout features of the Wika 23x.50 is its exceptional load-cycle stability and shock resistance, ensuring long-lasting durability and precise measurements. Constructed entirely from stainless steel, it offers unmatched resilience and reliability in the field. With positive pressure ranges up to 20,000 psi (1600 bar), this gauge is versatile enough to meet the most rigorous demands of industrial applications.
When it comes to purchasing the Wika 23x.50 Stainless Steel Pressure Gauge, Branom stands out as the premier supplier. Branom's commitment to quality and customer satisfaction makes it the best choice for securing this high-performance pressure gauge for your industrial needs.
Specifications
| Wika 23x.50C | |
|---|---|
| Case Filling | [233.50-C] With, [232.50-C] Without |
| Scale Range | ￭ psi ￭, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi, [PG514] 0/2000 psi, [PG521] 0/3000 psi, [PG528] 0/4000 psi, [PG534] 0/5000 psi, [PG541] 0/6000 psi, [PG552] 0/7500 psi, [PG569] 0/10000 psi, [PG610] 0/15000 psi, ￭ psi / -inHg ￭, [PV310] -30 inHg/0 psi, ￭ bar ￭, [BG310] 0/1 bar, [BG316] 0/1.6 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG410] 0/10 bar, [BG416] 0/16 bar, [BG425] 0/25 bar, [BG440] 0/40 bar, [BG460] 0/60 bar, [BG510] 0/100 bar, [BG516] 0/160 bar, [BG525] 0/250 bar, [BG540] 0/400 bar, [BG560] 0/600 bar, [BG610] 0/1000 bar, ￭ bar vacuum ￭, [BV310] -1/0 bar, ￭ kPa ￭, [LG310] 0/100 kPa, [LG316] 0/160 kPa, [LG325] 0/250 kPa, [LG340] 0/400 kPa, [LG360] 0/600 kPa, [LG410] 0/1000 kPa, [LG416] 0/1600 kPa, [LG425] 0/2500 kPa, [LG440] 0/4000 kPa, [LG460] 0/6000 kPa, [LG510] 0/10000 kPa, [LG516] 0/16000 kPa, [LG525] 0/25000 kPa, [LG540] 0/40000 kPa, [LG560] 0/60000 kPa, [LG610] 0/100000 kPa, ￭ kPa vacuum ￭, [LV310] -100/0 kPa, ￭ MPa ￭, [EG310] 0/0.1 MPa, [EG316] 0/0.16 MPa, [EG325] 0/0.25 MPa, [EG340] 0/0.4 MPa, [EG360] 0/0.6 MPa, [EG410] 0/1 MPa, [EG416] 0/1.6 MPa, [EG425] 0/2.5 MPa, [EG440] 0/4 MPa, [EG460] 0/6 MPa, [EG510] 0/10 MPa, [EG516] 0/16 MPa, [EG525] 0/25 MPa, [EG540] 0/40 MPa, [EG560] 0/60 MPa, [EG610] 0/100 MPa, ￭ MPa vacuum ￭, [EV310] -0.1/0 MPa |
| 2nd Scale | [Z] Without, [B] bar, [P] psi, [L] kPa, [E] MPa, [K] kg/cm2 |
| Process Connection | [GB] G 1/4 B, [NB] 1/4 NPT, [GD] G 1/2 B, [ND] 1/2 NPT |
| Connector Location | [U] Lower Mount, [B] Center Back Mount |
| Mounting Flange / Bracket | [Z] Without, [C] Rear Flange, Stainless Steel, [F] Front Flange, Polished SS Standard), [K] Panel Mount w/Stainless Steel U-Clamp |
| Window | [H] Laminated Safety Glass, [E] Polycarbonate |
| Restrictor | [ZAZZ-ZZZZZZZ2] Without, [QAZZ-ZZZZZZZ2] Stainless Steel, D 0.6 |
| Accuracy Class | [I1] ±2/1/2% (ASME B40.100 Grade A), [L1] ±1% (ASME B40.100 Grade 1A) |
| Case Material | [3] Stainless Steel 1.4301 (Standard), [E] Stainless Steel 316Ti |
| Case Surface | [D] Bare, [6] Bare Case / Polished Ring |
| Material Pressure Element | [3] Measuring System 316L, [4] Measuring System 316 SS |
| Case Filling | [1Z] Prepared for Filling, [GZ] Glycerine-Water-Mixture, [PZ] Silicone, 1000 cSt, [AZ] Glycerin |
| Permissible Ambient Temp | [G0] -20 ... +60 °C, [W0] -40 ... +60 °C |
| Thread Protection | [Z2Z-U] Without, [12Z-U] With Thread Protection |
| Color for Inner Scale | [ZZZZZZ221ZZ] Without, [CZZZZZ221ZZ] Red |
| Nominal Size | 2.5" |
| Pointer | [A] Adjustable |
| Set / Drag Pointer | [Z] Without |
| Special Design Features | [Z] Without |
| Explosion Protection | [Z] Without |
| Ignition Protection | [Z] Without |
| Zone | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Assembly Accessory | [Z] Without |
| Additional Ordering Info | [Z2] Without |
| Overpressure Safety | [1] Full Scale Value |
| Special Measuring Element | [Z] Without |
| Ingress Protection | [I] IP 65 |
| Permissible Medium Temp | [Y] + 100 °C |
| Movement | [0] SS |
| Packing | [2] Single Packing |
| Origin of Wetted Parts | [Z] Without Specification |
| Pressure Gauge Standard | [U] US-Standard |
| Logo Options | [ZZZZZ] Without |
| Manufacturer Logo | [2] *WIKA®* |
| Serial Number | [2] With Serial Number |
| Stop Pin on Dial | [1] At Zero |
| Red Mark at | [Z] Without |
| Text for Dial | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 233.50, 232.50 |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi / inHg, bar, kPa, MPa, kg/cm2 |
| Gauge: Process Connection Size | 1/2 NPT, G 1/2 B, G 1/4 B, 1/4 NPT |
| Gauge: Process Connection Location | Lower Mount, Center Back Mount |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Accuracy | ±1%, ±2% |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Polycarbonate, Laminated Safety Glass |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Bezel Material | None |
| Gauge: Window Ring | Bayonet Ring |
| Gauge: Pointer Type | Adjustable |
