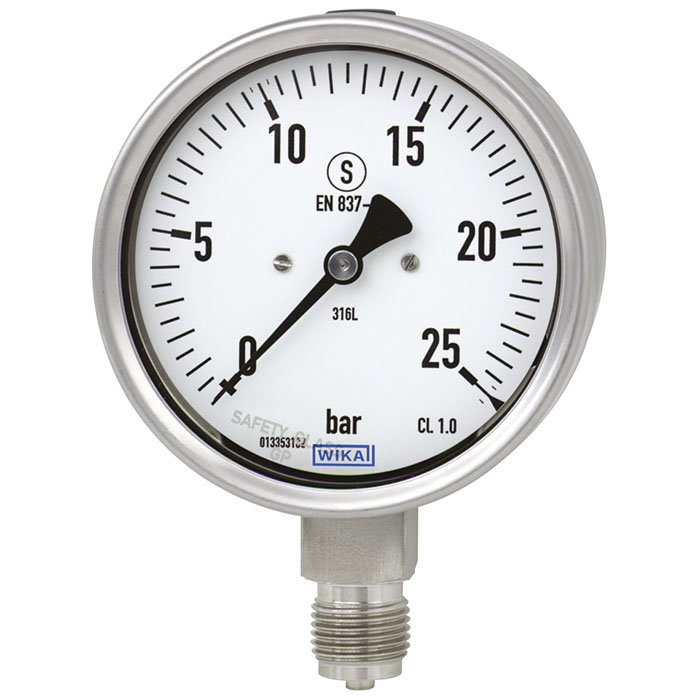

Wika 23x.30 Series 6" SS Solid-Front Safety Case Pressure Gauge, Dry/Fillable, SS Wetted Parts
The Wika 23x.30 Solid-Front Safety Case Pressure Gauge is the ideal solution for demanding applications where high dynamic pressure pulsations or vibrations are present. Designed for corrosive environments and suitable for both gaseous and liquid media that will not obstruct the pressure system, this gauge is a versatile choice for the process industry, including chemical and petrochemical sectors, power stations, mining operations, both onshore and offshore, environmental technology, mechanical engineering, and plant construction.
One of the standout features of the Wika 23x.30 is its solid-front stainless steel case, which ensures exceptional safety and reliability. The gauge boasts excellent load-cycle stability and shock resistance, making it highly durable and dependable in harsh conditions. Its all stainless steel construction further enhances its robustness, providing long-lasting performance even in the most challenging environments. Capable of handling positive pressure ranges up to 20,000 PSI (1,600 bar), it meets the rigorous demands of industrial applications with ease.
When it comes to purchasing the Wika 23x.30 Solid-Front Safety Case Pressure Gauge, Branom stands out as the premier choice. Renowned for their commitment to quality and customer satisfaction, Branom offers this top-of-the-line pressure gauge, ensuring you receive the best product for your specific needs. Choose Branom for your Wika 23x.30 gauge and experience unparalleled performance and reliability in your industrial processes.
Specifications
| Wika 23x.30F | |
|---|---|
| Case Filling | [233.30-F] With, [232.30-F] Without |
| Scale Range | ￭ psi ￭, [PG269] 0/10 psi, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi, [PG514] 0/2000 psi, [PG521] 0/3000 psi, [PG528] 0/4000 psi, [PG534] 0/5000 psi, [PG541] 0/6000 psi, [PG552] 0/7500 psi, [PG569] 0/10000 psi, [PG610] 0/15000 psi, [PG614] 0/20000 psi, ￭ psi / -inHg ￭, [PV251] -15 inHg/0 psi, [PV310] -30 inHg/0 psi, [PV321] -30 inHg/15 psi, [PV331] -30 inHg/30 psi, [PV352] -30 inHg/60 psi, [PV379] -30 inHg/100 psi, [PV412] -30 inHg/160 psi, [PV415] -30 inHg/200 psi, [PV422] -30 inHg/300 psi, ￭ bar ￭, [BG260] 0/0.6 bar, [BG310] 0/1 bar, [BG316] 0/1.6 bar, [BG320] 0/2 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG370] 0/7 bar, [BG410] 0/10 bar, [BG414] 0/14 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG430] 0/30 bar, [BG440] 0/40 bar, [BG460] 0/60 bar, [BG470] 0/70 bar, [BG510] 0/100 bar, [BG514] 0/140 bar, [BG516] 0/160 bar, [BG520] 0/200 bar, [BG525] 0/250 bar, [BG532] 0/315 bar, [BG540] 0/400 bar, [BG560] 0/600 bar, [BG570] 0/700 bar, [BG610] 0/1000 bar, [BG614] 0/1400 bar, [BG616] 0/1600 bar, ￭ bar vacuum ￭, [BV260] -0.6/0 bar, [BV310] -1/0 bar, [BV316] -1/0.6 bar, [BV320] -1/1 bar, [BV325] -1/1.5 bar, [BV330] -1/2 bar, [BV340] -1/3 bar, [BV350] -1/4 bar, [BV360] -1/5 bar, [BV380] -1/7 bar, [BV410] -1/9 bar, [BV411] -1/10 bar, [BV416] -1/15 bar, [BV425] -1/24 bar, [BV426] -1/25 bar, [BV431] -1/30 bar, ￭ kPa ￭, [LG260] 0/60 kPa, [LG270] 0/70 kPa, [LG310] 0/100 kPa, [LG316] 0/160 kPa, [LG320] 0/200 kPa, [LG325] 0/250 kPa, [LG330] 0/300 kPa, [LG340] 0/400 kPa, [LG360] 0/600 kPa, [LG370] 0/700 kPa, [LG380] 0/800 kPa, [LG410] 0/1000 kPa, [LG414] 0/1400 kPa, [LG416] 0/1600 kPa, [LG425] 0/2500 kPa, [LG430] 0/3000 kPa, [LG440] 0/4000 kPa, [LG460] 0/6000 kPa, [LG470] 0/7000 kPa, [LG480] 0/8000 kPa, [LG510] 0/10000 kPa, [LG514] 0/14000 kPa, [LG516] 0/16000 kPa, [LG520] 0/20000 kPa, [LG525] 0/25000 kPa, [LG532] 0/31500 kPa, [LG540] 0/40000 kPa, [LG560] 0/60000 kPa, [LG570] 0/70000 kPa, [LG580] 0/80000 kPa, [LG610] 0/100000 kPa, ￭ kPa vacuum ￭, [LV260] -60/0 kPa, [LV310] -100/0 kPa, [LV316] -100/60 kPa, [LV320] -100/100 kPa, [LV325] -100/150 kPa, [LV330] -100/200 kPa, [LV340] -100/300 kPa, [LV350] -100/400 kPa, [LV360] -100/500 kPa, [LV380] -100/700 kPa, [LV410] -100/900 kPa, [LV411] -100/1000 kPa, [LV416] -100/1500 kPa, [LV425] -100/2400 kPa, [LV431] -100/3000 kPa, ￭ MPa ￭, [EG260] 0/0.06 MPa, [EG310] 0/0.1 MPa, [EG316] 0/0.16 MPa, [EG320] 0/0.2 MPa, [EG325] 0/0.25 MPa, [EG340] 0/0.4 MPa, [EG360] 0/0.6 MPa, [EG370] 0/0.7 MPa, [EG410] 0/1 MPa, [EG414] 0/1.4 MPa, [EG416] 0/1.6 MPa, [EG420] 0/2 MPa, [EG425] 0/2.5 MPa, [EG430] 0/3 MPa, [EG440] 0/4 MPa, [EG460] 0/6 MPa, [EG470] 0/7 MPa, [EG510] 0/10 MPa, [EG514] 0/14 MPa, [EG516] 0/16 MPa, [EG520] 0/20 MPa, [EG525] 0/25 MPa, [EG532] 0/31.5 MPa, [EG540] 0/40 MPa, [EG560] 0/60 MPa, [EG570] 0/70 MPa, [EG610] 0/100 MPa, [EG614] 0/140 MPa, ￭ MPa vacuum ￭, [EV260] -0.06/0 MPa, [EV310] -0.1/0 MPa, [EV316] -0.1/0.06 MPa, [EV320] -0.1/0.1 MPa, [EV325] -0.1/0.15 MPa, [EV330] -0.1/0.2 MPa, [EV340] -0.1/0.3 MPa, [EV350] -0.1/0.4 MPa, [EV360] -0.1/0.5 MPa, [EV380] -0.1/0.7 MPa, [EV410] -0.1/0.9 MPa, [EV411] -0.1/1 MPa, [EV416] -0.1/1.5 MPa, [EV425] -0.1/2.4 MPa, [EV431] -0.1/3 MPa, ￭ kg/cm2 ￭, [KG259] 0/0.6 kg/cm2, [KG298] 0/1 kg/cm2, [KG316] 0/1.6 kg/cm2, [KG320] 0/2 kg/cm2, [KG325] 0/2.5 kg/cm2, [KG339] 0/4 kg/cm2, [KG359] 0/6 kg/cm2, [KG369] 0/7 kg/cm2, [KG398] 0/10 kg/cm2, [KG414] 0/14 kg/cm2, [KG416] 0/16 kg/cm2, [KG420] 0/20 kg/cm2, [KG425] 0/25 kg/cm2, [KG429] 0/30 kg/cm2, [KG439] 0/40 kg/cm2, [KG459] 0/60 kg/cm2, [KG469] 0/70 kg/cm2, [KG498] 0/100 kg/cm2, [KG514] 0/140 kg/cm2, [KG516] 0/160 kg/cm2, [KG520] 0/200 kg/cm2, [KG525] 0/250 kg/cm2, [KG531] 0/315 kg/cm2, [KG539] 0/400 kg/cm2, [KG559] 0/600 kg/cm2, [KG569] 0/700 kg/cm2, [KG598] 0/1000 kg/cm2, [KG614] 0/1400 kg/cm2, [KG616] 0/1600 kg/cm2, ￭ kg/cm2 vacuum ￭, [KV259] -0.6/0 kg/cm2, [KV298] -1/0 kg/cm2, [KV316] -1/0.6 kg/cm2, [KV320] -1/1 kg/cm2, [KV325] -1/1.5 kg/cm2, [KV329] -1/2 kg/cm2, [KV339] -1/3 kg/cm2, [KV349] -1/4 kg/cm2, [KV359] -1/5 kg/cm2, [KV378] -1/7 kg/cm2, [KV398] -1/9 kg/cm2, [KV411] -1/10 kg/cm2, [KV416] -1/15 kg/cm2, [KV425] -1/24 kg/cm2, [KV430] -1/30 kg/cm2 |
| 2nd Scale | [Z] Without, [B] bar, [P] psi, [L] kPa, [E] MPa, [K] kg/cm2 |
| Process Connection | [GB] G 1/4 B, [NB] 1/4 NPT, [GD] G 1/2 B, [ND] 1/2 NPT |
| Mounting Flange / Bracket | [Z] Without, [S] SS Surface Mounting Lugs, [F] Front Flange, Polished SS (Standard) |
| Window | [HZ] Laminated Safety Glass, [EZ] Polycarbonate |
| Pointer | [C] Standard Pointer, [A] Adjustable Pointer |
| Set / Drag Pointer | [ZZ-ZZZZZZZ] Without, [SZ-ZZZZZZZ] Externally Adjustable Red Drag Pointer on Window |
| Accuracy Class | [K] ±.5% (ASME B40.100 2A), [L] ±1% (ASME B40.100 Grade 1A) |
| Overpressure Safety | [1] Full Scale Value, [4] 1.6 x Full Scale Value + Vacuum Down to -1 Bar, [5] 2 x Full Scale Value + Vacuum Down to -1 Bar |
| Case Surface | [D] Bare, [6] Bare Case / Polished Ring |
| Case Filling | [1Z] Prepared For Filling, [2Z] No Filling, Not To Fill, [AZ] Glycerine, [GZ] Glycerine-Water-Mixture, [PZ] Silicone, 1000 cSt |
| Ingress Protection | [F] IP 54, [I] IP 65, [K] IP 66 |
| Permissible Medium Temp | [3] + 200 °C, [Y] + 100 °C |
| Permissible Ambient Temp | [G0] -20 ... +60 °C, [W0] -40 ... +60 °C |
| Thread Protection | [Z2Z-U] Without, [12Z-U] With Thread Protection |
| Color for Inner Scale | [ZZZZZZ22] Without, [CZZZZZ22] Red |
| Stop Pin on Dial | [ZZZ] Without, [2ZZ] At 6 o'clock, [1ZZ] At Zero |
| Nominal Size | 6" |
| Connector Location | [U] Lower Mount |
| Restrictor | [Z] Without |
| Special Design Features | [Z] Without |
| Explosion Protection | [Z] Without |
| Ignition Protection | [Z] Without |
| Zone | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Assembly Accessory | [Z] Without |
| Additional Ordering Info | [Z2] Without |
| Case Material | [3] 304 SS |
| Pressure Element Material | [3] 316 L SS |
| Special Measuring Element | [Z] Without |
| Movement | [0] SS |
| Packing | [2] Single Packing |
| Origin of Wetted Parts | [Z] Without Specification |
| Pressure Gauge Standard | [U] US-Standard |
| Logo Options | [ZZZZZ] Without |
| Manufacturer Logo | [2] *WIKA®* |
| Serial Number | [2] With Serial Number |
| Red Mark at | [Z] Without |
| Text for Dial | [Z] Without |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 233.30, 232.30 |
| Gauge: Dial Size | 6 in (160 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi / inHg, bar, kPa, MPa, kg/cm2 |
| Gauge: Process Connection Size | 1/2 NPT, 1/4 NPT, G 1/4 B, G 1/2 B |
| Gauge: Process Connection Location | Lower Mount |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Accuracy | ±0.5%, ±1% |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Polycarbonate, Laminated Safety Glass |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Bezel Material | None |
| Gauge: Window Ring | Bayonet Ring |
| Gauge: Pointer Type | Adjustable |
