Specifications

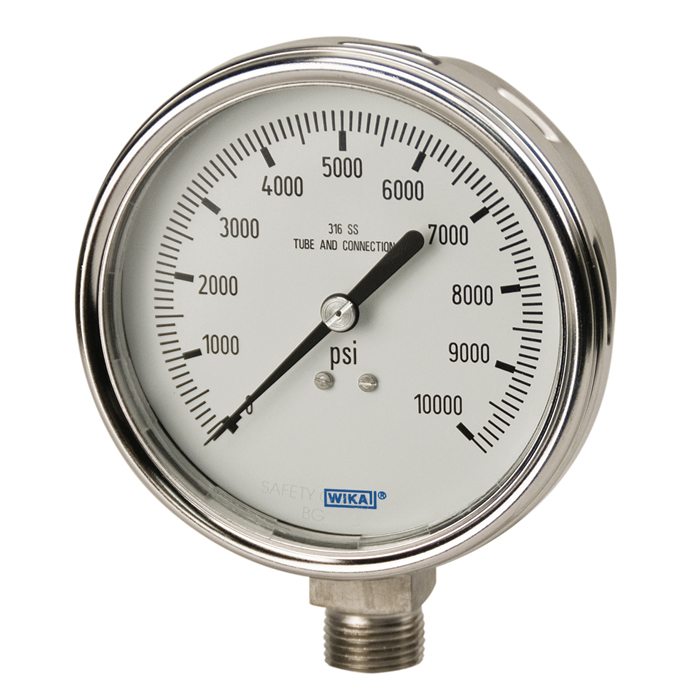

| Wika 233.54 | |
|---|---|
| Scale Range | ￭ psi ￭, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi*, [PG514] 0/2000 psi*, [PG521] 0/3000 psi*, [PG528] 0/4000 psi*, [PG534] 0/5000 psi*, [PG541] 0/6000 psi*, [PG552] 0/7500 psi*, [PG569] 0/10000 psi*, [PG610] 0/15000 psi*, ￭ inHg / psi ￭, [PV310] -30 inHg/0 psi*, [PV321] -30 inHg/15 psi*, [PV331] -30 inHg/30 psi*, [PV352] -30 inHg/60 psi*, [PV379] -30 inHg/100 psi*, [PV412] -30 inHg/160 psi*, [PV415] -30 inHg/200 psi*, [PV422] -30 inHg/300 psi*, ￭ bar ￭, [BG310] 0/1 bar, [BG316] 0/1.6 bar, [BG320] 0/2 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG370] 0/7 bar, [BG410] 0/10 bar, [BG414] 0/14 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG430] 0/30 bar, [BG440] 0/40 bar, [BG460] 0/60 bar, [BG470] 0/70 bar, [BG510] 0/100 bar*, [BG514] 0/140 bar*, [BG516] 0/160 bar*, [BG520] 0/200 bar*, [BG525] 0/250 bar*, [BG532] 0/315 bar*, [BG540] 0/400 bar*, [BG560] 0/600 bar*, [BG570] 0/700 bar*, [BG610] 0/1000 bar*, ￭ bar vacuum ￭, [BV431] 1/30 bar*, [BV310] -1/0 bar*, [BV316] -1/0.6 bar*, [BV320] -1/1 bar*, [BV325] -1/1.5 bar*, [BV330] -1/2 bar*, [BV340] -1/3 bar*, [BV350] -1/4 bar*, [BV360] -1/5 bar*, [BV380] -1/7 bar*, [BV410] -1/9 bar*, [BV411] -1/10 bar*, [BV416] -1/15 bar*, [BV425] -1/24 bar*, [BV426] -1/25 bar*, [BV431] -1/30 bar* |
| 2nd Scale | [Z] Without, [B] bar, [P] psi, [L] kPa, [K] kg/cm2 |
| Process Connection | [NB] 1/4 NPT, [ND] 1/2 NPT, [NH] 1/8 NPT, [GD] G 1/2 B |
| Connector Location | [U] Lower Mount, [3] Lower Back Mount |
| Mounting Flange / Bracket | [Z] Without, [C] Rear Flange, SS, [F] Front Flange, Polished SS⠀, [K] Panel Mount w/SS U-Clamp⠀ |
| Restrictor | [ZZ-ZZZ21] Without, [QZ-ZZZ21] SS, D 0.6 |
| Case Filling | [AAZ] Glycerine⠀, [9AZ] Silicone Oil, 350 cSt⠀, [PAZ] Silicone, 1000 cSt⠀ |
| Window | [HZ] Laminated Safety Glass, [EZ] Polycarbonate |
| Thread Protection | [Z2Z] Without, [12Z] With Thread Protection |
| Nominal Size | 4" |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Approvals | [Z] Without |
| Additional Ordering Info | [Z21] Without |
| Accuracy Class | [L136] ± 1% (ASME B40.100 Grade 1A) |
| Overpressure Safety | [1] Full Scale Value |
| Case Material | [3] 304 SS |
| Case Surface | [6] Base Case / Polished Ring |
| Pressure Element Material | [3] 316L SS |
| Pointer | [A] Adjustable |
| Set / Drag Pointer | [Z] Without |
| Special Measuring Element | [Z] Without |
| Ingress Protection | [I0Z] IP 65 |
| Movement | [0] SS |
| Assembly Accessory | [Z] Without |
| Packing | [2] Single Packing |
| Origin of Wetted Parts | [Z] Without Specification |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Product Unit of Measure | psi / inHg, bar |
| Gauge: Process Connection Location | Lower Mount, Lower Back Mount |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Polycarbonate, Laminated Safety Glass |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Bezel Material | Stainless Steel |
| Gauge: Window Ring | Bayonet Ring, Removable |
| Gauge: Pointer Type | Adjustable |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Dial Size | 4 in (100 mm) |
| Gauge: Process Connection Size | 1/8 NPT, 1/4 NPT, G 1/2 B, 1/2 NPT |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 233.54 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Type | Dial Indicating Gauge |
