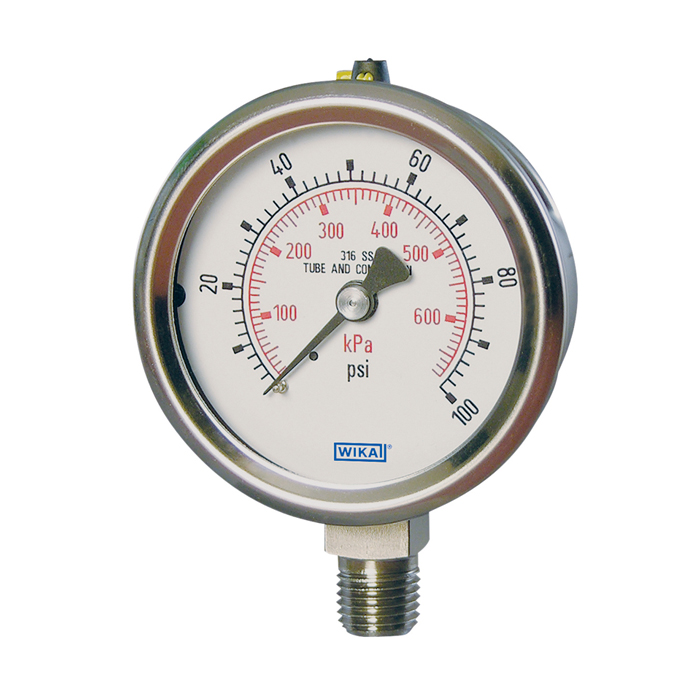

Wika 233.53 Series 4" SS Pressure Gauge, Liquid Filled, Crimped Ring, SS Wetted Parts

Hide Configurator

• Nominal Size
  • 4"
• Scale Range ￭ psi ￭ [PG310] 0/15 psi [PG321] 0/30 psi [PG341] 0/60 psi [PG369] 0/100 psi [PG411] 0/160 psi [PG414] 0/200 psi [PG417] 0/250 psi [PG421] 0/300 psi [PG428] 0/400 psi [PG434] 0/500 psi [PG441] 0/600 psi [PG455] 0/800 psi [PG469] 0/1000 psi [PG510] 0/1500 psi* + $ 7.72 [PG514] 0/2000 psi* + $ 7.72 [PG521] 0/3000 psi* + $ 7.72 [PG528] 0/4000 psi* + $ 7.72 [PG534] 0/5000 psi* + $ 7.72 [PG541] 0/6000 psi* + $ 7.72 [PG552] 0/7500 psi* + $ 7.72 [PG569] 0/10000 psi* + $ 7.72 [PG610] 0/15000 psi + $ 44.54 [PG610] 0/15000 psi* + $ 58.38 ￭ inHg / psi ￭ [PV310] -30 inHg/0 psi* + $ 6.90 [PV321] -30 inHg/15 psi* + $ 6.90 [PV331] -30 inHg/30 psi* + $ 6.90 [PV352] -30 inHg/60 psi* + $ 6.90 [PV379] -30 inHg/100 psi* + $ 6.90 [PV412] -30 inHg/160 psi* + $ 6.90 [PV415] -30 inHg/200 psi* + $ 6.90 [PV422] -30 inHg/300 psi* + $ 6.90 ￭ bar ￭ [BG310] 0/1 bar [BG316] 0/1.6 bar [BG320] 0/2 bar [BG325] 0/2.5 bar [BG340] 0/4 bar [BG360] 0/6 bar [BG370] 0/7 bar [BG410] 0/10 bar [BG414] 0/14 bar [BG416] 0/16 bar [BG420] 0/20 bar [BG425] 0/25 bar [BG430] 0/30 bar [BG440] 0/40 bar [BG460] 0/60 bar [BG470] 0/70 bar [BG510] 0/100 bar* + $ 7.72 [BG514] 0/140 bar* + $ 7.72 [BG516] 0/160 bar* + $ 7.72 [BG520] 0/200 bar* + $ 7.72 [BG525] 0/250 bar* + $ 7.72 [BG532] 0/315 bar* + $ 7.72 [BG540] 0/400 bar* + $ 7.72 [BG560] 0/600 bar* + $ 7.72 [BG570] 0/700 bar* + $ 7.72 [BG610] 0/1000 bar* + $ 58.38 ￭ bar vacuum ￭ [BV310] -1/0 bar* + $ 6.90 [BV316] -1/0.6 bar* + $ 6.90 [BV320] -1/1 bar* + $ 6.90 [BV325] -1/1.5 bar* + $ 6.90 [BV330] -1/2 bar* + $ 6.90 [BV340] -1/3 bar* + $ 6.90 [BV350] -1/4 bar* + $ 6.90 [BV360] -1/5 bar* + $ 6.90 [BV380] -1/7 bar* + $ 6.90 [BV410] -1/9 bar* + $ 6.90 [BV411] -1/10 bar* + $ 6.90 [BV416] -1/15 bar* + $ 6.90 [BV425] -1/24 bar* + $ 6.90 [BV426] -1/25 bar* + $ 6.90 [BV431] -1/30 bar* + $ 6.90
• 2nd Scale
  • [Z] Without
  • [B] bar dual scale
  • [P] psi dual scale
  • [L] kPa dual scale
  • [K] kg/cm2 dual scale
• Process Connection
  • [NB] 1/4 NPT
  • [ND] 1/2 NPT
  • [GB] G 1/4 B
  • [GD] G 1/2 B
• Connector Location
  • [U] Lower Mount
  • [3] Lower Back Mount + $ 19.41
• Mounting Flange / Bracket
  • [Z] Without
  • [F] Front Flange, Polished SS⠀ + $ 40.22
  • [C] Rear Flange, SS⠀ + $ 35.18
  • [K] Panel Mount w/SS U-Clamp⠀ + $ 46.81
  • [M] Front Flange, SS + $ 40.23
• Restrictor
  • [ZZ-ZZZZ22] Without
  • [QZ-ZZZZ22] SS, D 0.6 Restrictor + $ 10.37
• Special Design Features
  • Without
• Certificates
  • Without
• Approvals
  • Without
• Additional Ordering Info
  • Without
• Accuracy Class
  • [L1363] +/- 1%
• Overpressure Safety
  • Full Scale Value
• Case Material
  • 304 SS Case
• Case Surface
  • Bare Case / Polished Ring
• Pressure Element Material
  • 316L SS
• Case Filling
  • [A] Glycerine⠀ + $ 24.37
  • [P] Silicone, 1000 cSt⠀ + $ 61.02
  • [9] Silicone Oil, 350 cSt⠀ + $ 61.02
• Pointer
  • [C] Standard Pointer
• Set / Drag Pointer
  • [Z] Without
  • [R] Externally Adjustable Red Set + $ 148.27
• Window
  • [EZ] Polycarbonate Window
  • [HZ] Laminated Safety GlassWindow + $ 45.06
  • [AZ] Acrylic Window + $ 1.23
• Special Measuring Element
  • Without
• Ingress Protection
  • [I0Z] IP 65
• Movement
  • SS
• Assembly Accessory
  • Without
• Thread Protection
  • [Z2Z] Without
  • [12Z] Thread Protection + $ 5.94
• Packing
  • Single Packing
• Origin of Wetted Parts
  • Without Specification
• Gauge: Brand Wika
• Gauge: Type Dial Indicating Gauge
• Gauge: Product Unit of Measure psi / inHg
• Gauge: Product Unit of Measure bar
• Gauge: Process Connection Location Lower Mount
• Gauge: Process Connection Location Center Back Mount
• Gauge: Case Material Stainless Steel
• Gauge: Window Polycarbonate
• Gauge: Dial Material Aluminum
• Gauge: Pointer Material Aluminum
• Gauge: Bezel Material Stainless Steel
• Gauge: Window Ring Crimped Ring
• Gauge: Wetted Material Stainless Steel
• Gauge: Fill Type Liquid Filled / Fillable
• Gauge: Dial Size 4 in (100 mm)
• Gauge: Process Connection Size 1/8 NPT
• Gauge: Process Connection Size 1/4 NPT
• Gauge: Process Connection Size G 1/2 B
• Gauge: Accuracy ±1%
• Gauge: Measuring Principle Bourdon Tube
• Gauge: Pressure Type Gauge Pressure
• Gauge: Model 233.53
• Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)

This combination does not exist.
