Description
Specifications

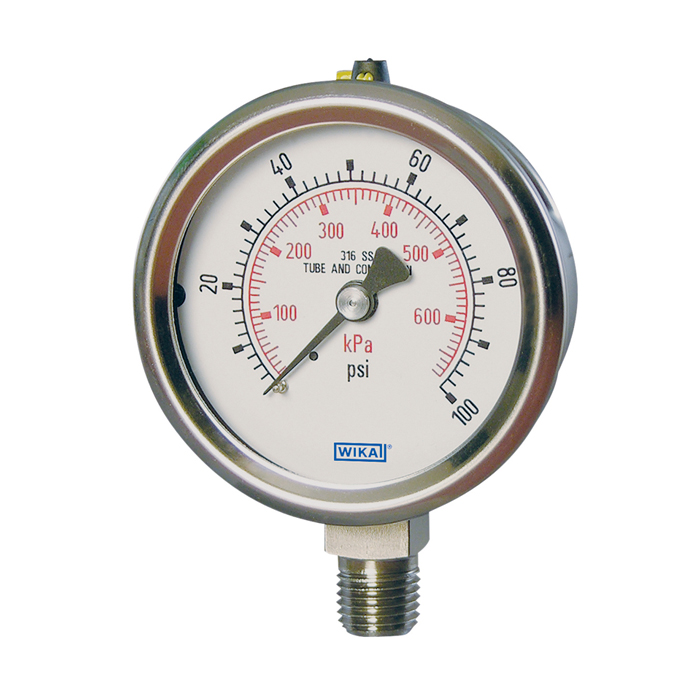

| Wika 233.53 | |
|---|---|
| Scale Range | ￭ psi ￭, 0/15 psi, 0/30 psi, 0/60 psi, 0/100 psi, 0/160 psi, 0/200 psi, 0/250 psi, 0/300 psi, 0/400 psi, 0/500 psi, 0/600 psi, 0/800 psi, 0/1000 psi, 0/1500 psi, 0/2000 psi, 0/3000 psi, 0/4000 psi, 0/5000 psi, 0/6000 psi, 0/7500 psi, 0/10000 psi, 0/15000 psi, ￭ inHg / psi ￭, -30 inHg/0 psi, -30 inHg/15 psi, -30 inHg/30 psi, -30 inHg/60 psi, -30 inHg/100 psi, -30 inHg/160 psi, -30 inHg/200 psi, -30 inHg/300 psi, ￭ bar ￭, 0/1 bar, 0/1.6 bar, 0/2 bar, 0/2.5 bar, 0/4 bar, 0/6 bar, 0/7 bar, 0/10 bar, 0/14 bar, 0/16 bar, 0/20 bar, 0/25 bar, 0/30 bar, 0/40 bar, 0/60 bar, 0/70 bar, 0/100 bar, 0/140 bar, 0/160 bar, 0/200 bar, 0/250 bar, 0/315 bar, 0/400 bar, 0/600 bar, 0/700 bar, 0/1000 bar, ￭ bar vacuum ￭, -1/0 bar, -1/0.6 bar, -1/1 bar, -1/1.5 bar, -1/2 bar, -1/3 bar, -1/4 bar, -1/5 bar, -1/7 bar, -1/9 bar, -1/10 bar, -1/15 bar, -1/24 bar, -1/25 bar, -1/30 bar |
| 2nd Scale | Without, bar dual scale, psi dual scale, kPa dual scale, kg/cm2 dual scale |
| Process Connection | 1/4 NPT, 1/8 NPT, G 1/4 B |
| Connector Location | Lower Mount, Center Back Mount |
| Mounting Flange / Bracket | Without, Front Flange, Polished SS, Panel Mount w/Zinc Plated Mounting Brackets, Panel Mount w/SS U-Clamp |
| Restrictor | Without, SS, D 0.6 Restrictor |
| Case Filling | Glycerine, Silicone, 1000 cSt, Silicone Oil, 350 cSt, Glycerine/Water Mixture |
| Set / Drag Pointer | Without, Externally Adjustable Red Set |
| Window | Polycarbonate Window, Laminated Safety Glass Window, Flex Window, Optically Clear Window |
| Ingress Protection | IP 65, IP 66 |
| Thread Protection | Without, Thread Protection |
| Nominal Size | 2.5" |
| Special Design Features | Without |
| Certificates | Without |
| Approvals | Without |
| Additional Ordering Info | Without |
| Accuracy Class | +/- 2/1/2% |
| Overpressure Safety | Full Scale Value |
| Case Material | 304 SS Case |
| Case Surface | Bare Case / Polished Ring |
| Pressure Element Material | 316 SS |
| Pointer | Standard Pointer |
| Special Measuring Element | Without |
| Movement | SS |
| Assembly Accessory | Without |
| Packing | Single Packing |
| Origin of Wetted Parts | Without Specification |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psi / inHg, bar |
| Gauge: Process Connection Location | Lower Mount, Center Back Mount |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Polycarbonate |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Bezel Material | Stainless Steel |
| Gauge: Window Ring | Crimped Ring |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm) |
| Gauge: Process Connection Size | 1/8 NPT, 1/4 NPT |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 233.53 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
