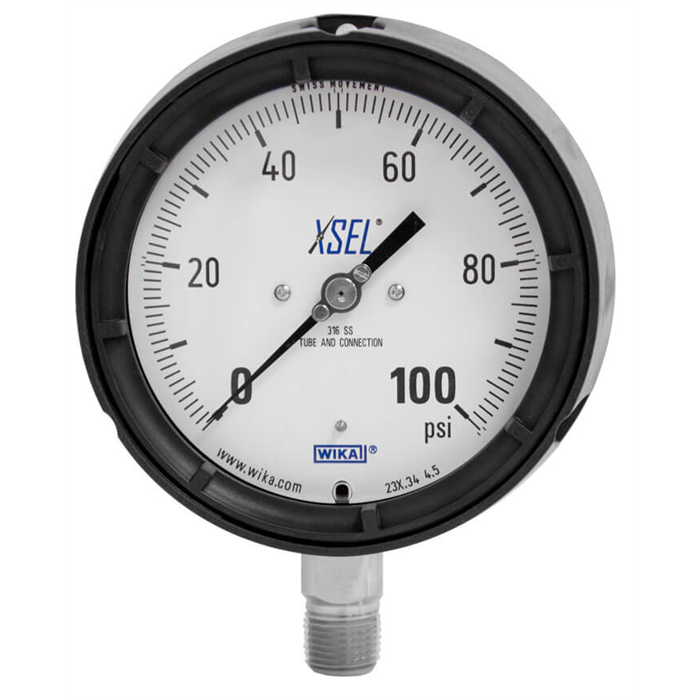

Wika 232.34 Series 6" SS Dry Process Gauge, SS Wetted Parts
Introducing the Series 234.34 XSEL® Process Gauge, designed to thrive in demanding environments and applications. Ideal for industries such as chemical/petrochemical, power stations, mining, and more, it's equipped to handle high dynamic pressure pulsations and vibrations with options for a liquid-filled case and socket restrictor.
Crafted from stainless steel, this gauge is built to withstand corrosive environments and is compatible with gaseous or liquid media without obstructing the pressure system. With excellent load-cycle stability and shock resistance, along with positive pressure ranges up to 30,000 psi (2,000 bar), it ensures reliable performance under extreme conditions.
Featuring a solid front thermoplastic case and factory-prepared lower mount connections for case filling, the Series 234.34 XSEL® Process Gauge offers durability, precision, and convenience for accurate pressure measurement in diverse industrial settings.
Available through Branom Instrument Co., your trusted source for top-quality instrumentation. Branom is the preferred seller for all your industrial measurement needs.
Order Code Prefix: 232.34-H-
Specifications
| Wika 232.34H | |
|---|---|
| Scale Range | ￭ psi ￭, [PG269] 0/10 psi, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi, [PG514] 0/2000 psi, [PG521] 0/3000 psi, [PG528] 0/4000 psi, [PG534] 0/5000 psi, [PG541] 0/6000 psi, [PG552] 0/7500 psi, [PG569] 0/10000 psi, [PG610] 0/15000 psi, [PG614] 0/20000 psi, ￭ inHg / psi ￭, [PV310] -30 inHg/0 psi, [PV321] -30 inHg/15 psi, [PV331] -30 inHg/30 psi, [PV352] -30 inHg/60 psi, [PV379] -30 inHg/100 psi, [PV412] -30 inHg/160 psi, [PV415] -30 inHg/200 psi, [PV422] -30 inHg/300 psi, ￭ bar ￭, [BG260] 0/0.6 bar , [BG310] 0/1 bar , [BG316] 0/1.6 bar , [BG325] 0/2.5 bar , [BG340] 0/4 bar , [BG360] 0/6 bar , [BG410] 0/10 bar , [BG416] 0/16 bar , [BG425] 0/25 bar , [BG440] 0/40 bar , [BG460] 0/60 bar , [BG510] 0/100 bar , [BG516] 0/160 bar , [BG525] 0/250 bar , [BG540] 0/400 bar , [BG560] 0/600 bar , [BG610] 0/1000 bar , [BG616] 0/1600 bar , [BG620] 0/2000 bar , ￭ bar vacuum ￭, [BV310] -1/0 bar , [BV316] -1/0.6 bar , [BV325] -1/1.5 bar , [BV340] -1/3 bar , [BV360] -1/5 bar , [BV410] -1/9 bar , [BV416] -1/15 bar , [BV425] -1/24 bar , ￭ kPa ￭, [LG260] 0/60 kPa , [LG310] 0/100 kPa , [LG316] 0/160 kPa , [LG325] 0/250 kPa , [LG340] 0/400 kPa , [LG360] 0/600 kPa , [LG410] 0/1000 kPa , [LG416] 0/1600 kPa , [LG425] 0/2500 kPa , [LG440] 0/4000 kPa , [LG460] 0/6000 kPa , [LG510] 0/10000 kPa , [LG516] 0/16000 kPa , [LG525] 0/25000 kPa , [LG540] 0/40000 kPa , [LG560] 0/60000 kPa , [LG610] 0/100000 kPa , ￭ kPa vacuum ￭, [LV310] -100/0 kPa , [LV316] -100/60 kPa , [LV325] -100/150 kPa , [LV340] -100/300 kPa , [LV360] -100/500 kPa , [LV410] -100/900 kPa , [LV416] -100/1500 kPa , [LV425] -100/2400 kPa , ￭ kg / cm2 ￭, [KG259] 0/0.6 kg/cm2 , [KG298] 0/1 kg/cm2 , [KG316] 0/1.6 kg/cm2 , [KG325] 0/2.5 kg/cm2 , [KG339] 0/4 kg/cm2 , [KG359] 0/6 kg/cm2 , [KG398] 0/10 kg/cm2 , [KG416] 0/16 kg/cm2 , [KG425] 0/25 kg/cm2 , [KG439] 0/40 kg/cm2 , [KG459] 0/60 kg/cm2 , [KG498] 0/100 kg/cm2 , [KG516] 0/160 kg/cm2 , [KG525] 0/250 kg/cm2 , [KG539] 0/400 kg/cm2 , [KG559] 0/600 kg/cm2 , [KG598] 0/1000 kg/cm2 , [KG616] 0/1600 kg/cm2 , [KG620] 0/2000 kg/cm2 , ￭ kg / cm2 vacuum ￭, [KV298] -1/0 kg/cm2 , [KV316] -1/0.6 kg/cm2 , [KV325] -1/1.5 kg/cm2 , [KV339] -1/3 kg/cm2 , [KV359] -1/5 kg/cm2 , [KV398] -1/9 kg/cm2 , [KV416] -1/15 kg/cm2 , [KV425] -1/24 kg/cm2 |
| 2nd Scale | [Z] Without, [B] bar, [P] psi, [L] kPa, [E] MPa, [K] kg/cm2 |
| Process Connection | [NB] 1/4 NPT, [ND] 1/2 NPT, [GB] G 1/4 B, [GD] G 1/2 B |
| Connector Location | [UZ] Lower Mount, [3Z] Lower Back Mount |
| Window | [A] Acrylic (PMMA), [H] Laminated Safety Glass |
| Restrictor | [ZAZZ-ZZZZZ] Without, [QAZZ-ZZZZZ] SS, D 0.6 |
| Accuracy Class | [K1PB3] ±0.5% (ASME B40.100 2A), [21PB3] Class 1.0 |
| Case Filling | [2Z] Dry Gauge, [1Z] Prepared for Filling |
| Ingress Protection | [FY] IP 54, [IY] IP 65 |
| Permissible Ambient Temp | [G] -20 ... +60 °C, [W] -40 ... +60 °C |
| Movement | [0 Z2ZZ] Stainless Steel, [S Z2ZZ] SS, Silicon Dampened Movement |
| Nominal Size | 6" |
| Mounting Flange / Bracket | [Z] Without |
| Pointer | [A] Adjustable |
| Set / Drag Pointer | [Z] Without |
| Special Design Features | [Z] Without |
| Certificates | [Z] Without |
| Assembly Accessory | [Z] Without |
| Electric Alarm Contact | [Z] Without |
| Additional Ordering Info | [ZZ] Without |
| Overpressure Safety | [1P] Full Scale Value |
| Case Color | [B] Black |
| Pressure Element Material | [3] 316L SS |
| Permissible Medium Temp | [Y] +100 °C |
| Thread Protection | [Z] Without |
| Packing | [2] Single Packing |
| Origin of Wetted Parts | [ZZ] Without Specification |
| Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Model | 232.34 |
| Gauge: Dial Size | 6 in (160 mm) |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Fill Type | Dry, Liquid Filled / Fillable |
| Gauge: Product Unit of Measure | psi / inHg, bar, kPa, kg/cm2 |
| Gauge: Process Connection Size | 1/4 NPT, 1/2 NPT, G 1/4 B, G 1/2 B |
| Gauge: Process Connection Location | Lower Mount, Lower Back Mount |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Accuracy | ±0.5%, ±1% |
| Gauge: Ingress Protection | IP 54, IP 65 |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Acrylic (PMMA), Laminated Safety Glass |
