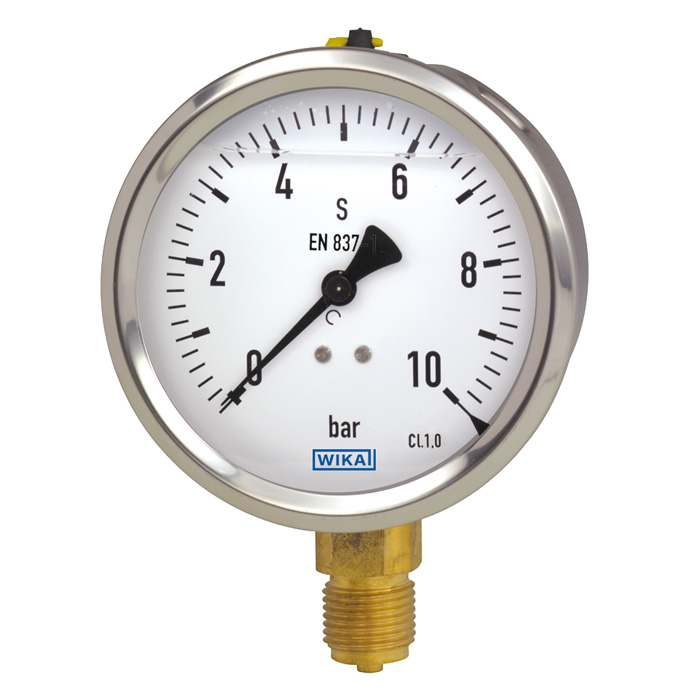

Description
Specifications
| Wika 21x.53E | |
|---|---|
| Case Filling | Without, With |
| Scale Range | ￭ psi ￭, 0/10 psi, 0/15 psi, 0/30 psi, 0/60 psi, 0/100 psi, 0/160 psi, 0/200 psi, 0/250 psi, 0/300 psi, 0/400 psi, 0/500 psi, 0/600 psi, 0/1000 psi, 0/1500 psi, 0/2000 psi, 0/3000 psi, 0/5000 psi, 0/6000 psi, 0/7500 psi, 0/10000 psi, 0/15000 psi, ￭ inHg / psi ￭, -15 inHg/0 psi, -30 inHg/0 psi, -30 inHg/15 psi, -30 inHg/30 psi, -30 inHg/60 psi, -30 inHg/100 psi, -30 inHg/160 psi, -30 inHg/200 psi, -30 inHg/300 psi, ￭ bar ￭, 0/0.6 bar, 0/1 bar, 0/1.6 bar, 0/2 bar, 0/2.5 bar, 0/4 bar, 0/6 bar, 0/7 bar, 0/10 bar, 0/14 bar, 0/16 bar, 0/20 bar, 0/25 bar, 0/30 bar, 0/40 bar, 0/60 bar, 0/70 bar, 0/100 bar, 0/140 bar, 0/160 bar, 0/200 bar, 0/250 bar, 0/270 bar, 0/315 bar, 0...350 bar, 0/400 bar, 0/600 bar, 0/700 bar, 0/1000 bar, ￭ bar vacuum ￭, -0.6/0 bar, -1/0 bar, -1/0.6 bar, -1/1 bar, -1/1.5 bar, -1/2 bar, -1/3 bar, -1/4 bar, -1/5 bar, -1/7 bar, -1/9 bar, -1/10 bar, -1/15 bar, -1/24 bar, -1/25 bar, -1/30 bar |
| 2nd Scale | Without, bar dual scale, psi dual scale, kPa dual scale, kg/cm2 dual scale |
| Process Connection | 1/4 NPT, G 1/2 B, 1/2 NPT |
| Connector Location | Lower Mount, Lower Back Mount |
| Mounting Flange / Bracket | Without, Rear Flange, Stainless Steel, Front Flange, Polished Stainless Steel |
| Restrictor | Without, Brass, D 0.3 |
| Case Filling Fluid | Glycerine, Glycerine-Water-Mixture, Prepared for Filling, Silicone, 1000 cSt |
| Set / Drag Pointer | Without, Externally Adjustable Red Set Pointer on Window |
| Window | Polycarbonate Window, Laminated Safety Glass Window |
| Color for Inner Scale | Without, Red, Black, Green Pantone 0355 |
| Serial Number on Dial | With Serial Number, Without |
| Nominal Size | 4" |
| Special Design Features | Without |
| Certificates | Without |
| Approvals | Without |
| Assembly Accessory | Without |
| Additional Ordering Info | Without |
| Accuracy Class | ± 1% |
| Overpressure Safe | Full Scale Value |
| Pointer | Standard Pointer |
| Thread Protection | Without |
| Packing | Single Packing |
| Pressure Gauge Standard | US-Standard |
| Logo Options | Without |
| Manufacturer Logo | *WIKA®* |
| Stop Pin on Dial | Without |
| Red Mark at | Without |
| Text for Dial | Without |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psi / inHg, bar |
| Gauge: Process Connection Location | Lower Mount, Lower Back Mount |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Polycarbonate, Laminated Safety Glass |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Bezel Material | Stainless Steel |
| Gauge: Window Ring | Crimped Ring |
| Gauge: Wetted Material | Copper Alloy (Brass) |
| Gauge: Fill Type | Liquid Filled / Fillable, Dry |
| Gauge: Dial Size | 4 in (100 mm) |
| Gauge: Process Connection Size | 1/8 NPT, 1/4 NPT, G 1/2 B |
| Gauge: Accuracy | ±1% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 212.53 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
