  2. All Products
  3. Wika 21x.53 Series 2.5" SS Pressure Gauge, Crimped Ring, Brass Wetted Parts
PressureWorx

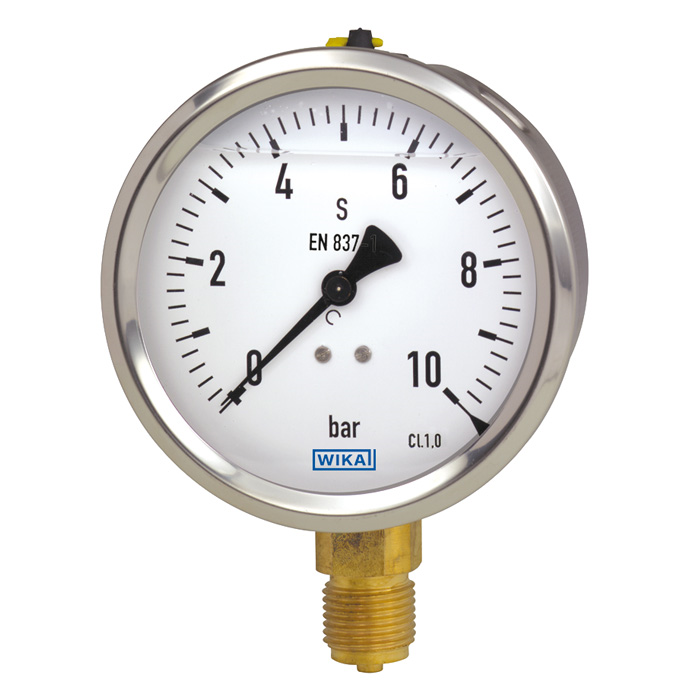

Representative photo. Please check item description for details.

Wika 21x.53 Series 2.5" SS Pressure Gauge, Crimped Ring, Brass Wetted Parts

https://www.pressureworx.com/web/image/product.template/543353/image_1920?unique=16c2d0c
(0 review)

Manufacturer
Wika Instrument Lp
5 in Stock


Datasheet

$ 34.78 34.775999999999996 USD $ 36.80

$ 36.80

Not Available For Sale

  • Nominal Size
  • Case Filling
  • Scale Range
  • 2nd Scale
  • Process Connection
  • Connector Location
  • Mounting Flange / Bracket
  • Restrictor
  • Special Design Features
  • Certificates
  • Approvals
  • Additional Ordering Info
  • Accuracy Class
  • Overpressure Safety
  • Case Filling
  • Pointer
  • Set / Drag Pointer
  • Window
  • Thread Protection
  • Packing
  • Serial Number on Dial
  • Dial
  • Gauge: Brand
  • Gauge: Type
  • Gauge: Model
  • Gauge: Model
  • Gauge: Dial Size
  • Gauge: Scale Range
  • Gauge: Pressure Type
  • Gauge: Measuring Principle
  • Gauge: Fill Type
  • Gauge: Fill Type
  • Gauge: Product Unit of Measure
  • Gauge: Product Unit of Measure
  • Gauge: Process Connection Size
  • Gauge: Process Connection Size
  • Gauge: Process Connection Location
  • Gauge: Process Connection Location
  • Gauge: Wetted Material
  • Gauge: Accuracy
  • Gauge: Accuracy
  • Gauge: Case Material
  • Gauge: Window
  • Gauge: Window
  • Gauge: Window
  • Gauge: Dial Material
  • Gauge: Pointer Material
  • Gauge: Bezel Material
  • Gauge: Window Ring

This combination does not exist.

Contact Us

Share

Description

Specifications

Wika 21x.53
Case Filling [212.53-C] Without, [213.53-C] With
Scale Range ￭ psi ￭, [PG269] 0/10 psi, [PG310] 0/15 psi, [PG321] 0/30 psi, [PG341] 0/60 psi, [PG369] 0/100 psi, [PG410] 0/150 psi, [PG411] 0/160 psi, [PG414] 0/200 psi, [PG417] 0/250 psi, [PG421] 0/300 psi, [PG428] 0/400 psi, [PG434] 0/500 psi, [PG441] 0/600 psi, [PG455] 0/800 psi, [PG469] 0/1000 psi, [PG510] 0/1500 psi, [PG514] 0/2000 psi, [PG521] 0/3000 psi, [PG528] 0/4000 psi, [PG534] 0/5000 psi, [PG569] 0/10000 psi, [PG610] 0/15000 psi, ￭ inHg / psi ￭, [PV251] -15 inHg/0 psi, [PV310] -30 inHg/0 psi, [PV321] -30 inHg/15 psi, [PV331] -30 inHg/30 psi, [PV352] -30 inHg/60 psi, [PV379] -30 inHg/100 psi, [PV412] -30 inHg/160 psi, [PV415] -30 inHg/200 psi, [PV422] -30 inHg/300 psi, ￭ bar ￭, [BG260] 0/0.6 bar, [BG310] 0/1 bar, [BG316] 0/1.6 bar, [BG320] 0/2 bar, [BG325] 0/2.5 bar, [BG340] 0/4 bar, [BG360] 0/6 bar, [BG370] 0/7 bar, [BG410] 0/10 bar, [BG412] 0...12 bar, [BG414] 0/14 bar, [BG416] 0/16 bar, [BG420] 0/20 bar, [BG425] 0/25 bar, [BG430] 0/30 bar, [BG435] 0/35 bar, [BG440] 0/40 bar, [BG460] 0/60 bar, [BG470] 0/70 bar, [BG510] 0/100 bar, [BG514] 0/140 bar, [BG516] 0/160 bar, [BG520] 0/200 bar, [BG525] 0/250 bar, [BG532] 0/315 bar, [BG540] 0/400 bar, [BG560] 0/600 bar, [BG570] 0/700 bar, [BG610] 0/1000 bar, ￭ bar vacuum ￭, [BV260] -0.6/0 bar, [BV310] -1/0 bar, [BV316] -1/0.6 bar, [BV320] -1/1 bar, [BV325] -1/1.5 bar, [BV330] -1/2 bar, [BV340] -1/3 bar, [BV350] -1/4 bar, [BV360] -1/5 bar, [BV380] -1/7 bar, [BV410] -1/9 bar, ￭ kPa ￭, [LG260] 0/60 kPa, [LG310] 0/100 kPa, [LG316] 0/160 kPa, [LG320] 0/200 kPa, [LG325] 0/250 kPa, [LG330] 0/300 kPa, [LG340] 0/400 kPa, [LG360] 0/600 kPa, [LG370] 0/700 kPa, [LG380] 0/800 kPa, [LG410] 0/1000 kPa, [LG414] 0/1400 kPa, [LG416] 0/1600 kPa, [LG425] 0/2500 kPa, [LG430] 0/3000 kPa, [LG440] 0/4000 kPa, [LG460] 0/6000 kPa, [LG470] 0/7000 kPa, [LG480] 0/8000 kPa, [LG510] 0/10000 kPa, [LG514] 0/14000 kPa, [LG516] 0/16000 kPa, [LG520] 0/20000 kPa, [LG525] 0/25000 kPa, [LG532] 0/31500 kPa, [LG540] 0/40000 kPa, [LG560] 0/60000 kPa, [LG570] 0/70000 kPa, [LG610] 0/100000 kPa, ￭ kPa vacuum ￭, [LV260] -60/0 kPa, [LV310] -100/0 kPa, [LV316] -100/60 kPa, [LV320] -100/100 kPa, [LV325] -100/150 kPa, [LV330] -100/200 kPa, [LV340] -100/300 kPa, [LV350] -100/400 kPa, [LV360] -100/500 kPa, [LV380] -100/700 kPa, [LV410] -100/900 kPa, [LV411] -100/1000 kPa, [LV416] -100/1500 kPa, [LV425] -100/2400 kPa, [LV431] -100/3000 kPa
2nd Scale [Z] without, [B] bar, [P] psi, [L] kPa, [E] MPa, [K] kg/cm2
Process Connection [GB] G 1/4 B, [NB] 1/4 NPT, [GA] G 1/8 B, [NH] 1/8 NPT, [UA] 7/16-20 UNF SAE #4 J1926 Male
Connector Location [U] Lower Mount, [A] Back Mount
Mounting Flange / Bracket [Z] Without, [C] Rear Flange, Stainless Steel, [F] Front Flange, Polished SS (Std.), [3] U-Clamp Bracket, Zinc Plated Steel
Restrictor [ZZ-ZZZ53] Without, [LZ-ZZZ53] Brass, D 0.3
Accuracy Class [I1] ± 2/1/2% (ASME B40.100 Grade A), [J1] ± 3/2/3% (ASME B40.100 Grade B)
Case Filling [VYZ] Prepared for Filling, [AYZ] Glycerine, [GYZ] Glycerine-Water Mixture, [PYZ] Silicone, 1000 cSt, [9YZ] Silicone Oil, 350 cSt
Window [N] Plastic, Clear, [H] Laminated Safety Glass, [B] Flex Window
Thread Protection [Z2Z] Without, [12Z] With Thread Protection
Dial [A-ZZx] Plastic, White, w/Stop Pin, [S-ZZx] Plastic, White w/o Stop Pin, [B-ZZx] Aluminum, White, w/Stop Pin, [C-ZZx] Aluminum, White, w/o Stop Pin
Nominal Size 2.5"
Special Design Features [Z] Without
Certificates [Z] Without
Approvals [Z] Without
Additional Ordering Info [Z53] Without
Overpressure Safety [1] Full Scale Value
Pointer [Y] Aluminum, Black
Set / Drag Pointer [Z] Without
Packing [2] Single Packing
Serial Number on Dial [Z] Without
Gauge Features
Gauge: Brand Wika
Gauge: Type Dial Indicating Gauge
Gauge: Model 212.53, 213.53
Gauge: Dial Size 2-1/2 in (63 mm & 68 mm)
Gauge: Scale Range ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar)
Gauge: Pressure Type Gauge Pressure
Gauge: Measuring Principle Bourdon Tube
Gauge: Fill Type Liquid Filled / Fillable, Dry
Gauge: Product Unit of Measure psi / inHg, bar
Gauge: Process Connection Size 1/8 NPT, 1/4 NPT
Gauge: Process Connection Location Lower Mount, Back Mount
Gauge: Wetted Material Copper Alloy (Brass)
Gauge: Accuracy ±2%, ±3%
Gauge: Case Material Stainless Steel
Gauge: Window Snap-In, Clear Plastic, Laminated Safety Glass, Flex Window
Gauge: Dial Material Aluminum
Gauge: Pointer Material Aluminum
Gauge: Bezel Material Stainless Steel
Gauge: Window Ring Crimped Ring
