Description

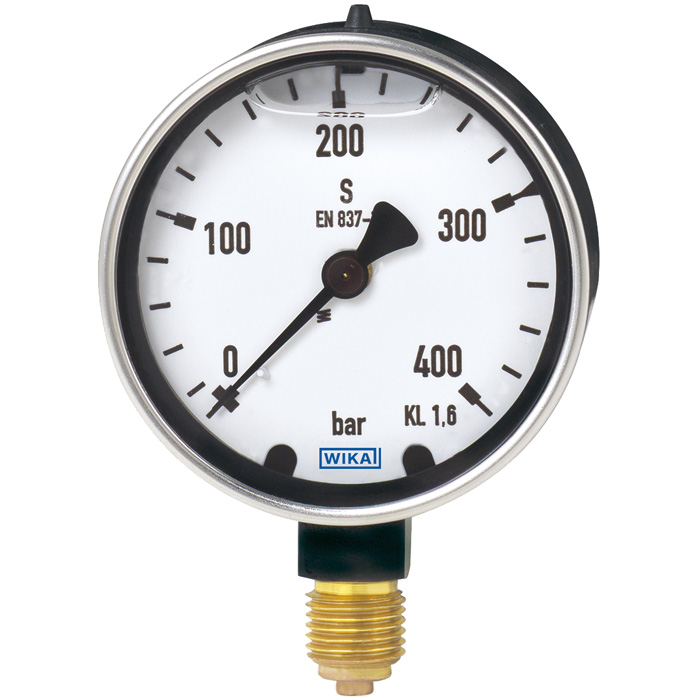

The WIKA 213.40 Series is a robust, liquid-filled pressure gauge specifically designed for demanding industrial applications where pulsation or vibration is a concern. The 2.5" size and brass wetted parts make it ideal for use with air, water, oil, gas, and non-corrosive media, providing reliable and accurate pressure measurement in a variety of industries.
The liquid-filled case dampens the effects of vibration and pulsation, significantly extending the gauge's service life and ensuring stable, easy-to-read measurements even in harsh environments.
Key Features & Benefits
Liquid Filled Case: Protects the internal components from high vibration and rapid pressure fluctuations (pulsation), increasing the gauge's durability and readability.
Brass Wetted Parts: Cost-effective solution for use with common industrial media such as air, water, oil, and non-corrosive fluids.
Robust Construction: Features a durable stainless steel case and a crimp ring connection for a strong, reliable enclosure.
High Accuracy: Manufactured to a high standard, meeting ASME B40.100 Grade A (± 1% of span) for precise readings.
Versatile Mounting: Available with standard lower mount (LM) or center back mount (CBM) process connection.
Easy Readability: White aluminum dial with clear black lettering and a black aluminum pointer ensure quick and accurate reading.
Specifications
| Wika 213.40 | |
|---|---|
| Scale Range | ￭ psi ￭, 0/10 psi, 0/15 psi, 0/30 psi, 0/60 psi, 0/100 psi, 0/160 psi, 0/200 psi, 0/250 psi, 0/300 psi, 0/400 psi, 0/500 psi, 0/600 psi, 0/1000 psi, 0/1500 psi, 0/2000 psi, 0/3000 psi, 0/5000 psi, 0/6000 psi, 0/7500 psi, 0/10000 psi, 0/15000 psi, ￭ psi / inHg ￭, -15 inHg/0 psi, -30 inHg/0 psi, -30 inHg/15 psi, -30 inHg/30 psi, -30 inHg/60 psi, -30 inHg/100 psi, -30 inHg/160 psi, -30 inHg/200 psi, -30 inHg/300 psi |
| 2nd Scale | Without, bar dual scale, kPa dual scale |
| Process Connection | 1/4 NPT, 7/16-20 UNF SAE #4 J1926 male |
| Connector Location | Lower Mount, Center Back Mount |
| Bezel Ring | Without, Gold Plated ABS Ring |
| Mounting Flange / Bracket | Without, Black Flange, Black Steel, Front Flange, Chrome Plated Steel, Narrow Panel Ring, Polished SS, Rolled on, With Mouning Bracket |
| Restrictor | Without, Brass, D 0.3 |
| Nominal Size | 2.5" |
| Case Material | Forged Brass, Gold Painted |
| Window | Acrylic Window |
| Accuracy Class | ± 2/1/2% |
| Set / Drag Pointer | Without |
| Case Filling | Glycerin |
| Special Design Features | Without |
| Certificates | Without |
| Approvals | Without |
| Additional Ordering Info | Without |
| Thread Protection | Without |
| Packing | Single Packing |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psi / inHg |
| Gauge: Process Connection Location | Lower Mount, Center Back Mount |
| Gauge: Case Material | Copper Alloy |
| Gauge: Window | Acrylic (PMMA) |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Wetted Material | Copper Alloy (Brass) |
| Gauge: Fill Type | Liquid Filled / Fillable |
| Gauge: Dial Size | 2-1/2 in (63 mm & 68 mm), 6 in (160 mm) |
| Gauge: Process Connection Size | 7/16 - 20 UNF, 1/4 NPT |
| Gauge: Accuracy | ±2% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 213.40 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
