Description
Specifications

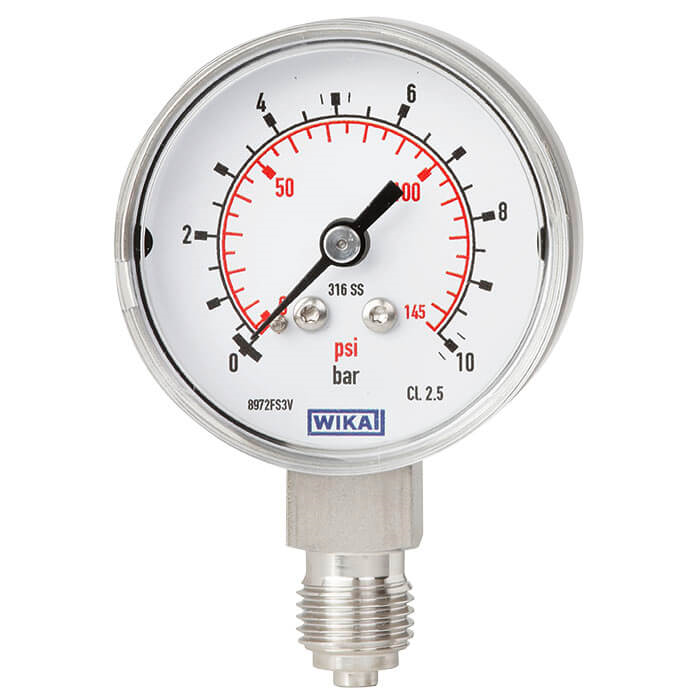

| Wika 131.11B | |
|---|---|
| Scale Range | ￭ psi ￭, 0/15 psi, 0/30 psi, 0/60 psi, 0/100 psi, 0/150 psi, 0/160 psi, 0/200 psi, 0/250 psi, 0/300 psi, 0/400 psi, 0/500 psi, 0/600 psi, 0/800 psi, 0/1000 psi, 0/1500 psi, 0/2000 psi, 0/3000 psi, 0/4000 psi, 0/5000 psi, 0/6000 psi, 0/7500 psi, ￭ psi / -inHg ￭, -30 inHg/0 psi, -30 inHg/15 psi, -30 inHg/30 psi, -30 inHg/60 psi, -30 inHg/100 psi, -30 inHg/160 psi, -30 inHg/200 psi, -30 inHg/300 psi |
| 2nd Scale | Without, bar dual scale, kPa dual scale |
| Process Connection | 1/4 NPT, 1/8" NPT |
| Connector Location | Lower Mount, Center Back Mount |
| Mounting Flange / Bracket | Without, Profile Ring, SS, w/Mounting Bracket |
| Bezel Ring | Without, Stainless Steel |
| Restrictor | Without, Stainless Steel, D 0.6 |
| Thread Protection | Without, Thread Protection |
| Packing | Series Packing, Single Packing |
| Color for Inner Scale | Without, Red |
| Nominal Size | 2" |
| Window | Polycarbonate |
| Special Design Features | Without |
| Certificates | Without |
| Approvals | Without |
| Additional Ordering Info | Without |
| Accuracy Class | +/- 3/2/3% |
| Case Material | 304 SS |
| Case Type | Standard |
| Case Surface | Bare |
| Pressure Element Material | 316 SS |
| Ingress Protection | IP 54 |
| Permissible Ambient Temp | -40 ... +60 °C |
| Assembly Accessory | Without |
| Pressure Gauge Standard | US-Standard |
| Logo Options | Without |
| Manufacturer Logo | *WIKA®* |
| Serial Number on Dial | Serial Number *...* |
| Stop Pin on Dial | At Zero |
| Red Mark at | Without |
| Text for Dial | Without |
| Press. Gauge Features | |
|---|---|
| Gauge: Brand | Wika |
| Gauge: Type | Dial Indicating Gauge |
| Gauge: Product Unit of Measure | psi / inHg |
| Gauge: Process Connection Location | Center Back Mount, Lower Mount |
| Gauge: Case Material | Stainless Steel |
| Gauge: Window | Polycarbonate |
| Gauge: Dial Material | Aluminum |
| Gauge: Pointer Material | Aluminum |
| Gauge: Bezel Material | Stainless Steel |
| Gauge: Window Ring | Without |
| Gauge: Wetted Material | Stainless Steel |
| Gauge: Fill Type | Dry |
| Gauge: Dial Size | 2 in (50 mm) |
| Gauge: Process Connection Size | 1/8 NPT, 1/4 NPT |
| Gauge: Accuracy | ±3% |
| Gauge: Measuring Principle | Bourdon Tube |
| Gauge: Pressure Type | Gauge Pressure |
| Gauge: Model | 131.11 |
| Gauge: Scale Range | ≥ 10 psi (0.6 bar) to ≤ 15,000 psi (1,000 bar) |
